Specifications

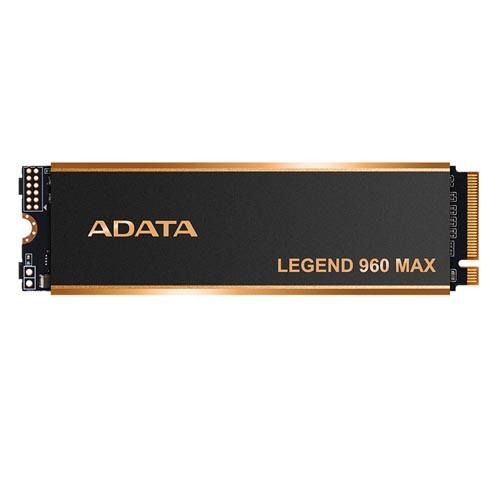

| Model Name | LEGEND 960 Max |
| Model Part No. | ALEG-960M-1TCS |
| Capacity | 1TB |
| Form factor | M.2 2280NAND |
| NAND Flash | 3D NAND |
| Controller | SMI SM2264 |
| Dimensions (L x W x H) | 80 x 22 x 4.68mm / 3.15 x 0.87 x 0.18inch (with heat sink) 80 x 22 x 3.38mm / 3.15 x 0.87 x 0.13inch (without heat sink) |
| Weight | 12g / 0.42oz (with heat sink) 8g / 0.28oz (without heat sink) |
| Interface | PCIe Gen4 x4 |
| Sequential Read (Max) | Up to 7,400MB/s (PC/Laptop)*, up to 6,400MB/s (PS5) |
| Sequential Write (Max) | Up to 6,000MB/s* |
| 4KB Random Read IOPS(Max) | Up to 730K |
| 4KB Random Write IOPS(Max) | Up to 610K |
| Operating temperature | 0°C – 70°C |
| Storage temperature | -40°C-85°C |
| Shock resistance | 1500G/0.5ms |
| MTBF | 2,000,000 hours |
| Terabytes Written (TBW) | 780TB |
| Warranty | 5Years |
| Note | *** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
Key Features
- Sequential Read: Up to 7,400MB/s (PC/Laptop)*, up to 6,400MB/s (PS5)
- Sequential Write: Up to 6,000MB/s
- Capacity: 1TB storage space
- Form Factor: M.2 2280 with optional heat sink (80 x 22 x 4.68mm / 80 x 22 x 3.38mm)
- Random IOPS: Up to 730K 4KB Random Read and 610K 4KB Random Write
- TBW: 780TB for longevity
- Warranty: 5Years
- Operating Temperature: 0°C – 70°C
- MTBF: 2,000,000 hours
