Specifications

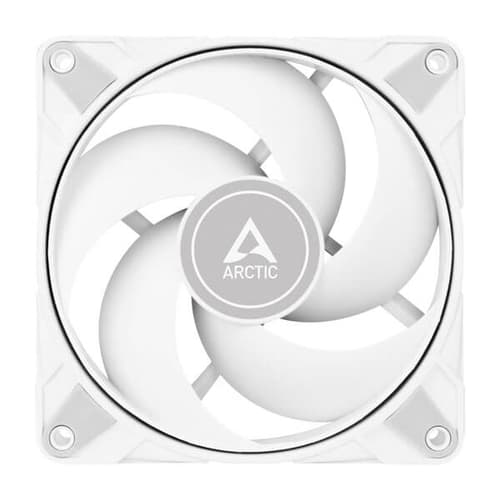

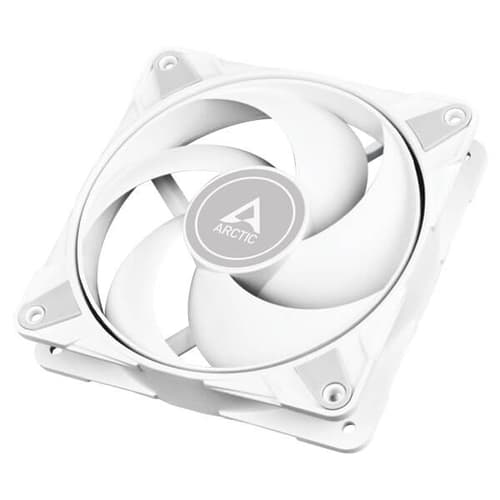

| Model Name | P12 Max |
| Color | White |
| Model Number | ACFAN00293A |
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Net Weight | 184 g |
| Operating Ambient Temperature | 0–40 °C |
| Fan Speed | 200–3300 rpm (PWM controlled), 0 rpm below 5 % PWM |
| Airflow | 81.04cfm | 137.69m³/h |
| Static Pressure | 4.35 mmH2O |
| Noise Level | 0.6 Sone |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.9V DC |
| Current | 0.29 A |
| Cable Length | 400 mm |
| Connector | 4-Pin PWM Connector |
| Width | 127 mm |
| Height | 30 mm |
| Length | 125 mm |
| Weight | 0.214 kg |
| Warranty | 6 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
Key Features
- PWM Control: Variable speed (200–3300 rpm) for optimized performance and noise reduction.
- High Airflow & Static Pressure: 81.04cfm airflow and 4.35 mmH2O static pressure for efficient cooling.
- Ultra-Quiet Operation: 0.6 Sone noise level for minimal disturbance.
- Fluid Dynamic Bearings: Ensures smooth, long-lasting operation with reduced friction.
- 6-Year Warranty: Comprehensive coverage for peace of mind.
- 4-Pin PWM Connector: Compatible with modern motherboards for precise control.
