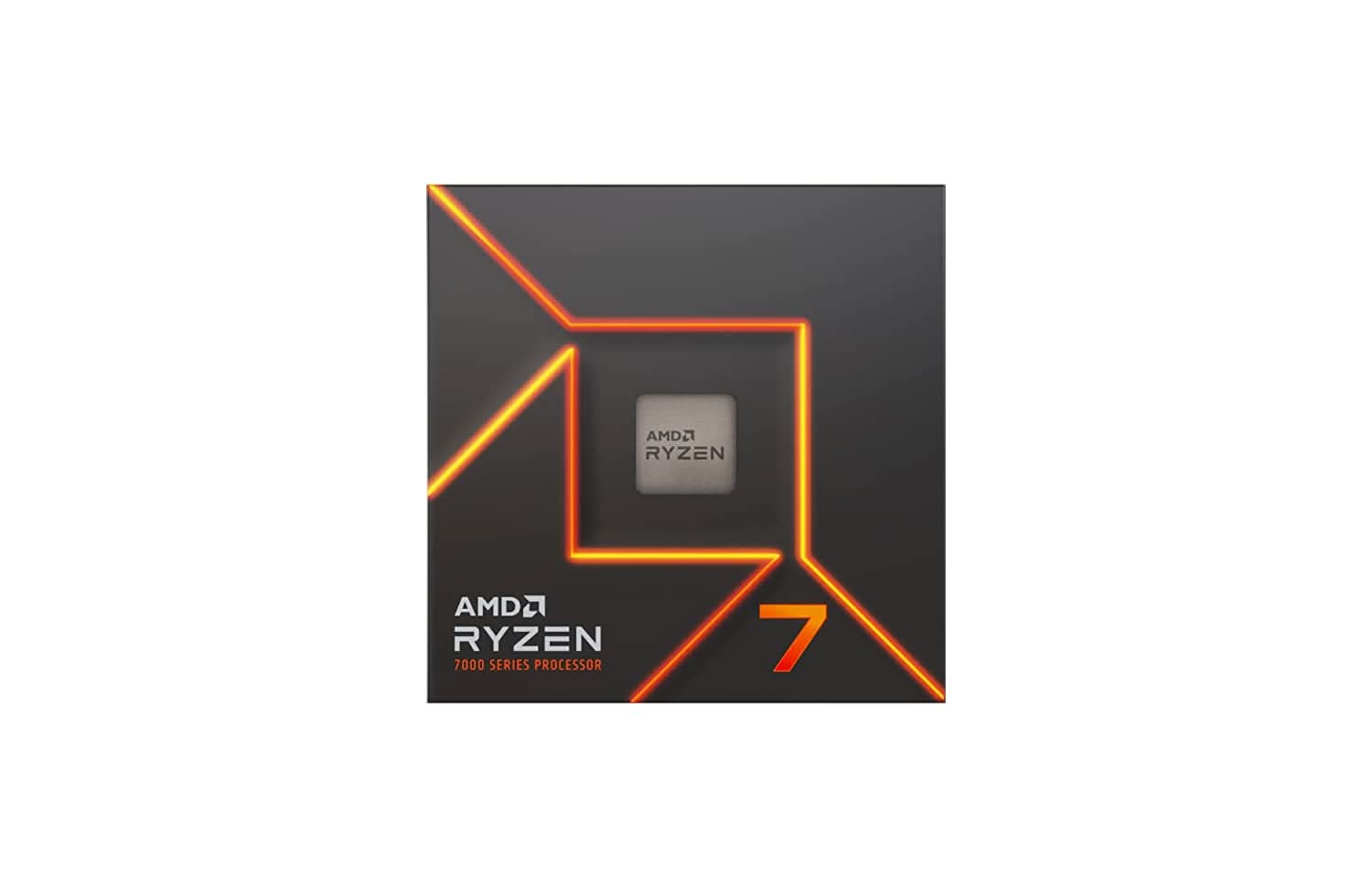

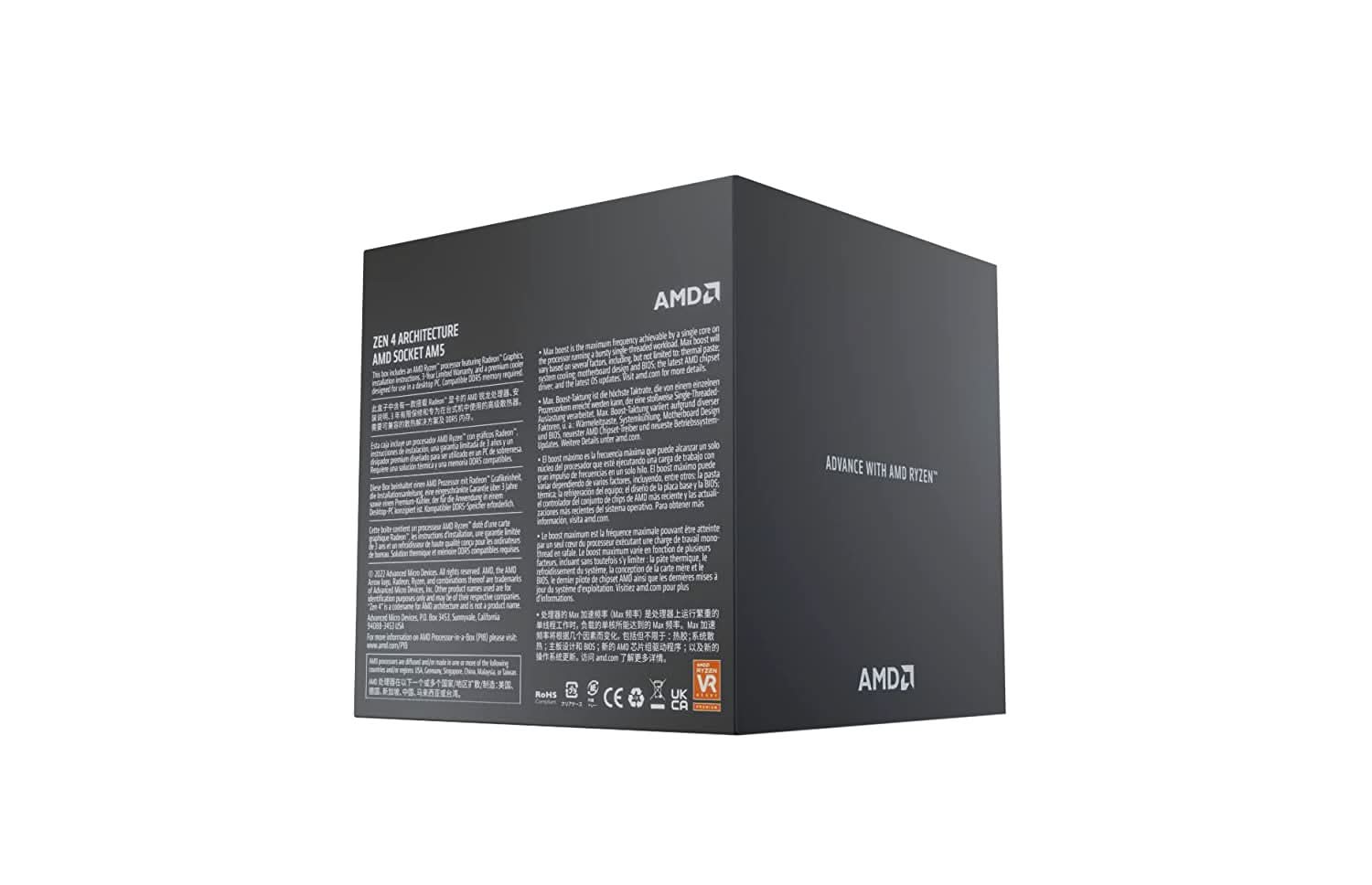

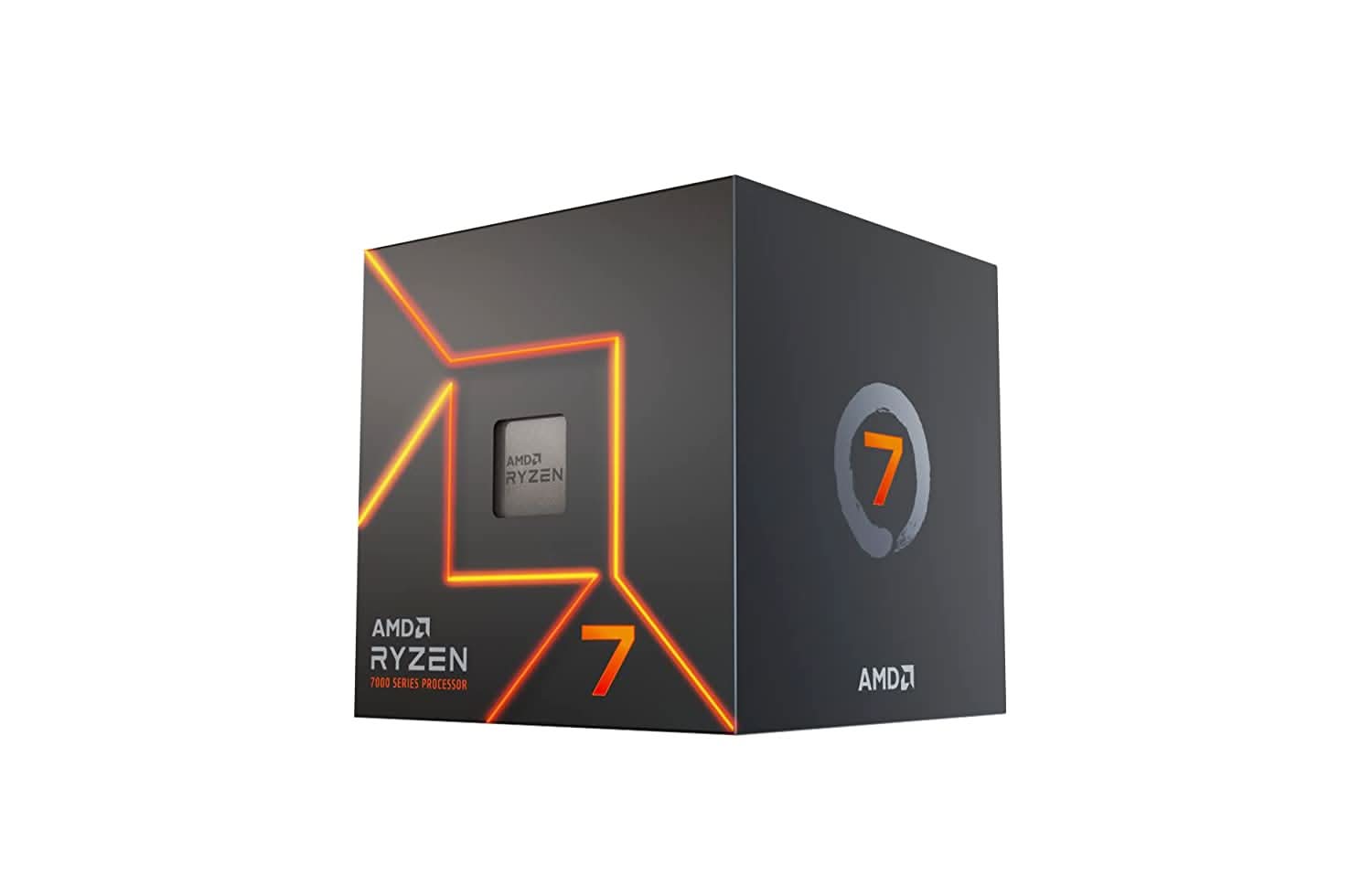

AMD RYZEN 7 7700 8 CORES UPTO 5.3 GHZ AM5 PROCESSOR


Model: RYZEN-7-7700
Platform: Desktop
Product Family: AMD Ryzen Processors
Market Segment: Enthusiast Desktop
Product Line: AMD Ryzen 7 Processors
AMD PRO Technologies: No
Consumer Use: Yes
Regional Availability: Global
Former Codename: “Raphael AM5”
Architecture: “Zen 4”

Specifications

Model RYZEN-7-7700
Platform Desktop
Product Family AMD Ryzen Processors
Market Segment Enthusiast Desktop
Product Line AMD Ryzen 7 Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename “Raphael AM5”
Architecture “Zen 4”
Multithreading (SMT) Yes
# of CPU Cores 8
# of Threads 16
Max. Boost Clock Up to 5.3GHz
Base Clock 3.8GHz
L1 Cache 512KB
L2 Cache 8MB
L3 Cache 32MB
Default TDP 65W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm≤
I/O Die (IOD) Size 122mm≤
Package Die Count 2
Unlocked for Overclocking Yes
AMD EXPOô Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzenô Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) AMD Wraith Prism
Max. Operating Temperature (Tjmax) 95∞C
*OS Support Windows 11 – 64-Bit Edition
USB Type-CÆ Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
PCI Express Version PCIe 5.0
Native PCIe Lanes (Total/Usable) 28/24
Additional Usable PCIe Lanes from Motherboard AMD X670E 12x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed 2x1R DDR5-5200
ECC Support Yes (Requires mobo support)
Integrated Graphics Yes
Graphics Model AMD Radeon Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
GPU Base 400 MHz
USB Type-C DisplayPort Alternate Mode Yes
Supported Technologies AMD EXPO Technology
Warranty 3 Years

Key Features

  • 8 Cores / 16 Threads for high-performance multitasking and gaming.
  • Up to 5.3GHz Max Boost Clock for rapid application response.
  • DDR5 Support with AMD EXPO Technology, supporting up to 128GB of memory.
  • AMD Wraith Prism cooler included for efficient thermal management.
  • Integrated Radeon Graphics with 2 cores running at 2200 MHz.
  • AM5 Socket architecture for future platform upgrades.
  • 3-Year Warranty for peace of mind.
SKU: 1084137 Category:
Model RYZEN-7-7700
Platform Desktop
Product Family AMD Ryzen Processors
Market Segment Enthusiast Desktop
Product Line AMD Ryzen 7 Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename “Raphael AM5”
Architecture “Zen 4”
Multithreading (SMT) Yes
# of CPU Cores 8
# of Threads 16
Max. Boost Clock Up to 5.3GHz
Base Clock 3.8GHz
L1 Cache 512KB
L2 Cache 8MB
L3 Cache 32MB
Default TDP 65W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm≤
I/O Die (IOD) Size 122mm≤
Package Die Count 2
Unlocked for Overclocking Yes
AMD EXPOô Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzenô Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) AMD Wraith Prism
Max. Operating Temperature (Tjmax) 95∞C
*OS Support Windows 11 – 64-Bit Edition
USB Type-CÆ Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
PCI Express Version PCIe 5.0
Native PCIe Lanes (Total/Usable) 28/24
Additional Usable PCIe Lanes from Motherboard AMD X670E 12x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed 2x1R DDR5-5200
ECC Support Yes (Requires mobo support)
Integrated Graphics Yes
Graphics Model AMD Radeon Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
GPU Base 400 MHz
USB Type-C DisplayPort Alternate Mode Yes
Supported Technologies AMD EXPO Technology
Warranty 3 Years
