Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen |
| Chipset | B760 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Supports Intel Extreme Memory Profile (XMP) 3.0 |
| Graphics Port | 1 x eDP 1.4, 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Expansion Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: – 1 x PCIe 4.0 x1 Slot (PCIE2) – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) – 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |

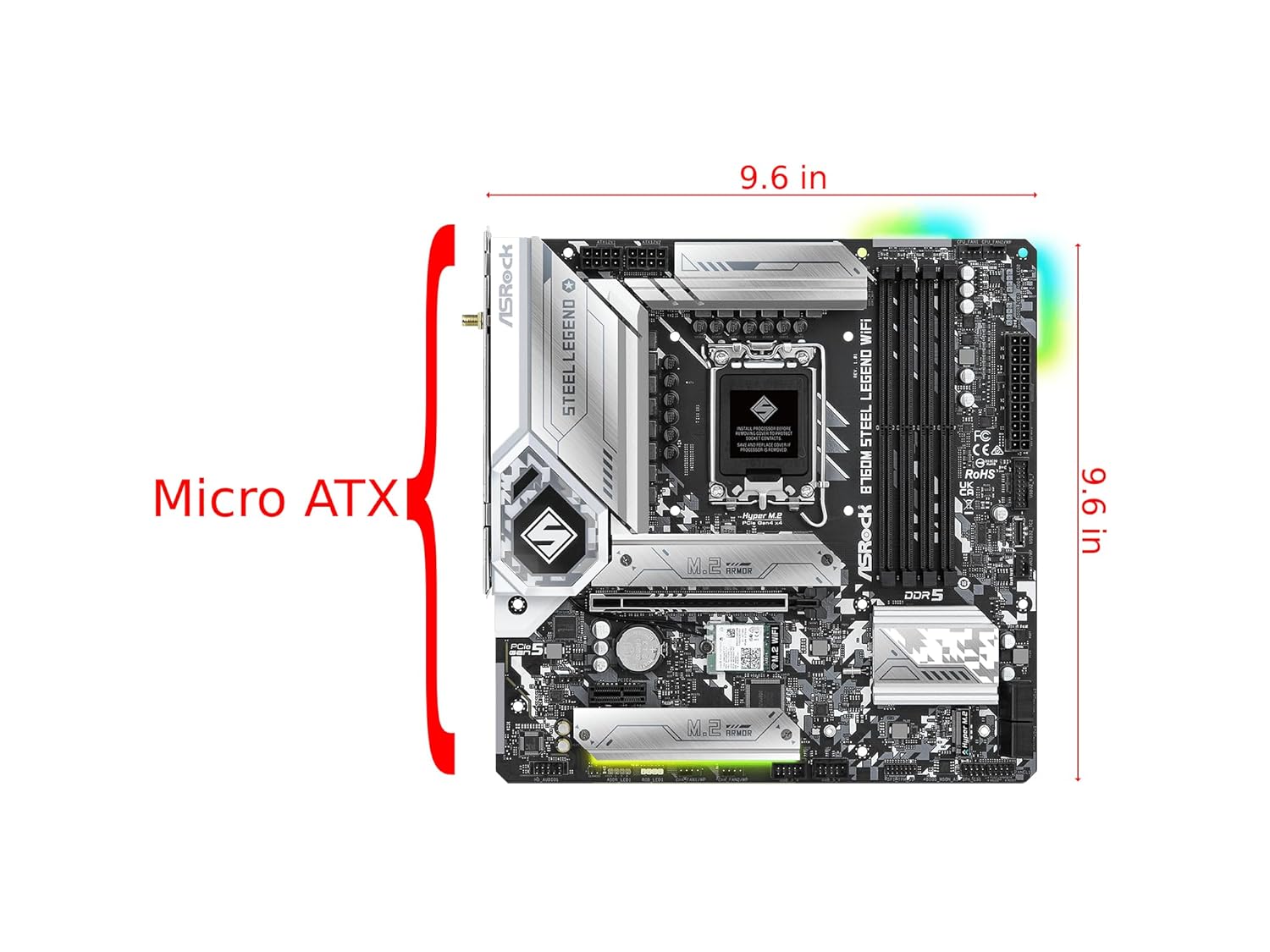

| Form Factor | Micro-ATX |
| Warranty | 3 Years |

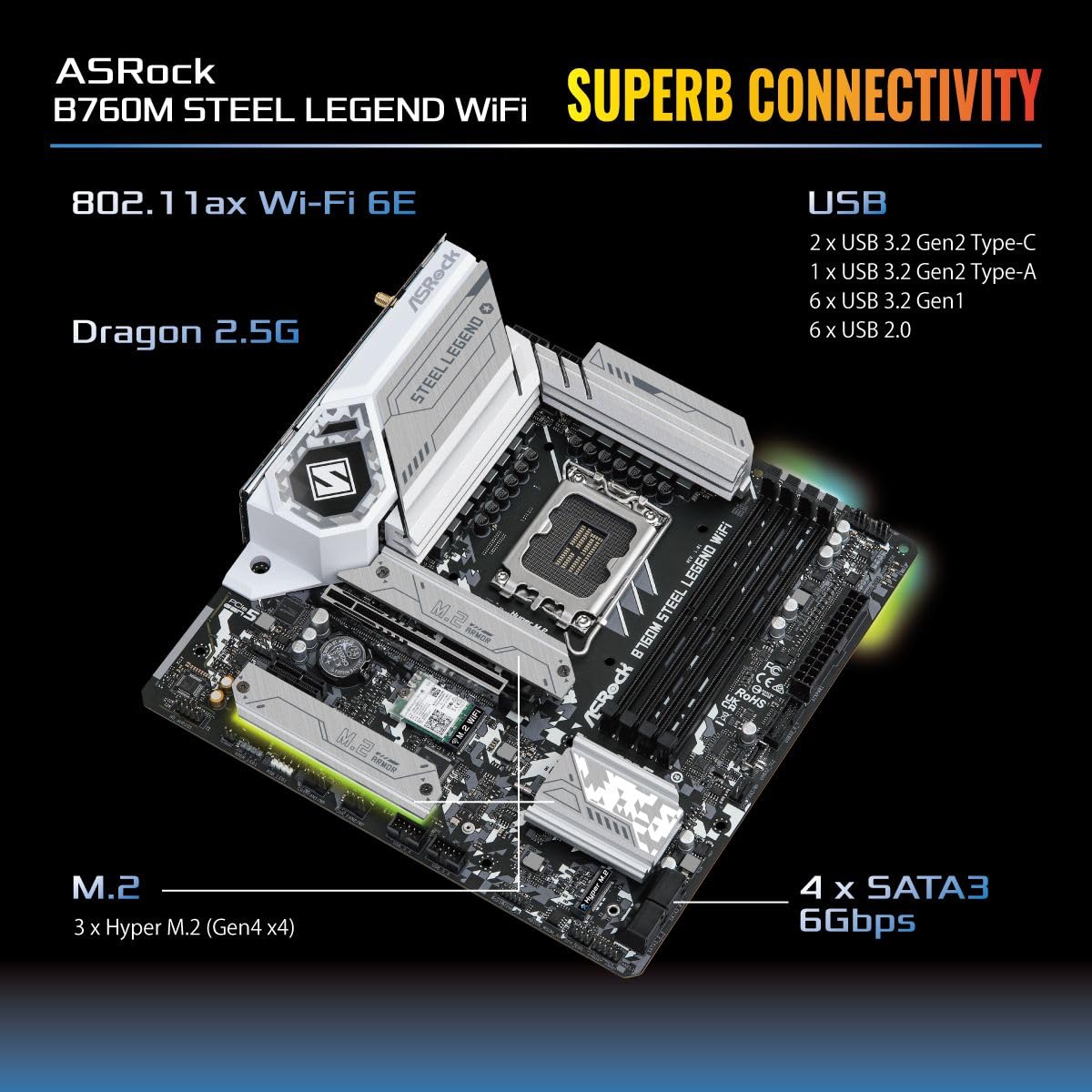

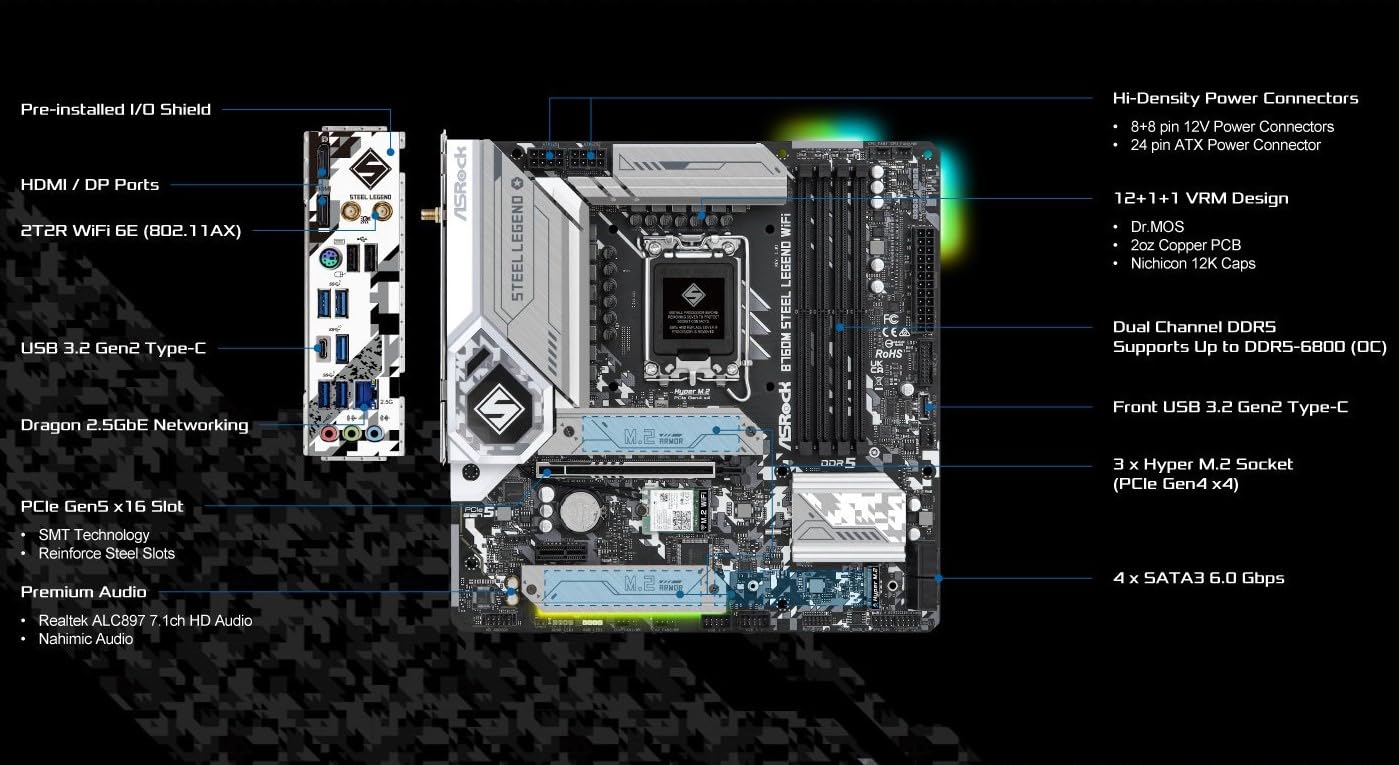

Key Features
- CPU Support: Compatible with 12th, 13th, and 14th Generation Intel Core processors (LGA1700)
- Memory: DDR5 support up to 7200+ (OC) with Intel XMP 3.0, max 256 GB dual‑channel
- Expansion: 1× PCIe 5.0 x16 slot + 1× PCIe 4.0 x1 slot
- Storage & Connectivity: M.2 Key E socket for Wi‑Fi/Bluetooth module
- Wireless: Integrated Wi‑Fi 6E and Bluetooth 5.3
- USB I/O: USB 3.2 Gen2 Type‑C (10 Gb/s), USB 3.2 Gen2 Type‑A (10 Gb/s), plus additional USB 3.2 Gen1 and USB 2.0 ports
- Form Factor & Warranty: Micro‑ATX layout with a 3‑year manufacturer warranty
