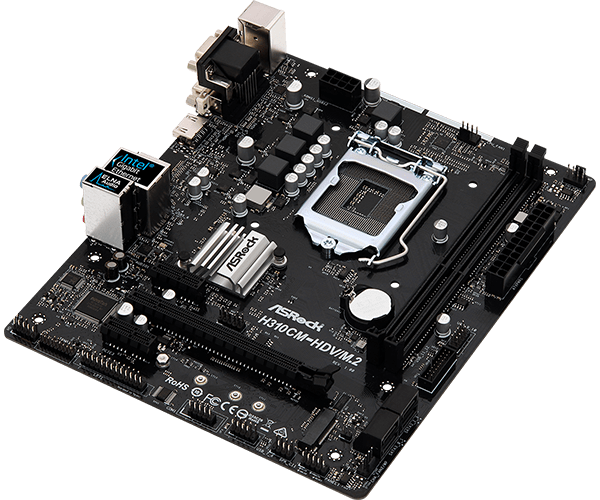

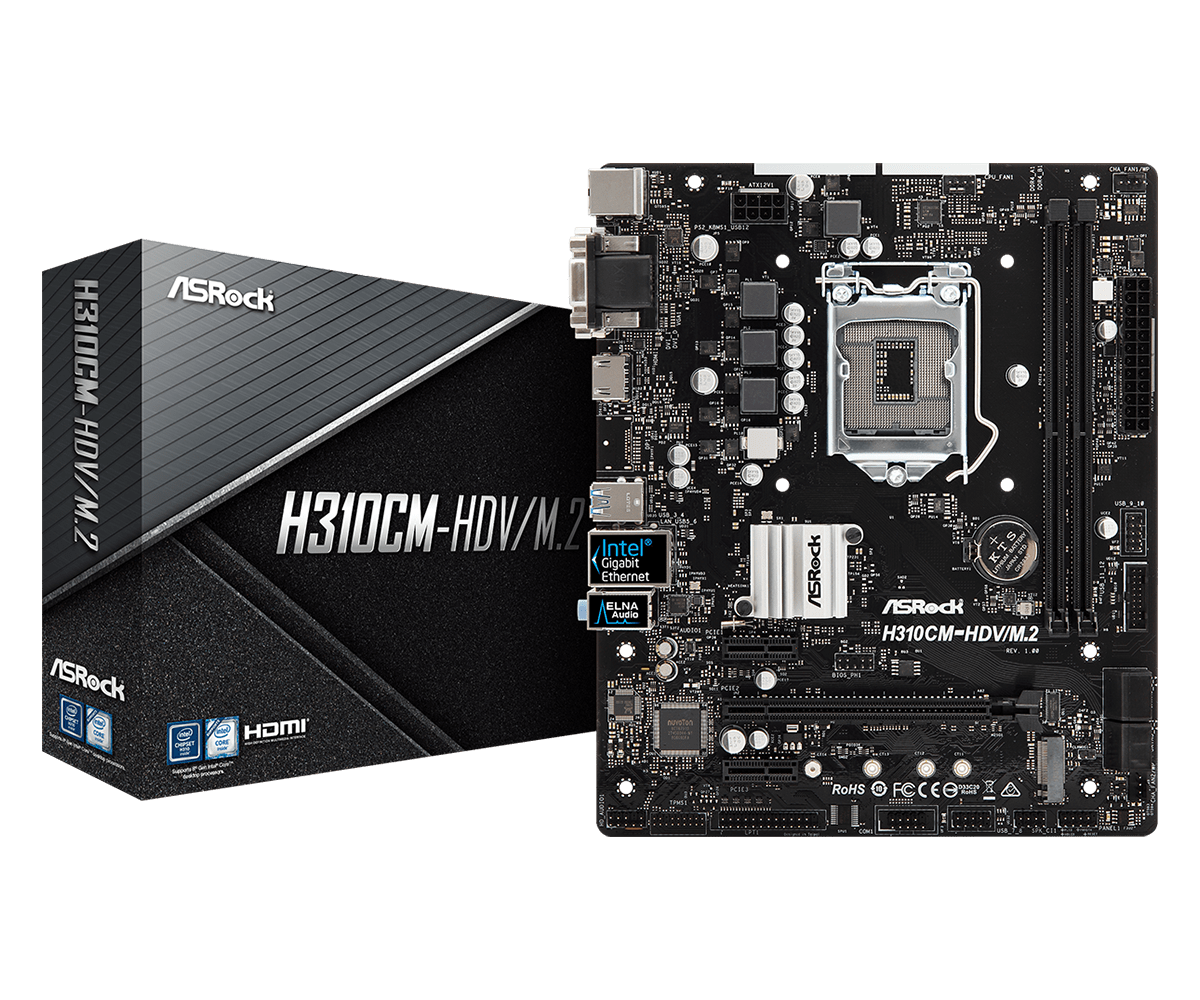

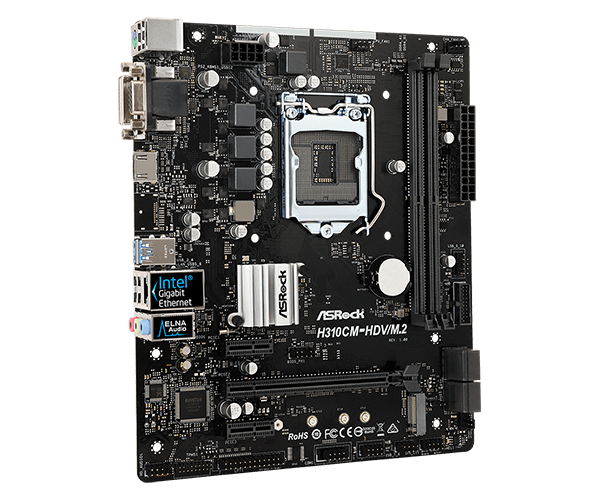

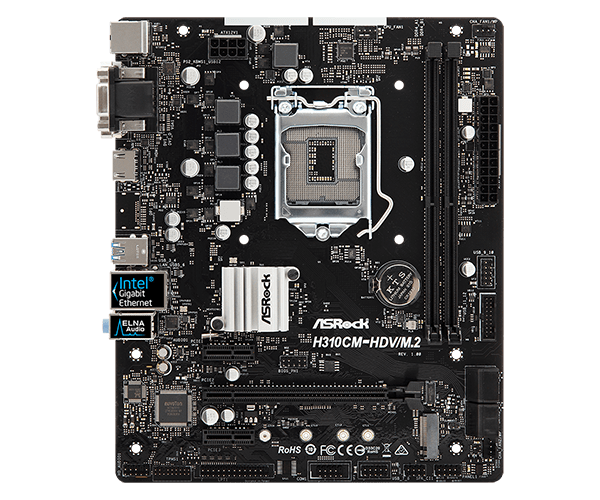

ASROCK H310CM-HDV/M.2 MOTHERBOARD
ASROCK H310CM-HDV/M.2 MOTHERBOARD - Image 2
ASROCK H310CM-HDV/M.2 MOTHERBOARD - Image 3
ASROCK H310CM-HDV/M.2 MOTHERBOARD - Image 4
ASROCK H310CM-HDV/M.2 MOTHERBOARD - Image 5

ASROCK H310CM-HDV/M.2 MOTHERBOARD

Compare

CPU/Chipset/Memory: Supports 9th/8th Gen Intel Core (LGA1151, up to 95W) with 4‑phase power design, Intel Turbo Boost 2.0; Intel H310 chipset; dual‑channel DDR4, 2 DIMM slots, up to 32GB DDR4‑2666, Intel XMP 2.0.
Graphics/Audio/LAN: Intel UHD graphics (D‑Sub, DVI‑D, HDMI, 4K, HDCP 2.2); 7.1‑ch HD Audio (Realtek ALC887); Gigabit LAN (Intel I219V) with Wake‑On‑LAN and Energy Efficient Ethernet 802.3az.
Expansion/Storage: 1 × PCIe 3.0 x16, 2 × PCIe 2.0 x1; 4 × SATA3 6 Gb/s, 1 × M.2 socket (SATA3/PCIe Gen2 x4).

Specifications

Unique Features ASRock Super Alloy, Sapphire Black PCB, High Density Glass Fabric PCB, Full Spike Protection for all USB, Audio, and LAN Ports, ASRock Live Update & APP Shop
CPU Supports 9th and 8th Gen Intel Core„ Processors (Socket 1151), Up to 95W, 4 Power Phase Design, Supports Intel Turbo Boost 2.0 Technology
Chipset Intel H310
Memory Dual Channel DDR4, 2 x DDR4 DIMM Slots, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Max. capacity: 32GB, Supports Intel XMP 2.0, 15μ Gold Contact in DIMM Slots
BIOS 128Mb AMI UEFI Legal BIOS, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, Voltage Multi-adjustment for CPU, DRAM, PCH
Graphics Intel UHD Graphics, DirectX 12, 3 Output options: D-Sub, DVI-D, HDMI, Supports 4K Ultra HD, HDCP 2.2, Supports up to 2 displays simultaneously
Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec), Surge Protection, ELNA Audio Caps, Supports Multi-channel Audio
LAN Gigabit LAN, Intel I219V PHY, Wake-On-LAN, Energy Efficient Ethernet 802.3az, PXE, Lightning/ESD Protection
Expansion Slots 1 x PCIe 3.0 x16 Slot, 2 x PCIe 2.0 x1 Slots
Storage 4 x SATA3 6.0 Gb/s, 1 x M.2 Socket supporting SATA3/PCIe up to Gen2 x4, Supports ASRock U.2 Kit
Connectors Print Port Header, COM Port Header, TPM Header, Fan Connectors, USB Headers, 24 pin ATX Power, 8 pin 12V Power Connector

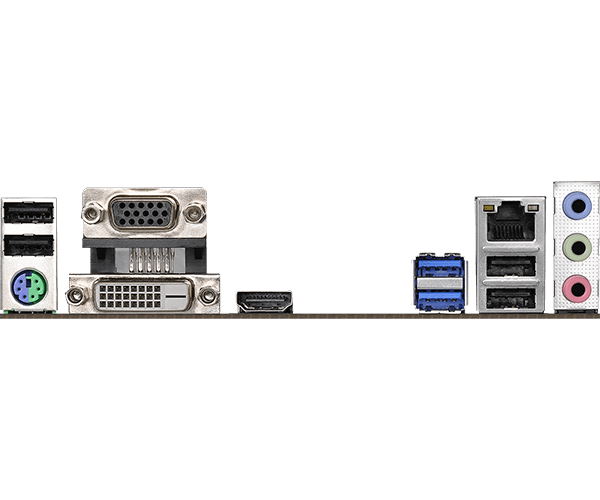

Rear I/O Ports PS/2 Mouse/Keyboard Port, D-Sub, DVI-D, HDMI, USB 2.0 (4 Ports), USB 3.1 Gen1 (2 Ports), RJ-45 LAN Port, HD Audio Jacks
Software and UEFI ASRock A-Tuning, EZ Mode UEFI, Full HD UEFI, My Favorites in UEFI, Instant Flash, Internet Flash
Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome
Accessories Quick Installation Guide, I/O Shield, 2 x SATA Data Cables, 1 x M.2 Screw
Hardware Monitor Temperature Sensing, Fan Tachometer, Quiet Fan (Auto adjust), Voltage Monitoring, CASE OPEN Detection
Form Factor Micro ATX Form Factor: 8.9-in x 7.4-in
Operating System Windows 10 / 11 64-bit
Certifications FCC, CE, ErP/EuP ready

Key Features

  • CPU Compatibility: Supports 8th and 9th Gen Intel Core processors (Socket 1151) up to 95 W with a 4‑phase power design and Intel Turbo Boost 2.0.
  • Memory Support: Dual‑channel DDR4, 2 DIMM slots, up to 32 GB total, supporting 2666/2400/2133 MHz non‑ECC memory and Intel XMP 2.0.
  • Expansion & Storage: 1 PCIe 3.0 x16 slot, 2 PCIe 2.0 x1 slots, 4 SATA3 ports and an M.2 socket (SATA3/PCIe Gen2 x4) with U.2 kit compatibility.
  • Graphics Outputs: Integrated Intel UHD Graphics with D‑Sub, DVI‑D and HDMI ports, 4K Ultra HD support and dual‑display capability.
  • Audio: 7.1‑channel high‑definition audio via Realtek ALC887 codec, ELNA audio caps and surge protection.
  • Networking & Connectivity: Gigabit LAN (Intel I219V), 4 USB 2.0 and 2 USB 3.1 Gen1 ports, plus PS/2, HDMI, DVI‑D and D‑Sub on rear I/O.
  • Durable Design & Protection: ASRock Super Alloy and Sapphire Black PCB with full spike protection for USB, audio and LAN ports, plus hardware monitoring and quiet fan auto‑adjust.
SKU: 1089715 Category:
Unique Features ASRock Super Alloy, Sapphire Black PCB, High Density Glass Fabric PCB, Full Spike Protection for all USB, Audio, and LAN Ports, ASRock Live Update & APP Shop
CPU Supports 9th and 8th Gen Intel Core„ Processors (Socket 1151), Up to 95W, 4 Power Phase Design, Supports Intel Turbo Boost 2.0 Technology
Chipset Intel H310
Memory Dual Channel DDR4, 2 x DDR4 DIMM Slots, Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, Max. capacity: 32GB, Supports Intel XMP 2.0, 15μ Gold Contact in DIMM Slots
BIOS 128Mb AMI UEFI Legal BIOS, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, Voltage Multi-adjustment for CPU, DRAM, PCH
Graphics Intel UHD Graphics, DirectX 12, 3 Output options: D-Sub, DVI-D, HDMI, Supports 4K Ultra HD, HDCP 2.2, Supports up to 2 displays simultaneously
Audio 7.1 CH HD Audio (Realtek ALC887 Audio Codec), Surge Protection, ELNA Audio Caps, Supports Multi-channel Audio
LAN Gigabit LAN, Intel I219V PHY, Wake-On-LAN, Energy Efficient Ethernet 802.3az, PXE, Lightning/ESD Protection
Expansion Slots 1 x PCIe 3.0 x16 Slot, 2 x PCIe 2.0 x1 Slots
Storage 4 x SATA3 6.0 Gb/s, 1 x M.2 Socket supporting SATA3/PCIe up to Gen2 x4, Supports ASRock U.2 Kit
Connectors Print Port Header, COM Port Header, TPM Header, Fan Connectors, USB Headers, 24 pin ATX Power, 8 pin 12V Power Connector
Rear I/O Ports PS/2 Mouse/Keyboard Port, D-Sub, DVI-D, HDMI, USB 2.0 (4 Ports), USB 3.1 Gen1 (2 Ports), RJ-45 LAN Port, HD Audio Jacks
Software and UEFI ASRock A-Tuning, EZ Mode UEFI, Full HD UEFI, My Favorites in UEFI, Instant Flash, Internet Flash
Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome
Accessories Quick Installation Guide, I/O Shield, 2 x SATA Data Cables, 1 x M.2 Screw
Hardware Monitor Temperature Sensing, Fan Tachometer, Quiet Fan (Auto adjust), Voltage Monitoring, CASE OPEN Detection
Form Factor Micro ATX Form Factor: 8.9-in x 7.4-in
Operating System Windows 10 / 11 64-bit
Certifications FCC, CE, ErP/EuP ready
