Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9600+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | un-buffered memory Supports Clocked Unbuffered DIMM (CUDIMM) Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Graphics Port | 1 x HDMI,2 x Intel Thunderbolt 4 |
| Expansion Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. If PCIE2 is occupied, M2_4 will be disabled. Supports NVMe SSD as boot disks |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)** 4 x USB 3.2 Gen1 Ports** 2 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging ** USB32_56 are Lightning Gaming Ports. USB32_34 support Ultra USB Power. |
| Internal I/O Connector | 3 x Thermistor Cable Headers 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector (15μ Gold Audio Connector) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use. |

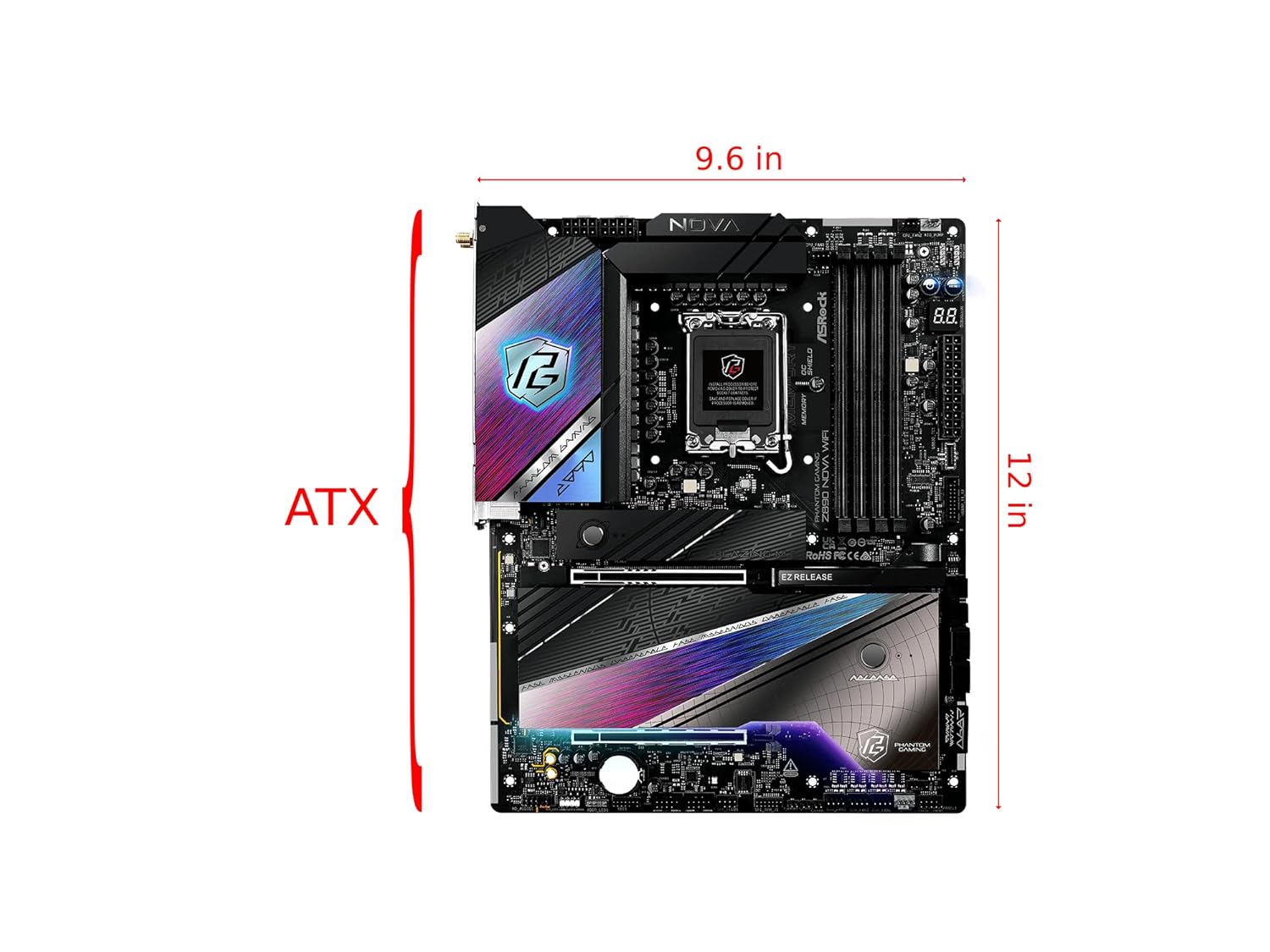

| Form Factor | ATX |
| Warranty | 3 Years |
Key Features
- Intel Core Ultra Support: LGA1851 socket with Z890 chipset for latest Intel processors.
- High‑Speed DDR5 Memory: Up to 9600+ MT/s, max 256 GB dual‑channel (CUDIMM, XMP 3.0).
- Wi‑Fi 7 & Bluetooth 5.4: Integrated wireless networking for fastest speeds.
- Dual Thunderbolt 4 Ports: 40 Gb/s each for high‑bandwidth peripherals and displays.
- Extensive USB I/O: 4× USB 3.2 Gen2 (10 Gb/s), 4× USB 3.2 Gen1, 2× USB 2.0 plus front‑panel Type‑C header.
- PCIe Expansion: 1× PCIe 5.0 x16 slot + 1× PCIe 4.0 x16 slot plus M.2 slots for NVMe storage.
- Dual LAN & 3‑Year Warranty: Two RJ‑45 LAN ports and 3‑year manufacturer warranty.
