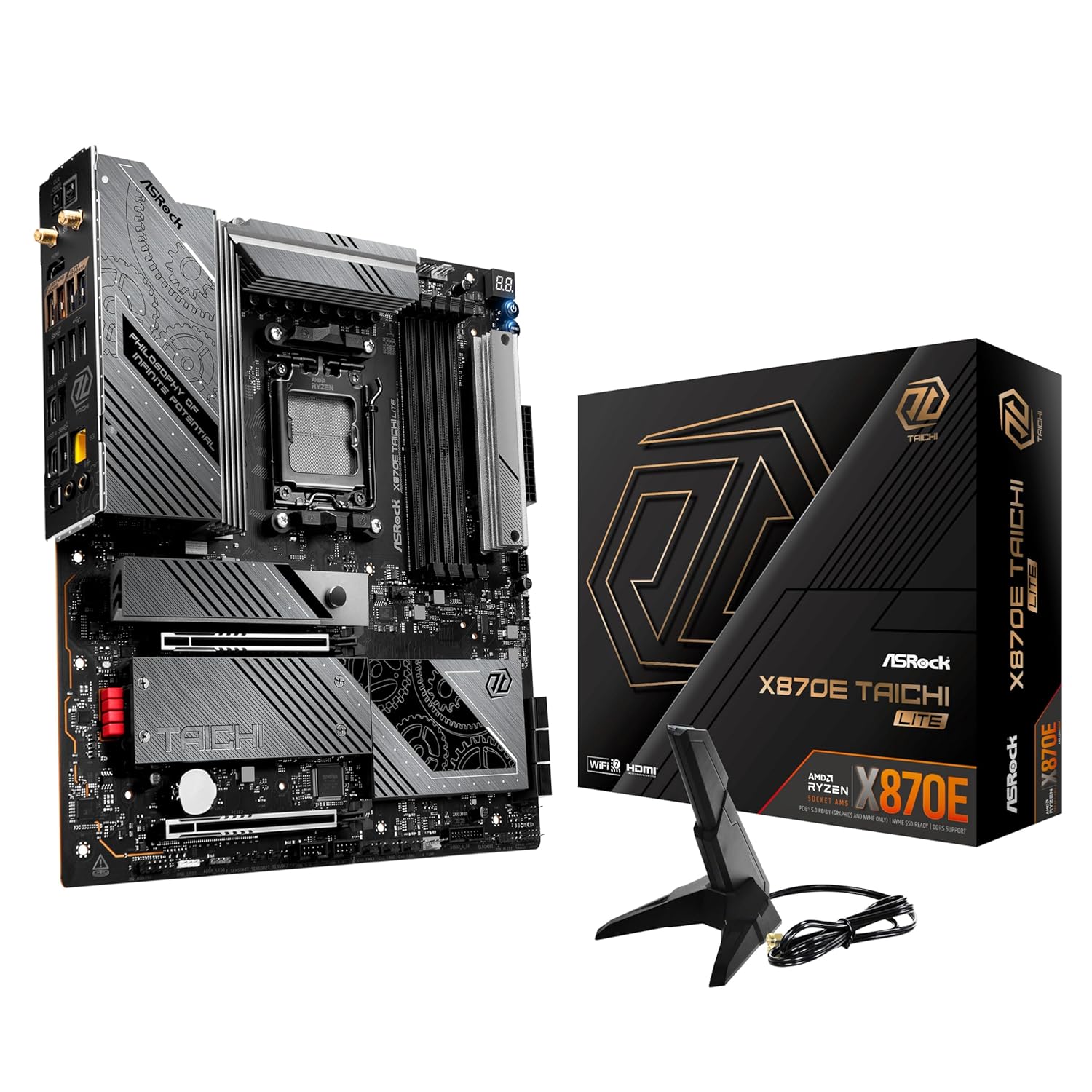

ASROCK X870E TAICHI LITE MOTHERBOARD
ASROCK X870E TAICHI LITE MOTHERBOARD - Image 2
ASROCK X870E TAICHI LITE MOTHERBOARD - Image 3
ASROCK X870E TAICHI LITE MOTHERBOARD - Image 4
ASROCK X870E TAICHI LITE MOTHERBOARD - Image 5

ASROCK X870E TAICHI LITE MOTHERBOARD

Compare

Model: ASRock X870E Taichi Lite, AMD X870E chipset, supports AM5 Ryzen 7000/8000/9000 series CPUs.

Memory: 4 DDR5 DIMM slots, up to 256 GB, DDR5 ECC/non‑ECC, XMP/EXPO support.

Connectivity: PCIe Gen5, USB4 Type‑C (40 Gb/s), 5 GbE LAN, Wi‑Fi 7 (802.11be) and Bluetooth 5.4.

Audio/Video: Integrated AMD RDNA graphics with HDMI 2.1, Realtek ALC4082 audio codec with ESS SABRE9219 DAC.

Specifications

Model Name X870E Taichi Lite
Unique Feature Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB – 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity – 5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer
CPU – Supports AMD Socket AM5 Ryzen„ 9000, 8000 and 7000 Series Processors – Supports ASRock Hyper BCLK Engine
Chipset – AMD X870E
Memory – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS – 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Integrated AMD RDNA„ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
Audio – 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) – WIMA Audio Capacitors (For Rear Outputs) – ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) – Individual PCB Layers for R/L Audio Channel – Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) – Nahimic Audio
LAN – 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s – Realtek RTL8126
Wireless LAN – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 160MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO
Slots CPU: – 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes Chipset: – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire„
Storage CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 6 x SATA3 6.0 Gb/s Connectors
RAID – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB CPU: – 2 x USB4 Type-C (Rear) – 2 x USB 3.2 Gen2 Type-A (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 3 x USB 3.2 Gen2 Type-A (Rear) – 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) – 6 x USB 2.0 (2 Rear, 4 Front)
Connector – 3 x Thermistor Cable Headers – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 3 x Addressable LED Headers – 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) – 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED

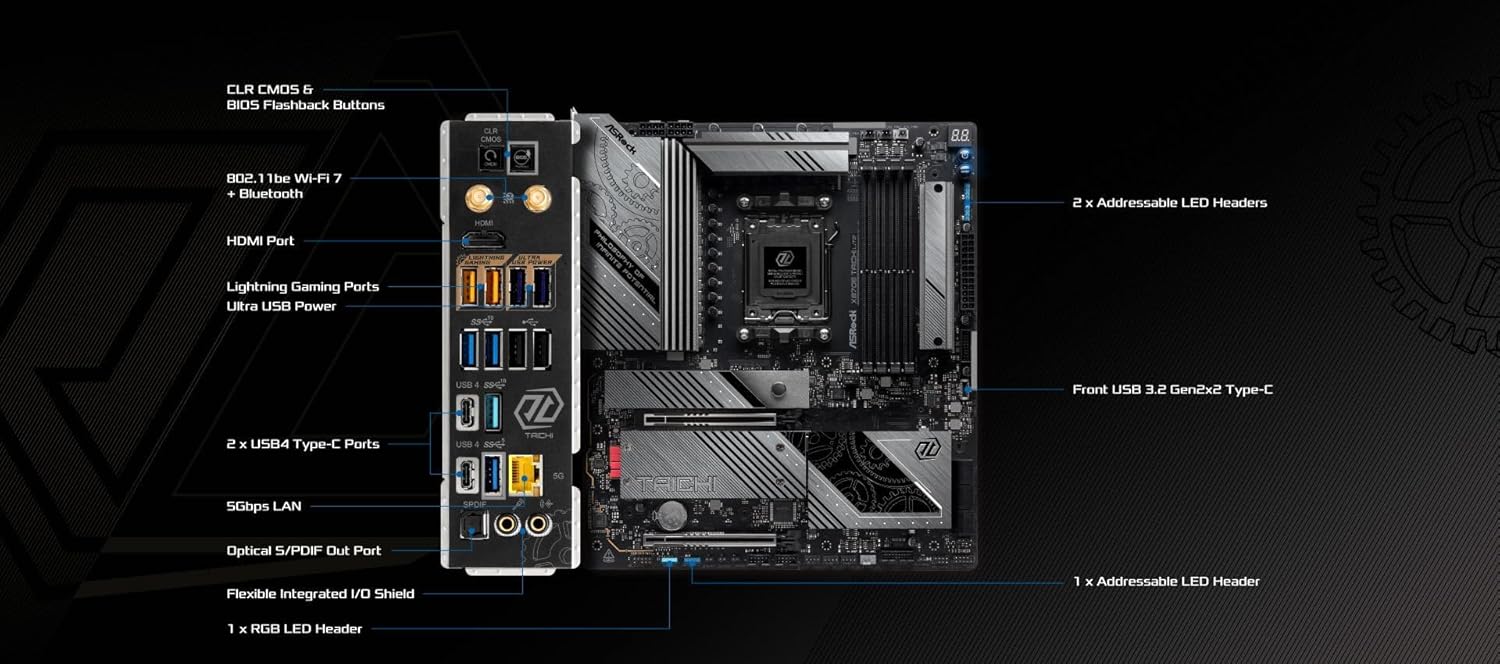

Rear Panel I/O – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x USB4 Type-C Ports (40 Gb/s)* – 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) – 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x Clear CMOS Button – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI Software – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash

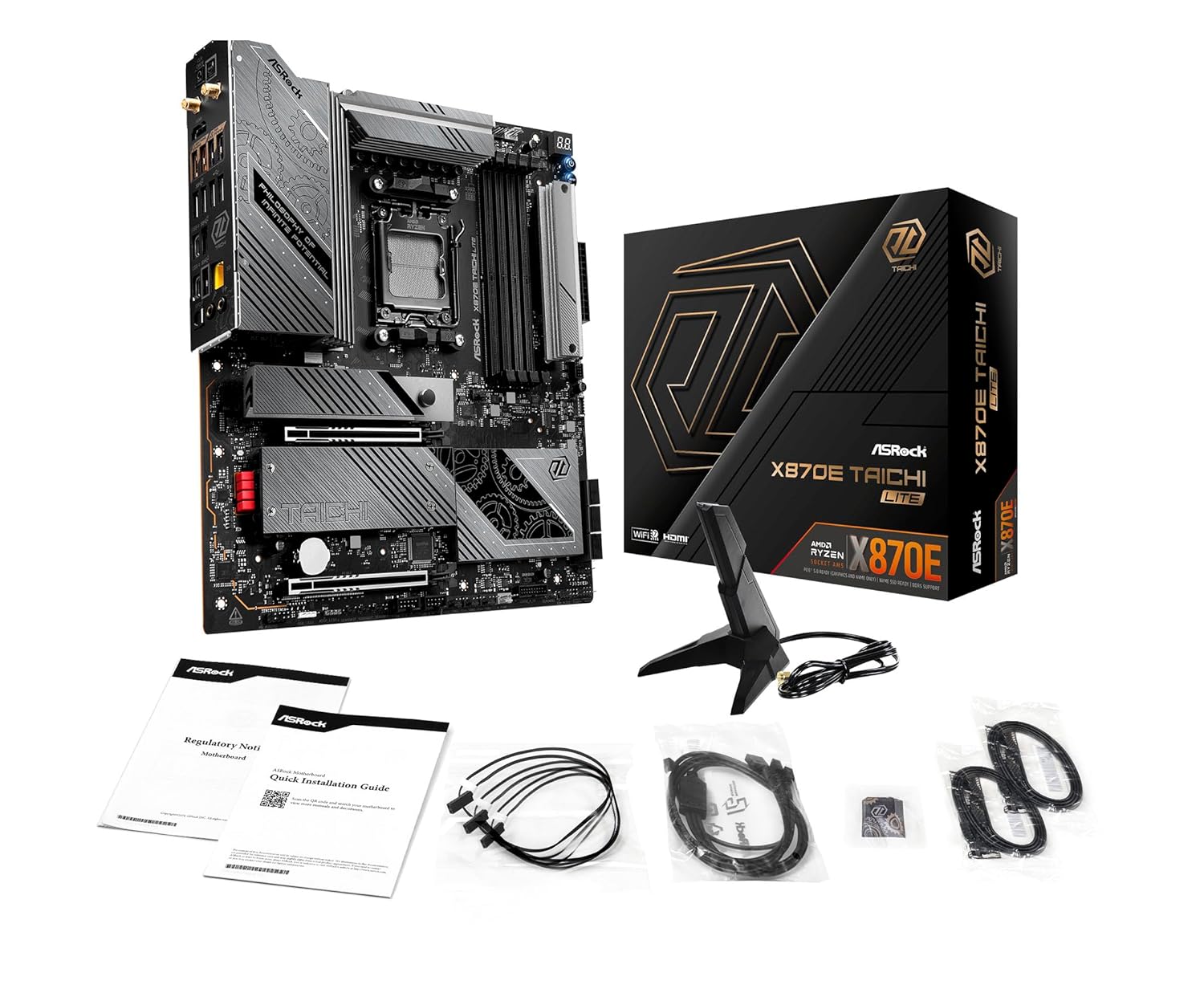

Accessories – 4 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 1 x ARGB Splitter Cable – 3 x Thermistor Cables

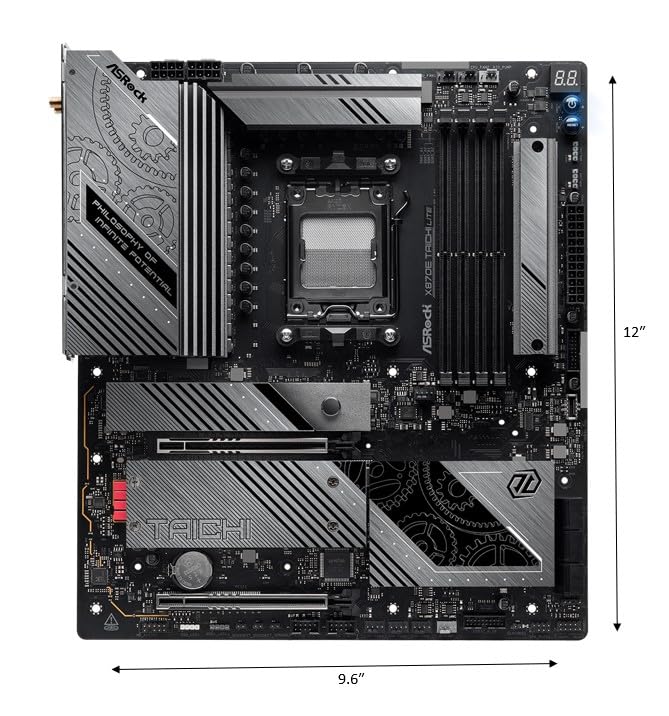

Form Factor – EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm – 8 Layer PCB – 2oz Copper PCB
OS – Microsoft Windows 10 64-bit / 11 64-bit
Certifications – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.

Key Features

  • AMD X870E Chipset & AM5 Support: Compatible with Ryzen 9000, 8000 and 7000 series processors (Socket AM5) and ASRock Hyper BCLK Engine.
  • Robust Power Delivery: 24+2+1 power phases with 110 A SPS for VCore + SOC and an enlarged heatsink armor for stable overclocking.
  • Ultra‑Fast PCIe & Storage: Dual PCIe 5.0 x16 slots (x16 or x8/x8) and a Gen5 x4 M.2 slot delivering up to 128 Gb/s, plus three Gen4 x4 M.2 slots (64 Gb/s each).
  • High‑Performance DDR5 Memory: Four DDR5 DIMM slots supporting up to 256 GB (DDR5 8200+ OC), ECC/non‑ECC, XMP and EXPO profiles.
  • Next‑Gen Connectivity: 5 Gb Ethernet (Realtek RTL8126), 802.11be Wi‑Fi 7 (2×2, 6 GHz) with Bluetooth 5.4, and dual USB4 Type‑C ports (40 Gb/s).
  • Premium Audio & Video: Realtek ALC4082 codec with ESS SABRE9219 DAC (130 dB SNR), WIMA capacitors, HDMI 2.1 (4K 120 Hz) and USB4 video output up to 8K 30 Hz.
  • Comprehensive Cooling & Expansion: Multiple fan and pump headers (CPU, chassis, AIO), integrated I/O shield, and 20K long‑lasting black caps for durability.
  • 3‑Year Warranty: Backed by ASRock’s 3‑year warranty for peace of mind.
SKU: 1090558 Category:
Model Name X870E Taichi Lite
Unique Feature Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB – 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity – 5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer
CPU – Supports AMD Socket AM5 Ryzen„ 9000, 8000 and 7000 Series Processors – Supports ASRock Hyper BCLK Engine
Chipset – AMD X870E
Memory – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) – Max. capacity of system memory: 256GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS – 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Integrated AMD RDNA„ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
Audio – 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) – WIMA Audio Capacitors (For Rear Outputs) – ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) – Individual PCB Layers for R/L Audio Channel – Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) – Nahimic Audio
LAN – 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s – Realtek RTL8126
Wireless LAN – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe/be – Supports 2.4GHz/5GHz/6GHz* frequency band – Supports 160MHz channel bandwidth with 6GHz* frequency band – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO
Slots CPU: – 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes Chipset: – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire„
Storage CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* – 6 x SATA3 6.0 Gb/s Connectors
RAID – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB CPU: – 2 x USB4 Type-C (Rear) – 2 x USB 3.2 Gen2 Type-A (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 3 x USB 3.2 Gen2 Type-A (Rear) – 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) – 6 x USB 2.0 (2 Rear, 4 Front)
Connector – 3 x Thermistor Cable Headers – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 3 x Addressable LED Headers – 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) – 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – 1 x Dr. Debug with LED – 1 x Power Button with LED – 1 x Reset Button with LED
Rear Panel I/O – 2 x Antenna Ports – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 2 x USB4 Type-C Ports (40 Gb/s)* – 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.) – 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.) – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x Clear CMOS Button – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI Software – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock Auto Driver Installer – ASRock Instant Flash
Accessories – 4 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 1 x ARGB Splitter Cable – 3 x Thermistor Cables
Form Factor – EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm – 8 Layer PCB – 2oz Copper PCB
OS – Microsoft Windows 10 64-bit / 11 64-bit
Certifications – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
