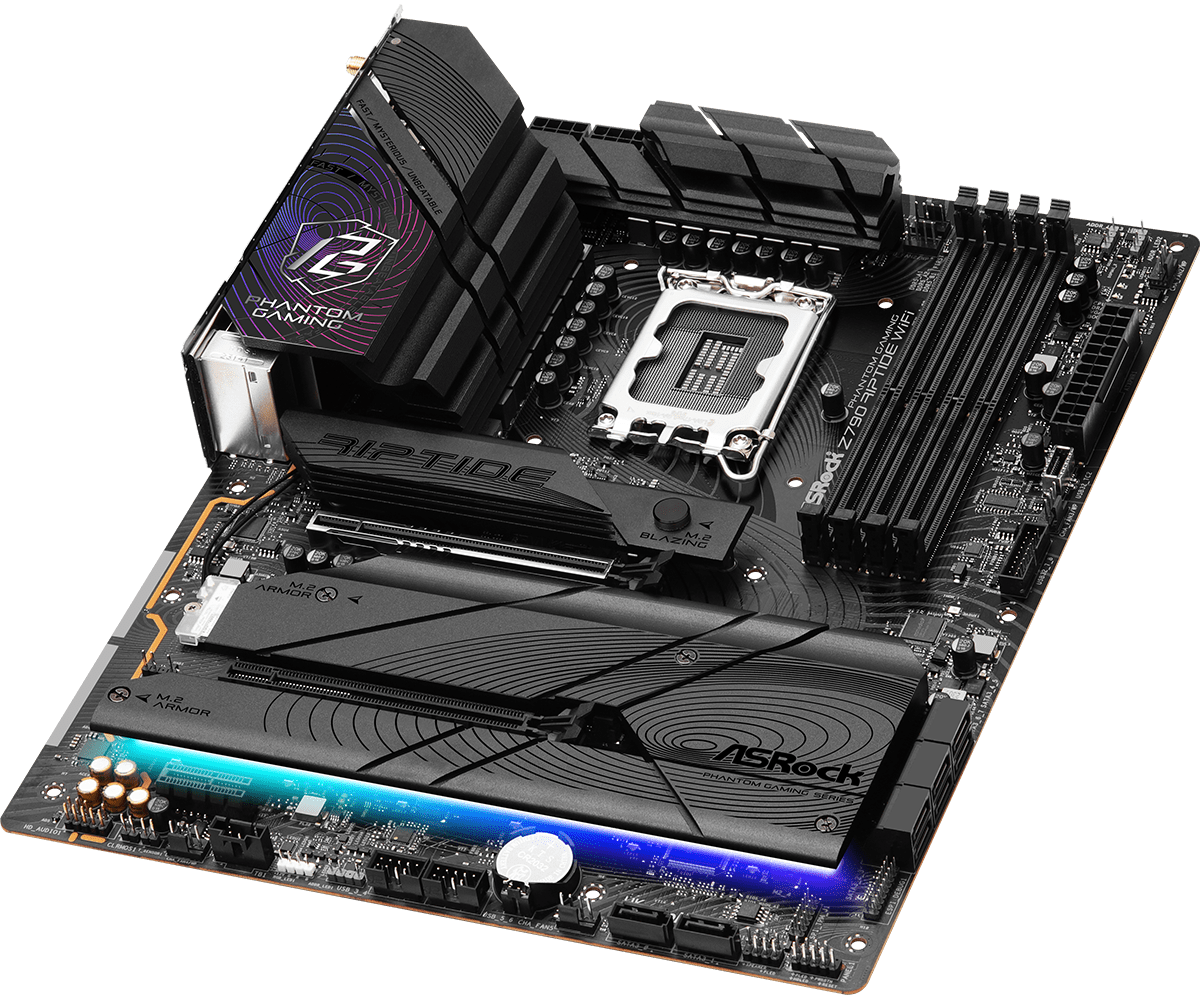

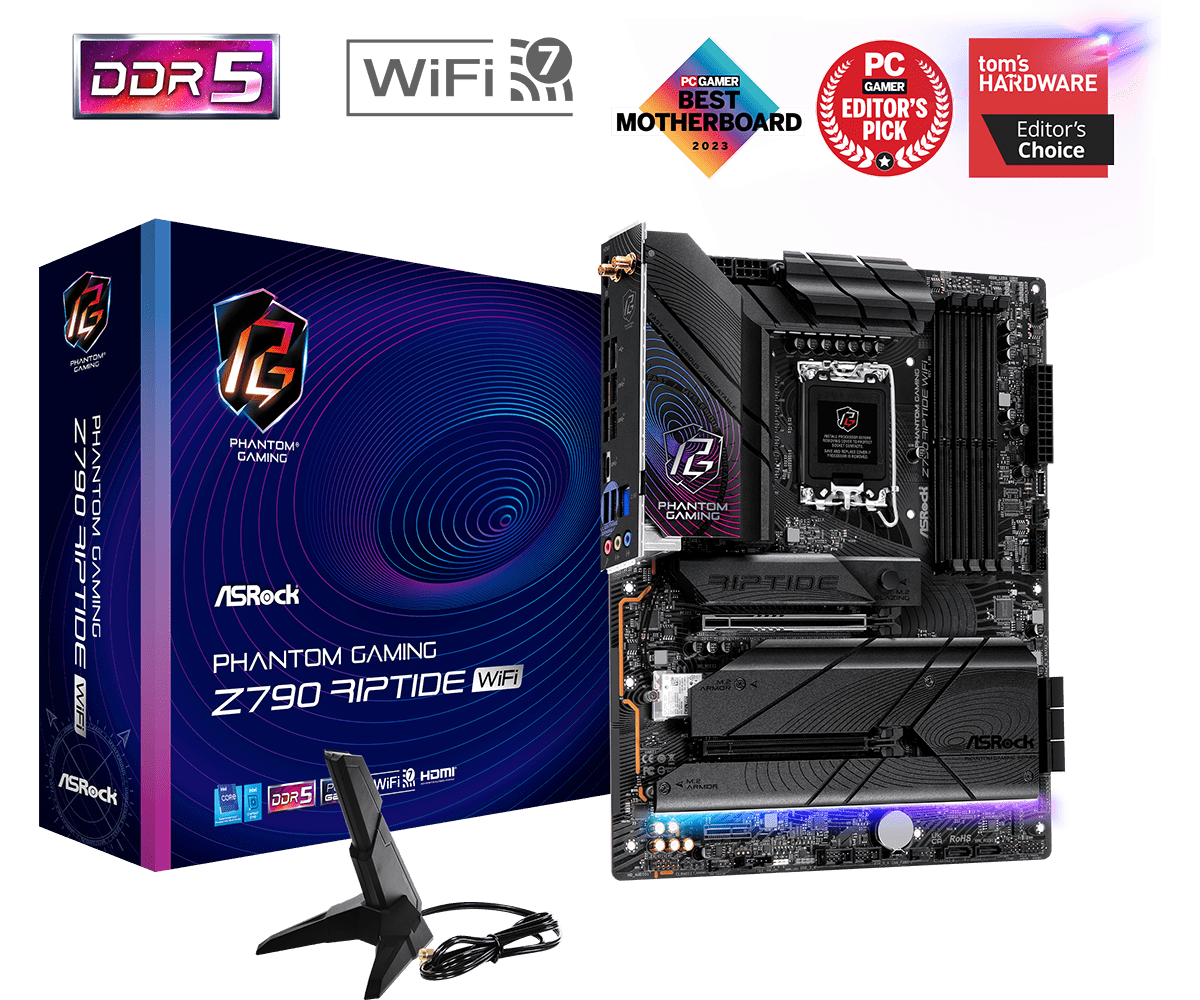

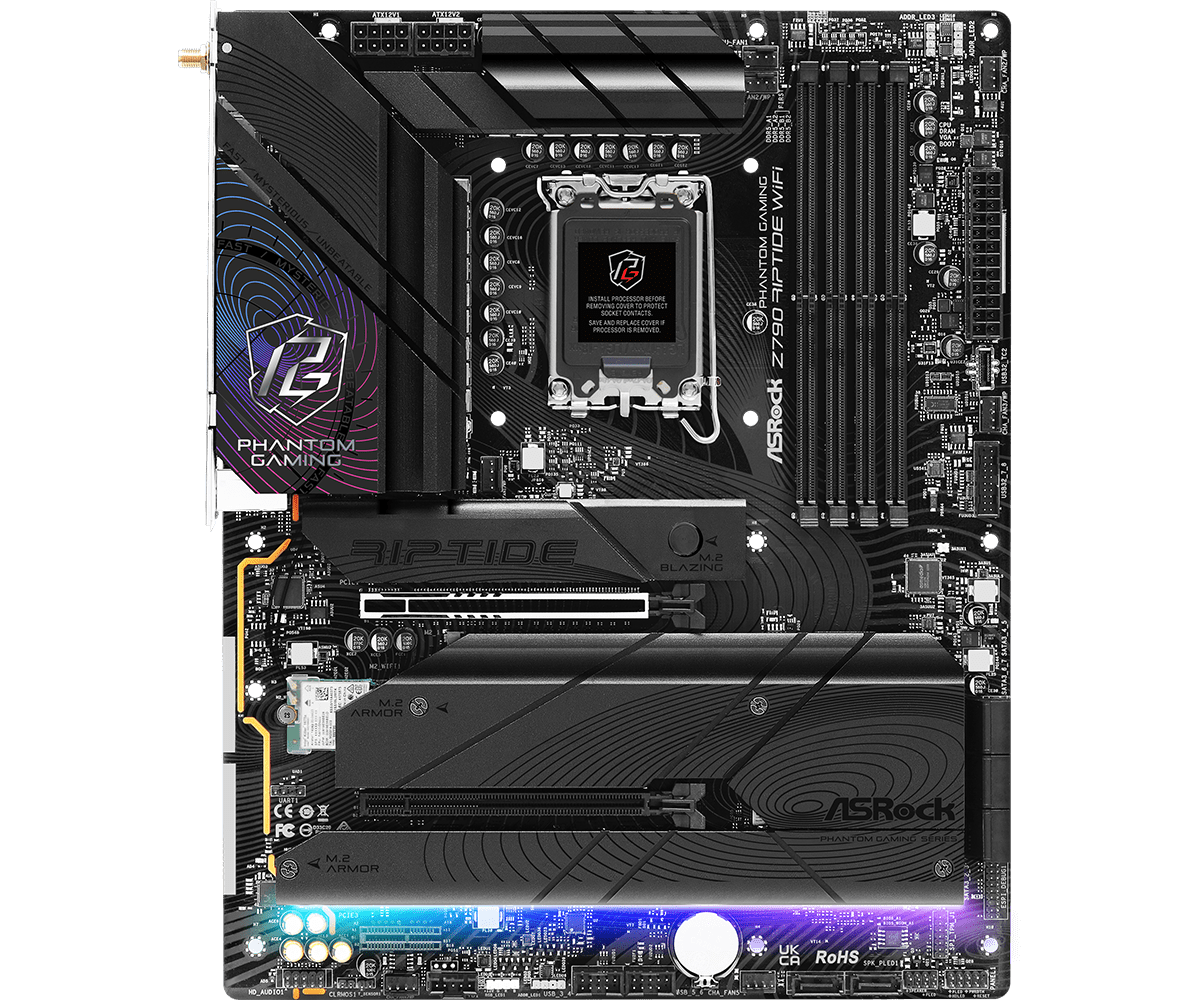

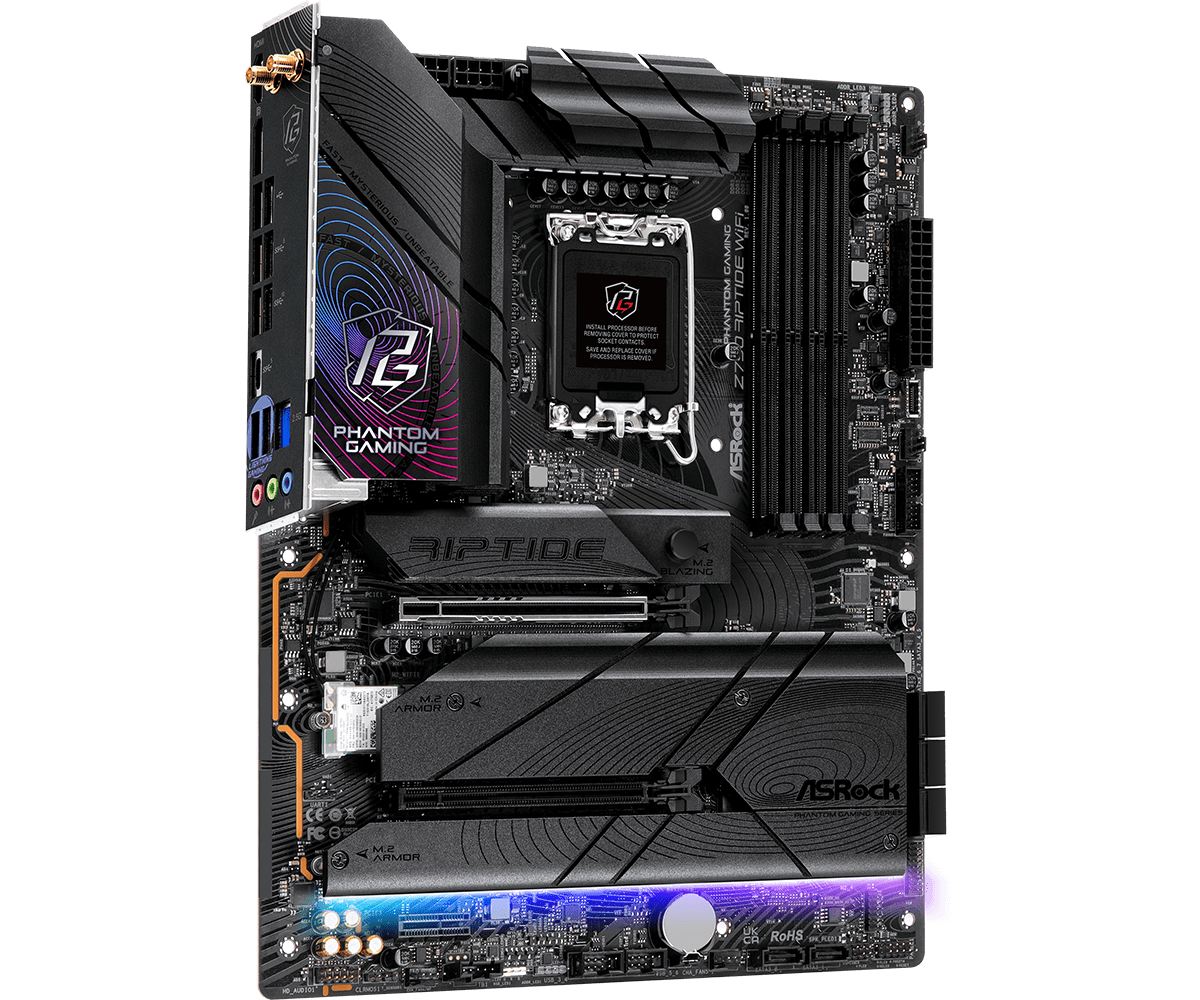

ASROCK Z790 PG RIPTIDE WIFI LGA1700 ATX MOTHERBOARD
ASROCK Z790 PG RIPTIDE WIFI LGA1700 ATX MOTHERBOARD - Image 2
ASROCK Z790 PG RIPTIDE WIFI LGA1700 ATX MOTHERBOARD - Image 3
ASROCK Z790 PG RIPTIDE WIFI LGA1700 ATX MOTHERBOARD - Image 4

ASROCK Z790 PG RIPTIDE WIFI LGA1700 ATX MOTHERBOARD

Compare

PCIe Gen5 support for graphics and M.2, ASRock Auto Driver Installer, and ASRock Post Status Checker.
Supports 14th, 13th, and 12th Gen Intel Core processors (LGA1700) with Intel Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost, and Adaptive Boost Technology; Intel Z790 chipset; dual-channel DDR5 with four DIMM slots up to 8000+(OC) and 256GB max, plus Intel XMP 3.0; 128Mb AMI UEFI BIOS with GUI.
Integrated Intel Xe graphics (Gen12) offering eDP 1.4 (Full HD 60Hz), HDMI 2.1 (4K 60Hz), DisplayPort 1.4 with DSC (8K 60Hz/5K 120Hz); 7.1CH HD Audio (Realtek ALC1220) with Nahimic; 2.5G Killer E3100G LAN.

Specifications

Unique Feature Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5
EZ Update ASRock Auto Driver Installer
EZ Troubleshooter ASRock Post Status Checker
CPU – Supports 14th, 13th & 12th Gen Intel Core„ Processors (LGA1700) – Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology – Supports Intel Thermal Velocity Boost (TVB) – Supports Intel Adaptive Boost Technology (ABT)
Chipset Intel Z790
Memory – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)* – Max. capacity of system memory: 256GB – Supports Intel Extreme Memory Profile (XMP) 3.0
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Graphics – Intel Xe Graphics Architecture (Gen 12) – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Killer E3100G – Supports Killer LAN Software
Wireless LAN – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/be – Supports 2.4GHz/5GHz/6GHz frequency band* – Supports 320MHz channel bandwidth with 6GHz frequency band* – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO
Slots CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x PCIe 3.0 x1 Slot (PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) – Supports AMD CrossFire„
Storage CPU: – 1 x Blazing M.2 Socket (M.2_GEN5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 8 x SATA3 6.0 Gb/s Connectors
RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 and RAID 10 for M.2 NVMe storage devices
USB – 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 1 x USB 3.2 Gen1 Type-C (Rear) – 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection

Key Features

  • CPU Support: Compatible with 14th, 13th & 12th Gen Intel Core processors (LGA1700) with Intel Hybrid Technology, Turbo Boost Max 3.0, TVB and ABT.
  • Memory: Dual-channel DDR5, 4 DIMM slots, up to 8000+(OC) MT/s, max 256GB capacity, XMP 3.0 support.
  • PCIe Expansion: 1× PCIe 5.0 x16 slot (GPU) + 1× PCIe 4.0 x16 slot (x4 mode) + 1× PCIe 3.0 x1 slot.
  • Storage: 1× PCIe Gen5 M.2 (128 Gb/s) + 4× PCIe Gen4 M.2 slots (64 Gb/s each) + 8× SATA3 6.0 Gb/s connectors.
  • Networking: 2.5 Gigabit LAN (Killer E3100G) + Wi‑Fi 7 (802.11be 2×2) with Bluetooth 5.4.
  • USB & Connectivity: 1× USB 3.2 Gen2x2 Type‑C (front), 2× USB 3.2 Gen2 Type‑A (rear), 1× USB 3.2 Gen1 Type‑C (rear), 6× USB 3.2 Gen1 Type‑A, 6× USB 2.0.
  • Audio: 7.1‑CH HD Audio (Realtek ALC1220) with Nahimic, impedance sensing, dedicated PCB layers.
SKU: 1090723 Category:
Unique Feature Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5
EZ Update ASRock Auto Driver Installer
EZ Troubleshooter ASRock Post Status Checker
CPU – Supports 14th, 13th & 12th Gen Intel Core„ Processors (LGA1700) – Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology – Supports Intel Thermal Velocity Boost (TVB) – Supports Intel Adaptive Boost Technology (ABT)
Chipset Intel Z790
Memory – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)* – Max. capacity of system memory: 256GB – Supports Intel Extreme Memory Profile (XMP) 3.0
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Graphics – Intel Xe Graphics Architecture (Gen 12) – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Nahimic Audio
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Killer E3100G – Supports Killer LAN Software
Wireless LAN – 802.11be 2×2 Wi-Fi 7 Module – Supports IEEE 802.11a/b/g/n/ac/ax/be – Supports 2.4GHz/5GHz/6GHz frequency band* – Supports 320MHz channel bandwidth with 6GHz frequency band* – 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.4 – Supports MU-MIMO
Slots CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* – 1 x PCIe 3.0 x1 Slot (PCIE3)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) – Supports AMD CrossFire„
Storage CPU: – 1 x Blazing M.2 Socket (M.2_GEN5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 8 x SATA3 6.0 Gb/s Connectors
RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 and RAID 10 for M.2 NVMe storage devices
USB – 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 1 x USB 3.2 Gen1 Type-C (Rear) – 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
