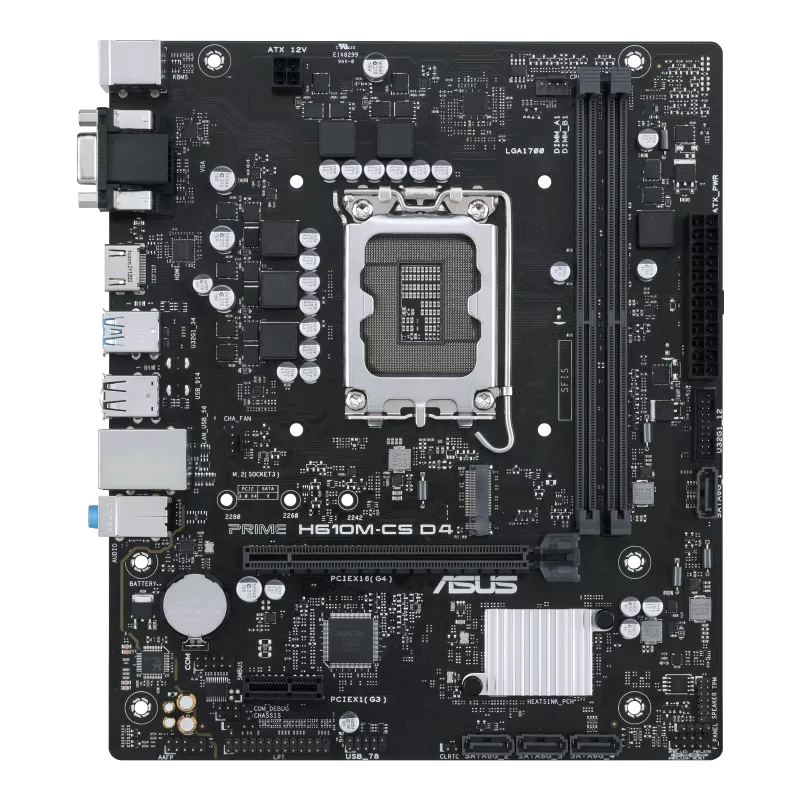

ASUS PRIME H610M-CS INTEL LGA1700 MOTHERBOARD
ASUS PRIME H610M-CS INTEL LGA1700 MOTHERBOARD - Image 2

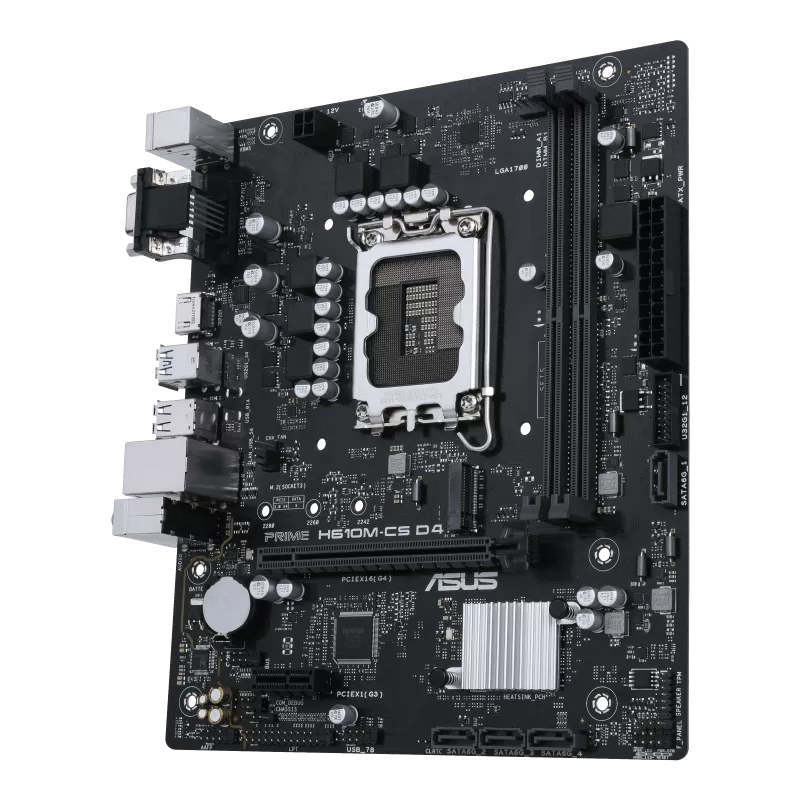

ASUS PRIME H610M-CS INTEL LGA1700 MOTHERBOARD - Image 3

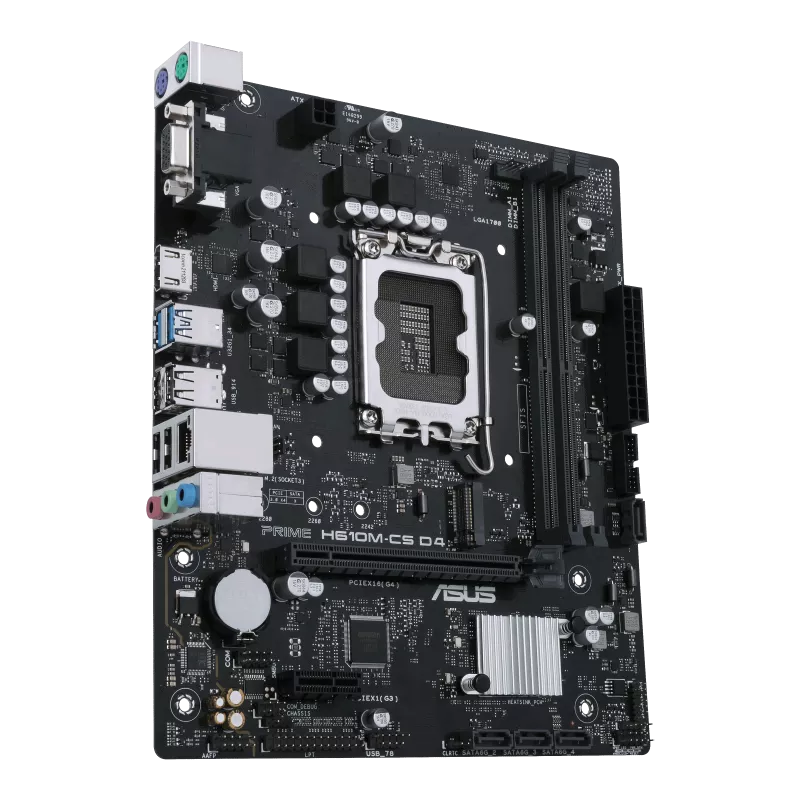

ASUS PRIME H610M-CS INTEL LGA1700 MOTHERBOARD - Image 4

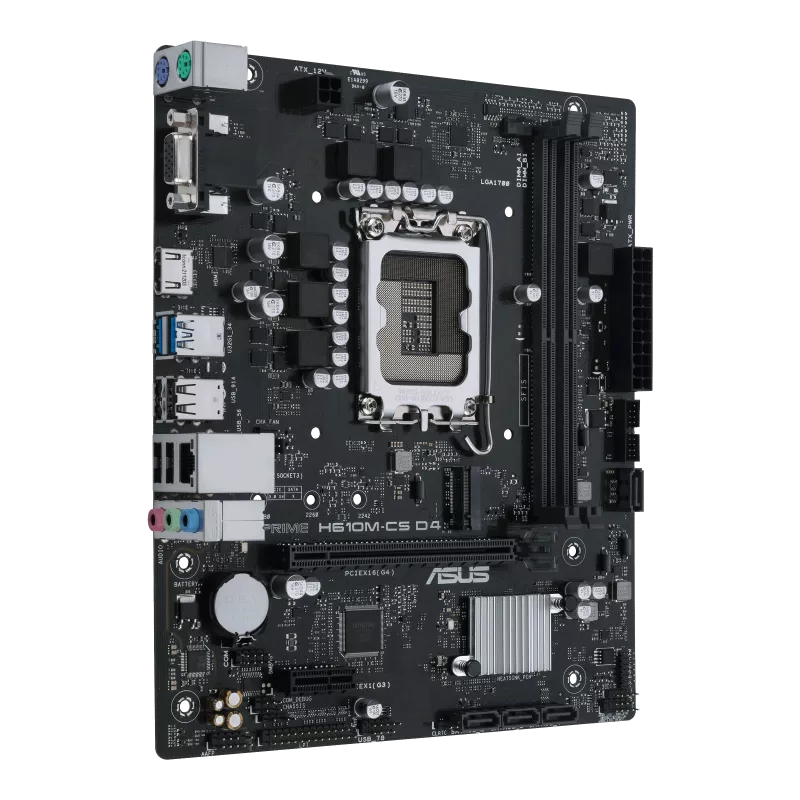

ASUS PRIME H610M-CS INTEL LGA1700 MOTHERBOARD - Image 5
ASUS PRIME H610M-CS INTEL LGA1700 MOTHERBOARD - Image 6

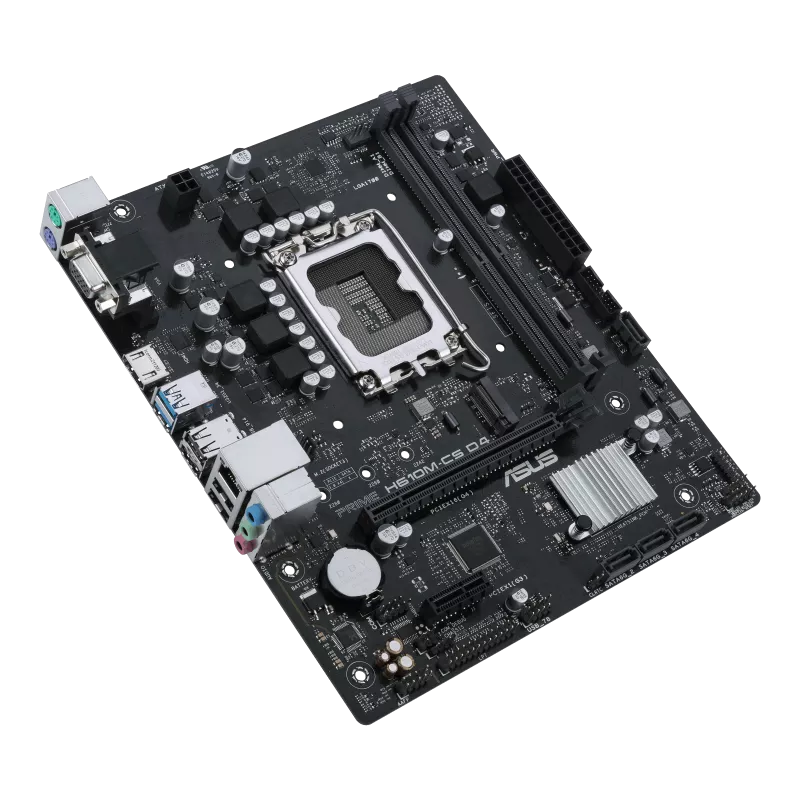

ASUS PRIME H610M-CS INTEL LGA1700 MOTHERBOARD - Image 7

ASUS PRIME H610M-CS INTEL LGA1700 MOTHERBOARD

Compare

The ASUS PRIME H610M-CS D4 motherboard features the Intel H610 chipset and supports Intel Core 14th, 13th, and 12th Gen processors in the LGA1700 socket. It supports dual-channel DDR4 memory up to 64GB, includes one M.2 slot, and provides 4 SATA 6Gb/s ports with Realtek 1Gb Ethernet and 6 rear USB ports.

Specifications

Model PRIME H610M-CS D4
CPU Intel Socket LGA1700 for Intel Core 14 th & 13 th Gen Processors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel H610 Chipset
Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics 1 x D-Sub 1 x HDMI TM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel Core Processors (14 th & 13 th & 12 th Gen)* 1 x PCIe 4.0 x 16 slot Intel H610 Chipset 1 x PCIe 3.0 x 1 slot * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).
Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x 4 mode) 4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

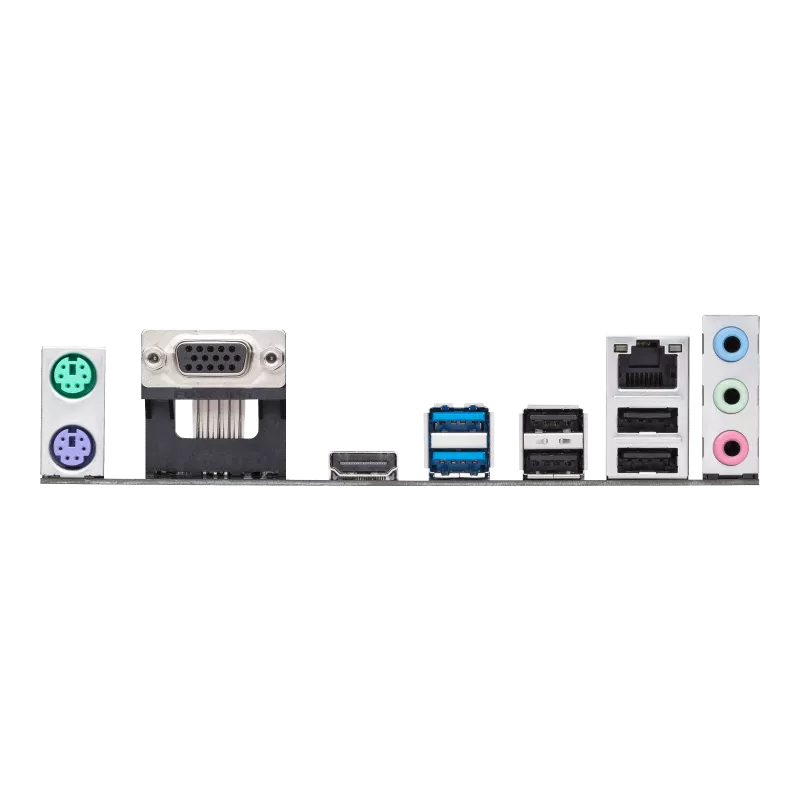

Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header support additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – Aluminum heatsink design Luminous anti-moisture coating USBGuard
Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

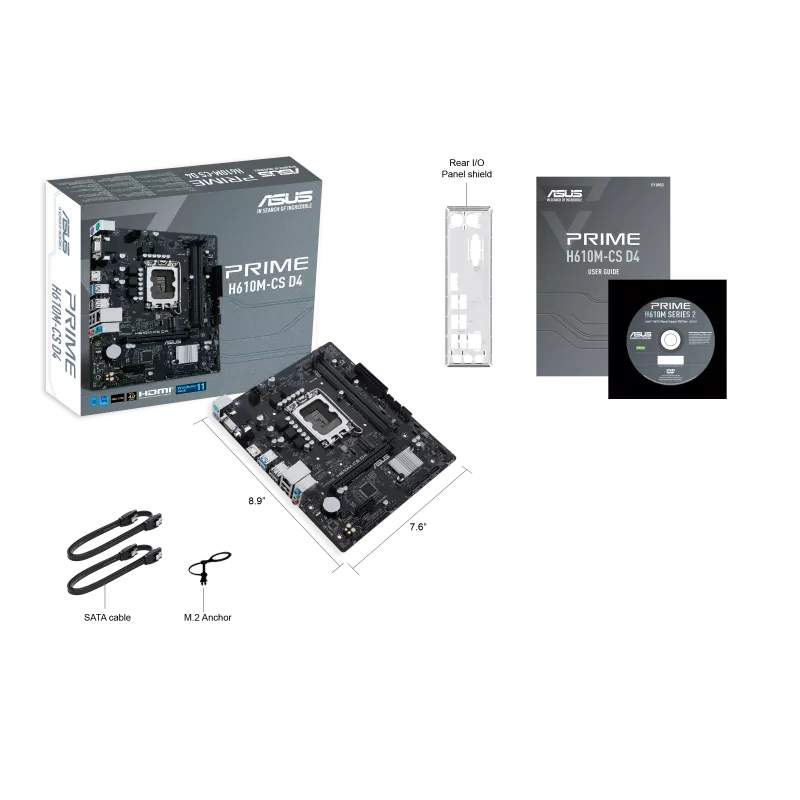

Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 ANCHOR Documentation 1 x User guide
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor mATX Form Factor 8.9 inch x 7.6 inch (22.6 cm x 19.3 cm)

Key Features

  • CPU Support: Intel LGA1700 socket for 12th, 13th, and 14th Gen Core processors (up to 65W TDP)
  • Memory: 2× DDR4 DIMM slots, up to 64GB, speeds up to 3200 MHz
  • Expansion Slots: 1× PCIe 4.0 x16 + 1× PCIe 3.0 x1
  • Storage: 1× M.2 (PCIe 3.0 x4, 2242/2260/2280) + 4× SATA 6Gb/s ports
  • Networking: 1× Realtek 1Gb Ethernet port
  • USB Connectivity: Rear 2× USB 3.2 Gen 1 Type‑A + 4× USB 2.0 Type‑A, plus headers for additional ports
  • Audio & Protection: Realtek 7.1‑channel HD Audio with premium capacitors; ASUS 5X Protection III, SafeSlot Core, LANGuard, overvoltage protection
SKU: 1083157 Category:
Model PRIME H610M-CS D4
CPU Intel Socket LGA1700 for Intel Core 14 th & 13 th Gen Processors, Intel Core 12 th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel H610 Chipset
Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics 1 x D-Sub 1 x HDMI TM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel Core Processors (14 th & 13 th & 12 th Gen)* 1 x PCIe 4.0 x 16 slot Intel H610 Chipset 1 x PCIe 3.0 x 1 slot * Please check the PCIe bifurcation table on the support site ( https://www.asus.com/support/FAQ/1037507/ ).
Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x 4 mode) 4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header support additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot ASUS Thermal Solution – Aluminum heatsink design Luminous anti-moisture coating USBGuard
Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 ANCHOR Documentation 1 x User guide
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor mATX Form Factor 8.9 inch x 7.6 inch (22.6 cm x 19.3 cm)
