Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870 |
| Memory Speed | up to 8000+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Brand Website. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics Port | 1 x HDMI,2 x USB4 |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 3 x PCIe 4.0 x16 slots (support x1 mode)*** * Please check the PCIe bifurcation table on the support Brand Website Site ** Specifications vary by CPU types. *** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. – To ensure compatibility of the device installed, please refer to Brand Website for the list of supported peripherals. |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

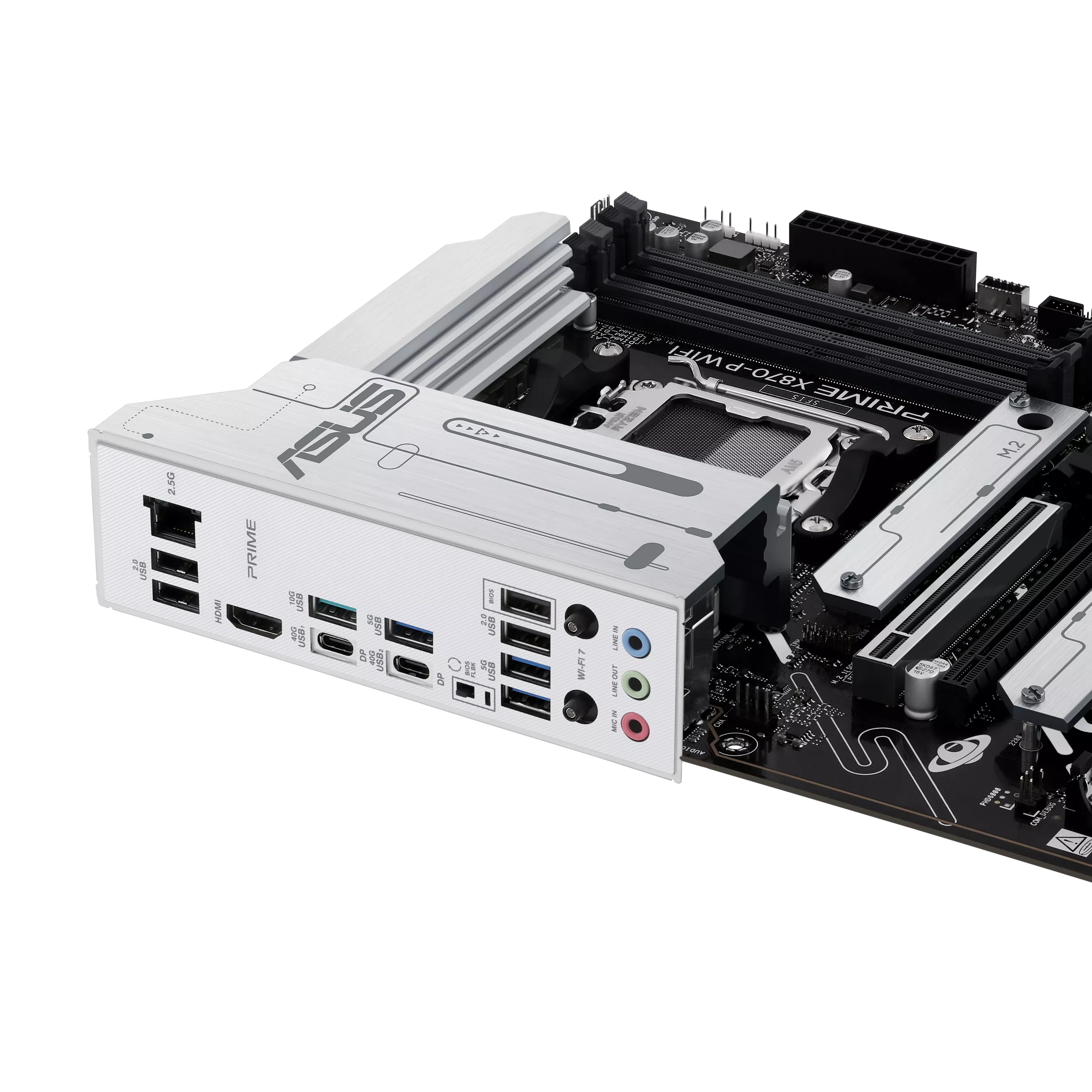

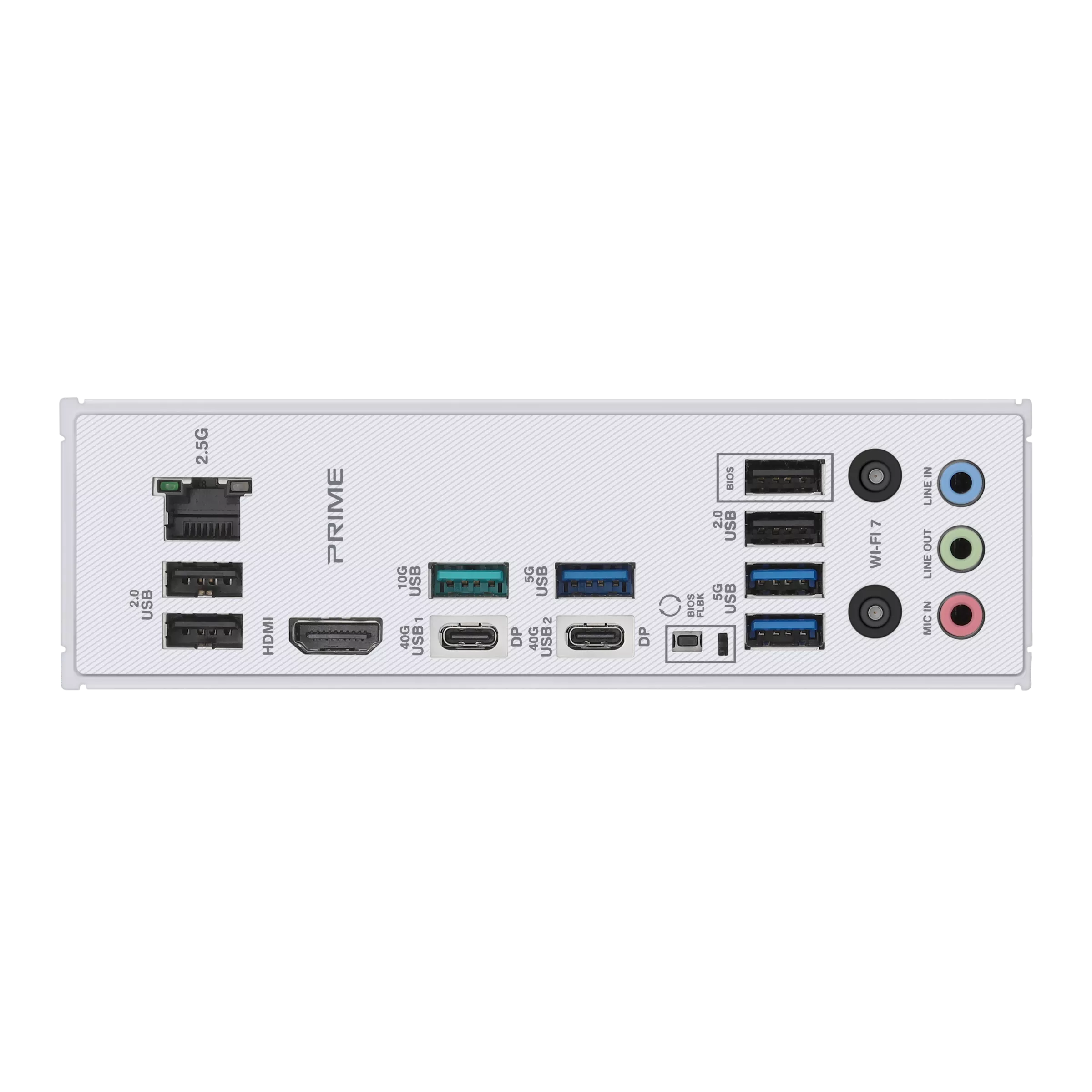

| Back Panel I/O Ports | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS Flash Back button |
| Internal I/O Connector | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| Form Factor | ATX |
| Warranty | 3 Years |
Key Features
- AMD AM5 socket with X870 chipset – Supports Ryzen 7000, 8000 and 9000 series processors.
- DDR5 memory support up to 8000+ MHz – Dual‑channel, up to 256 GB, with EXPO and AEMP overclocking profiles.
- PCIe 5.0 x16 slot (x16 mode) – Primary graphics slot for next‑gen GPUs, plus three PCIe 4.0 x16 slots.
- High‑speed connectivity – 2 × USB4 (40 Gbps) Type‑C ports, 1 × USB 10 Gbps Type‑A, 3 × USB 5 Gbps, 4 × USB 2.0, HDMI, and Realtek 2.5 Gb Ethernet.
- Wi‑Fi 7 and Bluetooth 5.4 – Integrated wireless networking for the latest standards.
- Robust storage options – 4 × M.2 slots (Key M) and 2 × SATA 6 Gb/s ports.
- Comprehensive cooling support – 1 × 4‑pin CPU fan, 1 × 4‑pin CPU OPT fan, 1 × 4‑pin AIO pump, and 4 × 4‑pin chassis fan headers.
- 3‑Year warranty – Peace of mind with ASUS’s standard warranty coverage.
