CPU: AMD Socket AM5, supports Ryzen 9000/8000/7000 series processors; Chipset: AMD X870; Memory: 4 × DIMM slots, up to 256 GB DDR5‑8000+ (OC), ECC/Non‑ECC, Dual‑Channel, EXPO, AEMP.

Graphics: 1 × DisplayPort (8K @ 30 Hz), 1 × HDMI (4K @ 60 Hz), 2 × USB4 Type‑C with DP Alt mode (4K @ 60 Hz); Expansion Slots: 1 × PCIe 5.0 ×16, 1 × PCIe 4.0 ×16, 1 × PCIe 4.0 ×16 (x4); Storage: 4 × M.2 (PCIe 5.0/4.0), 2 × SATA 6 Gb/s; RAID: 0/1/5/10; Ethernet: Intel 2.5 Gb; Wi‑Fi & Bluetooth: Wi‑Fi 7 (2×2, 2.9 Gbps), Bluetooth 5.4; Rear USB: 2 × USB4, 6 × USB 3.2 Gen 2×1, 4 × USB 3.2 Gen 1.

Specifications

CPU AMD Socket AM5, supports Ryzen„ 9000, 8000 & 7000 Series Desktop Processors
Chipset AMD X870
Memory 4 x DIMM slots, max. 256GB DDR5, up to 8000+MT/s (OC), ECC & Non-ECC, Dual Channel, EXPO„, AEMP
Graphics 1 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz), 2 x USB4 Type-C with DP Alt mode (4K@60Hz)
Expansion Slots 1 x PCIe 5.0 x16 (Ryzen 9000 & 7000), 1 x PCIe 4.0 x16 (Ryzen 8000), 1 x PCIe 4.0 x16 (x4 mode)
Storage 4 x M.2 slots (PCIe 5.0/4.0), 2 x SATA 6Gb/s
RAID Support RAID 0/1/5/10 (PCIe & SATA)
Ethernet 1 x Intel 2.5Gb Ethernet, ASUS LANGuard
Wi-Fi & Bluetooth Wi-Fi 7 (2×2, 2.9Gbps, 2.4/5/6GHz), Bluetooth v5.4
Rear USB (12 Ports) 2 x USB4 (40Gbps, Type-C, DP Alt mode), 6 x USB 10Gbps (5 x Type-A, 1 x Type-C, 30W PD), 4 x USB 5Gbps (Type-A)
Front USB (9 Ports) 1 x USB 20Gbps (Type-C), 2 x USB 5Gbps headers (4 additional ports), 2 x USB 2.0 headers (4 additional ports)
Audio ROG SupremeFX 7.1 HD Audio (ALC4080), 120dB SNR, Savitech SV3H712 AMP, Optical S/PDIF

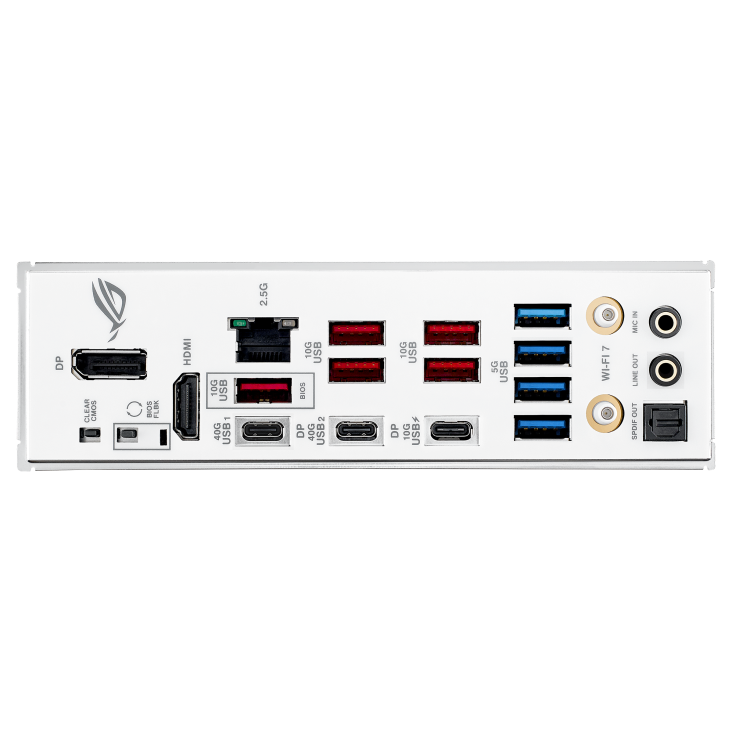

Back Panel I/O 2 x USB4, 6 x USB 10Gbps, 4 x USB 5Gbps, 1 x DisplayPort, 1 x HDMI, 1 x Intel 2.5Gb LAN, 2 x Audio Jacks, 1 x Optical S/PDIF, 1 x BIOS FlashBack„, 1 x Clear CMOS
Internal I/O Connectors 1 x 24-pin ATX Power, 2 x 8-pin CPU Power, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 5 x Chassis Fan, 4 x M.2, 2 x SATA, 3 x Addressable Gen 2 headers, 1 x Alteration PCIe mode switch, 1 x Chassis Intrusion, 1 x Overvoltage jumper, 1 x Front Panel Audio, 1 x Start Button, 1 x 10-1 pin System Panel, 1 x Thermal Sensor
Special Features M.2 Q-Latch, PCIe Slot Q-Release Slim, Q-Antenna, Q-DIMM, Q-LED, Extreme Engine Digi+, SafeSlot, SafeDIMM, Armoury Crate, Fan Xpert 4, AI Overclocking
Software ROG CPU-Z, Dolby Atmos, AIDA64 Extreme (60-day trial), GameFirst, Aura Sync, HWiNFO, Norton 360 (60-day trial), WinRAR (40-day trial)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking, Dynamic OC Switcher, ASUS EZ DIY

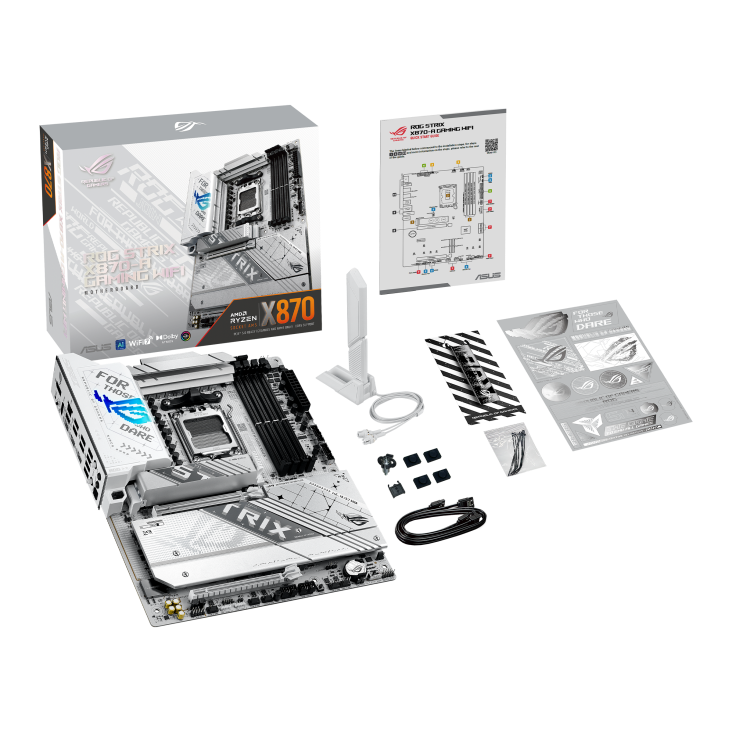

Accessories 2 x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, Cable ties, M.2 Q-Latch package, M.2 Q-Slide, ROG key chain, ROG Strix stickers, 4 x M.2 rubber packages, Quick start guide
Operating System Windows 11
Form Factor ATX, 12″ x 9.6″ (30.5 cm x 24.4 cm)

Key Features

  • AMD Socket AM5 Support: Designed to support Ryzen 9000, 8000, and 7000 Series desktop processors.
  • DDR5 Memory: 4 DIMM slots supporting up to 256GB DDR5 with speeds up to 8000+ MT/s (OC).
  • Wi-Fi 7 Connectivity: Next-generation Wi-Fi 7 (2.9Gbps) and Bluetooth v5.4 for ultra-fast wireless performance.
  • High-Speed Storage & Expansion: Features 4x M.2 slots for PCIe 5.0/4.0 storage and 1x PCIe 5.0 x16 slot.
  • Extensive USB Ports: Rear I/O includes 2x USB4 (40Gbps) and 6x USB 10Gbps ports.
  • ROG SupremeFX Audio: 7.1 HD Audio with ALC4080 codec and 120dB SNR for high-fidelity sound.
  • ROG Software Suite: Includes Armoury Crate and Aura Sync for system monitoring, overclocking, and RGB lighting control.
SKU: 1091809 Category:
CPU AMD Socket AM5, supports Ryzen„ 9000, 8000 & 7000 Series Desktop Processors
Chipset AMD X870
Memory 4 x DIMM slots, max. 256GB DDR5, up to 8000+MT/s (OC), ECC & Non-ECC, Dual Channel, EXPO„, AEMP
Graphics 1 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz), 2 x USB4 Type-C with DP Alt mode (4K@60Hz)
Expansion Slots 1 x PCIe 5.0 x16 (Ryzen 9000 & 7000), 1 x PCIe 4.0 x16 (Ryzen 8000), 1 x PCIe 4.0 x16 (x4 mode)
Storage 4 x M.2 slots (PCIe 5.0/4.0), 2 x SATA 6Gb/s
RAID Support RAID 0/1/5/10 (PCIe & SATA)
Ethernet 1 x Intel 2.5Gb Ethernet, ASUS LANGuard
Wi-Fi & Bluetooth Wi-Fi 7 (2×2, 2.9Gbps, 2.4/5/6GHz), Bluetooth v5.4
Rear USB (12 Ports) 2 x USB4 (40Gbps, Type-C, DP Alt mode), 6 x USB 10Gbps (5 x Type-A, 1 x Type-C, 30W PD), 4 x USB 5Gbps (Type-A)
Front USB (9 Ports) 1 x USB 20Gbps (Type-C), 2 x USB 5Gbps headers (4 additional ports), 2 x USB 2.0 headers (4 additional ports)
Audio ROG SupremeFX 7.1 HD Audio (ALC4080), 120dB SNR, Savitech SV3H712 AMP, Optical S/PDIF
Back Panel I/O 2 x USB4, 6 x USB 10Gbps, 4 x USB 5Gbps, 1 x DisplayPort, 1 x HDMI, 1 x Intel 2.5Gb LAN, 2 x Audio Jacks, 1 x Optical S/PDIF, 1 x BIOS FlashBack„, 1 x Clear CMOS
Internal I/O Connectors 1 x 24-pin ATX Power, 2 x 8-pin CPU Power, 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 5 x Chassis Fan, 4 x M.2, 2 x SATA, 3 x Addressable Gen 2 headers, 1 x Alteration PCIe mode switch, 1 x Chassis Intrusion, 1 x Overvoltage jumper, 1 x Front Panel Audio, 1 x Start Button, 1 x 10-1 pin System Panel, 1 x Thermal Sensor
Special Features M.2 Q-Latch, PCIe Slot Q-Release Slim, Q-Antenna, Q-DIMM, Q-LED, Extreme Engine Digi+, SafeSlot, SafeDIMM, Armoury Crate, Fan Xpert 4, AI Overclocking
Software ROG CPU-Z, Dolby Atmos, AIDA64 Extreme (60-day trial), GameFirst, Aura Sync, HWiNFO, Norton 360 (60-day trial), WinRAR (40-day trial)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking, Dynamic OC Switcher, ASUS EZ DIY
Accessories 2 x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, Cable ties, M.2 Q-Latch package, M.2 Q-Slide, ROG key chain, ROG Strix stickers, 4 x M.2 rubber packages, Quick start guide
Operating System Windows 11
Form Factor ATX, 12″ x 9.6″ (30.5 cm x 24.4 cm)
