Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9066+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Brand Website. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. *** Adjustments will be made based on the specifications of mass-produced memory products available on the market. |
| Graphics Port | 1 x DisplayPort,1 x HDMI,1 x Intel Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt video outputs |
| Expansion Slots | Intel® Core™ Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 4.0 x1 slots |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

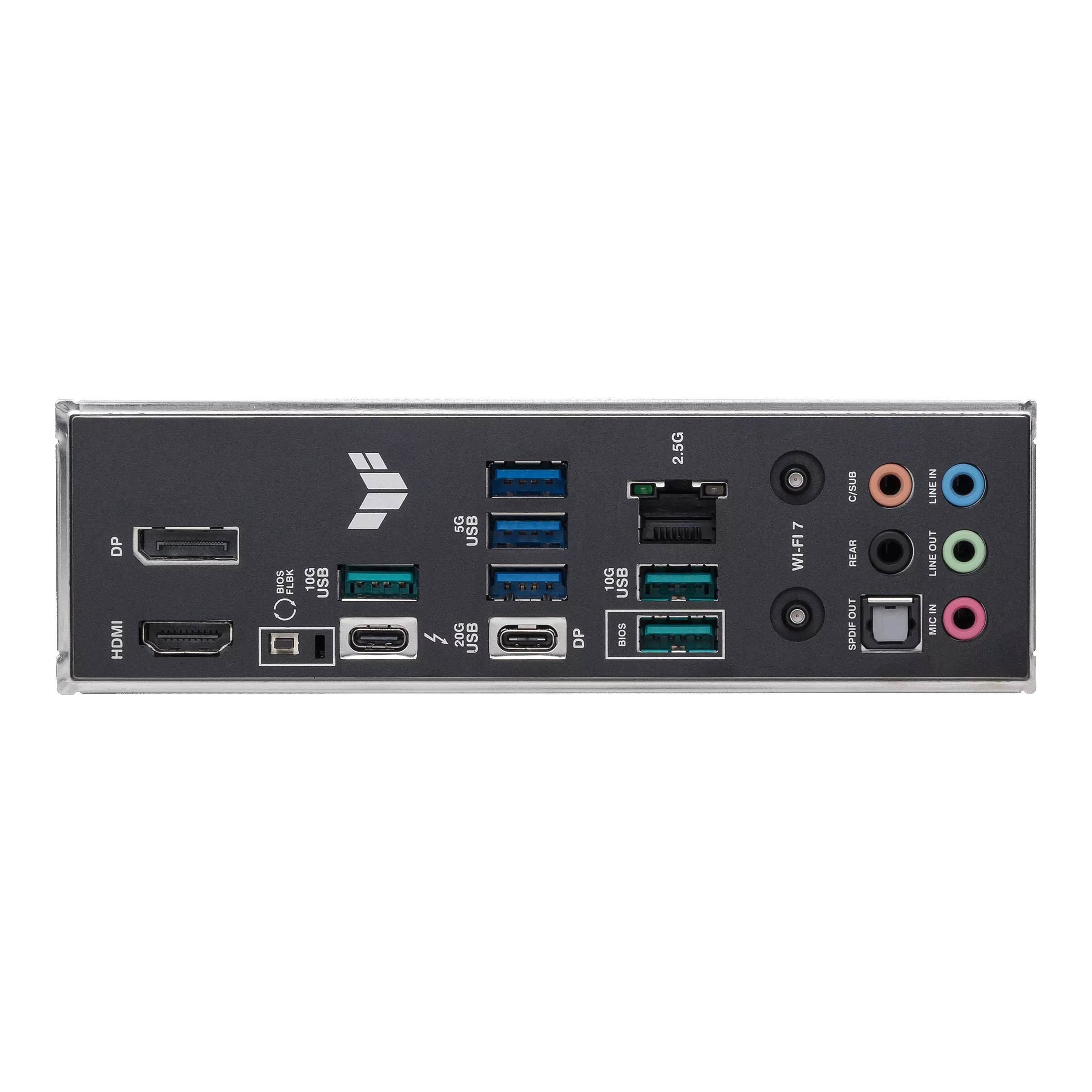

| Back Panel I/O Ports | 1 x Thunderbolt™ 4 USB Type-C® port 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
| Internal I/O Connector | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
| Form Factor | ATX |
| Warranty | 3 Years |
Key Features
- Intel LGA1851 Socket – Supports Core Ultra processors
- Dual-Channel DDR5 – Up to 256GB at speeds up to 9066+ MHz (with XMP & AEMP III support)
- PCIe 5.0 & 4.0 Expansion – 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 1x PCIe 4.0 x4, and 2x PCIe 4.0 x1 slots
- WiFi 7 & Bluetooth 5.4 – Next-gen wireless connectivity
- Thunderbolt 4 (USB-C) – 40Gbps data transfer with DisplayPort and video output support
- 4x M.2 Slots & 4x SATA 6Gb/s – High-speed storage options
- 2.5Gb Ethernet – Wired high-speed networking
- 3-Year Warranty – ASUS reliability guarantee
There are no reviews yet.
