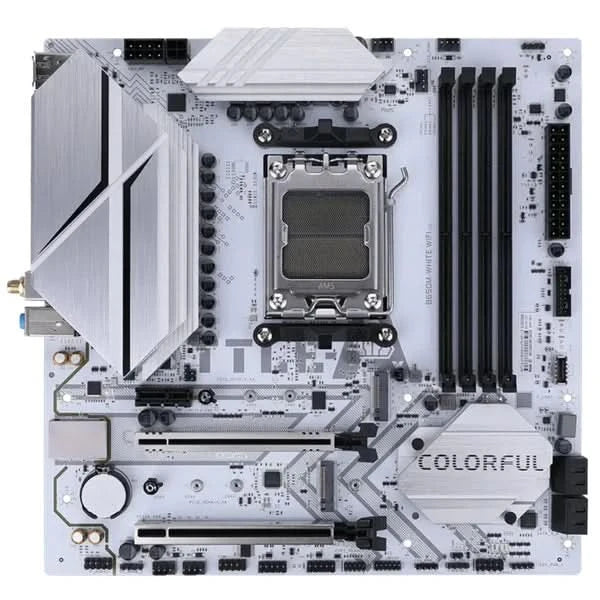

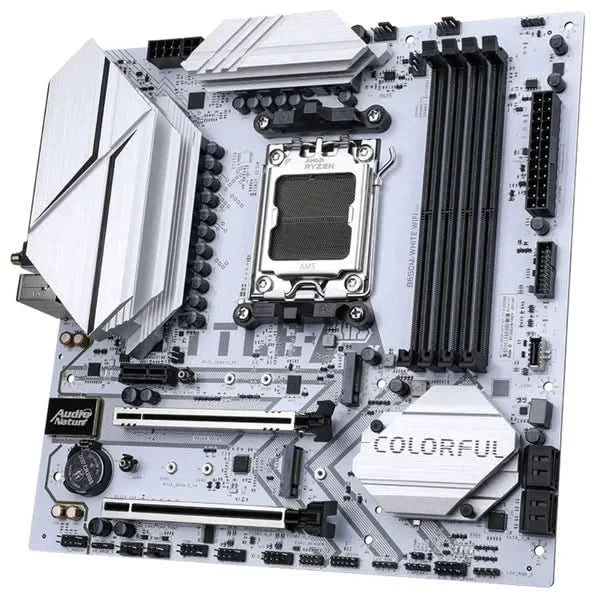

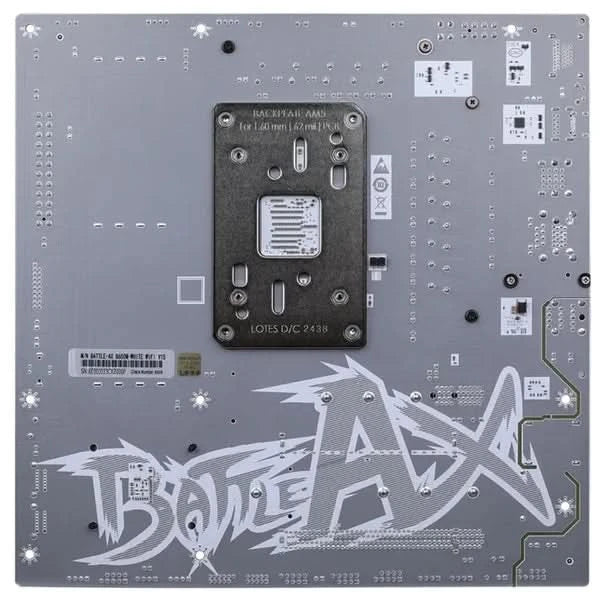

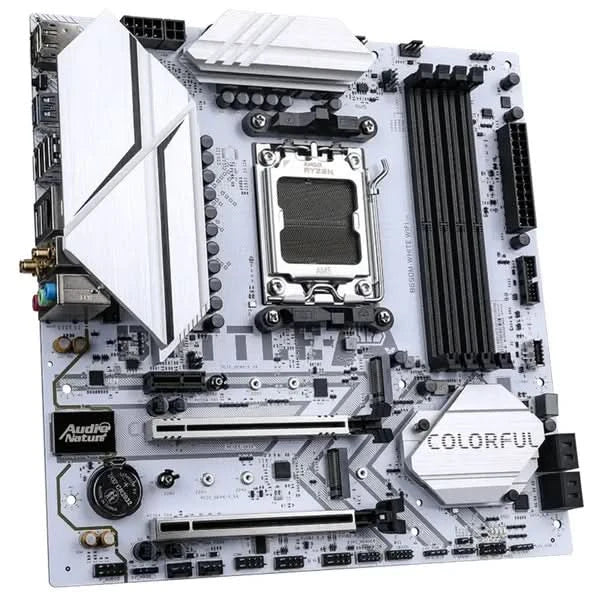

Colorful BATTLE AX B650M WHITE WIFI V15 WiFi-6 AMD B650 AM5 DDR5 MicroATX Motherboard (White)
Colorful BATTLE AX B650M WHITE WIFI V15 WiFi-6 AMD B650 AM5 DDR5 MicroATX Motherboard (White) - Image 2
Colorful BATTLE AX B650M WHITE WIFI V15 WiFi-6 AMD B650 AM5 DDR5 MicroATX Motherboard (White) - Image 3
Colorful BATTLE AX B650M WHITE WIFI V15 WiFi-6 AMD B650 AM5 DDR5 MicroATX Motherboard (White) - Image 4
Colorful BATTLE AX B650M WHITE WIFI V15 WiFi-6 AMD B650 AM5 DDR5 MicroATX Motherboard (White) - Image 5

Colorful BATTLE AX B650M WHITE WIFI V15 WiFi-6 AMD B650 AM5 DDR5 MicroATX Motherboard (White)

Compare

Specification: Details
Model: BATTLE‑AX B650M‑WHITE WIFI V15 (Model No.: BA‑B650M‑W‑WF‑V15)
Product Series: BATTLE‑AX series
Chipset: AMD B650
Processor Support: AMD Ryzen 7000/8000/9000 series (AM5 socket)
Memory: 4× DDR5 DIMM slots; up to 192 GB (48 GB per slot)
Memory Speeds & Tech: DDR5‑4800 to 6800 (OC); supports XMP & EXPO; Dual‑Channel
Storage Interfaces: 2× M.2 slots + 4× SATA 6 Gb/s; RAID 0/1/10
M.2 Slot Details: M.2_1: PCIe 5.0/4.0 x4 • M.2_2: PCIe 5.0/4.0 x4 (depends on CPU)

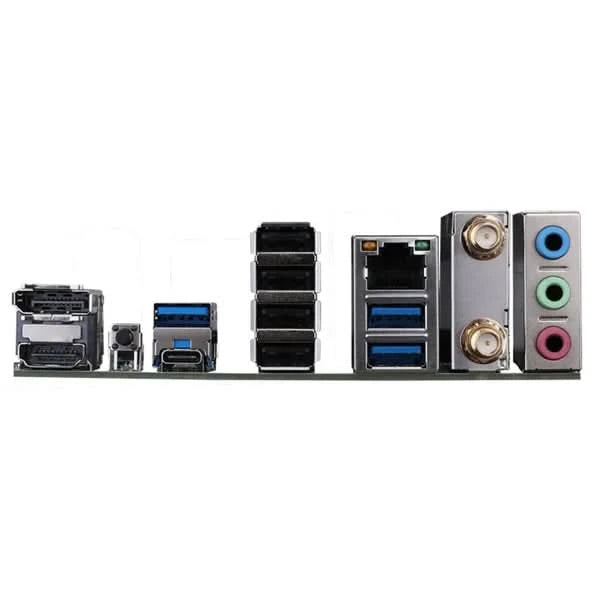

Rear I/O: 4× USB 2.0 • 2× USB 3.2 Gen1 Type‑A • 1× USB 3.2 Gen2 Type‑A • 1× USB 3.2 Gen1 Type‑C • DP 1.2 (4K@60) • HDMI 1.4 (4K@30) • 2.5G LAN • Wi‑Fi 6 antenna ports • Audio jacks • BIOS update button

Specifications

Specification Details
Model BATTLE‑AX B650M‑WHITE WIFI V15 (Model No.: BA‑B650M‑W‑WF‑V15)
Product Series BATTLE‑AX series
Chipset AMD B650
Processor Support AMD Ryzen 7000/8000/9000 series (AM5 socket)
Memory 4× DDR5 DIMM slots; up to 192 GB (48 GB per slot)
Memory Speeds & Tech DDR5‑4800 to 6800 (OC); supports XMP & EXPO; Dual‑Channel
Storage Interfaces 2× M.2 slots + 4× SATA 6 Gb/s; RAID 0/1/10
M.2 Slot Details M.2_1: PCIe 5.0/4.0 x4 • M.2_2: PCIe 5.0/4.0 x4 (depends on CPU)
Rear I/O 4× USB 2.0 • 2× USB 3.2 Gen1 Type‑A • 1× USB 3.2 Gen2 Type‑A • 1× USB 3.2 Gen1 Type‑C • DP 1.2 (4K@60) • HDMI 1.4 (4K@30) • 2.5G LAN • Wi‑Fi 6 antenna ports • Audio jacks • BIOS update button
On‑Board Headers CPU fan • System fans • Water pump • USB headers • RGB headers • Front audio • Front panel • CMOS jumper • COM port • BIOS burner • POST card
Expansion Slots 1× PCIe 5.0 x16 • 1× PCIe x16 (PCIe 4.0 x4) • 1× PCIe 4.0 x1
Graphics Output DisplayPort 1.2 (4K@60) • HDMI 1.4 (4K@30)
BIOS 128 M UEFI, multilingual
Power Management S3/S4 wake‑up • Network S5 wake‑up • USB wake‑up • Scheduled boot
Hardware Monitor CPU/System fan control • Temperature monitoring • Voltage monitoring
Networking Realtek RTL8125BG 2.5GbE LAN • Intel AX200 Wi‑Fi 6 • Bluetooth 5.2
Audio Realtek ALC897 codec; up to 5.1 channels
Form Factor Micro‑ATX (245 mm × 245 mm)
Country of Origin China
Weight 1.5
Warranty 3 Year
Model Number BA‑B650M‑W‑WF‑V15

Key Features

  • CPU Support: AMD Ryzen 7000/8000/9000 series (AM5 socket)
  • Memory: 4× DDR5 DIMM slots, up to 192 GB (48 GB per slot), DDR5‑4800 to 6800 (OC) with XMP & EXPO
  • Storage: 2× M.2 slots (PCIe 5.0/4.0 x4 each) + 4× SATA 6 Gb/s, RAID 0/1/10
  • Expansion Slots: 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 1× PCIe 4.0 x1
  • Networking: Realtek RTL8125BG 2.5GbE LAN, Intel AX200 Wi‑Fi 6, Bluetooth 5.2
  • Rear I/O: 4× USB 2.0, 2× USB 3.2 Gen1 Type‑A, 1× USB 3.2 Gen2 Type‑A, 1× USB 3.2 Gen1 Type‑C, DP 1.2 (4K@60), HDMI 1.4 (4K@30)
  • Warranty & Form Factor: 3‑year warranty, Micro‑ATX (245 mm × 245 mm)
SKU: 1095282 Category:
Specification Details
Model BATTLE‑AX B650M‑WHITE WIFI V15 (Model No.: BA‑B650M‑W‑WF‑V15)
Product Series BATTLE‑AX series
Chipset AMD B650
Processor Support AMD Ryzen 7000/8000/9000 series (AM5 socket)
Memory 4× DDR5 DIMM slots; up to 192 GB (48 GB per slot)
Memory Speeds & Tech DDR5‑4800 to 6800 (OC); supports XMP & EXPO; Dual‑Channel
Storage Interfaces 2× M.2 slots + 4× SATA 6 Gb/s; RAID 0/1/10
M.2 Slot Details M.2_1: PCIe 5.0/4.0 x4 • M.2_2: PCIe 5.0/4.0 x4 (depends on CPU)
Rear I/O 4× USB 2.0 • 2× USB 3.2 Gen1 Type‑A • 1× USB 3.2 Gen2 Type‑A • 1× USB 3.2 Gen1 Type‑C • DP 1.2 (4K@60) • HDMI 1.4 (4K@30) • 2.5G LAN • Wi‑Fi 6 antenna ports • Audio jacks • BIOS update button
On‑Board Headers CPU fan • System fans • Water pump • USB headers • RGB headers • Front audio • Front panel • CMOS jumper • COM port • BIOS burner • POST card
Expansion Slots 1× PCIe 5.0 x16 • 1× PCIe x16 (PCIe 4.0 x4) • 1× PCIe 4.0 x1
Graphics Output DisplayPort 1.2 (4K@60) • HDMI 1.4 (4K@30)
BIOS 128 M UEFI, multilingual
Power Management S3/S4 wake‑up • Network S5 wake‑up • USB wake‑up • Scheduled boot
Hardware Monitor CPU/System fan control • Temperature monitoring • Voltage monitoring
Networking Realtek RTL8125BG 2.5GbE LAN • Intel AX200 Wi‑Fi 6 • Bluetooth 5.2
Audio Realtek ALC897 codec; up to 5.1 channels
Form Factor Micro‑ATX (245 mm × 245 mm)
Country of Origin China
Weight 1.5
Warranty 3 Year
Model Number BA‑B650M‑W‑WF‑V15
