Specifications
| Model | iGame Z890 VULCAN X V20 |
| Series | iGame |
| Chipset | Intel Z890 |
| Processor | Intel® Core™ Ultra (LGA 1851; check colorful.cn for list) |
| Memory | 4 x DDR5 up to 192 GB (48 GB single); 8800(OC)-4800 MHz; XMP; Dual channel (check compatibility list) |
| Storage | 5 x M.2 (M2_1 PCIe5.0 x4 CPU; M2_2/3/4 PCIe4.0 x4; M2_5 PCIe4.0/SATA); 6 x SATA 6Gb/s (no RAID on SATA 5/6); RAID 0/1/5/10 |

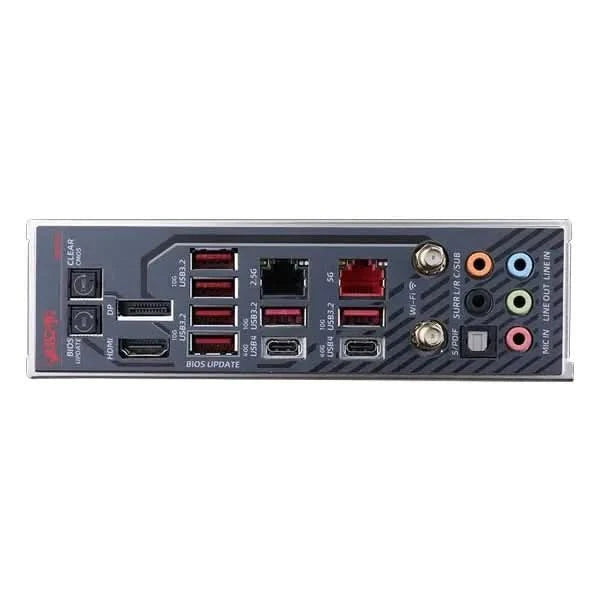

| Rear I/O | 6 x USB 3.2 Gen2 10G Type-A; 2 x USB4 40G Type-C (4K60 video); 1 x DP1.4 (8K60); 1 x HDMI2.0 (4K60); 2.5G/5G LAN; Wi-Fi7 antennas; 5 x audio; S/PDIF; BIOS/CMOS buttons |
| Internal I/O | USB: 2 x USB2.0 (4 ports), 2 x USB3.2 Gen1 (4 ports), 1 x USB3.2 Gen2x2 Type-C (20G PD60W); Fans: 2 x CPU, 4 x SYS, 1 x Pump; RGB: 3 x 5V ARGB, 1 x 12V RGB; Front audio/panel; BIOS burner |
| Expansion Slots | 1 x PCIe5.0 x16 (x16 or x8/x8); 1 x PCIe5.0 x8 (x16 slot); 1 x PCIe4.0 x4 |
| BIOS | 256M UEFI multi-language |
| Power Management | S3/S4/Network S5/USB wake; Timed boot |
| Hardware Monitor | Fan speed control; Temp/voltage monitoring |
| LAN/Wireless | RTL8125BG 2.5G + RTL8126 5G; BE200 Wi-Fi7 + BT 5.4 |
| Audio | Realtek ALC1220 (7.1 channel) |
| Form Factor | E-ATX (305 x 277 mm) |
| Other Features | Buttons: Power/Reset/Retry/BCLK(2)/Safe Start/RGB(2)/LN2/Slow/BIOS switch; 3-year warranty |
Key Features
- Chipset & Socket: Intel Z890 chipset with LGA 1851 socket for Intel Core Ultra processors.
- Memory: 4× DDR5 slots, up to 192 GB (48 GB per module), speeds 4800‑8800 MHz (OC), XMP support, dual‑channel.
- Storage: 5× M.2 (PCIe5.0 x4 CPU, PCIe4.0 x4×3, PCIe4.0/SATA) + 6× SATA 6Gb/s, RAID 0/1/5/10.
- Expansion Slots: 1× PCIe5.0 x16 (x16 or x8/x8), 1× PCIe5.0 x8, 1× PCIe4.0 x4.
- Connectivity: Rear I/O: 6× USB3.2 Gen2 10G Type‑A, 2× USB4 40G Type‑C (4K60 video), DP1.4 (8K60), HDMI2.0 (4K60), 2.5G/5G LAN, Wi‑Fi 7 + BT 5.4 antennas.
- Audio: Realtek ALC1220 7.1‑channel high‑definition audio.
- Cooling & RGB: 2 CPU fan, 4 SYS fan, 1 pump header; 3× 5V ARGB, 1× 12V RGB headers.
- Warranty & Extras: 3‑year warranty; BIOS switch, power/reset/retry/LN2 buttons, front panel connectors.
