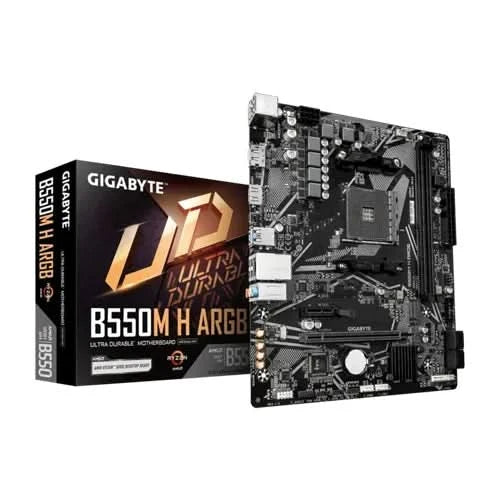

Gigabyte B550M H ARGB M-ATX Motherboard

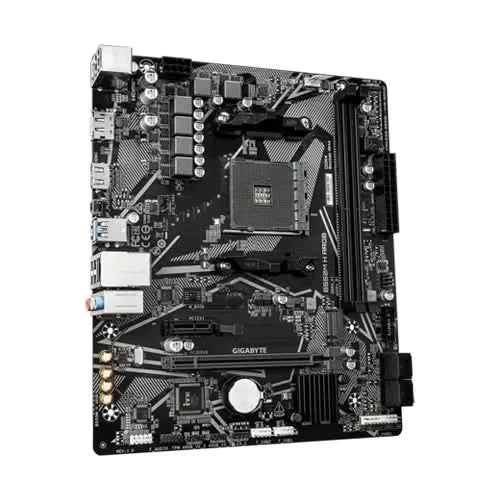

Gigabyte B550M H ARGB M-ATX Motherboard - Image 2

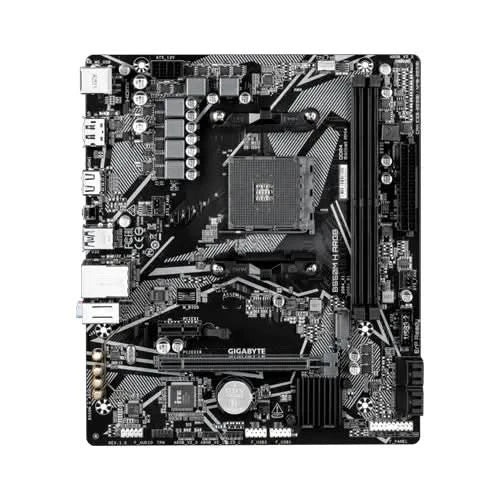

Gigabyte B550M H ARGB M-ATX Motherboard - Image 3

Gigabyte B550M H ARGB M-ATX Motherboard

Compare

Platform: AMD
Socket: AM4
Cpu Type: Ryzen 5000,Ryzen 4000,Ryzen 3000
Chipset: B550
Memory Speed: up to 5100
Max Memory Support: 64 GB
Supported Memory Type: DDR4
Channel Supported: Dual Channel
Memory Feature: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
Graphics Port: 1 x DisplayPort, 1 x HDMI

Specifications

Platform AMD
Socket AM4
Cpu Type Ryzen 5000,Ryzen 4000,Ryzen 3000
Chipset B550
Memory Speed up to 5100
Max Memory Support 64 GB
Supported Memory Type DDR4
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Graphics Port 1 x DisplayPort, 1 x HDMI
Expansion Slots 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Back Panel I/O Ports 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years

Key Features

  • Socket AM4 – Supports AMD Ryzen 5000, 4000 & 3000 series processors
  • B550 Chipset – PCIe 4.0 ready for GPU and storage
  • DDR4 Memory – Up to 5100 MHz (OC), 64 GB max, dual‑channel
  • Expansion & Storage – 1× PCIe x16 slot, 1× PCIe x1 slot, 1× M.2 Socket 3, 4× SATA 6Gb/s
  • Connectivity – DisplayPort + HDMI, 4× USB 3.2 Gen 1, 2× USB 2.0, RJ‑45, audio jacks
  • RGB & Lighting – 3× addressable RGB Gen2 LED strip headers + 1× RGB LED strip header
  • Convenient Features – Q‑Flash Plus button, 3‑year warranty, micro‑ATX form factor
SKU: 1097409 Category:
Platform AMD
Socket AM4
Cpu Type Ryzen 5000,Ryzen 4000,Ryzen 3000
Chipset B550
Memory Speed up to 5100
Max Memory Support 64 GB
Supported Memory Type DDR4
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE\’s website for more information.)
Graphics Port 1 x DisplayPort, 1 x HDMI
Expansion Slots 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Back Panel I/O Ports 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years
