GIGABYTE B760M GAMING WIFI6E GEN5
GIGABYTE B760M GAMING WIFI6E GEN5 - Image 2
GIGABYTE B760M GAMING WIFI6E GEN5 - Image 3
GIGABYTE B760M GAMING WIFI6E GEN5 - Image 4

GIGABYTE B760M GAMING WIFI6E GEN5

Compare

Platform: INTEL
Socket: LGA1700
CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset: B760
Memory Speed: up to 8000
Max Memory Support: 128 GB
Supported Memory Type: DDR5
Channel Supported: Dual Channel
Memory Feature: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Graphics Port: 1x HDMI, 1x DisplayPort, 1x D-Sub

Specifications

Platform INTEL
Socket LGA1700
CPU Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset B760
Memory Speed up to 8000
Max Memory Support 128 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Graphics Port 1x HDMI, 1x DisplayPort, 1x D-Sub
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Wireless Networking WiFi 6E,Bluetooth 5.3

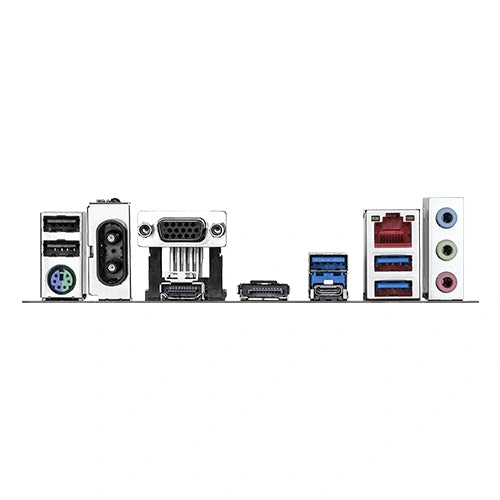

Back Panel I/O Ports 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x D-Sub port (Note) 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years

Key Features

  • Supports Intel 14th, 13th, 12th Gen, Pentium Gold, and Celeron processors (LGA1700)
  • B760 chipset with DDR5 memory up to 8000 MT/s, max 128 GB (dual channel)
  • PCIe 5.0 x16 slot (graphics or NVMe SSD) plus PCIe 3.0 x1 slot
  • Two M.2 Socket 3 connectors for high-speed storage
  • Wi‑Fi 6E and Bluetooth 5.3 wireless connectivity
  • Rich I/O: HDMI, DisplayPort, D‑Sub, USB Type‑C, USB 3.2 Gen 1, RJ‑45, audio
  • Micro‑ATX form factor with a 3‑year warranty
SKU: 1094991 Category:
Platform INTEL
Socket LGA1700
CPU Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset B760
Memory Speed up to 8000
Max Memory Support 128 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE\’s website for more information.)
Graphics Port 1x HDMI, 1x DisplayPort, 1x D-Sub
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Wireless Networking WiFi 6E,Bluetooth 5.3
Back Panel I/O Ports 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x D-Sub port (Note) 1 x HDMI port (Note) 1 x DisplayPort (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years
