Motherboard

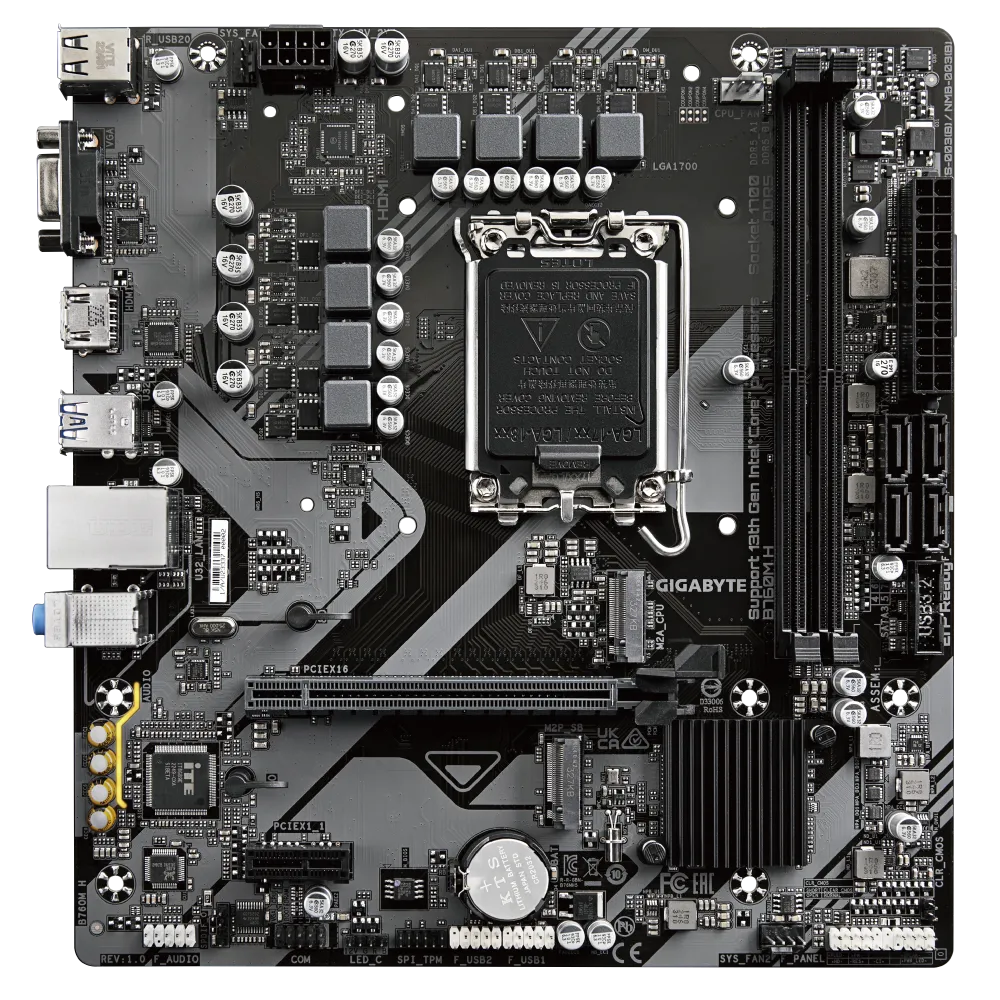

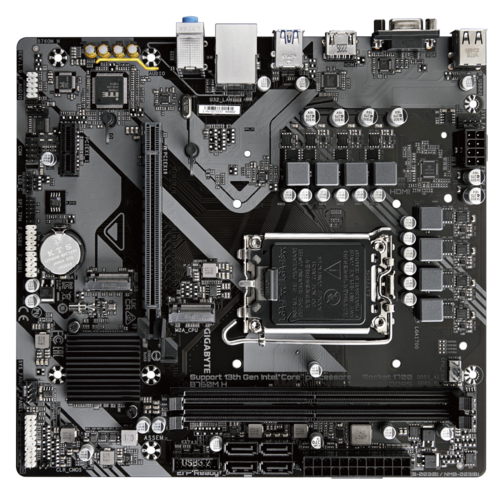

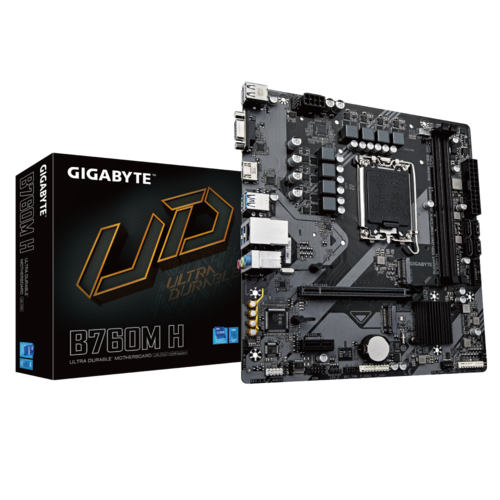

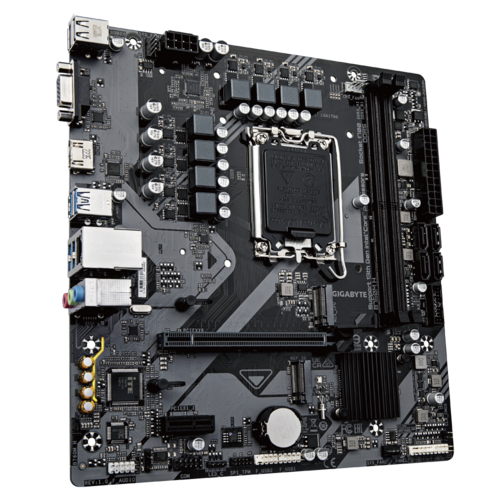

GIGABYTE B760M H DDR5 MOTHERBOARD

Compare

Platform: INTEL
Socket: LGA1700
CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset: B760
Memory Speed: up to 8000
Max Memory Support: 128 GB
Supported Memory Type: DDR5
Channel Supported: Dual Channel
Memory Feature: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules.
Graphics Port: 1 x D-Sub, 1 x HDMI ports

Specifications

Platform	INTEL
Socket	LGA1700
Cpu Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	B760
Memory Speed	up to 8000
Max Memory Support	128 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Graphics Port	1 x D-Sub, 1 x HDMI ports
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

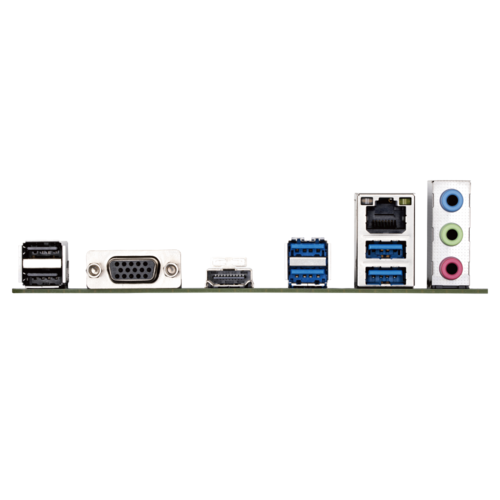

Back Panel I/O Ports	2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Form Factor	Micro-ATX
Warranty	3 Years

Key Features

Supports Intel 14th, 13th, 12th Gen, Pentium Gold & Celeron processors (LGA1700)
B760 chipset with DDR5 memory up to 8000 MT/s, max 128 GB (dual‑channel)
PCIe 4.0 x16 slot (graphics or NVMe SSD) + PCIe 3.0 x1 slot
Two M.2 Socket 3 connectors for high‑speed storage
Four SATA 6Gb/s ports for additional drives
HDMI and D‑Sub video outputs for integrated graphics
Rear I/O: 4× USB 3.2 Gen 1, 2× USB 2.0, RJ‑45 LAN, 3 audio jacks
Micro‑ATX form factor with a 3‑year warranty

SKU: 1088647 Category: Motherboard
