Specifications
| Platform | INTEL |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Chipset | B860 |
| Memory Speed | up to 9066 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Graphics Port | 1 x HDMI,2 x DisplayPort |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3) |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |

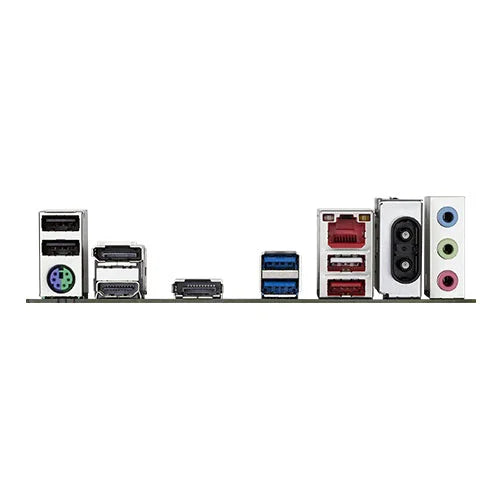

| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU. |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Key Features
- Intel LGA1851 Socket – Supports latest Core Ultra processors with B860 chipset.
- DDR5 Memory – Up to 9066 MT/s, max 256 GB (dual‑channel).
- Wi‑Fi 6E & Bluetooth 5.3 – Integrated wireless for fast, low‑latency connectivity.
- PCIe 5.0 x16 Slot – Full‑bandwidth slot for graphics card or NVMe SSD.
- Dual M.2 Slots – Two M.2 Socket 3 connectors for high‑speed storage.
- Extensive I/O – HDMI + 2×DisplayPort, USB 3.2 Gen 2 Type‑A, USB 3.2 Gen 1, USB 2.0, PS/2, RJ‑45, audio.
- Micro‑ATX Form Factor & 3‑Year Warranty – Compact size with reliable coverage.
