Specifications
| CPU | 1. LGA1700 socket: Support for the 13th and 12th Generation IntelÃCoreô, PentiumÃGold and CeleronÃProcessors* |
| Chipset | 1. IntelÃB760 Express Chipset |
| Memory | 1. Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Onboard Graphics | Integrated Graphics Processor-IntelÃHD Graphics support: |
| Audio | 1. RealtekÃAudio CODEC |
| LAN | 1. RealtekÃ2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | IntelÃWi-Fi 6E AX211 (For PCB rev. 1.0) |
| Expansion Slots | CPU: |
| Storage Interface | CPU: |
| USB | Chipset: |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |

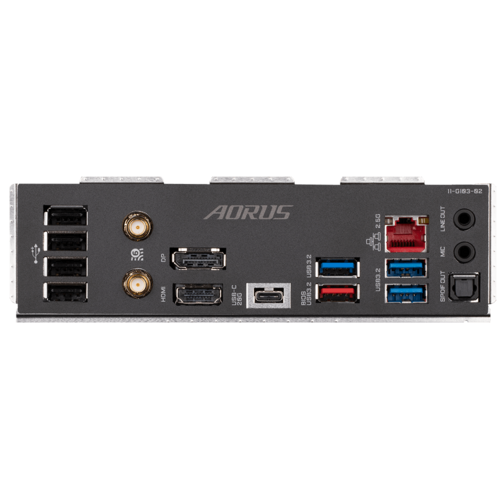

| Back Panel Connectors | 1. 1 x USB Type-CÃport, with USB 3.2 Gen 2×2 support |
| I/O Controller | 1. iTEÃI/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| BIOS | 1. 1 x 256 Mbit flash |
| Unique Features | 1. Support for GIGABYTE Control Center (GCC) |
| Bundled Software | 1. NortonÃInternet Security (OEM version) |
| Operating System | 1. Support for Windows 11 64-bit |
| Form Factor | 1. Micro ATX Form Factor; 24.4cm x 24.4cm |
Key Features
- LGA1700 Socket: Supports 13th & 12th Generation Intel Core, Pentium Gold and Celeron processors.
- Intel B760 Chipset: Provides stable platform for mainstream performance.
- DDR5 Memory: Up to 7600 MT/s (O.C.) and standard 4800/4000 MT/s modules.
- 2.5GbE LAN: Realtek 2.5 Gigabit Ethernet for fast wired networking.
- Wi‑Fi 6E: Intel AX211 module delivers wireless speeds up to 2.4 GHz/5 GHz/6 GHz bands.
- USB Type‑C 3.2 Gen 2×2: Rear port offers 20 Gbps data transfer.
- Micro‑ATX Form Factor: Compact 24.4 cm × 24.4 cm size fits smaller builds.
