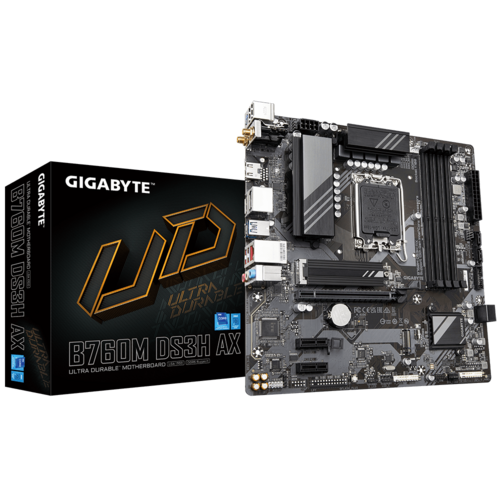

Specifications
| CPU | 1. LGA1700 socket: Support for the 13th and 12th Generation IntelÃCoreô, PentiumÃGold and CeleronÃProcessors |
| Chipset | 1. IntelÃB760 Express Chipset |
| Memory | 1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Onboard Graphics | Integrated Graphics Processor-IntelÃHD Graphics support: |
| Audio | 1. RealtekÃAudio CODEC |
| LAN | 1. RealtekÃ2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0) |
| Expansion Slots | CPU: |
| Storage Interface | CPU: |
| USB | Chipset: |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| Back Panel Connectors | 1. 2 x USB 2.0/1.1 ports |
| I/O Controller | 1. iTEÃI/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| BIOS | 1. 1 x 128 Mbit flash |
| Unique Features | 1. Support for GIGABYTE Control Center (GCC) |
| Bundled Software | 1. NortonÃInternet Security (OEM version) |
| Operating System | 1. Support for Windows 11 64-bit |
| Form Factor | 1. Micro ATX Form Factor; 24.4cm x 24.4cm |
Key Features
- LGA1700 socket compatible with 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors.
- Intel B760 Express chipset delivering robust performance and PCIe 5.0 support.
- DDR5 memory support up to 7600 MT/s (overclocked) across multiple speed grades.
- 2.5 GbE Realtek LAN offering 2.5 Gbps, 1 Gbps and 100 Mbps networking options.
- Wi‑Fi 6E AMD RZ608 (MT7921K) for high‑speed wireless connectivity.
- Micro ATX form factor (24.4 cm × 24.4 cm) fitting compact builds.
- Realtek Audio CODEC providing high‑definition sound for immersive media.
