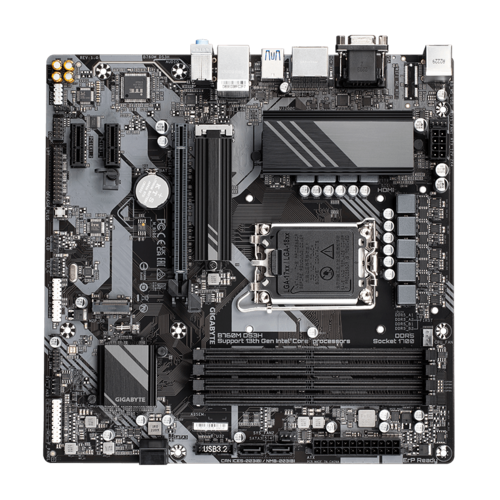

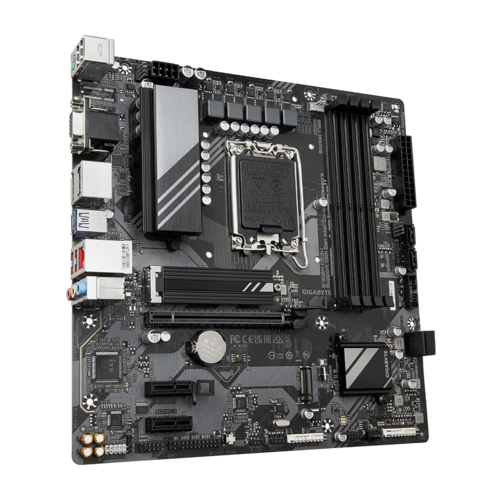

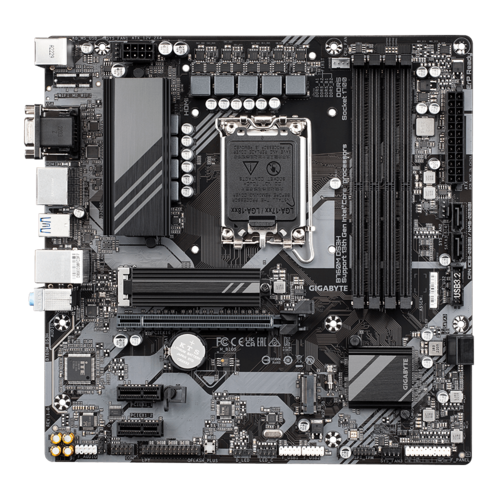

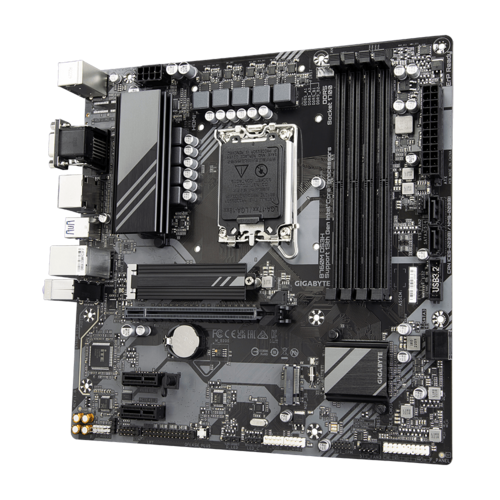

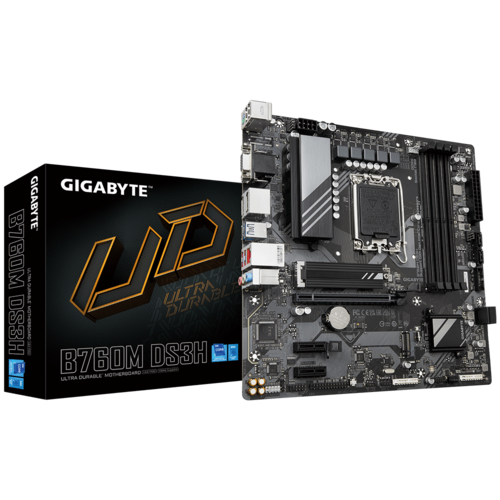

GIGABYTE GA-B760M-DS3H DDR5 INTEL LGA1700 MOTHERBOARD
GIGABYTE GA-B760M-DS3H DDR5 INTEL LGA1700 MOTHERBOARD - Image 2
GIGABYTE GA-B760M-DS3H DDR5 INTEL LGA1700 MOTHERBOARD - Image 3
GIGABYTE GA-B760M-DS3H DDR5 INTEL LGA1700 MOTHERBOARD - Image 4
GIGABYTE GA-B760M-DS3H DDR5 INTEL LGA1700 MOTHERBOARD - Image 5
GIGABYTE GA-B760M-DS3H DDR5 INTEL LGA1700 MOTHERBOARD - Image 6

GIGABYTE GA-B760M-DS3H DDR5 INTEL LGA1700 MOTHERBOARD

Compare

Platform: INTEL
Socket: LGA1700
CPU Type: 14th Gen, 13th Gen, 12th Gen
Chipset: B760
Memory Speed: up to 7600
Max Memory Support: 256 GB
Supported Memory Type: DDR5
Channel Supported: Dual Channel
Memory Feature: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics Port: 1 x D-Sub, 1 x HDMI, 2 x DisplayPort

Specifications

Platform INTEL
Socket LGA1700
CPU Type 14th Gen, 13th Gen, 12th Gen
Chipset B760
Memory Speed up to 7600
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics Port 1 x D-Sub, 1 x HDMI, 2 x DisplayPort
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

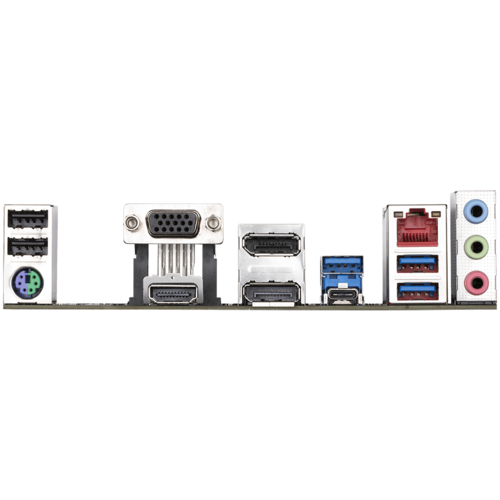

Back Panel I/O Ports 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years

Key Features

  • CPU Support: Intel 14th, 13th, and 12th Generation processors (LGA1700)
  • Chipset: Intel B760
  • Memory: DDR5, up to 7600 MT/s, 256 GB max, Dual Channel
  • Expansion: 1× PCIe 4.0 x16 slot (GPU or NVMe), 2× PCIe 3.0 x1 slots
  • Storage: 2× M.2 Socket 3, 4× SATA 6Gb/s
  • Connectivity: USB Type‑C (3.2 Gen 2), 3× USB 3.2 Gen 1, 2× USB 2.0, HDMI, D‑Sub, 2× DisplayPort, RJ‑45, audio
  • Form Factor & Warranty: Micro‑ATX, 3‑year warranty
SKU: 1084647 Category:
Platform INTEL
Socket LGA1700
CPU Type 14th Gen, 13th Gen, 12th Gen
Chipset B760
Memory Speed up to 7600
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics Port 1 x D-Sub, 1 x HDMI, 2 x DisplayPort
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Back Panel I/O Ports 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years
