Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron |
| Chipset | B760 |
| Memory Speed | up to 7600 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules , please refer to “Memory Support List” on Brand website for more information.) |
| Graphics Port | 2 x DisplayPort, 1 x HDMI |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: – 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

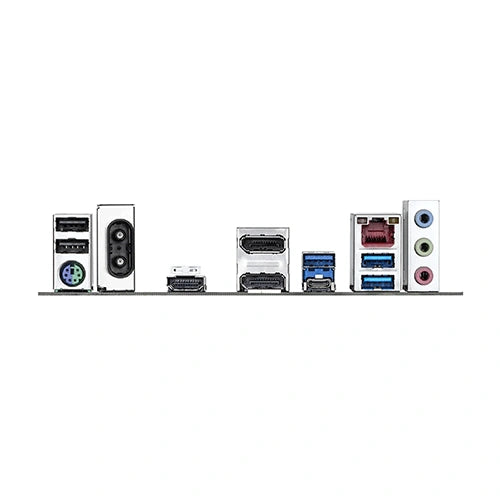

| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x Display Ports (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Key Features
- CPU Support: Compatible with 14th, 13th, and 12th Gen Intel Core processors, plus Pentium Gold and Celeron (LGA1700, B760 chipset)
- Memory: Dual‑channel DDR5, speeds up to 7600 MT/s, max capacity 256 GB
- PCIe Expansion: 1× PCIe 5.0 x16 slot (GPU or NVMe SSD) + 2× PCIe 3.0 x1 slots
- Wireless: Integrated Wi‑Fi 6E and Bluetooth 5.3
- Storage: 2× M.2 Socket 3 connectors + 4× SATA 6Gb/s ports
- Connectivity: USB Type‑C port (USB 3.2 Gen 2), 3× USB 3.2 Gen 1, 2× USB 2.0, HDMI, 2× DisplayPort
- Form Factor: Micro‑ATX, ideal for compact builds
- Warranty: 3‑year limited warranty
