Specifications
| CPU | 1. Support for 9th and 8th Generation Intelà Coreô i9 processors/Intelà Coreô i7 processors/Intelà Coreô i5 processors/Intelà Coreô i3 processors/Intelà Pentiumà processors/Intelà Celeronà processors in the LGA1151 package |
| Chipset | 1. Intelà H310 Express Chipset |
| Memory | 1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| Onboard Graphics | Integrated Graphics Processor-Intelà HD Graphics support: |
| Audio | 1. Realtekà ALC887 codec |
| LAN | 1. Realtekà GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| Chipset: | 1. 4 x SATA 6Gb/s connectors |
| Chipset: | 1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |

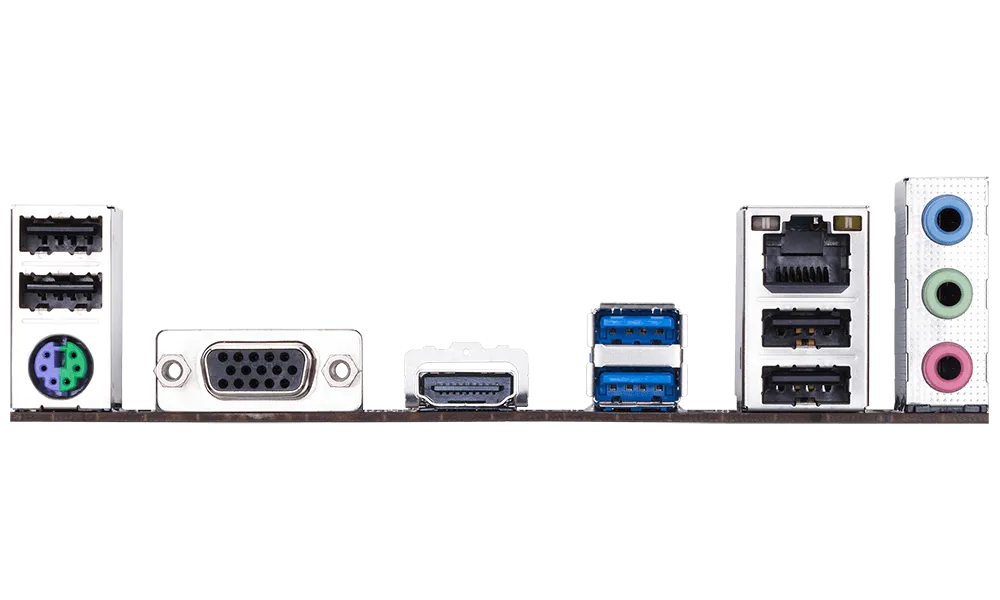

| Back Panel Connectors | 1. 1 x PS/2 keyboard/mouse port |
| I/O Controller | 1. iTEÃ I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| BIOS | 1. 1 x 128 Mbit flash |
| Unique Features | 1. Support for APP Center |
| Bundled Software | 1. Nortonà Internet Security (OEM version) |
| Operating System | 1. Support for Windows 10 64-bit |
| Form Factor | 1. Micro ATX Form Factor; 22.6cm x 17.4cm |
Key Features
- CPU Support: 9th and 8th Generation Intel Core i9/i7/i5/i3, Pentium, Celeron processors (LGA1151)
- Chipset: Intel H310 Express Chipset
- Memory: 2 x DDR4 DIMM slots, up to 32 GB system memory
- Expansion: 1 x PCI Express x16 slot (running at x16)
- Storage: 4 x SATA 6Gb/s connectors
- USB: 4 x USB 3.1 Gen 1 ports (2 rear, 2 via internal header)
- Networking: Realtek GbE LAN (10/100/1000 Mbit)
- Form Factor: Micro ATX, 22.6cm x 17.4cm
