Specifications
| Model | GA-H81M-DS2 |
| CPU | 1. Support for IntelÃCoreô i7 processors/IntelÃCoreô i5 processors/IntelÃCoreô i3 processors/IntelÃPentiumÃprocessors/IntelÃCeleronÃprocessors in the LGA1150 package |
| Chipset | Intelà H81 Express Chipset |
| Memory | 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory |
| Onboard Graphics | Integrated Graphics Processor ñ IntelÃHD Graphics support: |
| Audio | 1. RealtekÃALC887 codec |
| LAN | Realtekà GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 |
| Storage Interface | Chipset: |
| USB | Chipset: |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |

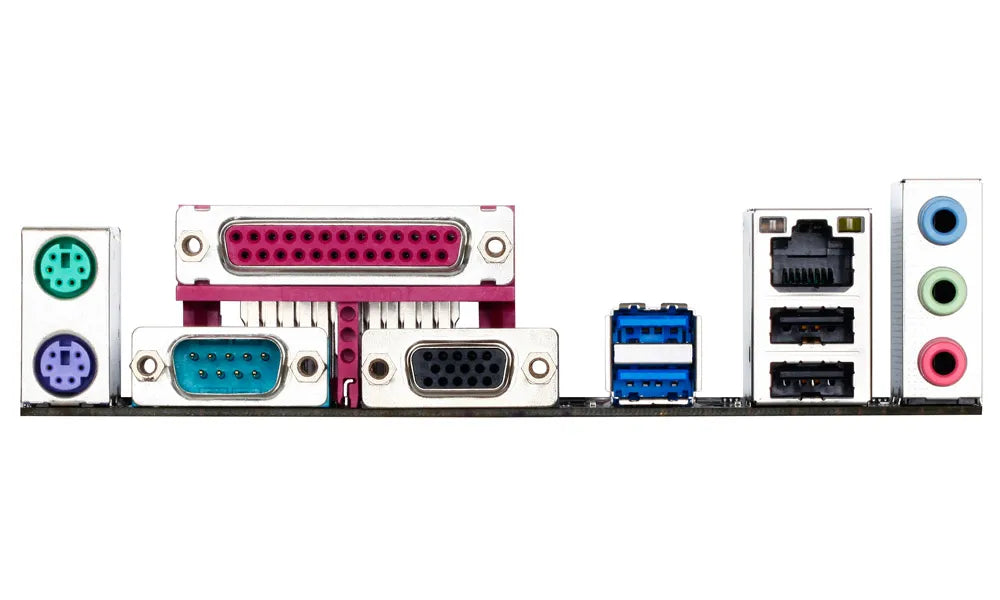

| Back Panel Connectors | 1. 1 x PS/2 mouse port |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | 1. System voltage detection |
| BIOS | 1. 2 x 64 Mbit flash |
| Unique Features | 1. Support for Q-Flash |
| Bundled Software | Nortonà Internet Security (OEM version) |
| Operating System | Support for Windows 10/8.1/8/7 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm |
| Warranty | 3 Years ManufacturerÃs Warranty |
| Country Of Origin | China |
| Manufacturer | Gigabyte Technology (India) Private Limited |
| Importer | WPG C&C Computers And Peripheral(I) Pvt.Ltd |
| Net Quantity | 1 |
| Product Package Dimensions (LxWxH) | 27 x 23.5 x 5.8 Centimeters |
Key Features
- CPU Support: Intel LGA1150 socket for Core i7/i5/i3, Pentium, Celeron processors
- Chipset: Intel H81 Express Chipset
- Memory: 2 x DDR3 DIMM slots, supports up to 16 GB system memory
- Expansion: 1 x PCI Express x16 slot running at x16
- Networking & Audio: Realtek GbE LAN (10/100/1000 Mbit) and Realtek ALC887 HD Audio codec
- Form Factor & Warranty: Micro ATX (22.6 cm × 17 cm) with 3‑year manufacturer warranty
- BIOS Features: Dual 64 Mbit flash BIOS with Q-Flash support
