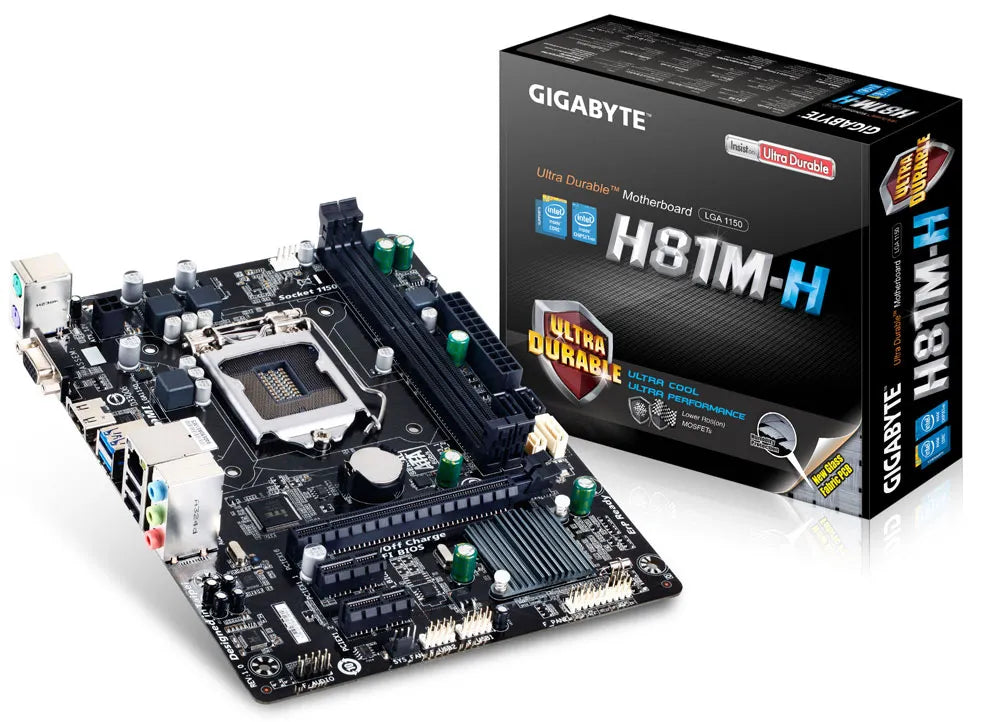

GIGABYTE GA-H81M-H INTEL LGA1150 MOTHERBOARD

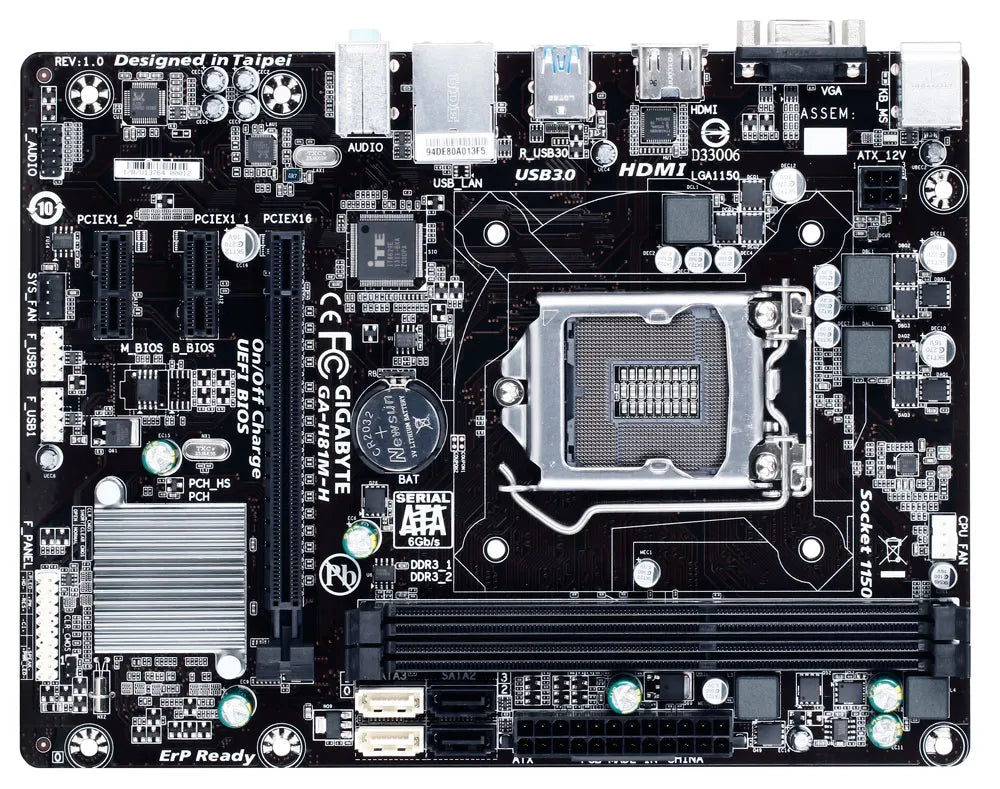

GIGABYTE GA-H81M-H INTEL LGA1150 MOTHERBOARD - Image 2

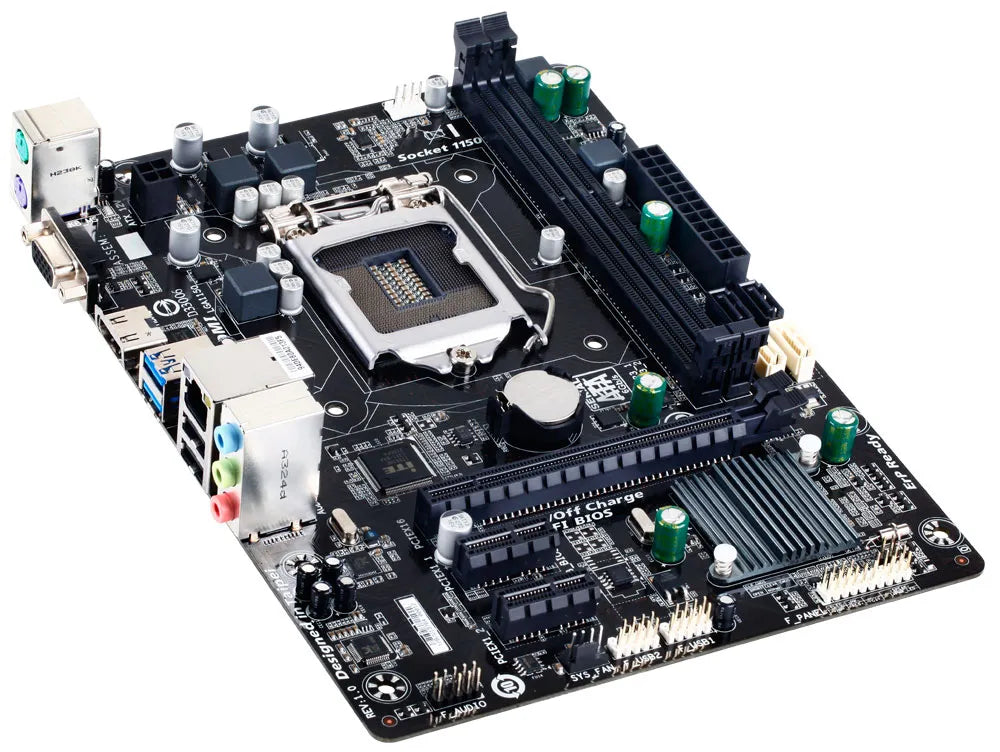

GIGABYTE GA-H81M-H INTEL LGA1150 MOTHERBOARD - Image 3
GIGABYTE GA-H81M-H INTEL LGA1150 MOTHERBOARD - Image 4

GIGABYTE GA-H81M-H INTEL LGA1150 MOTHERBOARD

Compare

CPU: Supports Intel Core i7/i5/i3, Pentium and Celeron processors (LGA1150); Chipset: Intel H81 Express; Memory: Two DDR3 1.5 V DIMM sockets, up to 16 GB.

Graphics: Integrated Intel HD Graphics; Audio: Realtek ALC887 codec; LAN: Realtek GbE (10/100/1000 Mbit).

Expansion: One PCI Express x16 slot (x16); Power: 24‑pin ATX main connector.

Specifications

CPU 1. Support for IntelÆCoreô i7 processors/IntelÆCoreô i5 processors/IntelÆCoreô i3 processors/IntelÆPentiumÆprocessors/IntelÆCeleronÆprocessors in the LGA1150 package
Chipset 1. IntelÆH81 Express Chipset
Memory 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Onboard Graphics Integrated Graphics Processor – IntelÆHD Graphics support:
Audio 1. RealtekÆALC887 codec
LAN 1. RealtekÆGbE LAN chip (10/100/1000 Mbit)
Expansion Slots 1. 1 x PCI Express x16 slot, running at x16
Storage Interface Chipset:
USB Chipset:
Internal I/O Connectors 1. 1 x 24-pin ATX main power connector

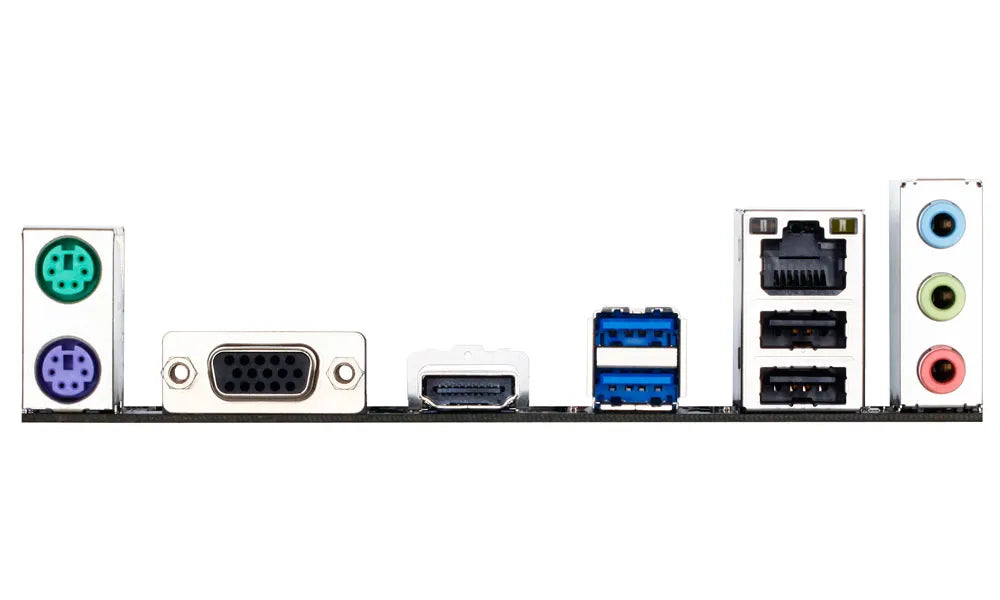

Back Panel Connectors 1. 1 x PS/2 mouse port
I/O Controller 1. iTEÆI/O Controller Chip
H/W Monitoring 1. System voltage detection
BIOS 1. 1 x 32 Mbit flash
Unique Features 1. Support for Q-Flash
Bundle Software 1. NortonÆInternet Security (OEM version)
Operating System 1. Support for Windows 10/8.1/8/7
Form Factor 1. Micro ATX Form Factor; 22.6cm x 17cm

Key Features

  • CPU Support: Intel Core i7/i5/i3/Pentium/Celeron LGA1150 processors
  • Chipset: Intel H81 Express Chipset
  • Memory: 2 x DDR3 DIMM slots, up to 16 GB system memory
  • Expansion: 1 x PCI Express x16 slot (running at x16)
  • Networking: Realtek GbE LAN (10/100/1000 Mbit)
  • Audio: Realtek ALC887 HD Audio codec
  • BIOS: Q-Flash support
  • Form Factor: Micro ATX (22.6cm x 17cm)
SKU: 1085050 Category:
CPU 1. Support for IntelÆCoreô i7 processors/IntelÆCoreô i5 processors/IntelÆCoreô i3 processors/IntelÆPentiumÆprocessors/IntelÆCeleronÆprocessors in the LGA1150 package
Chipset 1. IntelÆH81 Express Chipset
Memory 1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
Onboard Graphics Integrated Graphics Processor – IntelÆHD Graphics support:
Audio 1. RealtekÆALC887 codec
LAN 1. RealtekÆGbE LAN chip (10/100/1000 Mbit)
Expansion Slots 1. 1 x PCI Express x16 slot, running at x16
Storage Interface Chipset:
USB Chipset:
Internal I/O Connectors 1. 1 x 24-pin ATX main power connector
Back Panel Connectors 1. 1 x PS/2 mouse port
I/O Controller 1. iTEÆI/O Controller Chip
H/W Monitoring 1. System voltage detection
BIOS 1. 1 x 32 Mbit flash
Unique Features 1. Support for Q-Flash
Bundle Software 1. NortonÆInternet Security (OEM version)
Operating System 1. Support for Windows 10/8.1/8/7
Form Factor 1. Micro ATX Form Factor; 22.6cm x 17cm
