Motherboard

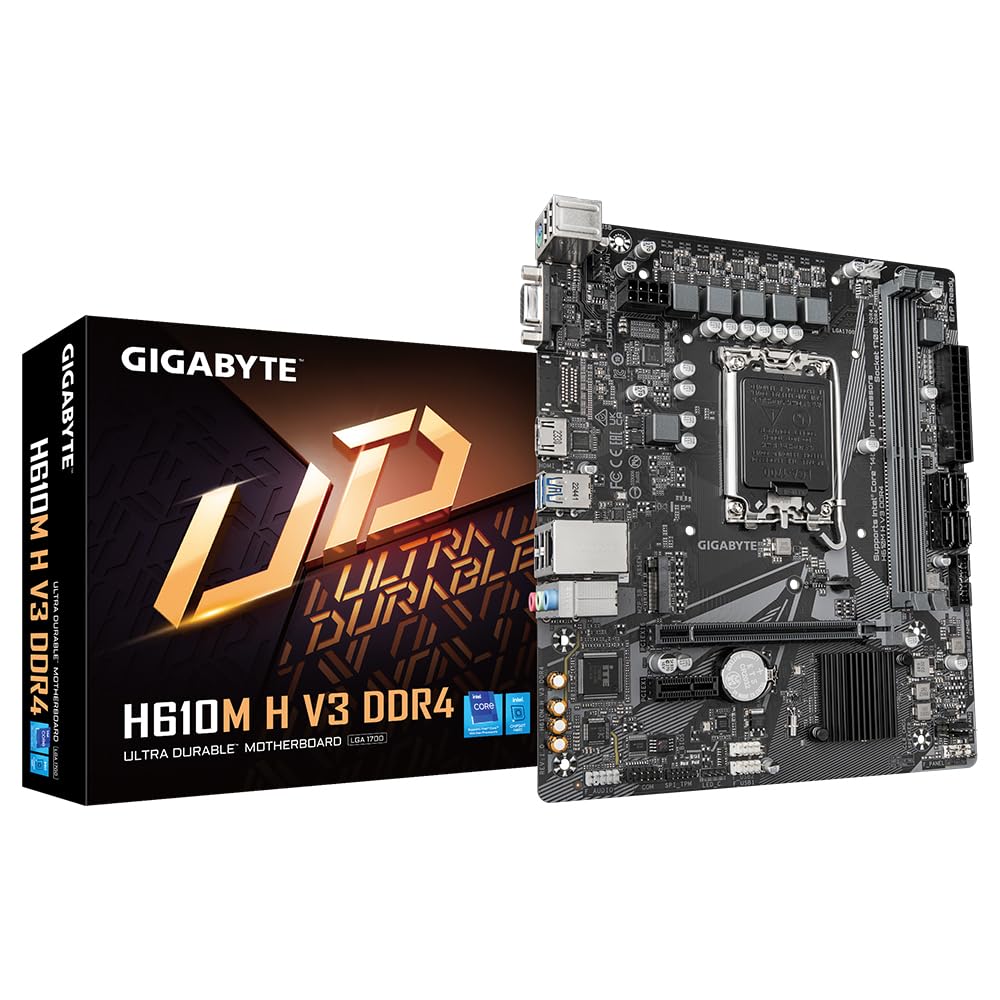

GIGABYTE H 610M H V3 DDR4 MICRO ATX

Compare

Platform: Intel
Socket: LGA1700
CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium, Celeron
Chipset: H610

Memory Speed: up to 3200
Max Memory Support: 64 GB
Supported Memory Type: DDR4
Channel Supported: Dual Channel
Memory Feature: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, and Extreme Memory Profile (XMP) memory modules

Graphics Port: 1 x D-Sub Port, 1 x HDMI Port

Specifications

Platform	INTEL
Socket	LGA1700
CPU Type	14th Gen,13th Gen,12th Gen, Pentium, Celeron
Chipset	H610
Memory Speed	up to 3200
Max Memory Support	64 GB
Supported Memory Type	DDR4
Channel Supported	Dual Channel
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics Port	1 x D-Sub Port,1 x HDMI Port
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

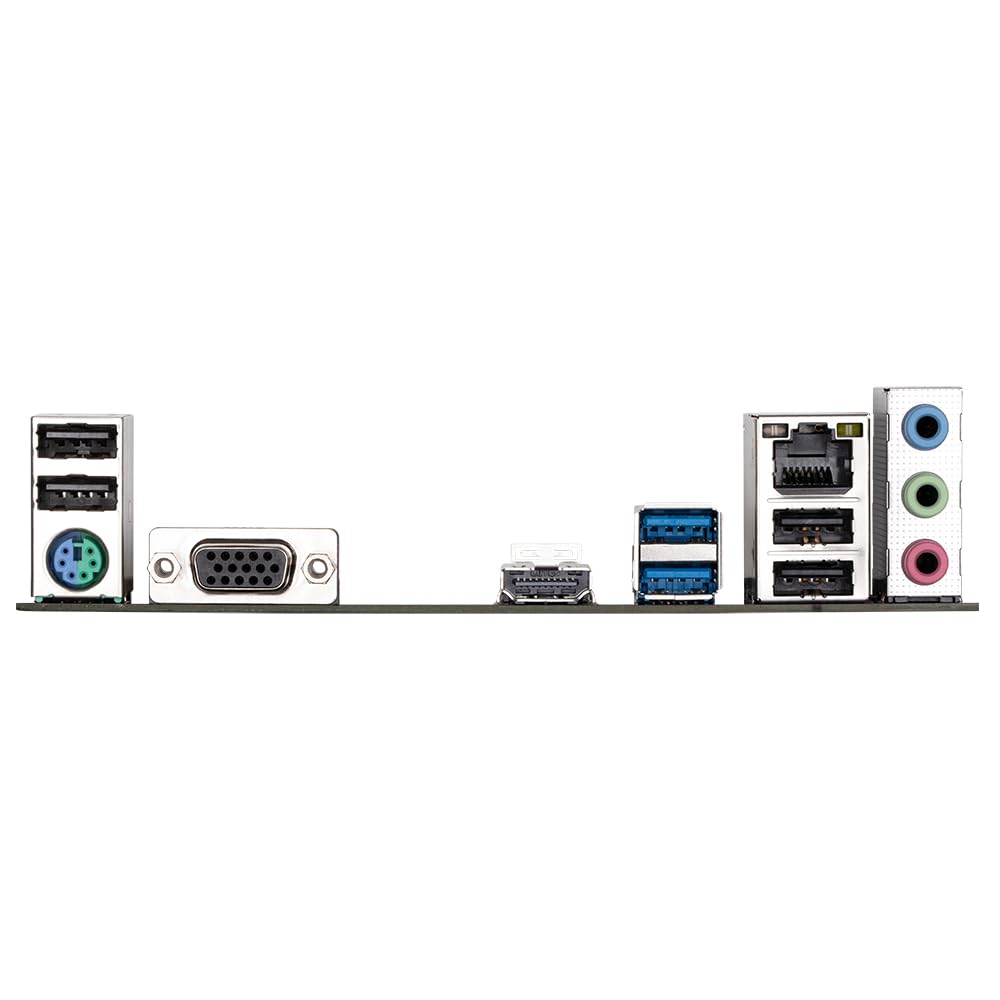

Back Panel I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header
Form Factor	Micro-ATX
Warranty	3 Years

Key Features

LGA1700 socket supports 12th Gen, 13th Gen, and 14th Gen Intel Core, Pentium, and Celeron processors
Intel H610 chipset delivers reliable performance for mainstream desktop builds
Supports up to 64 GB DDR4 memory at speeds up to 3200 MHz in dual-channel configuration, with XMP support
One PCIe 4.0 x16 slot (CPU-linked) for high-speed graphics cards, plus one PCIe 3.0 x1 slot (chipset-linked) for additional expansion
Rich rear I/O: HDMI and D-Sub video outputs, 2 USB 3.2 Gen 1 ports, 4 USB 2.0/1.1 ports, Gigabit RJ-45 LAN, and 3 audio jacks
Storage flexibility with one M.2 Socket 3 connector and four SATA 6Gb/s connectors
Compact Micro-ATX form factor ideal for smaller cases
Backed by a 3-year manufacturer warranty
