Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| CPU Type | 14th Gen,13th Gen,12th Gen, Pentium, Celeron |
| Chipset | H610 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Graphics Port | 1 x HDMI |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |

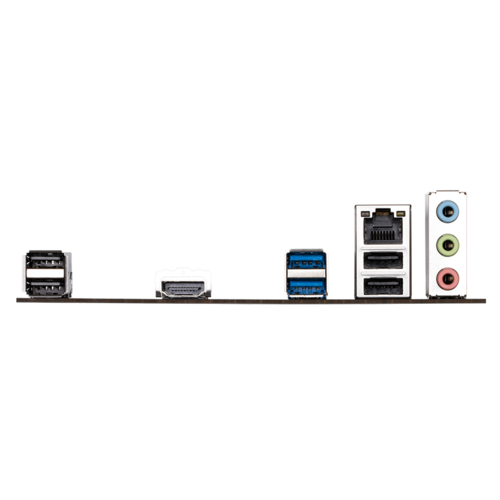

| Back Panel I/O Ports | 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Key Features
- CPU Support: Intel LGA1700 socket for 14th, 13th, 12th Gen Core, Pentium & Celeron processors
- Memory: Dual-channel DDR4 up to 3200 MT/s, max 64 GB (supports ECC unbuffered & XMP)
- PCIe Expansion: 1 x PCIe 4.0 x16 slot + 1 x PCIe 3.0 x1 slot
- Storage: 1 x M.2 Socket 3 (NVMe/SATA) + 2 x SATA 6Gb/s connectors
- Connectivity: HDMI output, 2 x USB 3.2 Gen1, 4 x USB 2.0, Gigabit LAN, 3 audio jacks
- Form Factor: Micro-ATX compact design
- Warranty: 3-year manufacturer warranty
