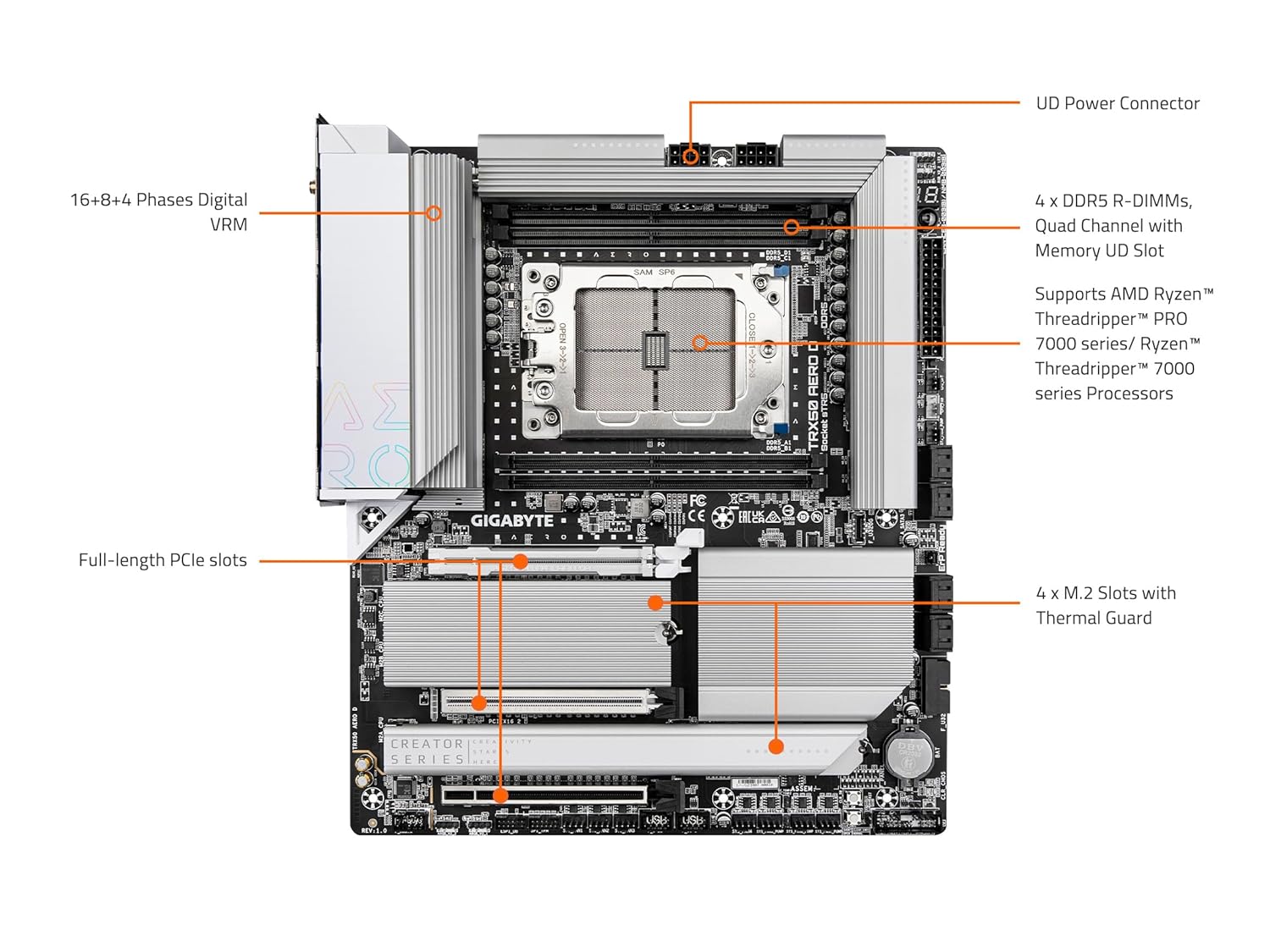

GIGABYTE TRX50 AERO D STR5 E-ATX MOTHERBOARD (TRX50-AERO-D)

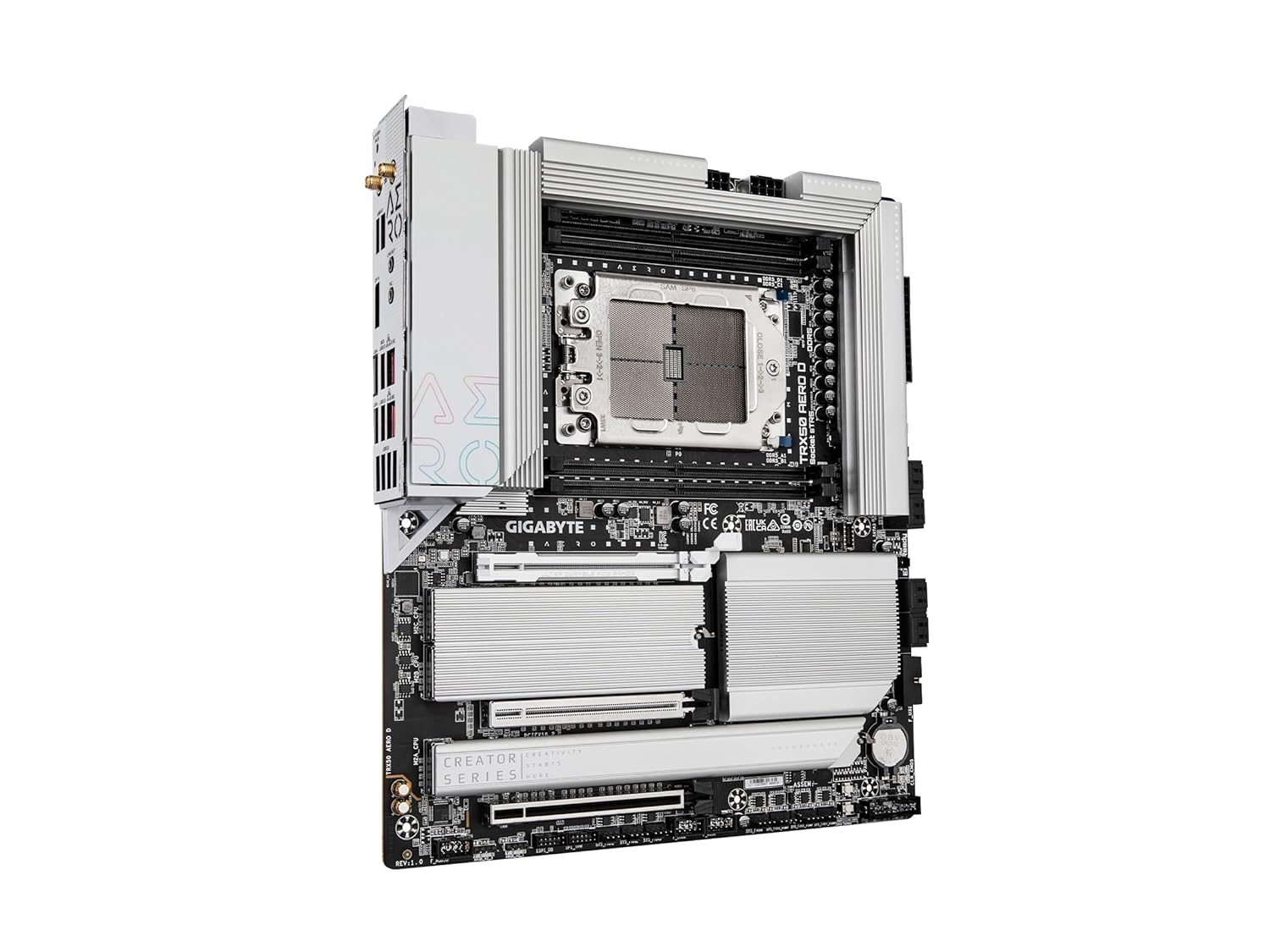

GIGABYTE TRX50 AERO D STR5 E-ATX MOTHERBOARD (TRX50-AERO-D) - Image 2

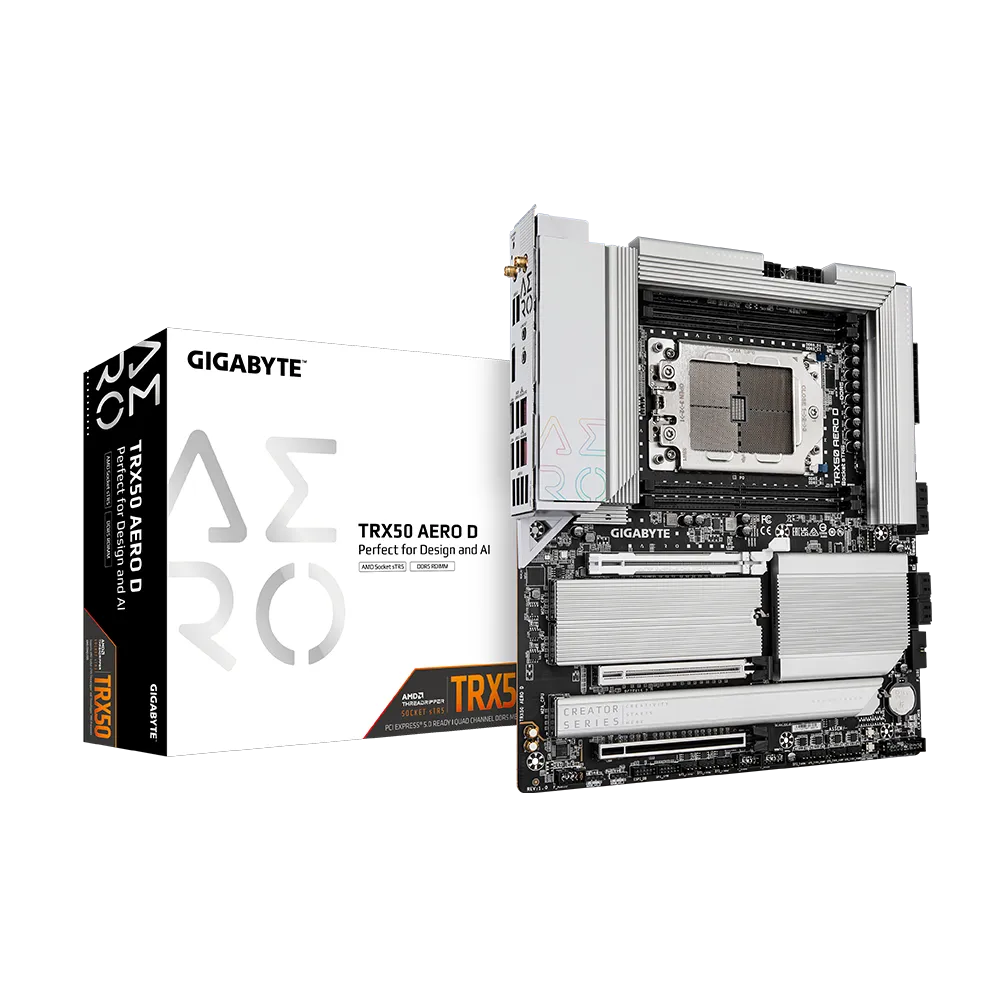

GIGABYTE TRX50 AERO D STR5 E-ATX MOTHERBOARD (TRX50-AERO-D) - Image 3

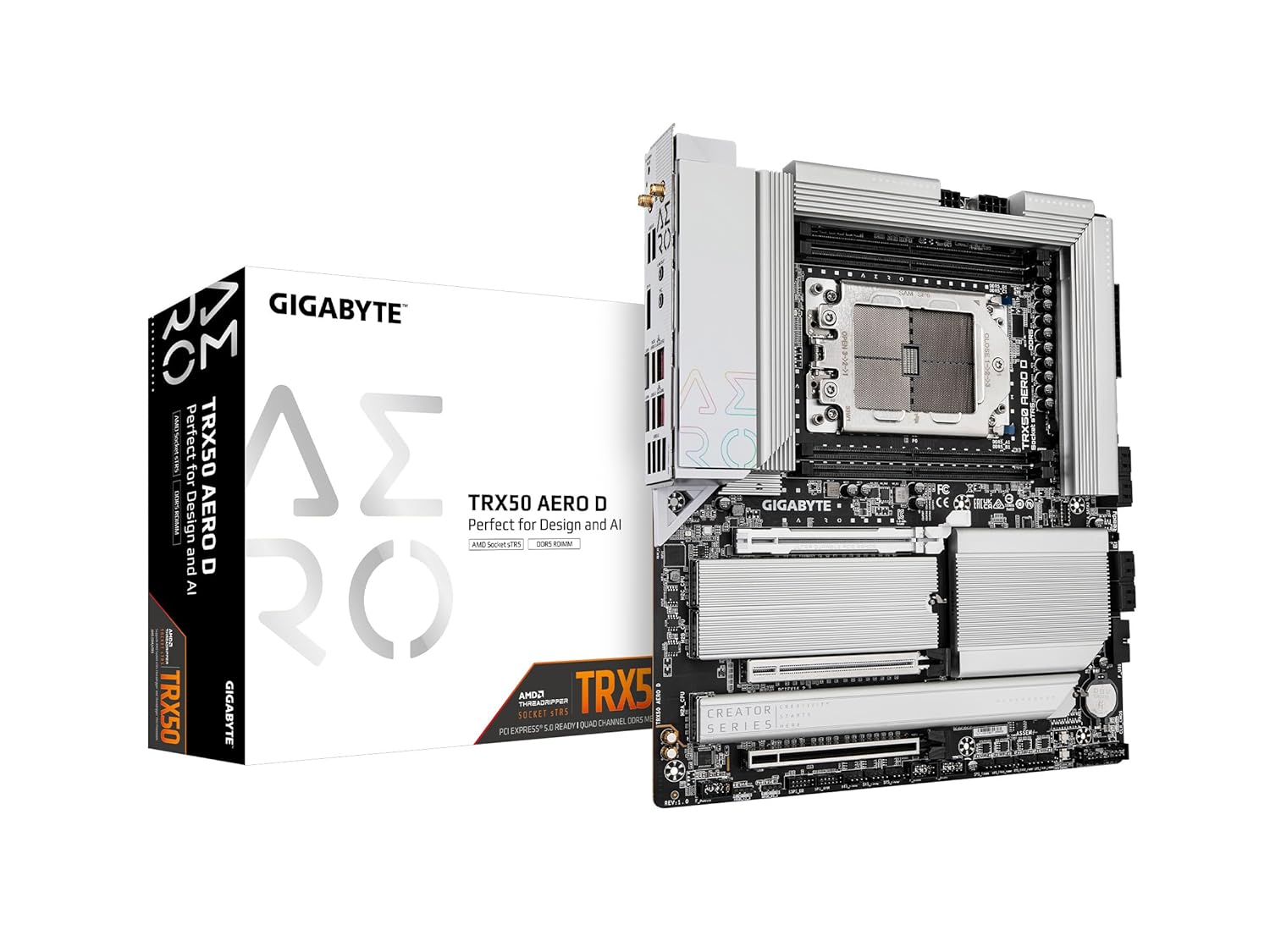

GIGABYTE TRX50 AERO D STR5 E-ATX MOTHERBOARD (TRX50-AERO-D) - Image 4

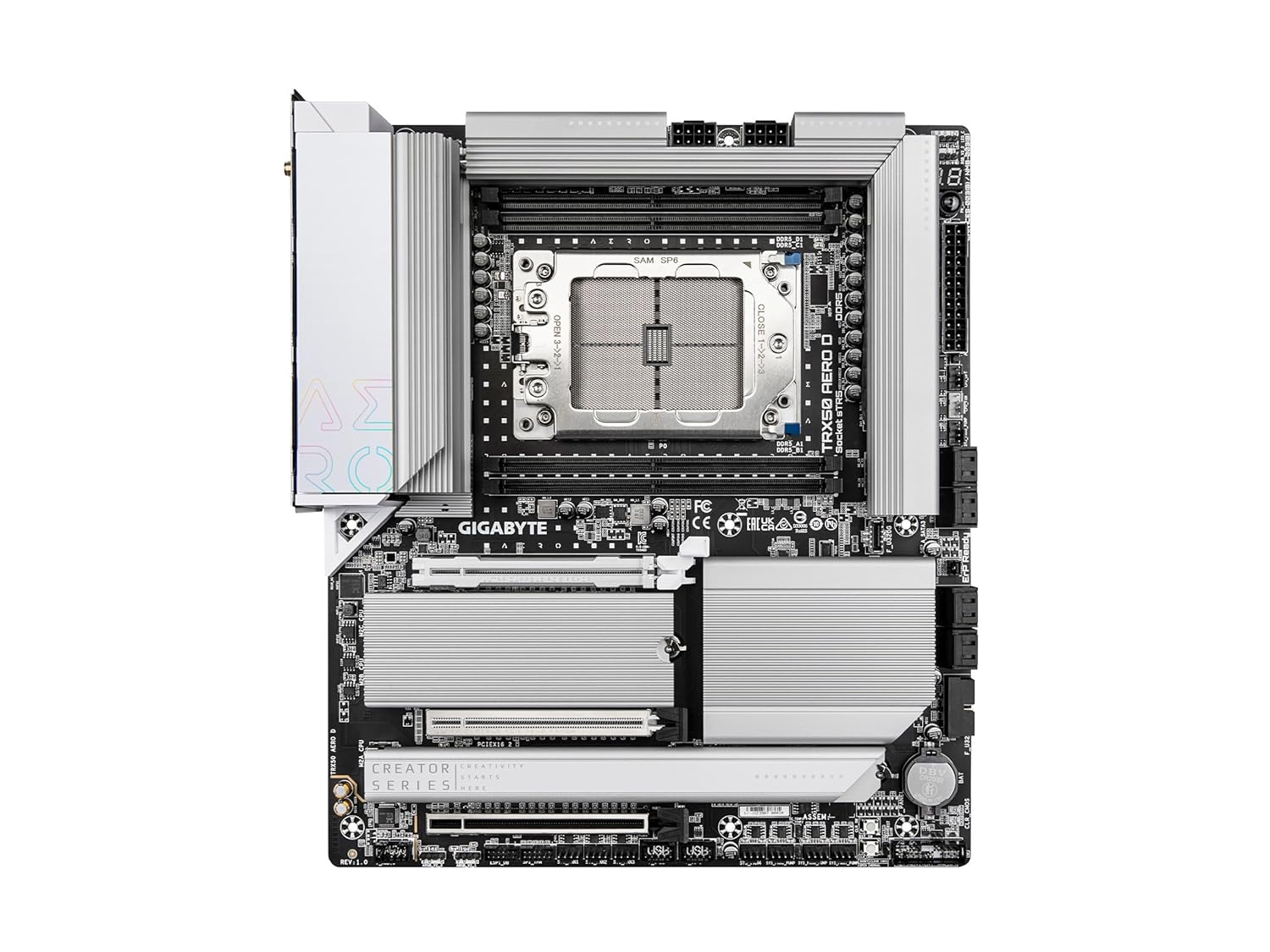

GIGABYTE TRX50 AERO D STR5 E-ATX MOTHERBOARD (TRX50-AERO-D) - Image 5
GIGABYTE TRX50 AERO D STR5 E-ATX MOTHERBOARD (TRX50-AERO-D) - Image 6

GIGABYTE TRX50 AERO D STR5 E-ATX MOTHERBOARD (TRX50-AERO-D)

Compare

CPU: AMD Socket sTR5, supports AMD Ryzen Threadripper PRO 7000 and Ryzen Threadripper 7000 Series processors.
Chipset: AMD TRX50.
Memory: 4 x DDR5 DIMM, up to 1TB (256 GB per DIMM), DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered (RDIMM/RDIMM-3DS), Quad channel, AMD EXPO and XMP support.

Audio: Realtek ALC4080 CODEC rear (DTS:X Ultra, HD Audio); Realtek ALC897 CODEC front panel 2‑channel.
LAN: Marvell AQtion AQC113C 10GbE (10/5/2.5/1/0.1 Gbps) LAN1; Realtek 2.5GbE LAN (2.5/1/0.1 Gbps) LAN2.
Wireless: Qualcomm Wi‑Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be) 2.4/5/6 GHz, Bluetooth 5.3, supports 11be 320 MHz; requires Windows 11 SV3, no Win10 driver; 6 GHz subject to regional regulations.

Expansion Slots: CPU: 2 × PCIe 5.0 x16 (PCIEX16_1/PCIEX16_2), 1 × PCIe 4.0 x16 (PCIEX16_3); use PCIEX16_1 for single GPU.
Storage: CPU: 1 × M.2 25110/2280 PCIe 5.0 x4/x2 (M2C_CPU), 2 × M.2 22110/2280 PCIe 5.0 x4/x2 (M2A_CPU/M2B_CPU), 1 × M.2 2280 PCIe 4.0 x4/x2 (M2D_CPU); CPU+Chipset: 8 × SATA 6Gb/s, RAID 0/1/10 for NVMe and SATA.
USB: CPU: 3 × USB 3.2 Gen 2 Type‑A (red) rear; Chipset+Intel JHL8540 USB4: 2 × USB4 Type‑C rear; Chipset: 1 × USB Type‑C header USB 3.2 Gen 2×2, 1 × USB 3.2 Gen 2 Type‑A (red) rear, 2 × USB 3.2 Gen 1 internal headers; CPU+USB 3.2 Gen 1 Hub: 4 × USB 3.2 Gen 1 rear; Chipset+USB 2.0 Hub: 4 × USB 2.0/1.1 internal headers.
Internal I/O: 1 × 24‑pin ATX, 2 × 8‑pin ATX 12V, 1 × CPU fan header, 1 × CPU fan/water pump header, 4 × system fan headers, 4 × system fan/water pump headers, 3 × addressable RGB Gen2 LED strip headers, 1 × RGB LED strip header, 4 × M.2 Socket 3, 8 × SATA 6Gb/s, 1 × front panel header, 1 × front panel audio header, 1 × USB Type‑C header USB 3.2 Gen 2×2, 1 × USB 3.2 Gen 1 header, 2 × USB 2.0/1.1 headers, 1 × noise detection header, 1 × TPM header (GC‑TPM2.0 SPI variants), 1 × power button, 1 × Clear CMOS button, 1 × reset button, 1 × reset jumper, 2 × temperature sensor headers, 1 × Clear CMOS jumper.

Specifications

CPU AMD Socket sTR5, support for: AMD Ryzen„ Threadripper„ PRO 7000 processors / AMD Ryzen„ Threadripper„ 7000 Series processors (Go to GIGABYTE’s website for the latest CPU support list.)
Chipset AMD TRX50
Memory Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory Quad channel memory architecture Support for AMD EXtended Profiles for Overclocking (AMD EXPO„) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Audio Realtek ALC4080 CODEC (rear panel audio) – Support for DTS:X Ultra – High Definition Audio – 2-channel Realtek ALC897 CODEC (front panel audio)
LAN Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
Wireless Communication module Qualcomm Wi-Fi 7 QCNCM865 – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations.
Expansion Slots CPU: – 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)
Storage Interface CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU) – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU) CPU+Chipset: – 8 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB CPU: – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+Intel JHL8540 USB4 controller: – 2 x USB4 USB Type-C ports on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header CPU+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Clear CMOS button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper

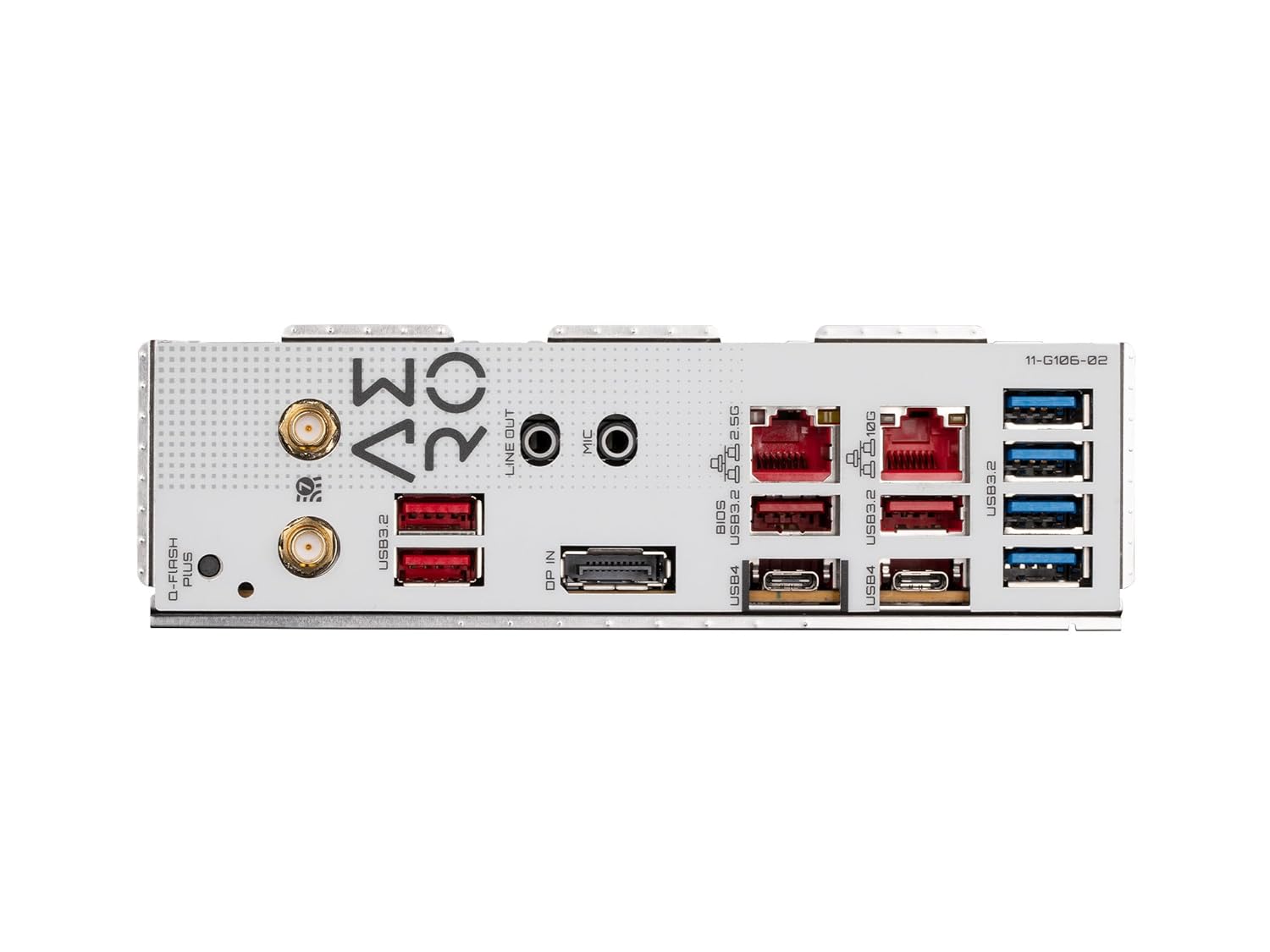

Back Panel Connectors 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4 USB Type-C port (DisplayPort) 1 x USB4 USB Type-C port 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Form Factor E-ATX Form Factor; 30.5cm x 26.4cm

Key Features

  • CPU Support: AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 and Threadripper™ 7000 Series processors
  • Chipset: AMD TRX50 workstation platform
  • Memory: Quad‑channel DDR5 up to 1TB (256GB per DIMM), speeds up to DDR5‑7800(O.C.) with AMD EXPO™ and XMP support
  • Storage: Four M.2 slots (three PCIe 5.0 x4/x2, one PCIe 4.0 x4/x2) plus 8 SATA 6Gb/s ports
  • Networking: Dual LAN – 10GbE (Marvell AQC113C) + 2.5GbE (Realtek) and Wi‑Fi 7 (Qualcomm QCNCM865) with Bluetooth 5.3
  • USB & USB4: Two USB4 Type‑C ports, four USB 3.2 Gen 2 Type‑A (red) ports, plus additional USB 3.2 Gen 1 and Type‑C headers
  • Expansion: Two PCIe 5.0 x16 slots and one PCIe 4.0 x16 slot for multiple GPUs or NVMe cards
  • Form Factor & Cooling: E‑ATX (30.5 × 26.4 cm) with Q‑Flash Plus BIOS, extensive fan/pump headers, and robust power delivery
SKU: 1088079 Category:
CPU AMD Socket sTR5, support for: AMD Ryzen„ Threadripper„ PRO 7000 processors / AMD Ryzen„ Threadripper„ 7000 Series processors (Go to GIGABYTE’s website for the latest CPU support list.)
Chipset AMD TRX50
Memory Support for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory Quad channel memory architecture Support for AMD EXtended Profiles for Overclocking (AMD EXPO„) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Audio Realtek ALC4080 CODEC (rear panel audio) – Support for DTS:X Ultra – High Definition Audio – 2-channel Realtek ALC897 CODEC (front panel audio)
LAN Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
Wireless Communication module Qualcomm Wi-Fi 7 QCNCM865 – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) Wi-Fi 7 channels on 6GHz band availability depends on individual country’s regulations.
Expansion Slots CPU: – 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)
Storage Interface CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU) – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU) CPU+Chipset: – 8 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB CPU: – 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+Intel JHL8540 USB4 controller: – 2 x USB4 USB Type-C ports on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header CPU+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Clear CMOS button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper
Back Panel Connectors 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4 USB Type-C port (DisplayPort) 1 x USB4 USB Type-C port 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Form Factor E-ATX Form Factor; 30.5cm x 26.4cm
