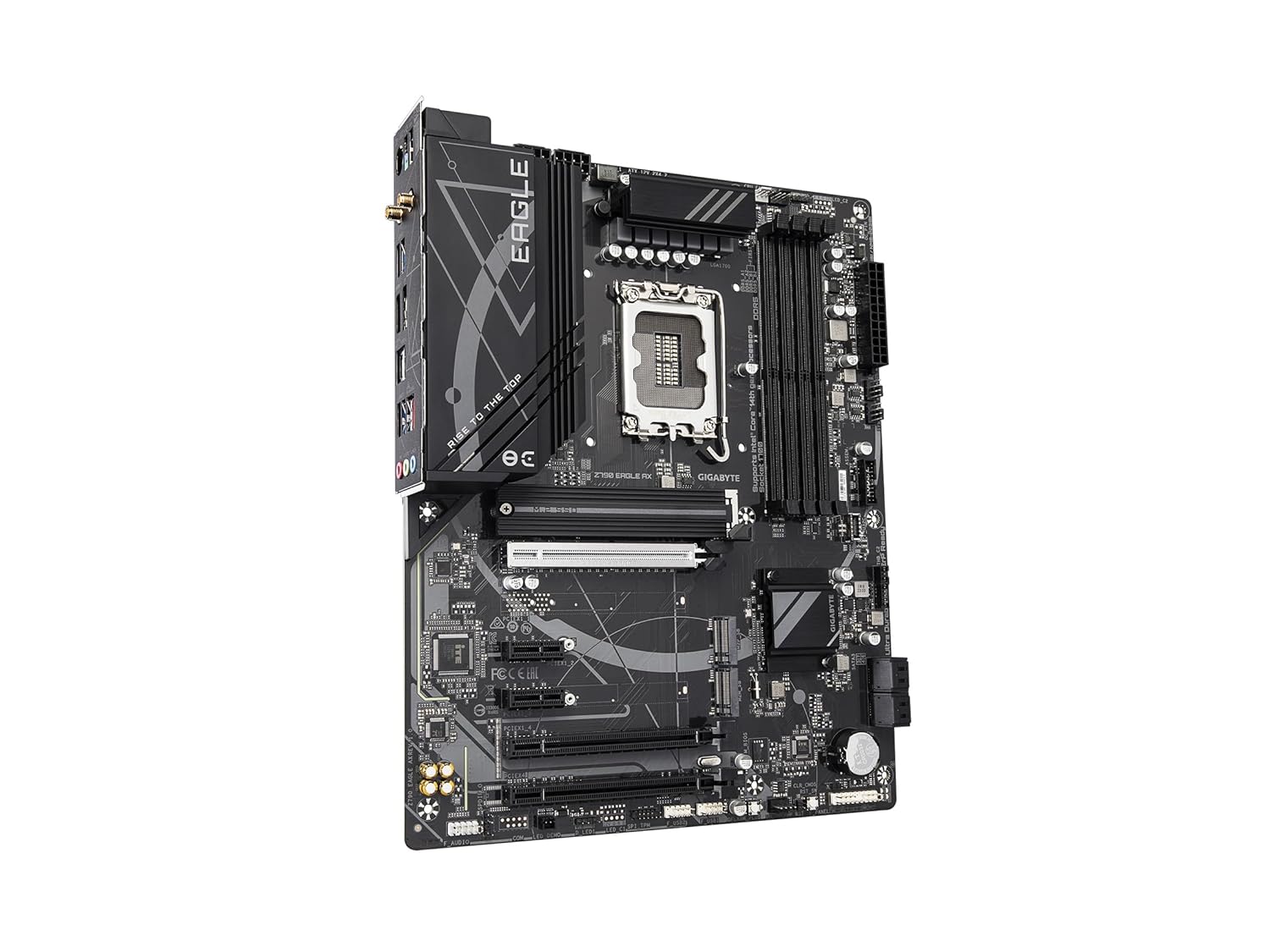

GIGABYTE Z790 EAGLE AX (WI-FI) DDR5 MOTHERBOARD
GIGABYTE Z790 EAGLE AX (WI-FI) DDR5 MOTHERBOARD - Image 2
GIGABYTE Z790 EAGLE AX (WI-FI) DDR5 MOTHERBOARD - Image 3

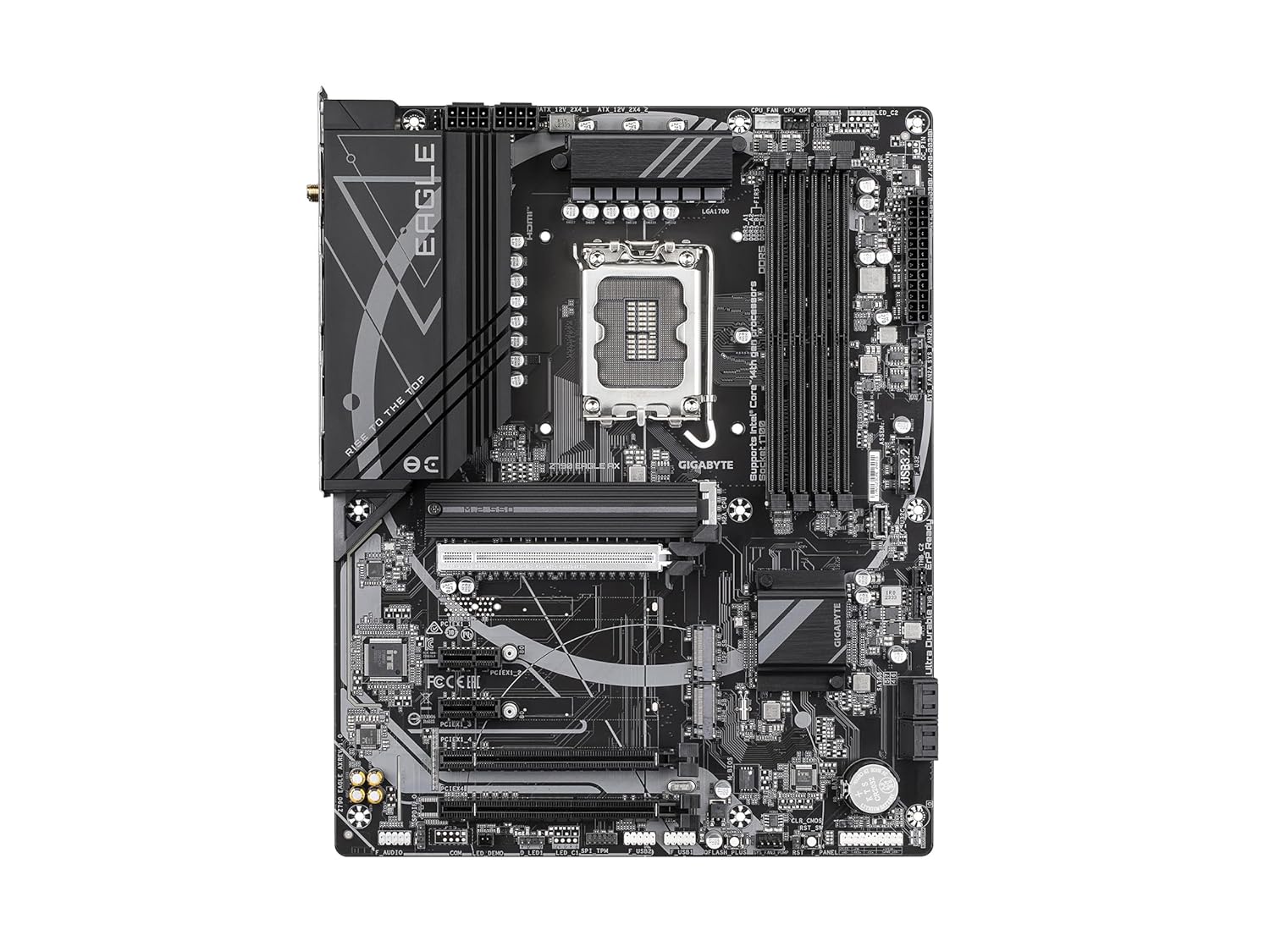

GIGABYTE Z790 EAGLE AX (WI-FI) DDR5 MOTHERBOARD - Image 4

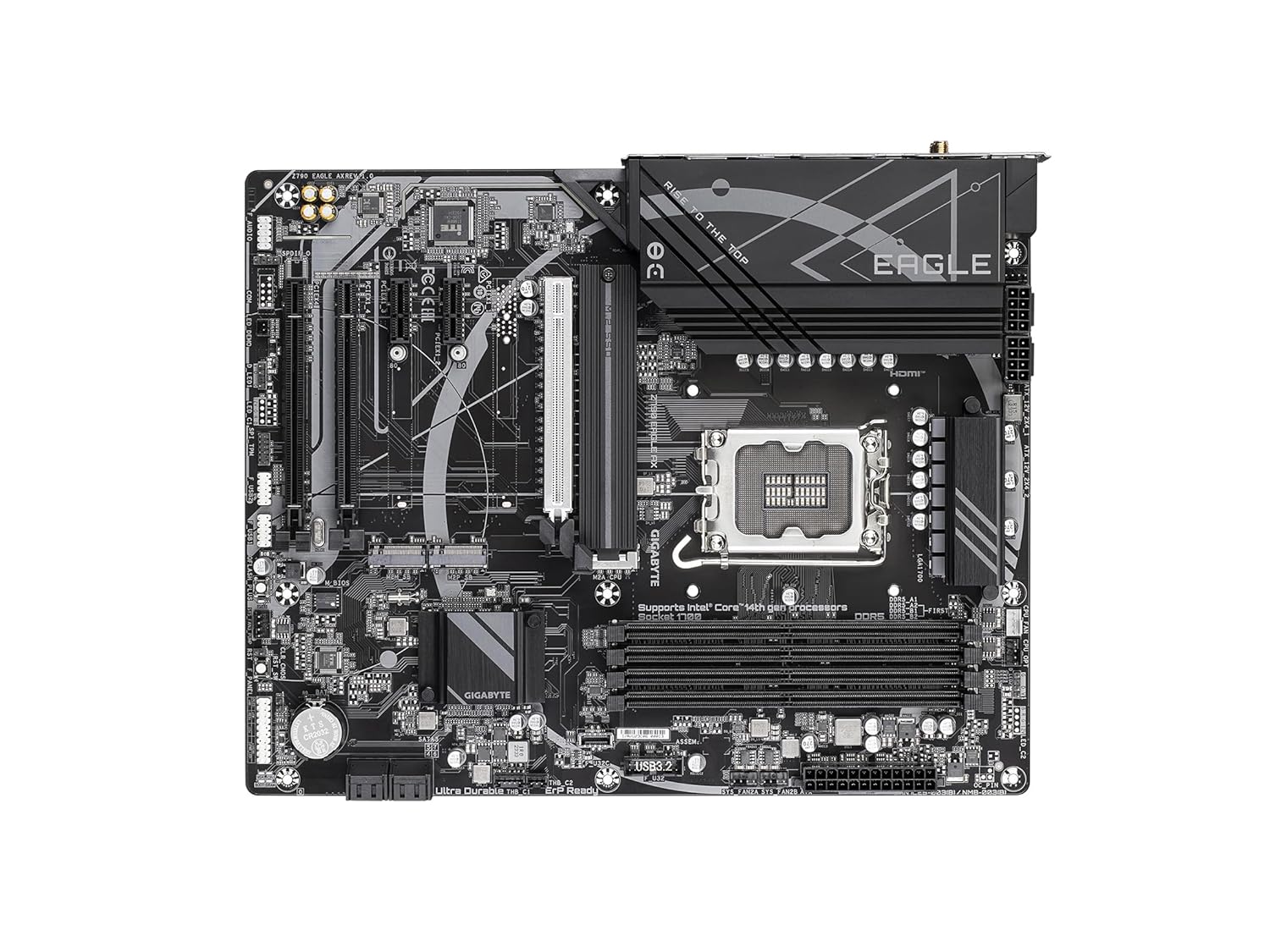

GIGABYTE Z790 EAGLE AX (WI-FI) DDR5 MOTHERBOARD - Image 5

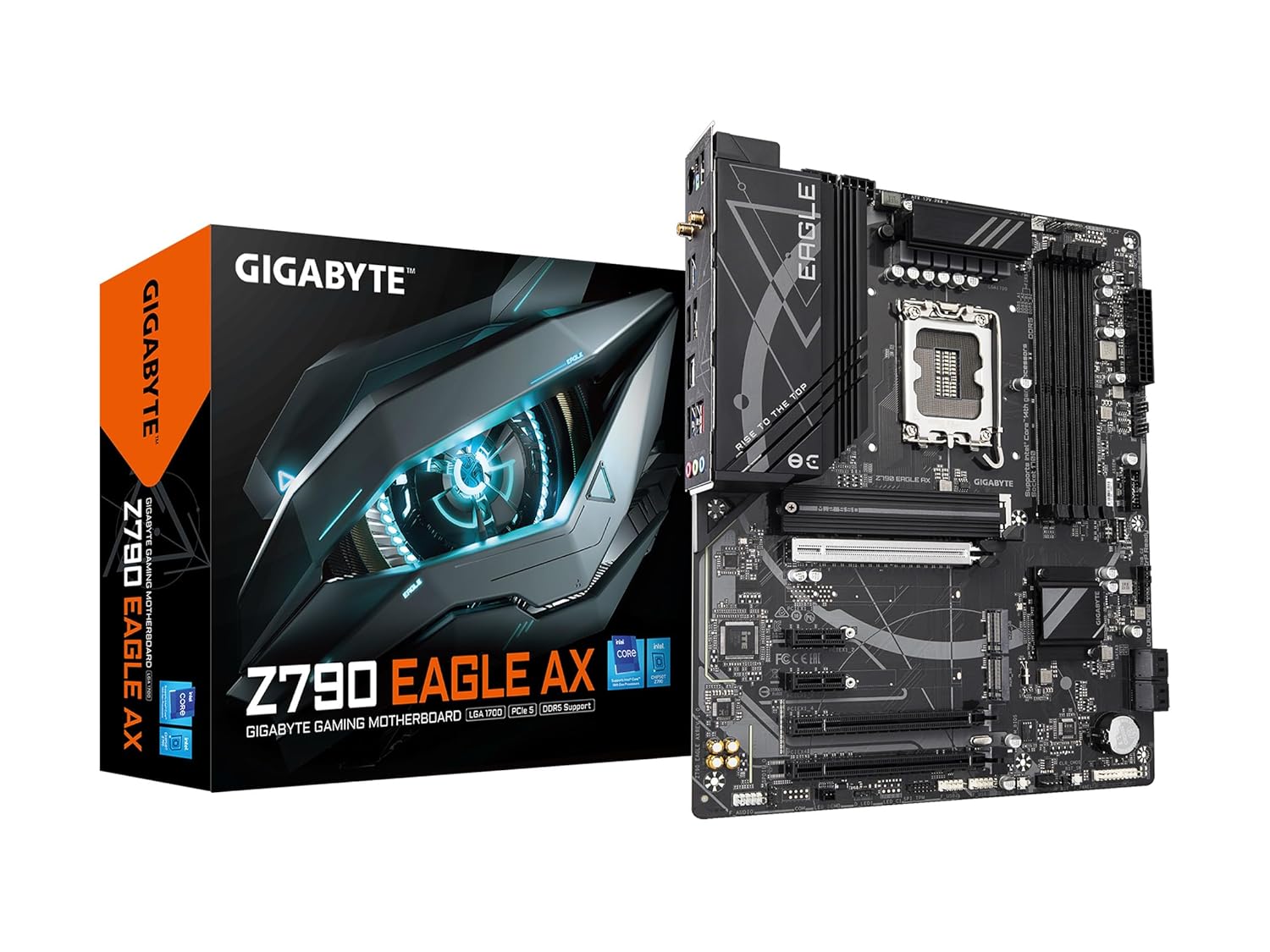

GIGABYTE Z790 EAGLE AX (WI-FI) DDR5 MOTHERBOARD - Image 6

GIGABYTE Z790 EAGLE AX (WI-FI) DDR5 MOTHERBOARD

Compare

Platform: INTEL

Socket: LGA1700

CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors

Chipset: Z790

Memory Speed: up to 7600

Max Memory Support: 256 GB

Supported Memory Type: DDR5

Channel Supported: Dual Channel

Memory Feature: Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules.

Graphics Port: 1 x HDMI port, 1 x DisplayPort

Specifications

Platform INTEL
Socket LGA1700
CPU Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset Z790
Memory Speed up to 7600
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on Visit Brand website for more information.)
Graphics Port 1 x HDMI port,1 x DisplayPort
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Wireless Networking Wi-Fi 6E,BLUETOOTH 5.3

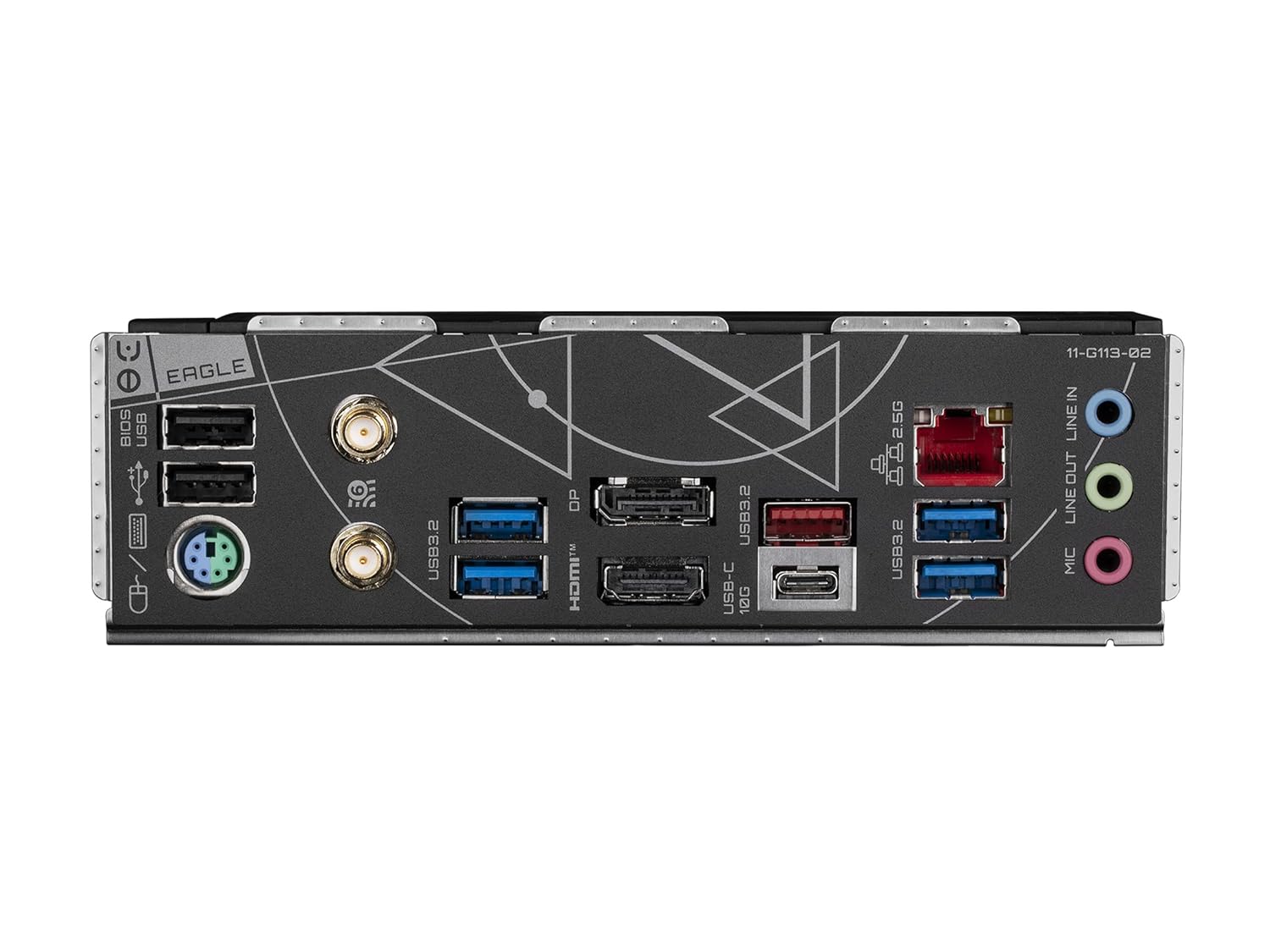

Back Panel I/O Ports 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor ATX
Warranty 3 Years

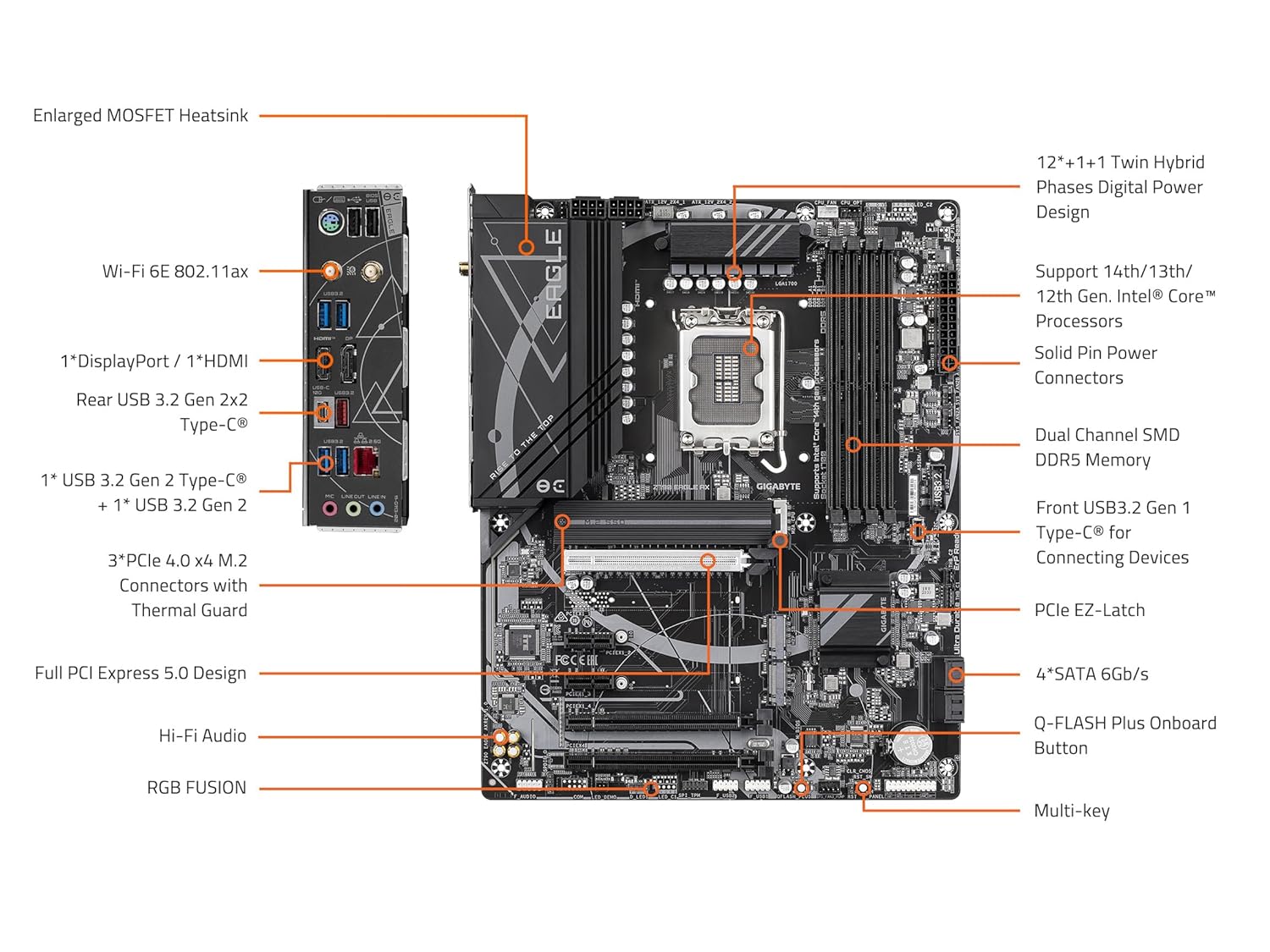

Key Features

  • CPU Support: Intel 14th, 13th, 12th Gen, Pentium Gold & Celeron (LGA1700)
  • Chipset: Intel Z790
  • Memory: DDR5 up to 7600 MT/s, max 256 GB (dual channel)
  • PCIe Expansion: 1 x PCIe 5.0 x16 slot (GPU/NVMe)
  • Wireless: Wi‑Fi 6E + Bluetooth 5.3
  • Storage: 3 x M.2 Socket 3 connectors
  • USB Connectivity: Rear USB Type‑C (USB 3.2 Gen 2) + front USB Type‑C header
  • Warranty: 3‑year limited warranty
SKU: 1089505 Category:
Platform INTEL
Socket LGA1700
CPU Type 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset Z790
Memory Speed up to 7600
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on Visit Brand website for more information.)
Graphics Port 1 x HDMI port,1 x DisplayPort
Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Wireless Networking Wi-Fi 6E,BLUETOOTH 5.3
Back Panel I/O Ports 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor ATX
Warranty 3 Years
