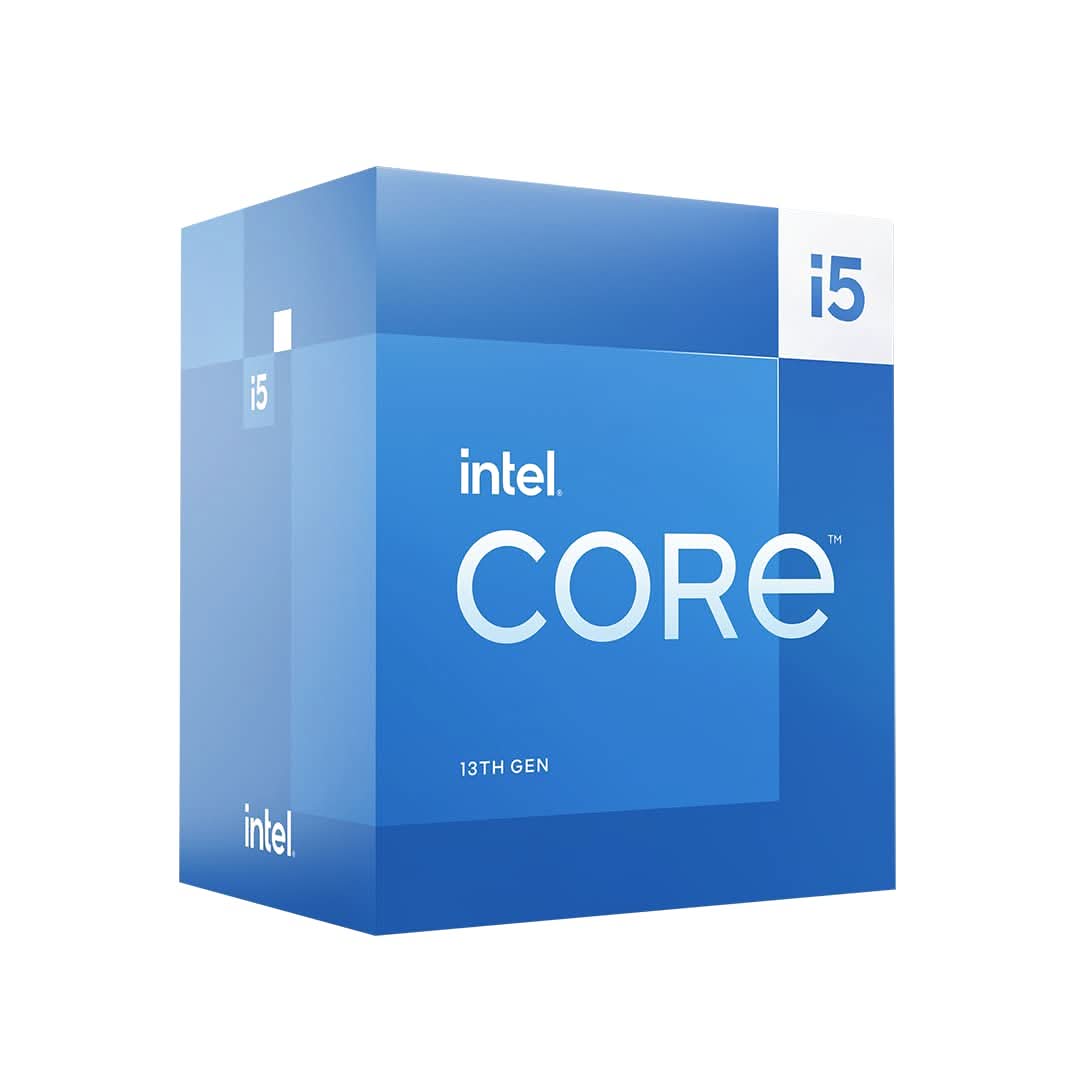

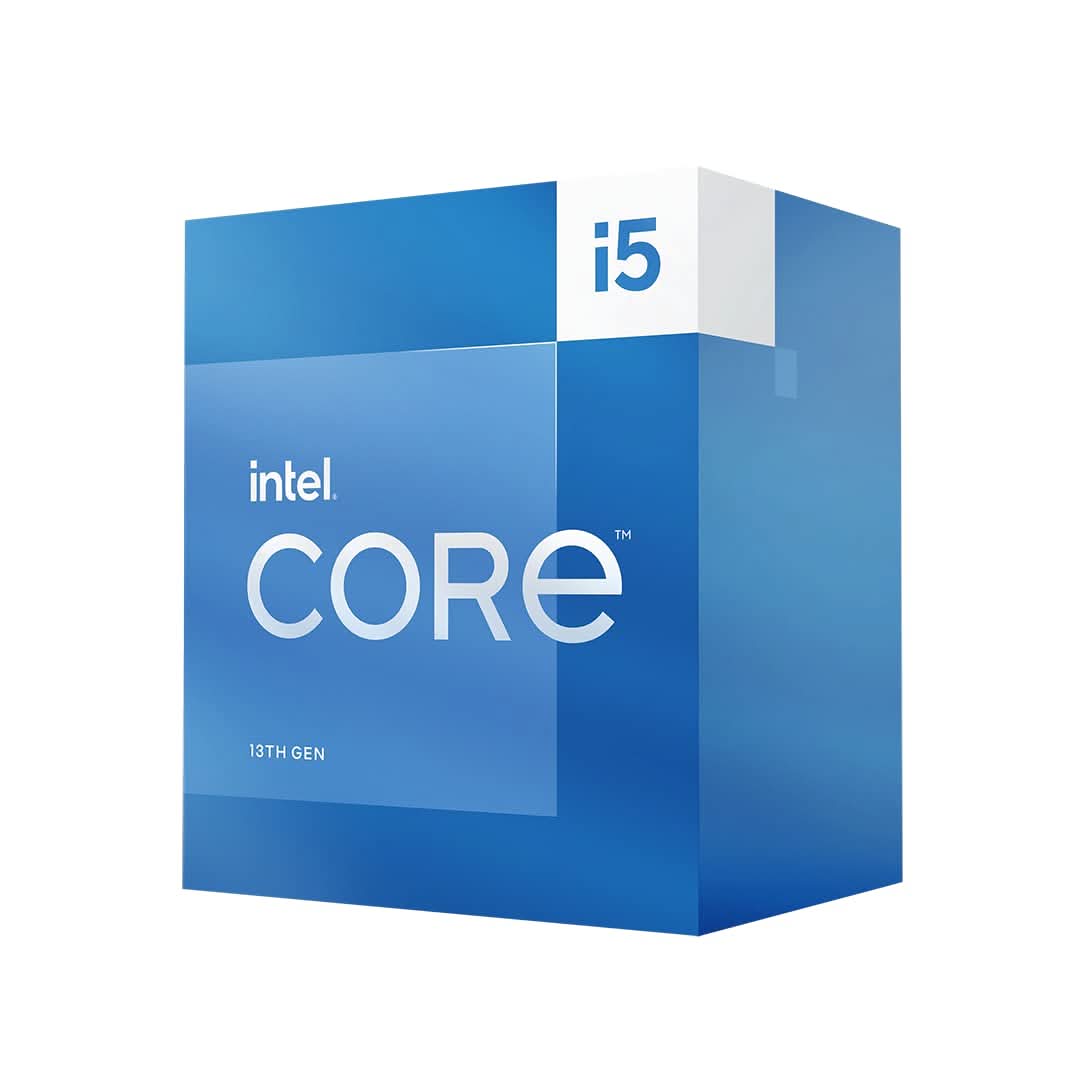

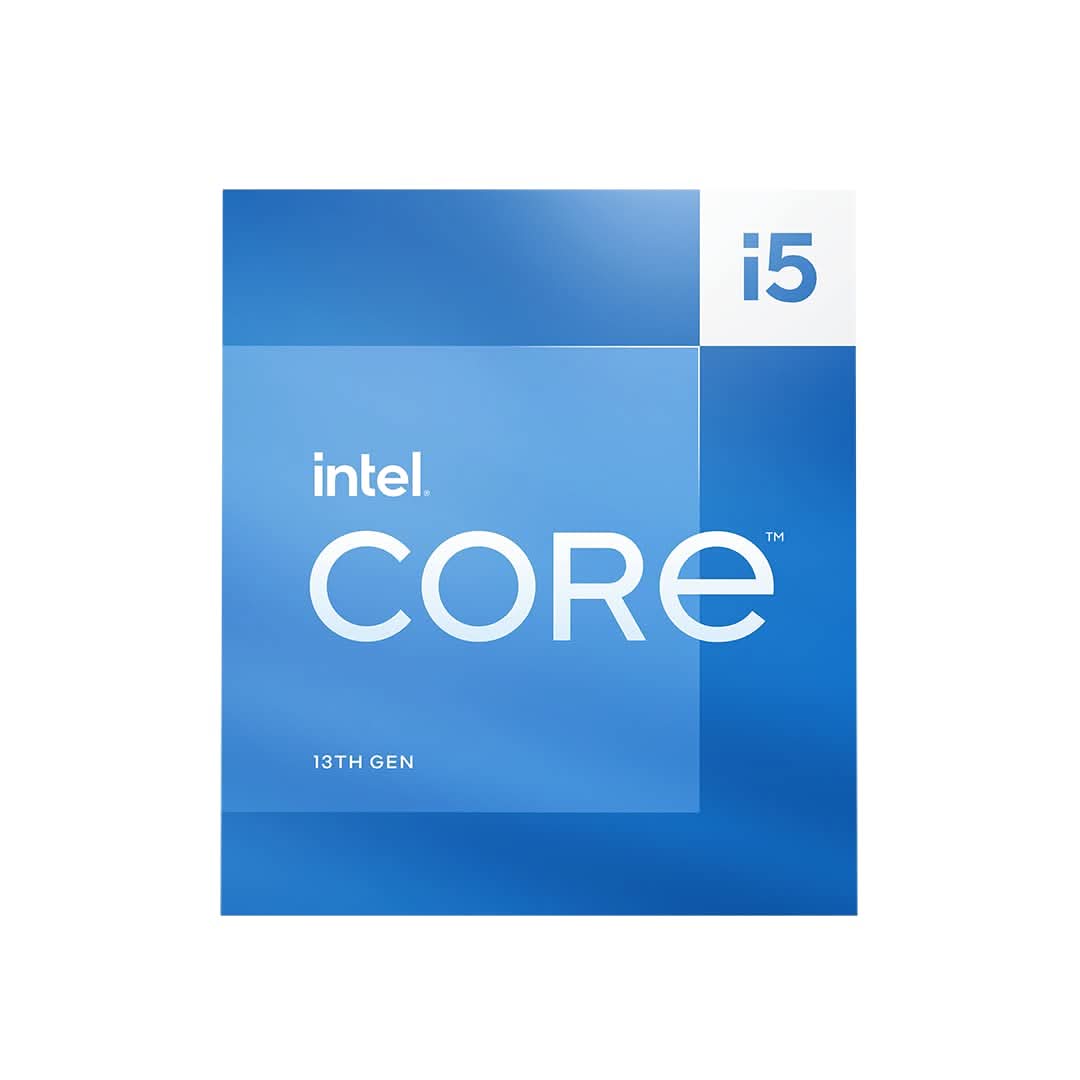

INTEL CORE I5-13400 13TH GEN 10 CORE UPTO 4.6 GHZ LGA1700 PROCESSOR


The Intel Core i5-13400 is a 13th Generation desktop processor featuring 10 cores (6 Performance-cores and 4 Efficient-cores) and 16 threads. Built on the Intel 7 lithography, it delivers a maximum turbo frequency of 4.60 GHz.
This processor is compatible with the LGA1700 socket.

Specifications

Product Collection 13th Generation Intel Core i5 Processors
Code Name Products formerly Raptor Lake
Vertical Segment Desktop
Processor Number i5-13400
Lithography Intel 7
Total Cores 10
# of Performance-cores 6
# of Efficient-cores 4
Total Threads 16
Max Turbo Frequency 4.60 GHz
Performance-core Max Turbo Frequency 4.60 GHz
Efficient-core Max Turbo Frequency 3.30 GHz
Performance-core Base Frequency 2.50 GHz
Efficient-core Base Frequency 1.80 GHz
Cache 20 MB Intel Smart Cache
Total L2 Cache 9.5 MB
Processor Base Power 65 W
Maximum Turbo Power 148 W
Embedded Options Available Yes
Datasheet View now
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
GPU Name Intel UHD Graphics 730
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.55 GHz
Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units 24
Max Resolution (HDMI) 4096 x 2160 @ 60Hz
Max Resolution (DP) 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 1
Intel Quick Sync Video Yes
Intel Clear Video HD Technology Yes
# of Displays Supported 4
Device ID 0x4682/0xA782
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
Warranty 3 Years

Key Features

  • 10 Cores & 16 Threads: Features 6 Performance-cores and 4 Efficient-cores for powerful multitasking and gaming.
  • Up to 4.60 GHz Max Turbo: Delivers high-frequency performance with P-cores reaching 4.60 GHz and E-cores up to 3.30 GHz.
  • 20 MB Intel Smart Cache: Ensures efficient data access and reduced latency for smoother processing.
  • Dual Memory Support: Compatible with up to 192 GB of DDR5 4800 MT/s or DDR4 3200 MT/s across 2 memory channels.
  • Intel UHD Graphics 730: Integrated graphics with 24 Execution Units, supporting up to 4 displays and 8K resolution via DisplayPort.
  • PCIe 5.0 & 4.0 Support: Next-generation connectivity for high-speed data transfer and modern GPU compatibility.
  • 65W Base Power: Maintains a 65W processor base power with a maximum turbo power of 148W for efficient energy use.
  • 3-Year Warranty: Backed by Intel’s 3-year limited warranty for reliable, long-term performance.
SKU: 1085369 Category:
Product Collection 13th Generation Intel Core i5 Processors
Code Name Products formerly Raptor Lake
Vertical Segment Desktop
Processor Number i5-13400
Lithography Intel 7
Total Cores 10
# of Performance-cores 6
# of Efficient-cores 4
Total Threads 16
Max Turbo Frequency 4.60 GHz
Performance-core Max Turbo Frequency 4.60 GHz
Efficient-core Max Turbo Frequency 3.30 GHz
Performance-core Base Frequency 2.50 GHz
Efficient-core Base Frequency 1.80 GHz
Cache 20 MB Intel Smart Cache
Total L2 Cache 9.5 MB
Processor Base Power 65 W
Maximum Turbo Power 148 W
Embedded Options Available Yes
Datasheet View now
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s
GPU Name Intel UHD Graphics 730
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.55 GHz
Graphics Output eDP 1.4b | DP 1.4a | HDMI 2.1
Execution Units 24
Max Resolution (HDMI) 4096 x 2160 @ 60Hz
Max Resolution (DP) 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) 5120 x 3200 @ 120Hz
DirectX* Support 12
OpenGL* Support 4.5
OpenCL* Support 3
Multi-Format Codec Engines 1
Intel Quick Sync Video Yes
Intel Clear Video HD Technology Yes
# of Displays Supported 4
Device ID 0x4682/0xA782
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
Warranty 3 Years
