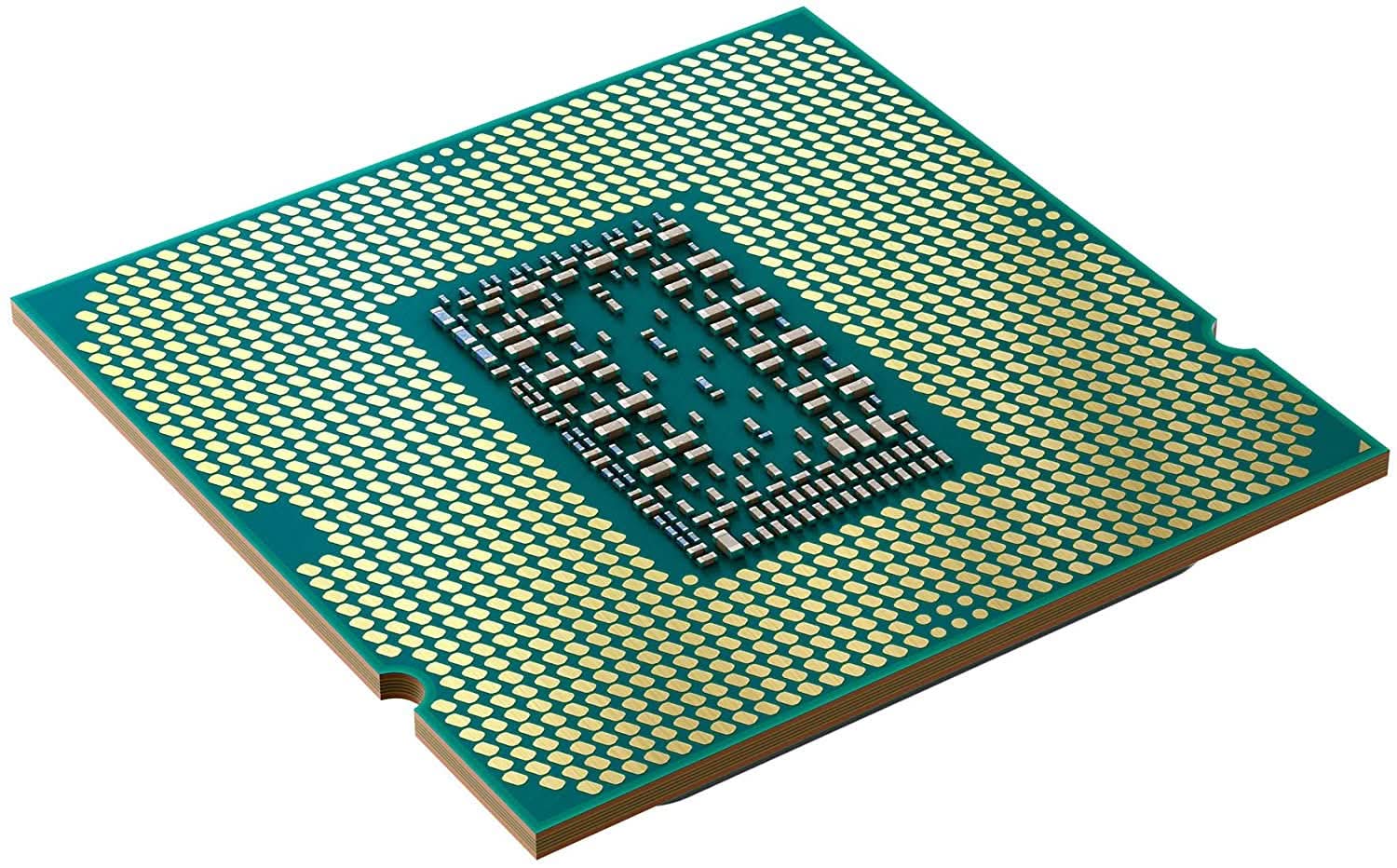

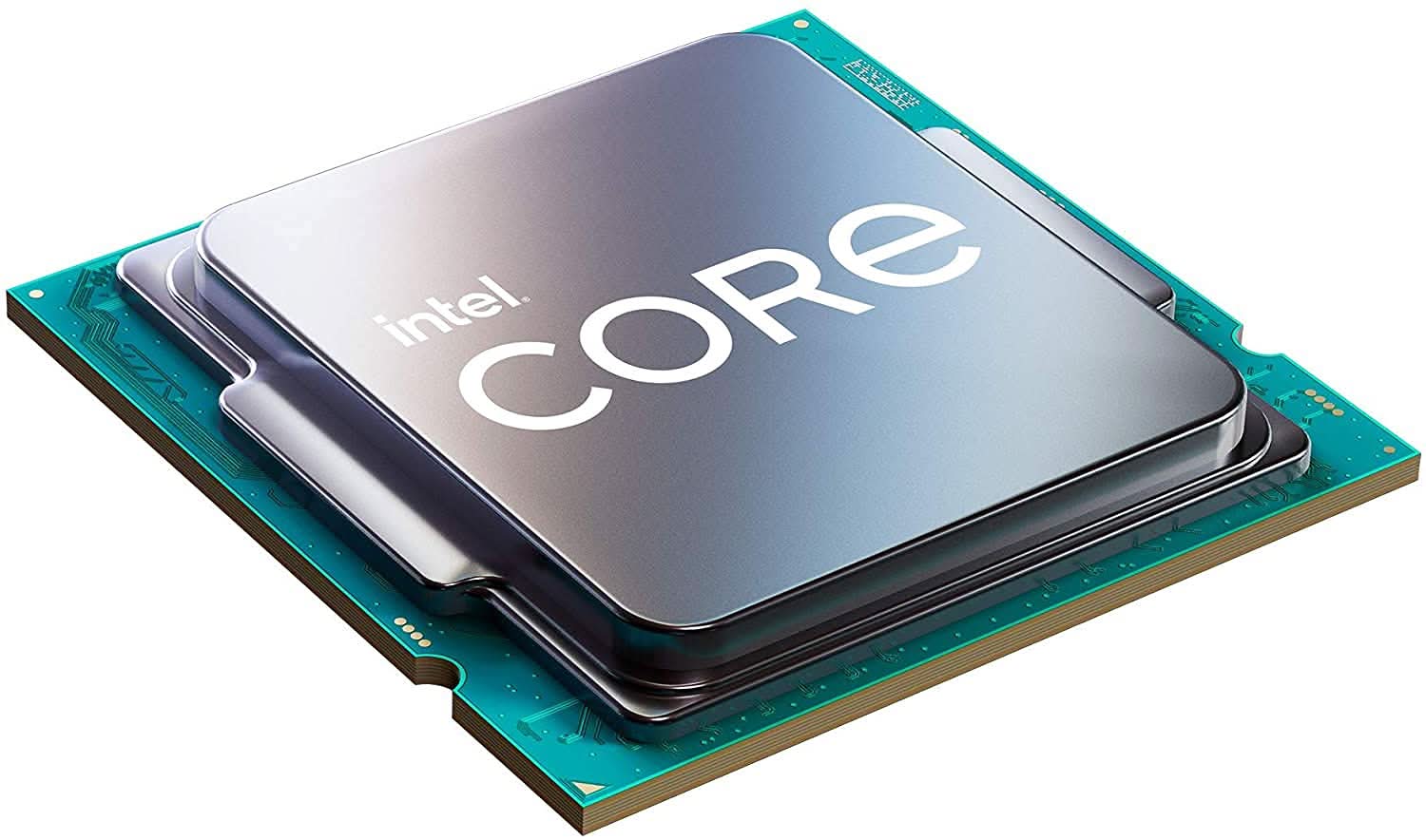

INTEL CORE I7-11700KF 11TH GEN 8 CORE UPTO 5.0 GHZ LGA1200 PROCESSOR


Intel Core i7-11700KF is an 11th‑generation desktop processor with 8 cores, up to 5.0 GHz boost, built on a 14 nm process and using an LGA1200 socket.

It launched in Q1 2021 and includes a 3‑year warranty.

Specifications

Product Collection 11th Generation Intel Core i7 Processors
Code Name Products formerly Rocket Lake
Vertical Segment Desktop
Processor Number i7-11700KF
Status Launched
Launch Date Q1’21
Lithography 14 nm
Use Conditions PC/Client/Tablet
Warranty 3 Years
Total Cores 8
Total Threads 16
Max Turbo Frequency 5.00 GHz
Intel Turbo Boost Max Technology 3.0 Frequency 5.00 GHz
Intel Turbo Boost Technology 2.0 Frequency 4.90 GHz
Processor Base Frequency 3.60 GHz
Cache 16 MB Intel Smart Cache
Bus Speed 8 GT/s
TDP 125 W
Configurable TDP-down Frequency 3.10 GHz
Configurable TDP-down 95 W
Embedded Options Available No
Datasheet View now
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-3200
Max # of Memory Channels 2
Max Memory Bandwidth 50 GB/s
ECC Memory Supported No
Scalability 1S Only
PCI Express Revision 4
PCI Express Configurations Up to 1×16+1×4 | 2×8+1×4 | 1×8+3×4
Max # of PCI Express Lanes 20
Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2019A
TJUNCTION 100∞C
Package Size 37.5 mm x 37.5 mm
Intel Gaussian & Neural Accelerator 2
Intel Deep Learning Boost (Intel DL Boost) Yes
Intel Optane Memory Supported Yes
Intel Thermal Velocity Boost No
Intel Turbo Boost Max Technology 3.0 Yes
Intel Turbo Boost Technology 2
Intel vPro Platform Eligibility No
Intel Hyper-Threading Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel SSE4.1 | Intel SSE4.2 | Intel AVX2 | Intel AVX-512
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Thermal Monitoring Technologies Yes
Intel Identity Protection Technology Yes
Intel Stable Image Platform Program (SIPP) No
Intel AES New Instructions Yes
Secure Key Yes
Intel Software Guard Extensions (Intel SGX) No
Intel OS Guard Yes
Intel Trusted Execution Technology No
Execute Disable Bit Yes
Intel Boot Guard Yes

Key Features

  • 8 cores / 16 threads with Intel Hyper‑Threading Technology
  • Base clock 3.60 GHz, Max Turbo up to 5.00 GHz (Intel Turbo Boost Max Technology 3.0)
  • 16 MB Intel Smart Cache for fast data access
  • Supports DDR4‑3200 memory, up to 128 GB across 2 channels (50 GB/s bandwidth)
  • PCIe 4.0 support with up to 20 lanes (configurations: 1×16+1×4, 2×8+1×4, 1×8+3×4)
  • LGA1200 socket, 3‑year warranty, TDP 125 W
SKU: 104925 Category:
Product Collection 11th Generation Intel Core i7 Processors
Code Name Products formerly Rocket Lake
Vertical Segment Desktop
Processor Number i7-11700KF
Status Launched
Launch Date Q1’21
Lithography 14 nm
Use Conditions PC/Client/Tablet
Warranty 3 Years
Total Cores 8
Total Threads 16
Max Turbo Frequency 5.00 GHz
Intel Turbo Boost Max Technology 3.0 Frequency 5.00 GHz
Intel Turbo Boost Technology 2.0 Frequency 4.90 GHz
Processor Base Frequency 3.60 GHz
Cache 16 MB Intel Smart Cache
Bus Speed 8 GT/s
TDP 125 W
Configurable TDP-down Frequency 3.10 GHz
Configurable TDP-down 95 W
Embedded Options Available No
Datasheet View now
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-3200
Max # of Memory Channels 2
Max Memory Bandwidth 50 GB/s
ECC Memory Supported No
Scalability 1S Only
PCI Express Revision 4
PCI Express Configurations Up to 1×16+1×4 | 2×8+1×4 | 1×8+3×4
Max # of PCI Express Lanes 20
Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2019A
TJUNCTION 100∞C
Package Size 37.5 mm x 37.5 mm
Intel Gaussian & Neural Accelerator 2
Intel Deep Learning Boost (Intel DL Boost) Yes
Intel Optane Memory Supported Yes
Intel Thermal Velocity Boost No
Intel Turbo Boost Max Technology 3.0 Yes
Intel Turbo Boost Technology 2
Intel vPro Platform Eligibility No
Intel Hyper-Threading Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel 64 Yes
Instruction Set 64-bit
Instruction Set Extensions Intel SSE4.1 | Intel SSE4.2 | Intel AVX2 | Intel AVX-512
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Thermal Monitoring Technologies Yes
Intel Identity Protection Technology Yes
Intel Stable Image Platform Program (SIPP) No
Intel AES New Instructions Yes
Secure Key Yes
Intel Software Guard Extensions (Intel SGX) No
Intel OS Guard Yes
Intel Trusted Execution Technology No
Execute Disable Bit Yes
Intel Boot Guard Yes
