INTERNAL SSD

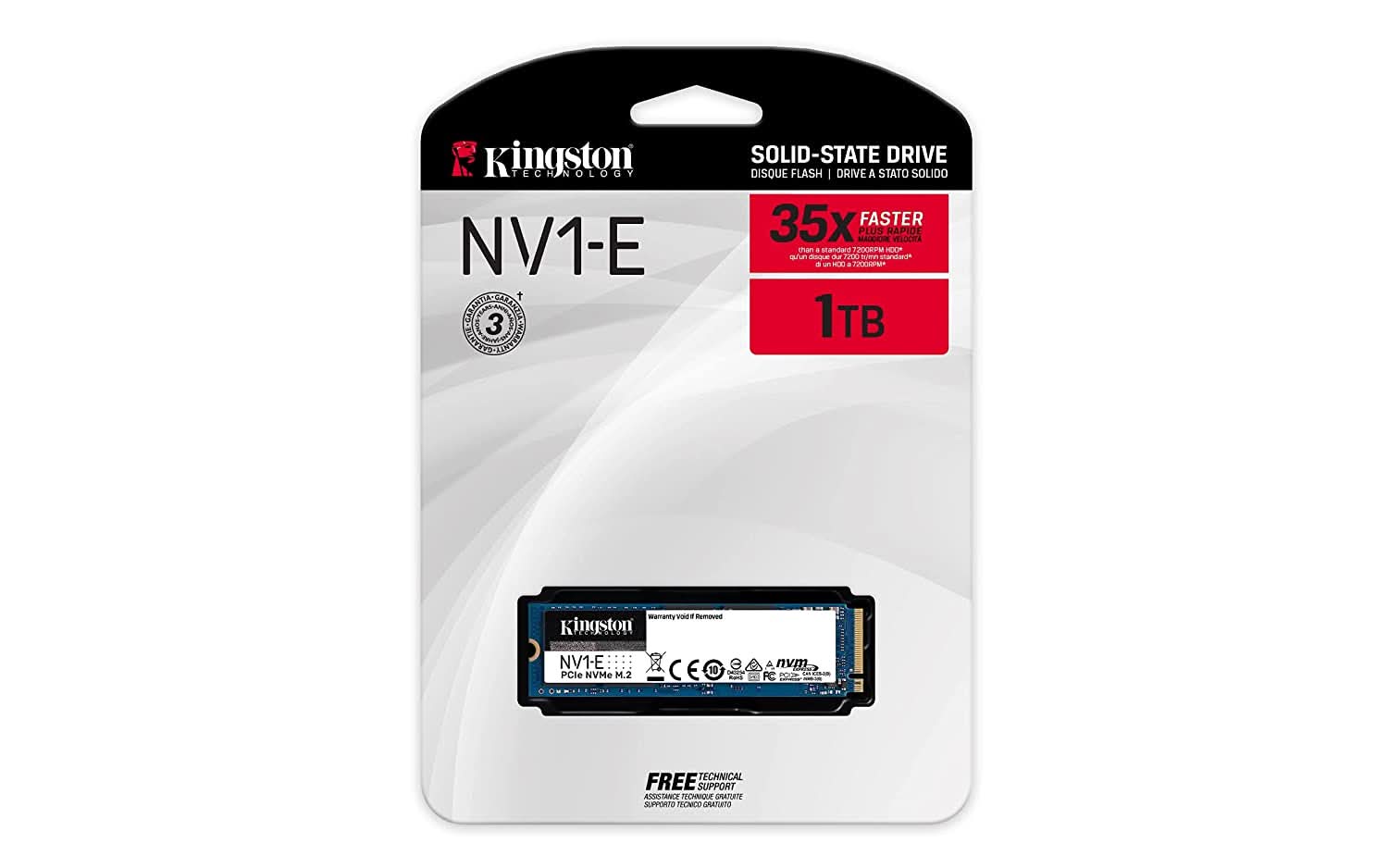

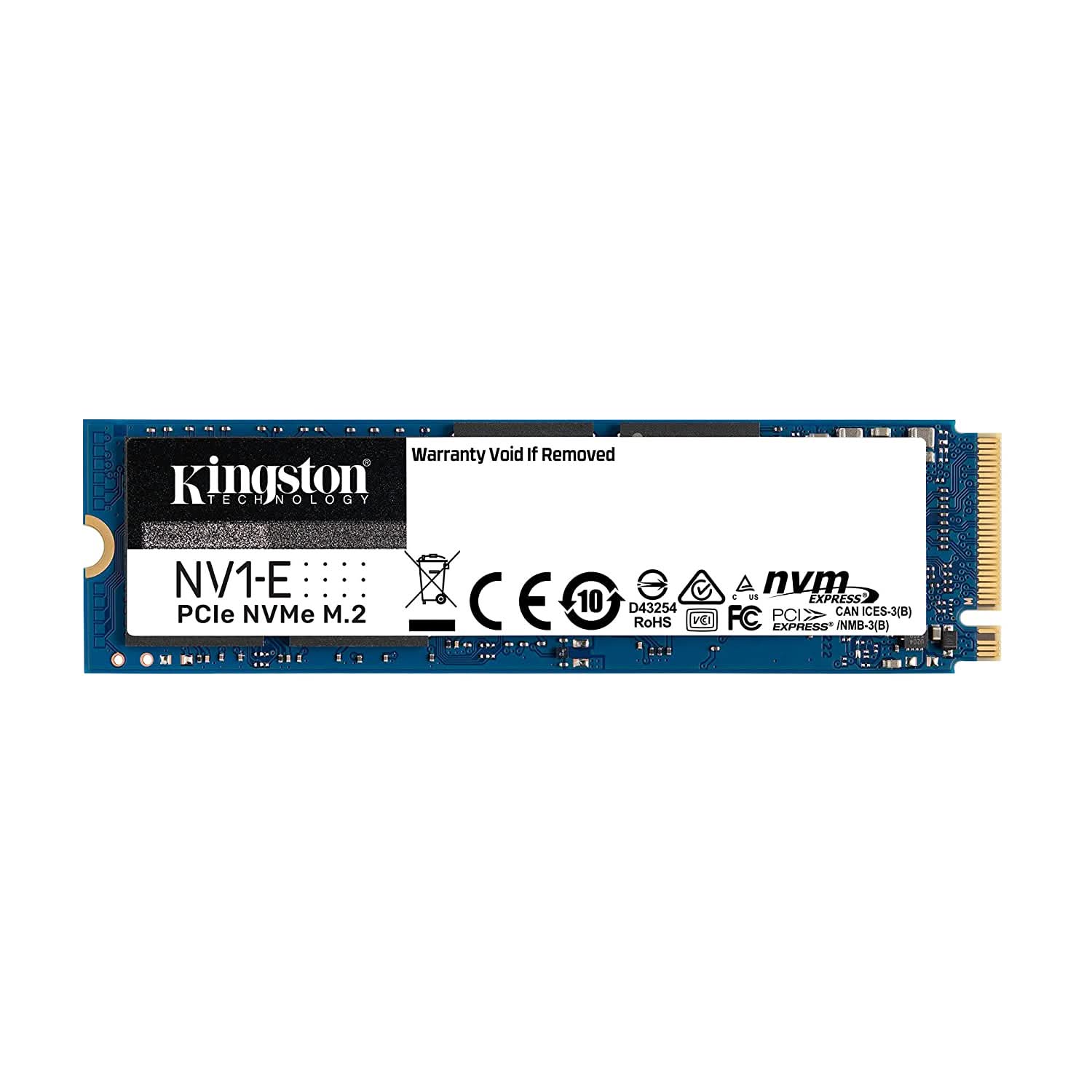

KINGSTON NV1 1TB NVME M.2 SSD

Compare

Product Number: SNVS-1000G. The Kingston NV1 1TB NVMe M.2 SSD uses a PCIe Gen 3.0 x4 interface and delivers 2100 MB/s read and 1700 MB/s write speeds. It has a capacity of 1000 GB, endurance of 240 TBW, and power consumption of 5 mW idle, 220 mW average, 1.1 W max read, and 3.3 W max write. Operating temperature is 0 °C–70 °C, storage temperature –40 °C–85 °C, dimensions 22 mm × 80 mm × 2.1 mm, and weight 7 g.

Specifications

Product Number	SNVS-1000G
Interface	NVMe™ PCIe Gen 3.0 x 4 Lanes
Capacitiy	1000GB
Sequential Read/Write	2100/1700MB/s
Endurance	240TBW
Power Consumption	5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
Storage Temperature	-40°C~85°C
Operating Temperature	0°C~70°C
Dimensions	22mm x 80mm x 2.1mm
Weight	7g
Vibration Operating	2.17G (7-800 Hz)
Vibration Non-operating	20G (20-1000Hz)
Warranty	3 Years

Key Features

NVMe PCIe Gen 3.0 x4 Interface: Delivers high-performance data transfer speeds
1TB Capacity: SNVS-1000G model provides 1000GB of storage

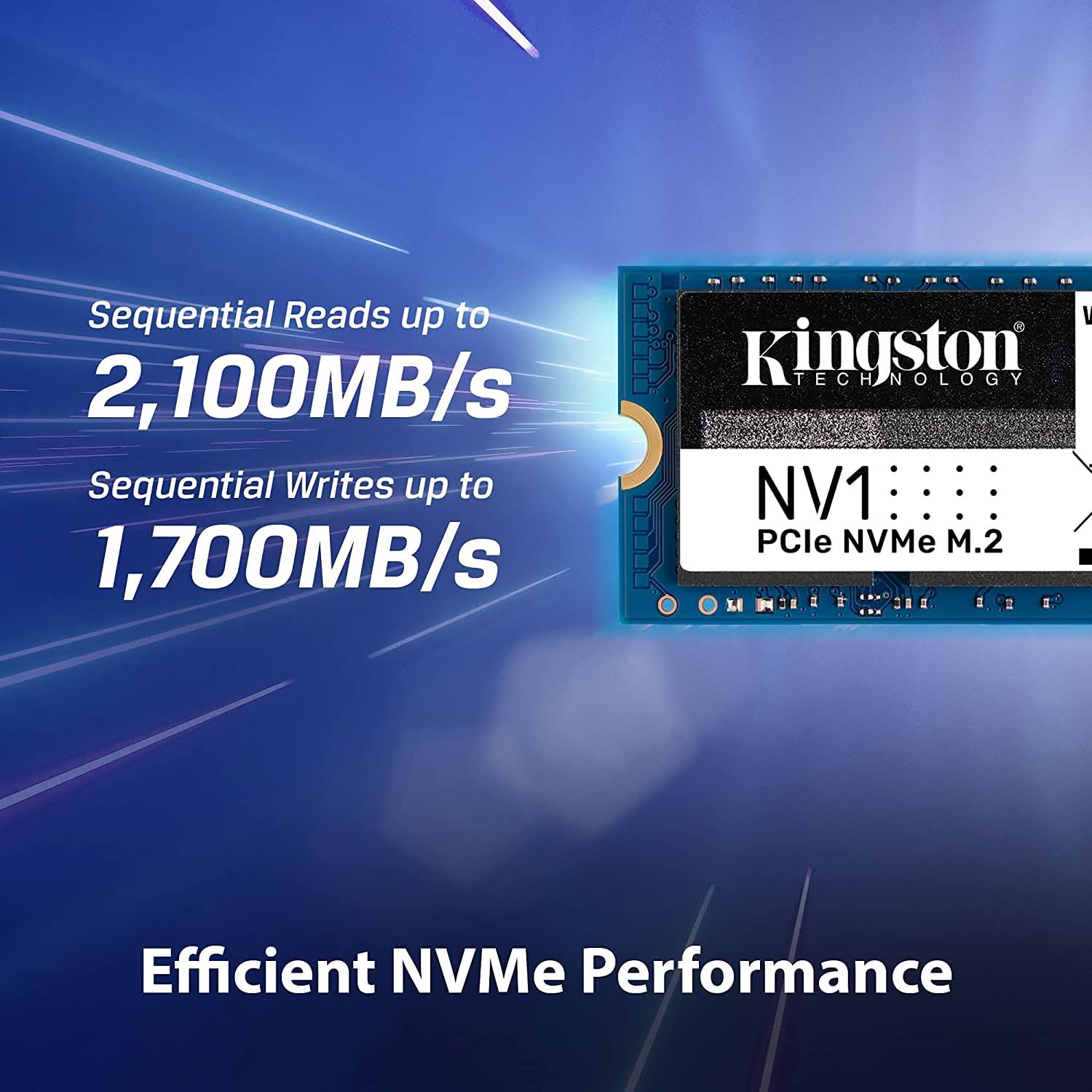

Up to 2100MB/s Sequential Read Speed: Achieves 2100MB/s read and 1700MB/s write performance
240TBW Endurance Rating: Ensures reliable long-term use with 240TBW total bytes written
Low Power Consumption: 5mW idle, 220mW average, 1.1W max read, 3.3W max write

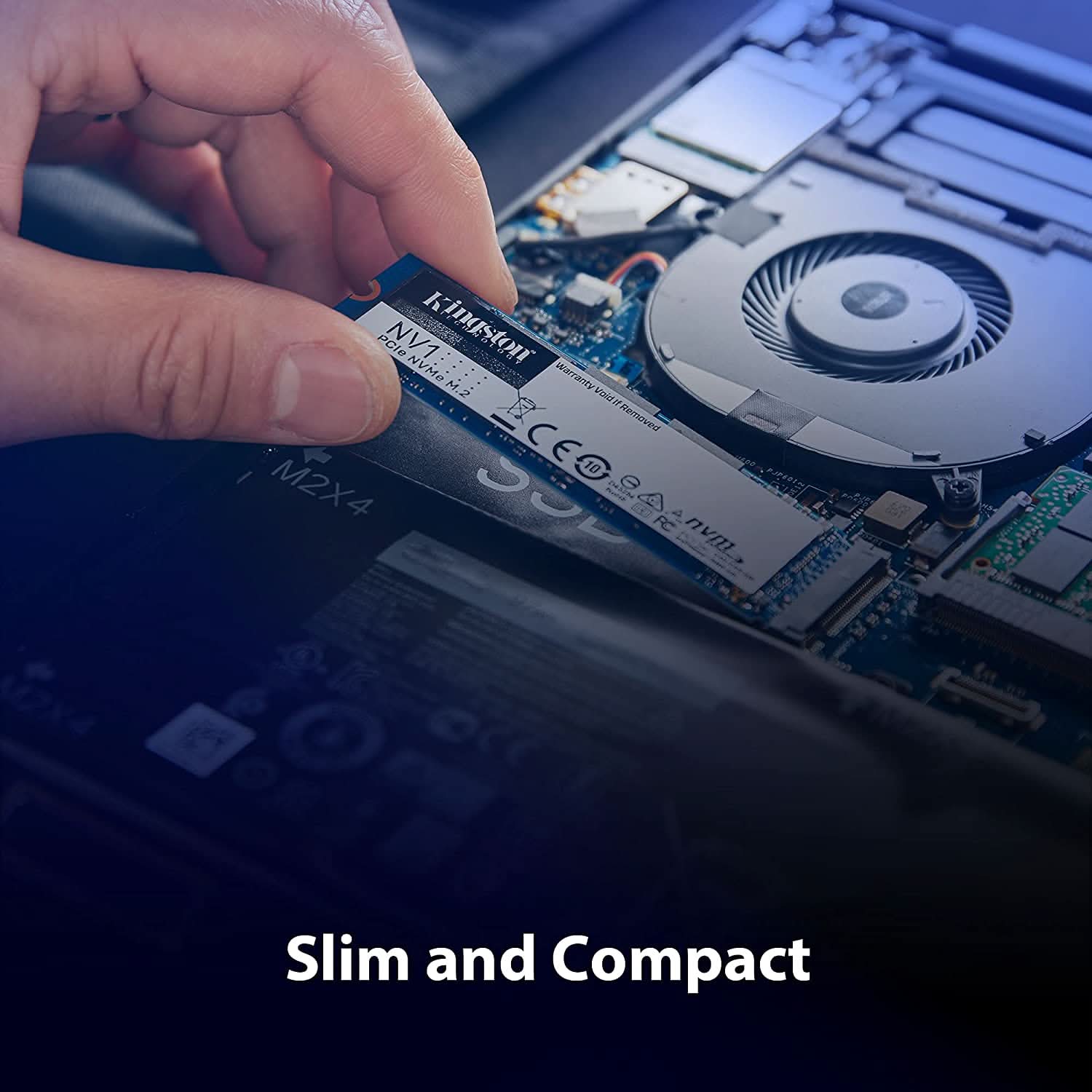

Compact M.2 2280 Form Factor: Measures 22mm x 80mm x 2.1mm and weighs only 7g
3-Year Limited Warranty: Backed by Kingston’s 3-year warranty

SKU: 103617 Category: INTERNAL SSD
