Specifications
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B650 |
| Memory Speed | up to 7600+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Graphics Port | 1x HDMI,1x DisplayPort |
| Expansion Slots | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

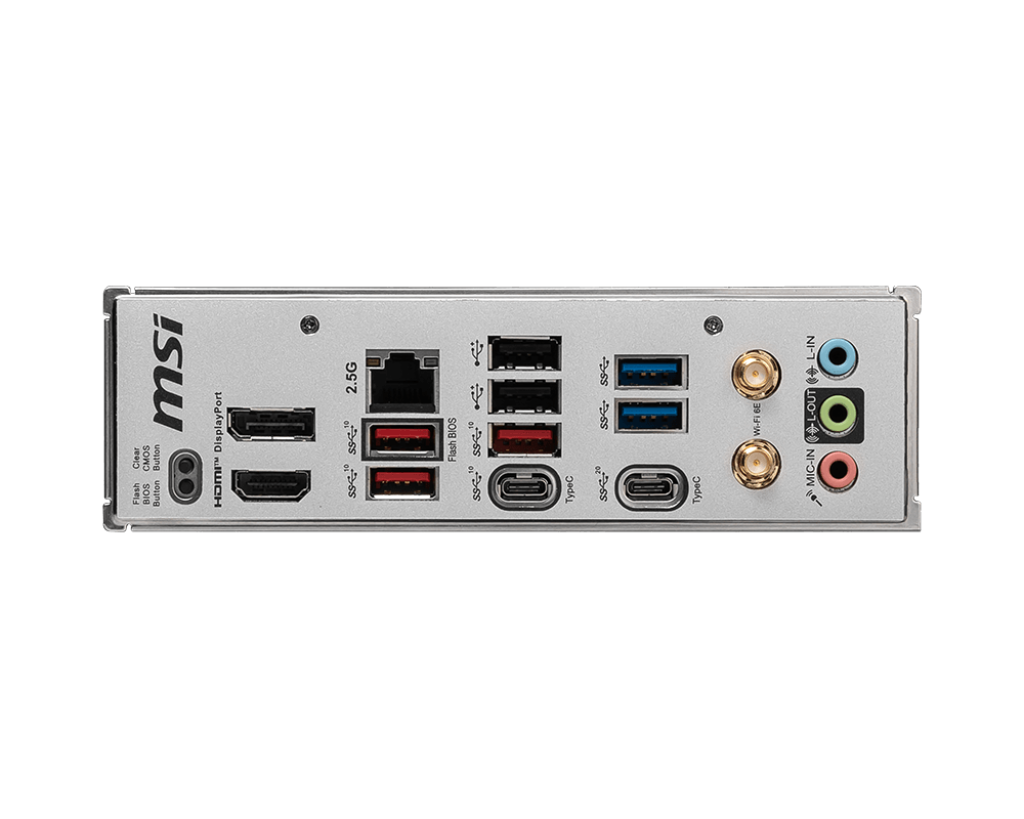

| Back Panel I/O Ports | DisplayPort 2.5G LAN USB 2.0 USB 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 20Gbps (Type-C) |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
Key Features
- AM5 Socket – Supports AMD Ryzen™ 9000, 8000 & 7000 series processors
- B650 Chipset with DDR5 memory – speeds up to 7600+ MT/s, max 256 GB (dual‑channel)
- Wireless & LAN – Wi‑Fi 6E, Bluetooth 5.3 and 2.5 G Gigabit Ethernet
- Versatile I/O – HDMI, DisplayPort, USB 20Gbps Type‑C, USB 10Gbps Type‑A & Type‑C, USB 5Gbps Type‑A, plus multiple USB 2.0 ports
- PCIe Expansion – 1× PCI‑E x16 slot (x16/x8/x4 modes) + 1× PCI‑E x1 slot
- Power & Cooling – Dual 8‑pin CPU power, CPU fan, pump fan, 3× system fan headers
- Convenient Extras – Flash BIOS Button, Clear CMOS Button, TPM 2.0 header, Micro‑ATX form factor, 3‑year warranty
