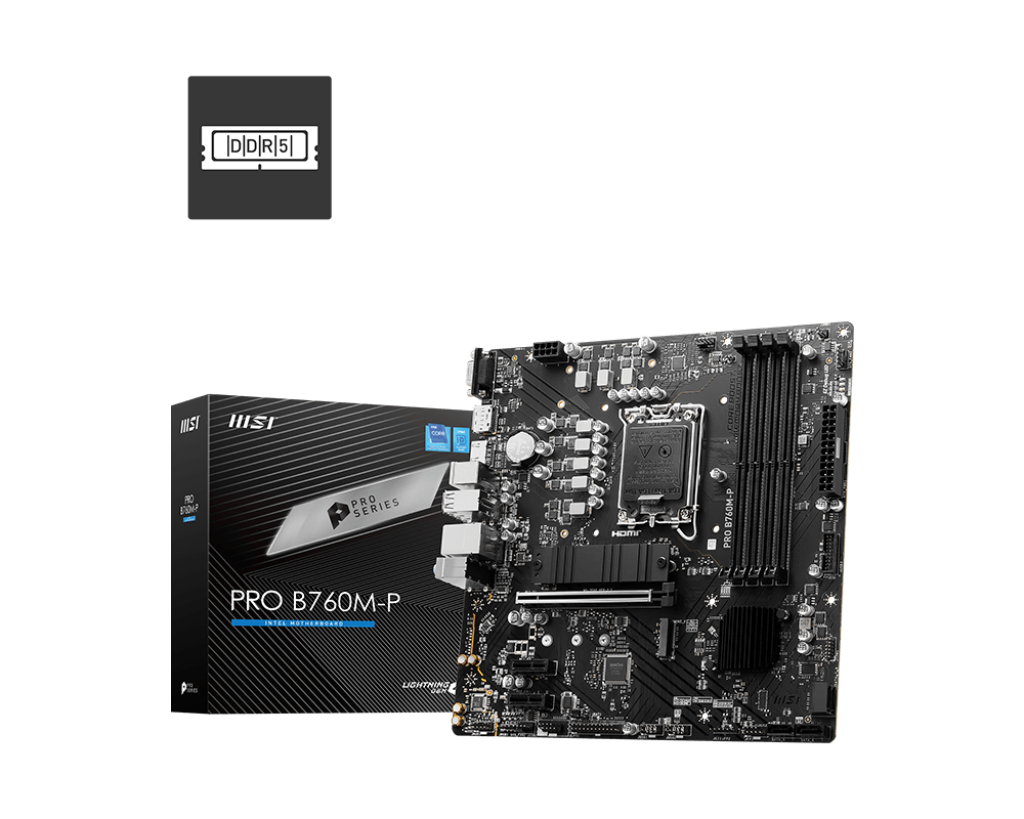

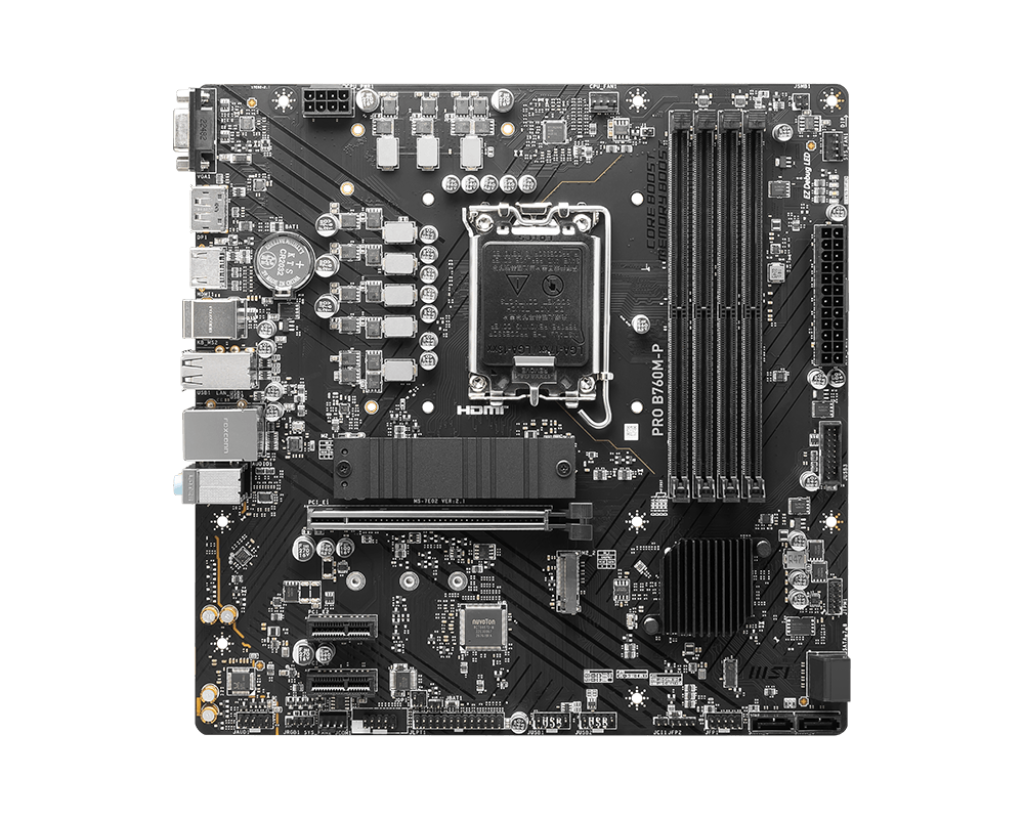

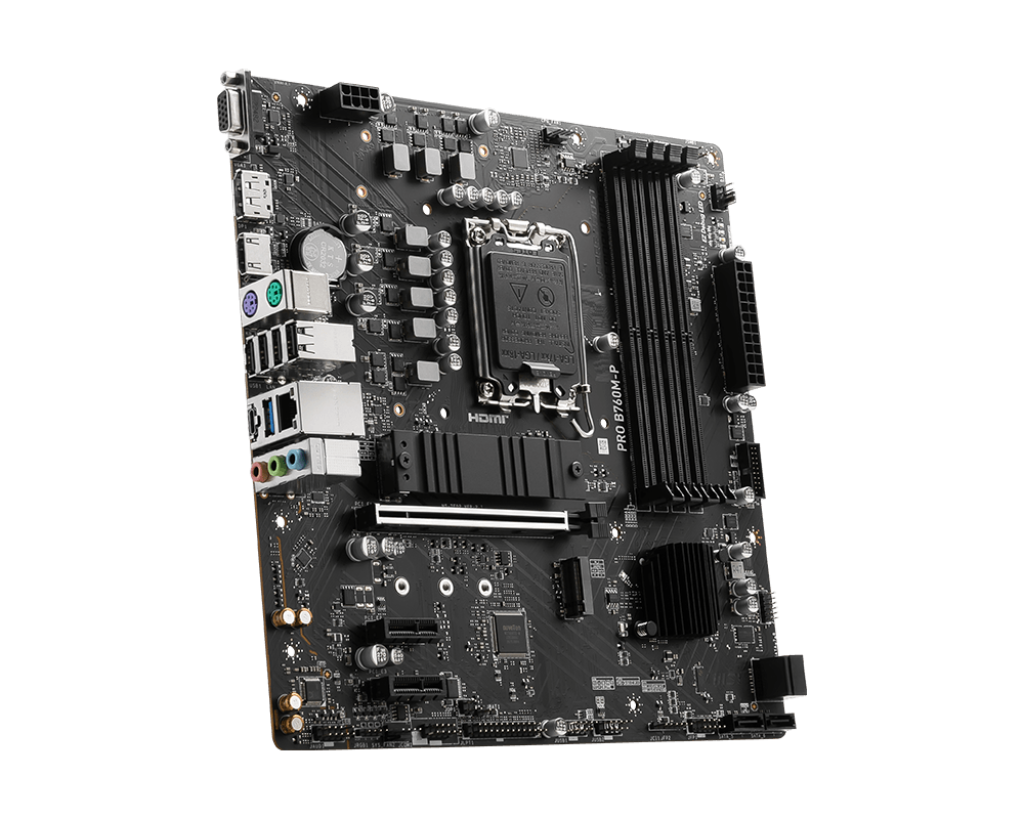

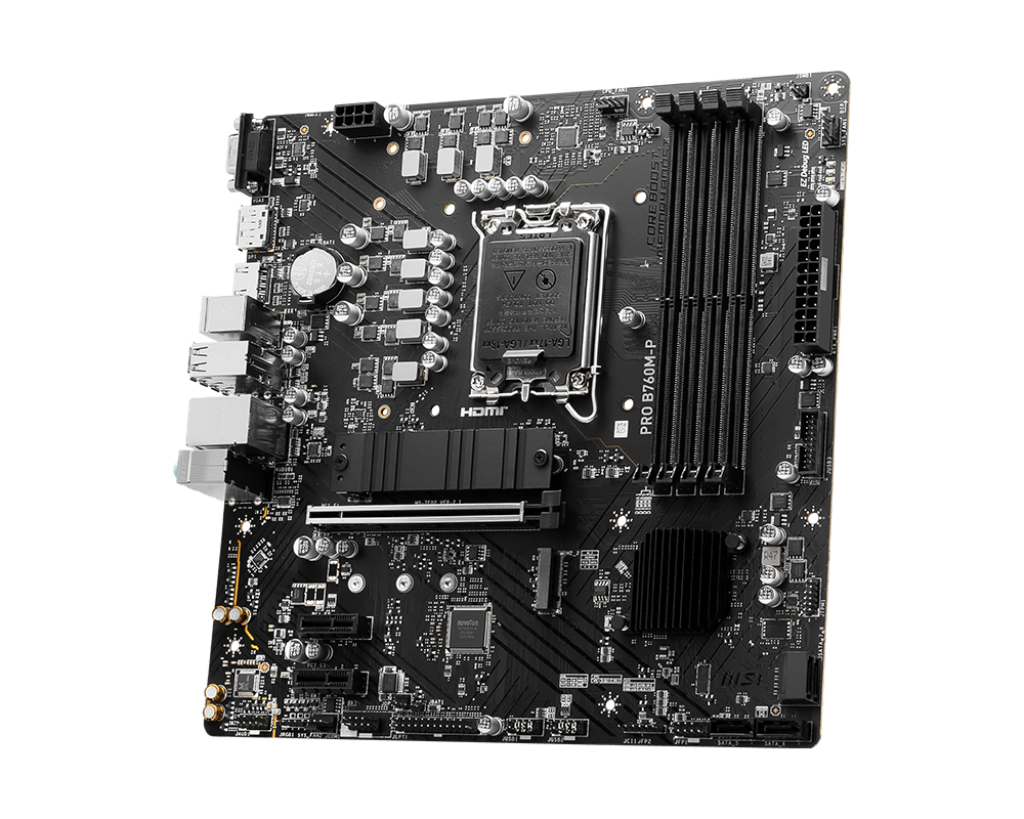

MSI B760M-P PRO DDR5 INTEL LGA1700 MOTHERBOARD

Platform: INTEL

Socket: LGA1700

CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors

Chipset: B760

Memory Speed: up to 6800+

Max Memory Support: 256 GB

Supported Memory Type: DDR5

Channel Supported: Dual Channel

Memory Feature: Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory

Graphics Port: 1x VGA, 1x DisplayPort, 1x HDMI

Platform	INTEL
Socket	LGA1700
CPU Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	B760
Memory Speed	up to 6800+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Graphics Port	1x VGA, 1x DisplayPort, 1x HDMI
Expansion Slots	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

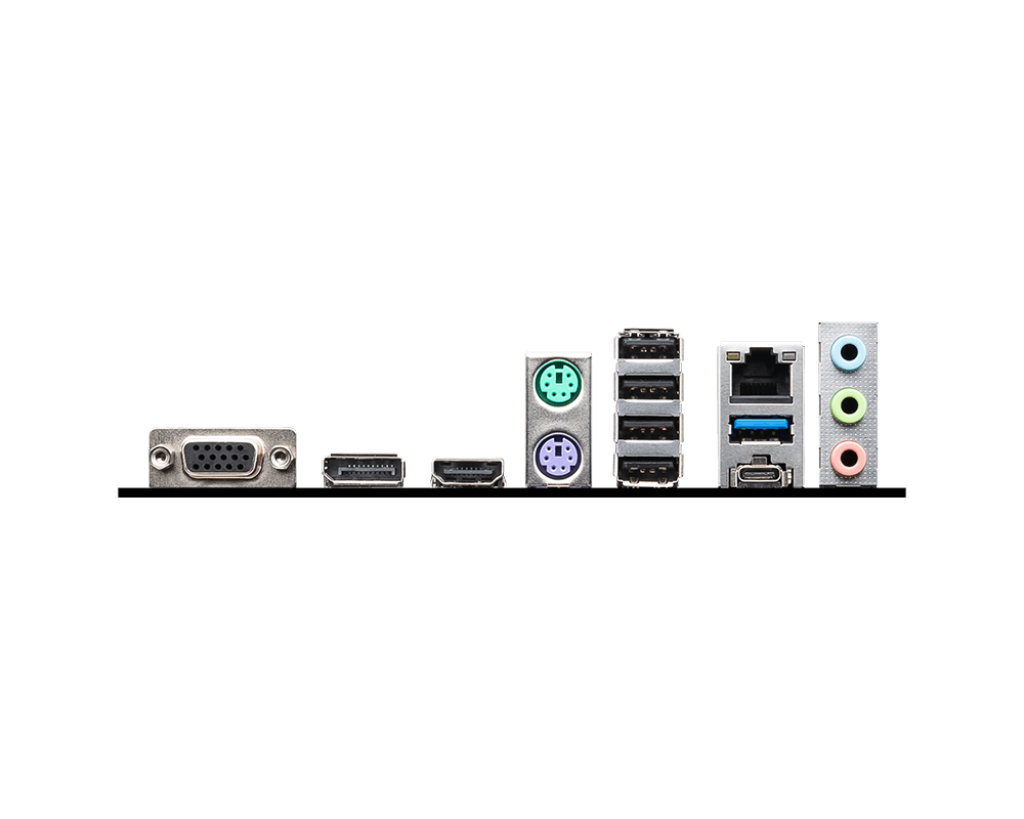

Back Panel I/O Ports	VGA DisplayPort HDMI Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C)
Internal I/O Connector	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
Form Factor	Micro-ATX
Warranty	3 Years

CPU Support: Compatible with Intel 14th, 13th, 12th Gen, Pentium Gold & Celeron processors (LGA1700) via B760 chipset.
Memory: DDR5 up to 6800+ MT/s, max 256 GB, dual-channel, Intel XMP 3.0 ready.
Display Outputs: VGA, DisplayPort, and HDMI for versatile multi‑monitor setups.
Expansion Slots: 1× PCIe 4.0 x16 (CPU) + 2× PCIe 4.0 x1 (chipset) slots.
I/O Connectivity: USB 3.2 Gen 2 Type‑C (10Gbps), USB 3.2 Gen 1 Type‑A (5Gbps), USB 2.0, Gigabit LAN, audio jacks.
Form Factor: Micro‑ATX, ideal for compact builds.
Warranty & Extras: 3‑year warranty, TPM 2.0 header, RGB LED connector, multiple fan headers.

SKU: 1085579 Category: Motherboard

Platform	INTEL
Socket	LGA1700
CPU Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	B760
Memory Speed	up to 6800+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Graphics Port	1x VGA, 1x DisplayPort, 1x HDMI
Expansion Slots	1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Back Panel I/O Ports	VGA DisplayPort HDMI Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C)
Internal I/O Connector	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
Form Factor	Micro-ATX
Warranty	3 Years
