Specifications

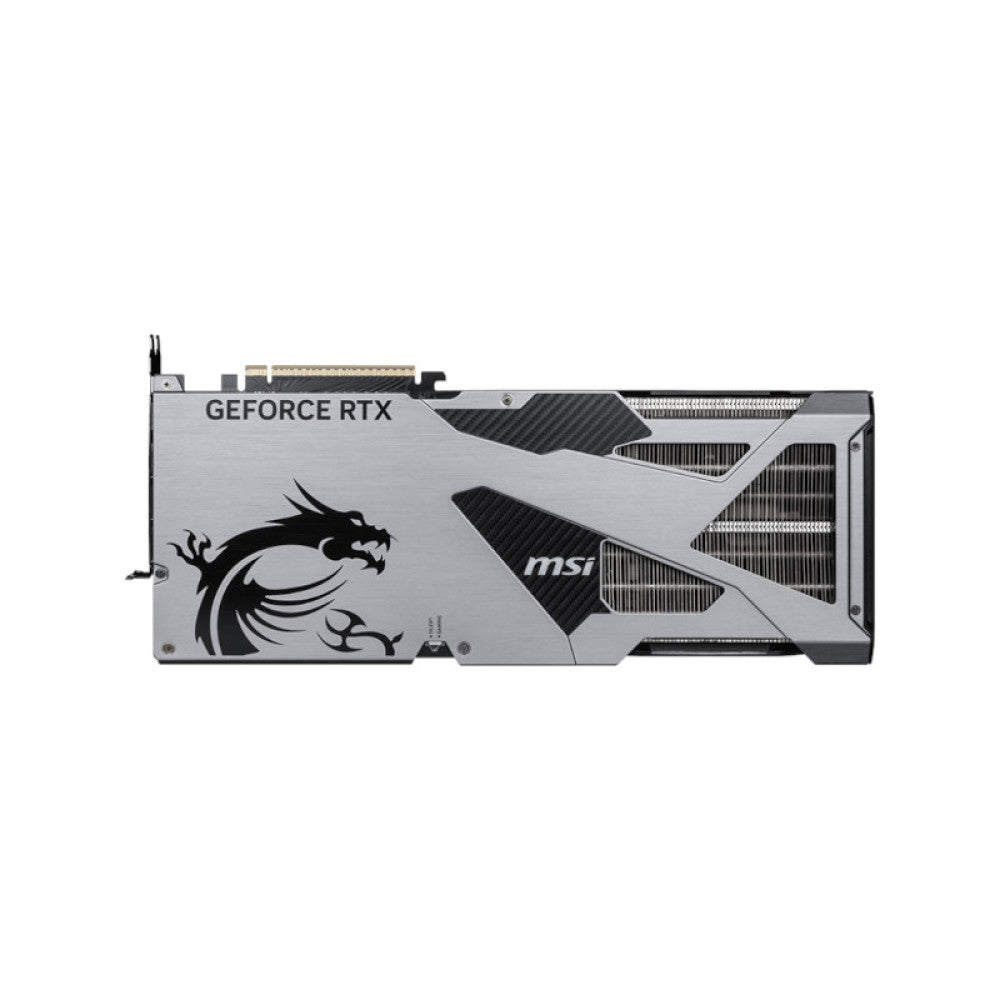

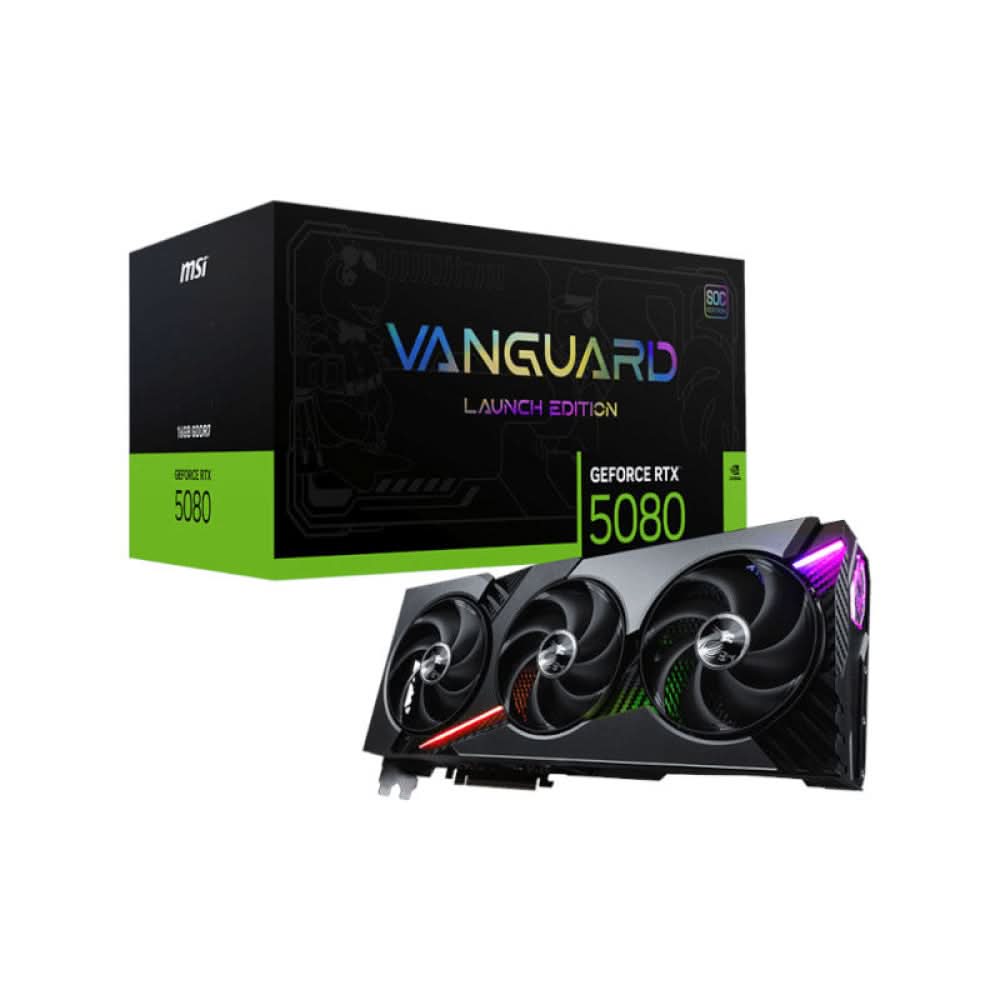

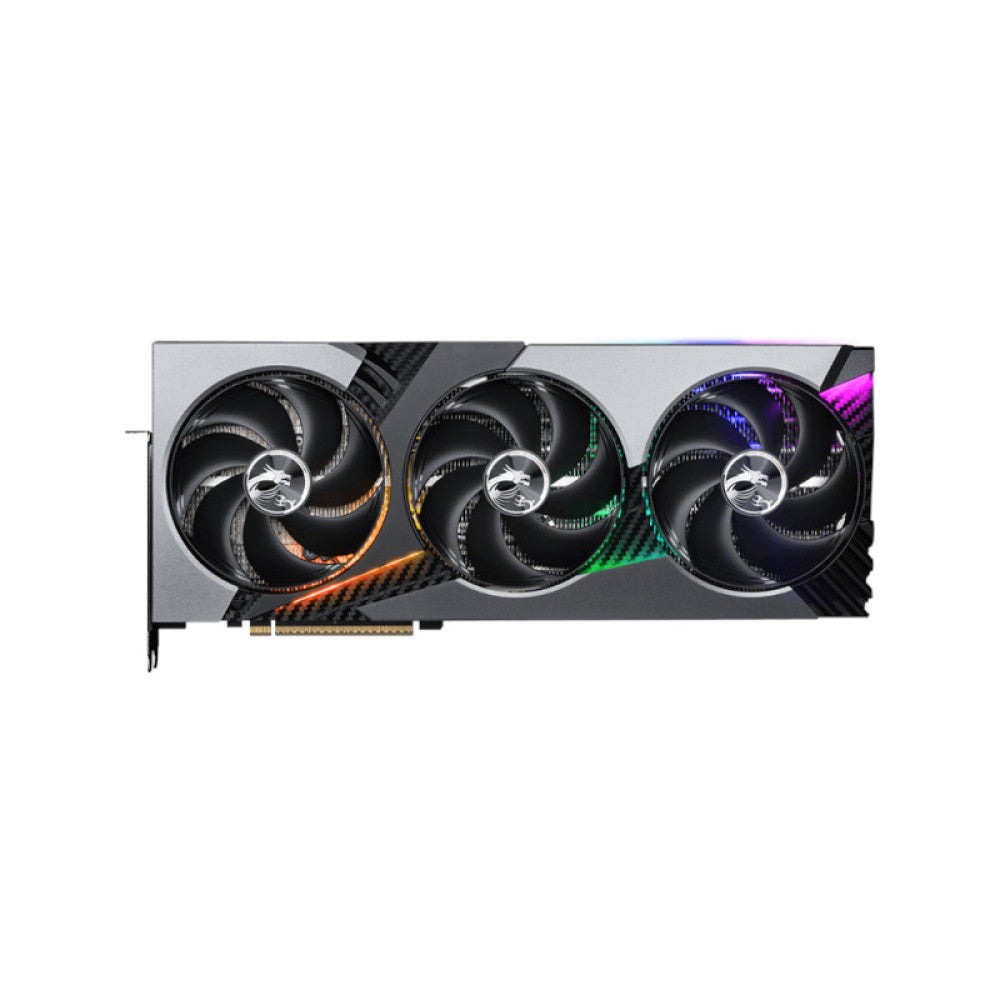

| MARKETING NAME | GeForce RTX™ 5080 16G VANGUARD SOC LAUNCH EDITION |
| MODEL NAME | G5080-16VGSL |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 5080 |
| INTERFACE | PCI Express® Gen 5 |
| CORE CLOCKS | Extreme Performance: 2745 MHz (MSI Center) Boost: 2730 MHz (GAMING & SILENT Mode) |
| CUDA® CORES | 10752 Units |
| MEMORY SPEED | 30 Gbps |
| MEMORY | 16GB GDDR7 |
| MEMORY BUS | 256-bit |

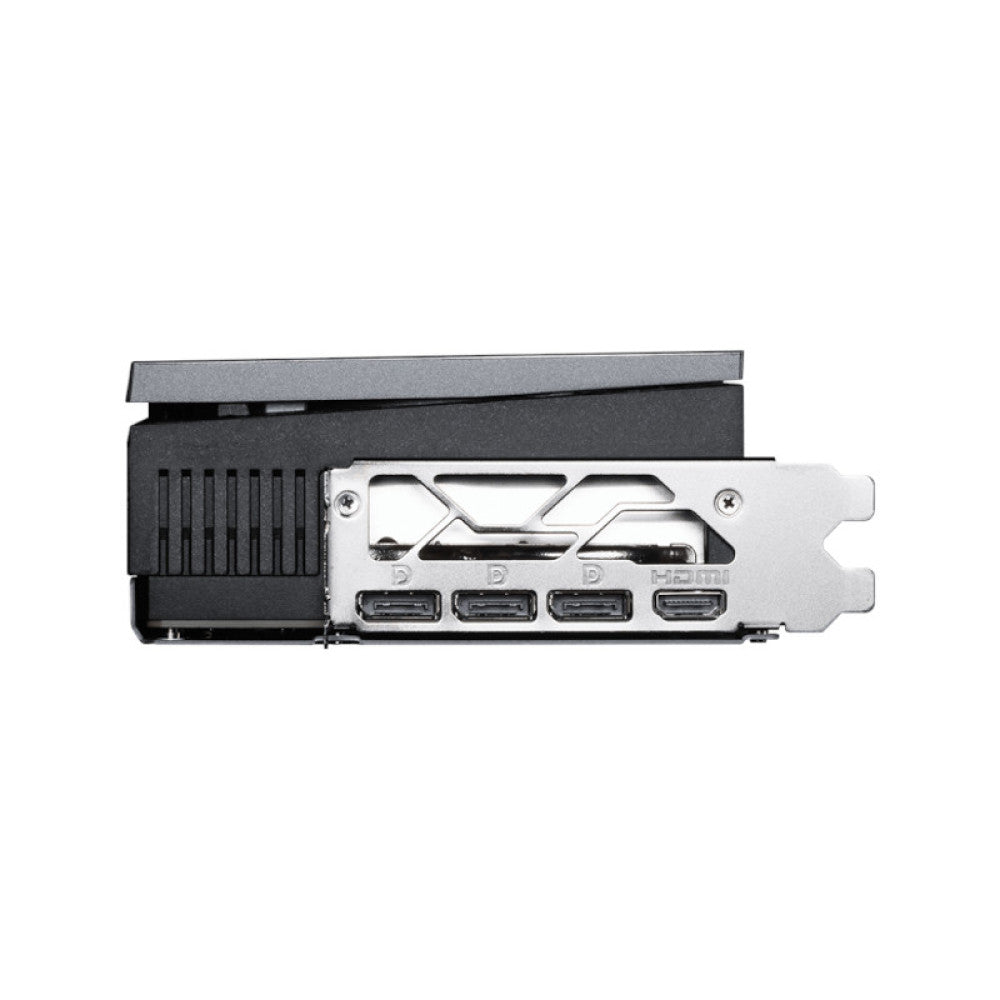

| OUTPUT | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 360 W |
| POWER CONNECTORS | 16-pin x 1 |
| RECOMMENDED PSU | 850 W |
| CARD DIMENSION (MM) | 357 x 151 x 66 mm |
| WEIGHT (CARD / PACKAGE) | 1945 g / 3991 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
| WARRANTY | 3 Years |
| Note* | Price, Feature and Specifications Are Subject to Change Without Notice. |
Key Features
- GPU Power: NVIDIA GeForce RTX 5080 with 10,752 CUDA cores.
- High Clock Speeds: Extreme Performance boost up to 2,745 MHz (Gaming/Silent mode 2,730 MHz).
- Fast Memory: 16 GB GDDR7 running at 30 Gbps on a 256‑bit bus.
- Next‑Gen Interface: PCI Express® Gen 5 for maximum bandwidth.
- Advanced Display Support: 3× DisplayPort 2.1b and 1× HDMI 2.1b, up to 8K 120 Hz (DSC) or 4K 480 Hz, with G‑SYNC and HDR.
- Power Requirements: 360 W TDP, single 16‑pin connector, recommended 850 W PSU.
- Reliability: 3‑year warranty and support for DirectX 12 Ultimate, OpenGL 4.6, up to 4 displays at 7680×4320 resolution.
