Specifications
| Platform | AMD |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | X870 |
| Memory Speed | up to 8400+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Memory Feature | Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. The DIMM slots on this motherboard have double-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit Brand Website. |
| Graphics Port | 1x HDMI,2x Type-C DisplayPort |
| Expansion Slots | 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

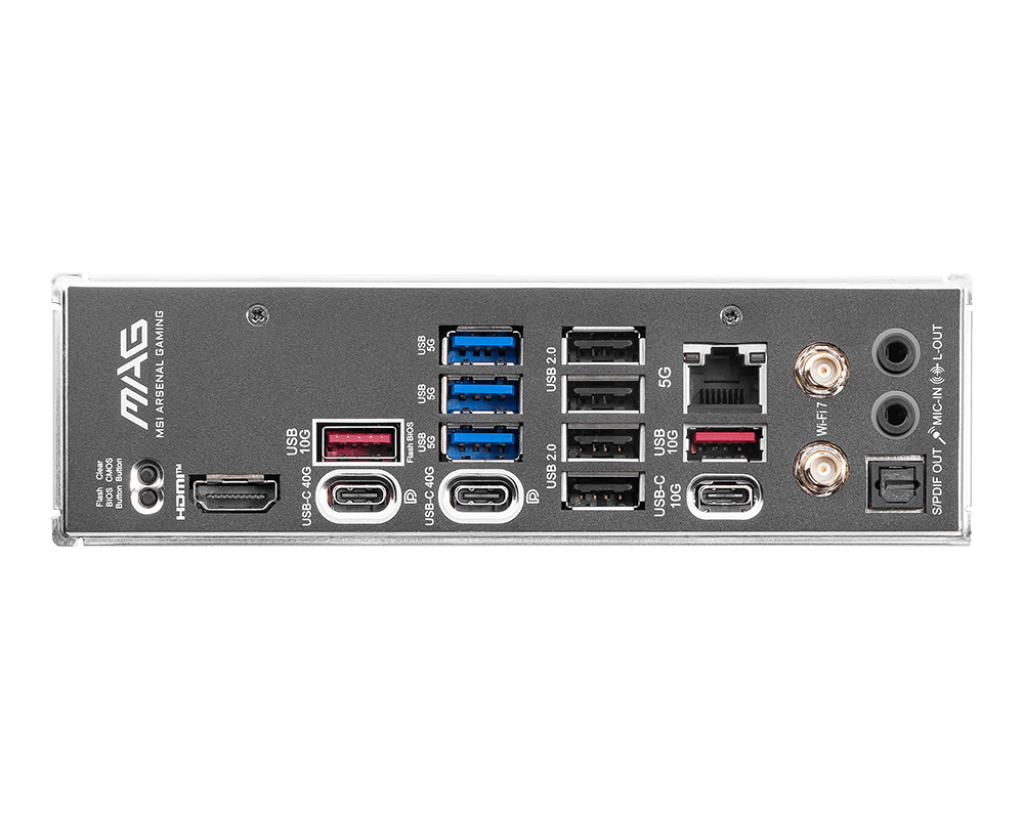

| Back Panel I/O Ports | Clear CMOS Button USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
Key Features
- AMD AM5 Socket with X870 Chipset – Supports Ryzen 7000, 8000 and 9000 series processors for next‑gen performance.
- DDR5 Memory Support up to 8400+ MHz – Handles up to 256 GB across dual‑channel slots, with AMD EXPO overclocking.
- PCIe 5.0 x16 Slot – Primary expansion slot runs at PCIe 5.0 x16 (CPU‑direct) for ultra‑fast graphics and add‑in cards.
- Integrated Wi‑Fi 7 and Bluetooth 5.4 – Provides the latest wireless connectivity for high‑speed networking and peripherals.
- Comprehensive I/O – Includes HDMI, dual Type‑C DisplayPort, USB 40 Gbps Type‑C, multiple USB 10 Gbps Type‑A ports, and 5 Gbps USB 2.0 ports.
- Robust Power Delivery – Features 1× ATX, 2× CPU, and 1× 8‑pin PCIe power connectors plus multiple fan headers for optimal cooling.
- 3‑Year Warranty – Backed by MSI’s three‑year warranty for peace of mind.
