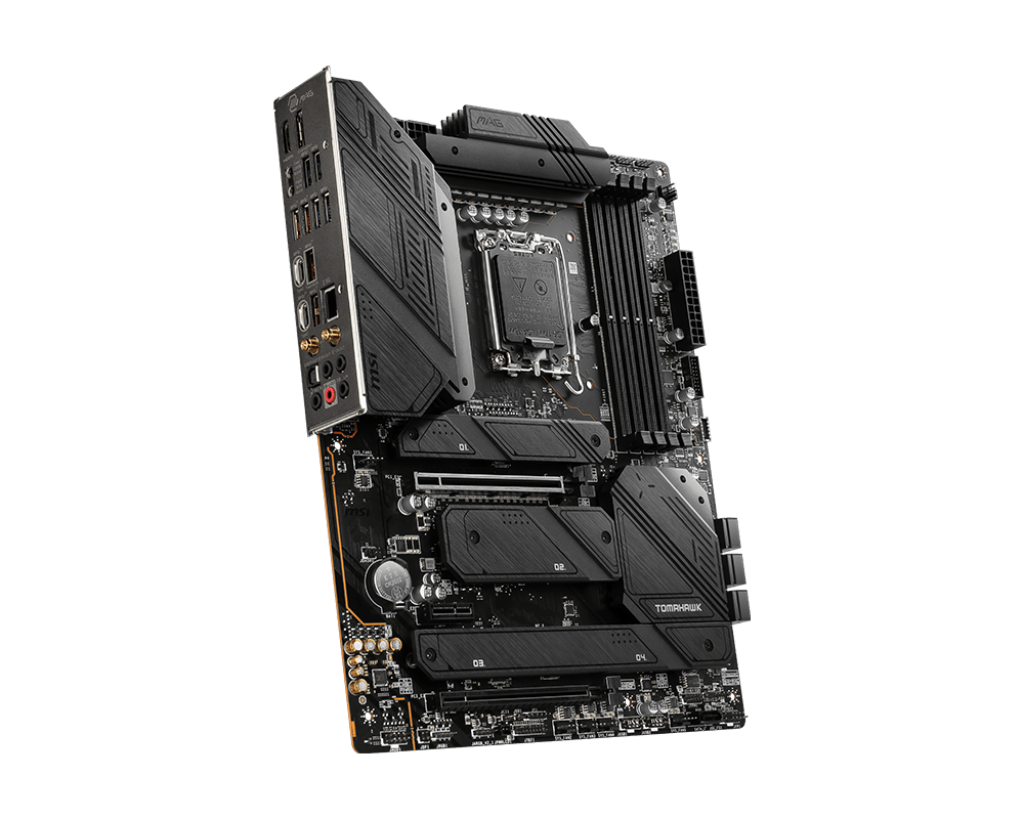

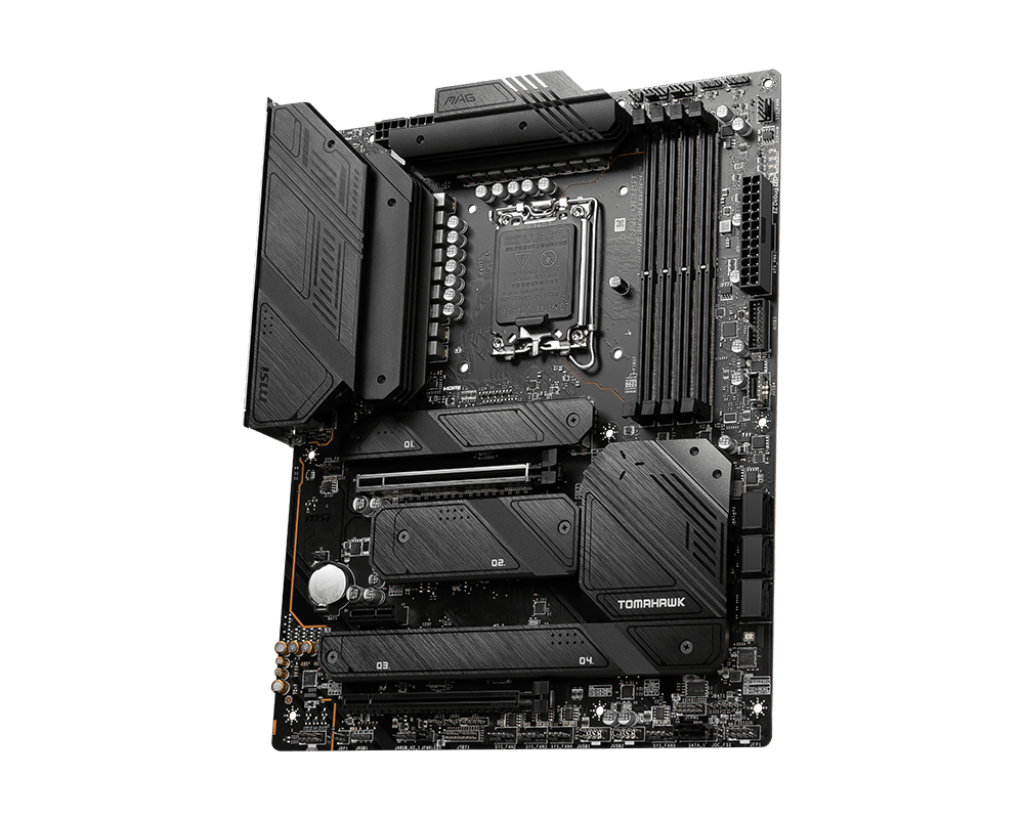

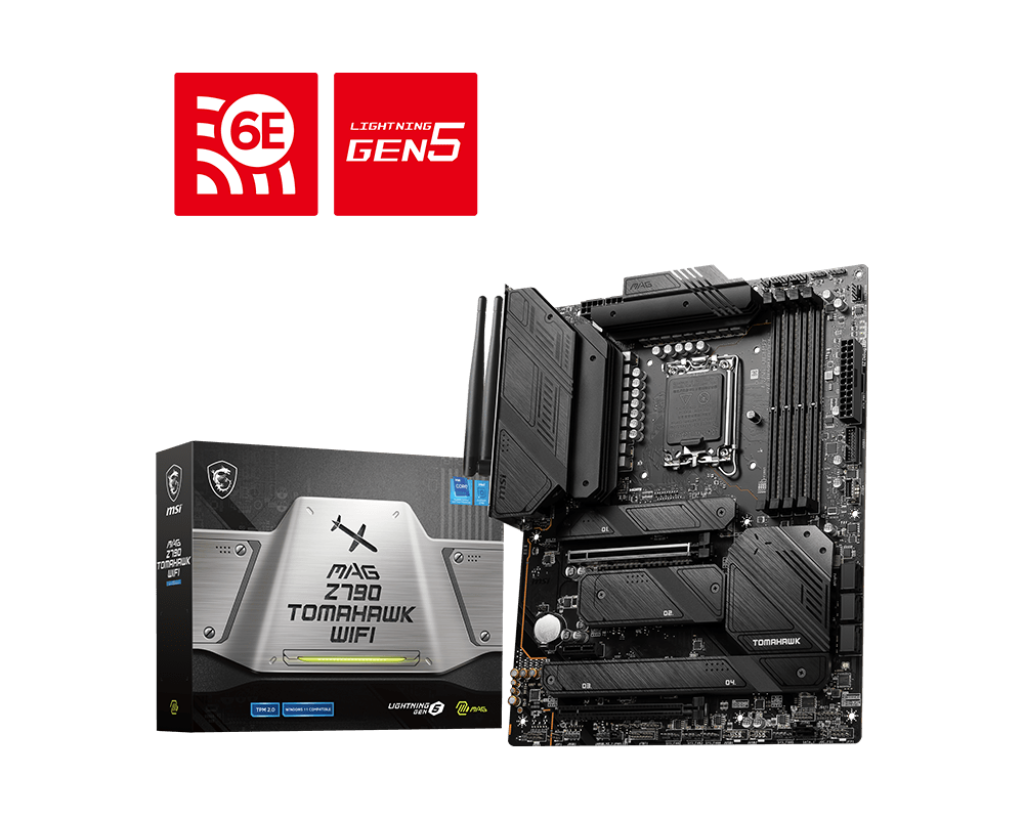

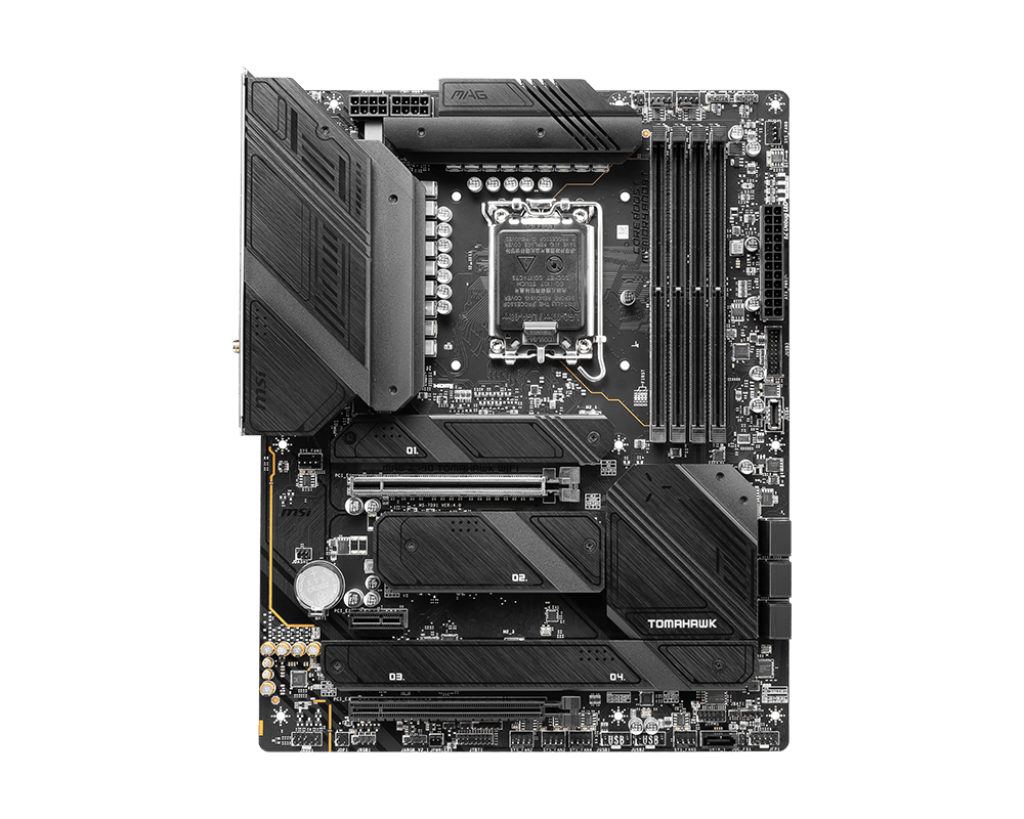

MSI MAG Z790 TOMAHAWK WIFI DDR5 LGA1700 MOTHERBOARD

Platform: INTEL; Socket: LGA1700; CPU Type: 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors; Chipset: Z790.

Memory: DDR5 up to 7200+, max 256 GB, dual channel, supports Intel XMP3.0 OC, non-ECC un-buffered.

Graphics Port: 1x HDMI, 1x DisplayPort

Platform	INTEL
Socket	LGA1700
CPU Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	Z790
Memory Speed	up to 7200+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP3.0 OC Supports non-ECC, un-buffered memory
Graphics Port	1x HDMI,1x DisplayPort
Expansion Slots	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Wireless Networking	Intel Wi-Fi 6E,Bluetooth 5.3

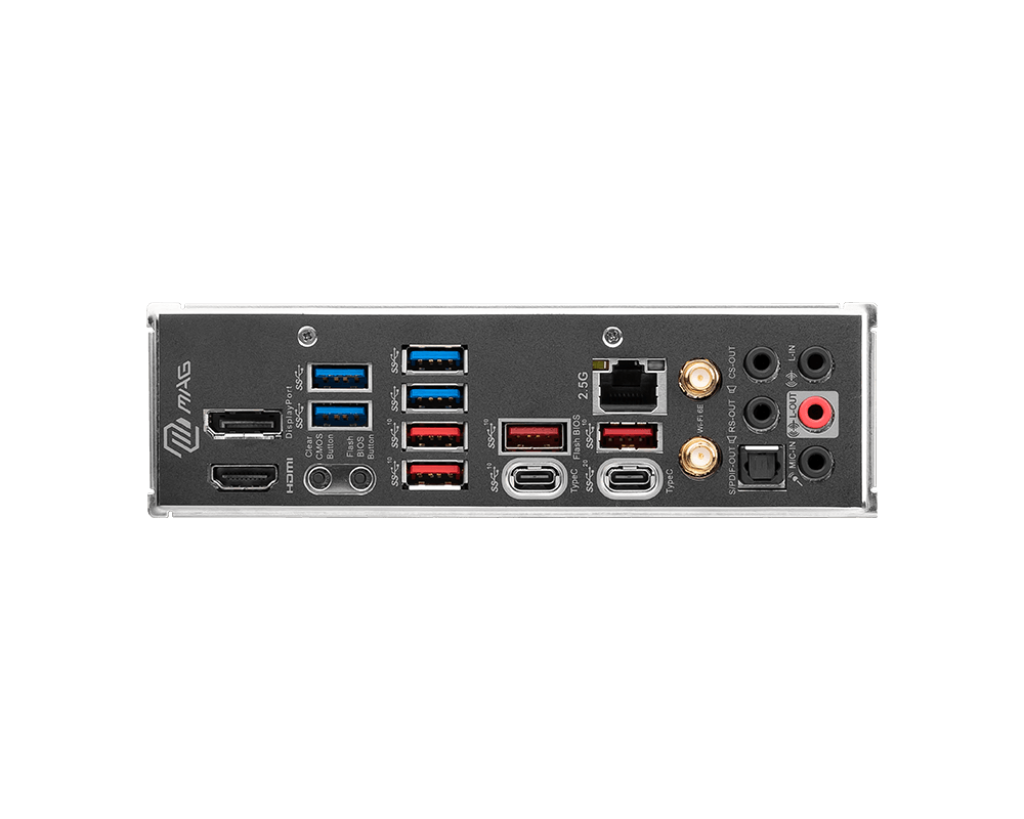

Back Panel I/O Ports	DisplayPort 1.4 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port, HD Audio Connectors HDMI™ 2.1 Port Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 2×2 20Gbps Type-C Wi-Fi / Bluetooth Antenna Optical S/PDIF OUT
Internal I/O Connector	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Form Factor	ATX
Warranty	3 Years

CPU Support: Compatible with 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors (LGA1700)
Chipset: Intel Z790 for high-performance overclocking and features
Memory: DDR5 support up to 7200+ MT/s, max 256 GB (dual‑channel), XMP 3.0 ready
PCIe Expansion: One PCIe 5.0 x16 slot (CPU‑linked) plus PCIe 4.0 x4 and PCIe 3.0 x1 slots
Networking: Integrated Intel Wi‑Fi 6E and Bluetooth 5.3, plus 2.5 Gbps LAN
USB & I/O: Front‑panel USB 3.2 Gen 2×2 20 Gbps Type‑C, rear USB 3.2 Gen 2 10 Gbps Type‑C, HDMI 2.1, DisplayPort 1.4, and USB 3.2 Gen 2 10 Gbps Type‑A ports
Build & Warranty: ATX form factor with robust power delivery, multiple fan headers, and a 3‑year manufacturer warranty

SKU: 1083966 Category: Motherboard

Platform	INTEL
Socket	LGA1700
CPU Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	Z790
Memory Speed	up to 7200+
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP3.0 OC Supports non-ECC, un-buffered memory
Graphics Port	1x HDMI,1x DisplayPort
Expansion Slots	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Wireless Networking	Intel Wi-Fi 6E,Bluetooth 5.3
Back Panel I/O Ports	DisplayPort 1.4 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port, HD Audio Connectors HDMI™ 2.1 Port Clear CMOS Button Flash BIOS Button USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 2×2 20Gbps Type-C Wi-Fi / Bluetooth Antenna Optical S/PDIF OUT
Internal I/O Connector	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Form Factor	ATX
Warranty	3 Years
