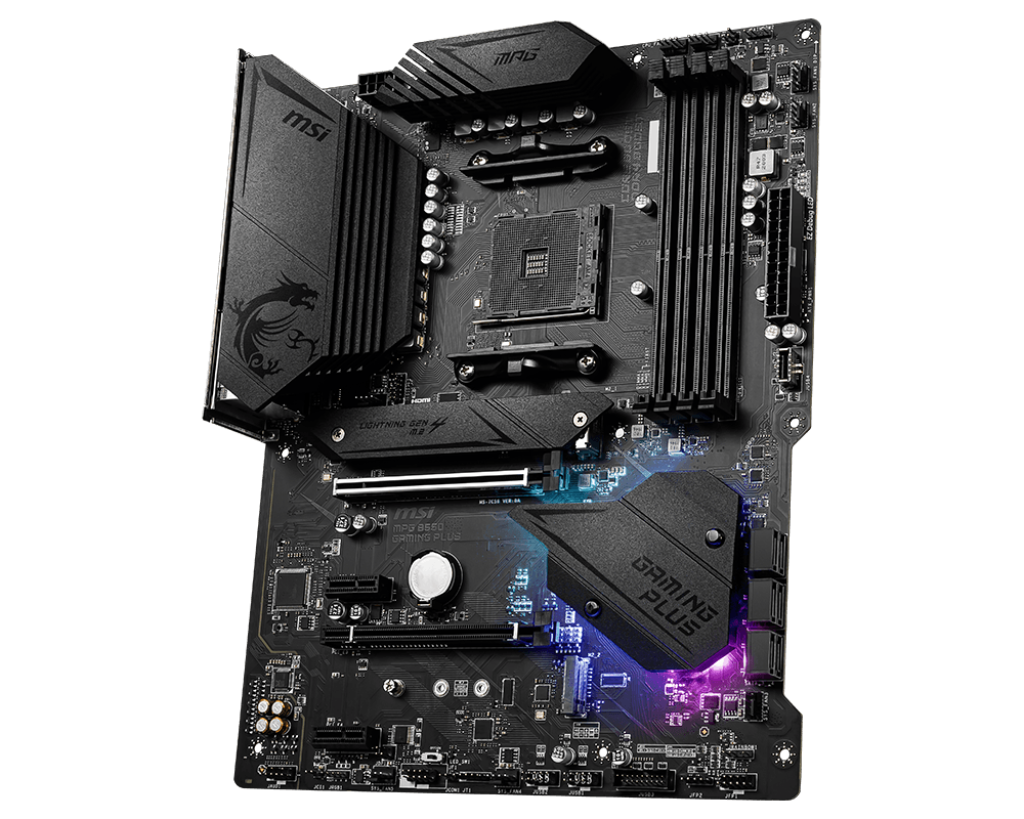

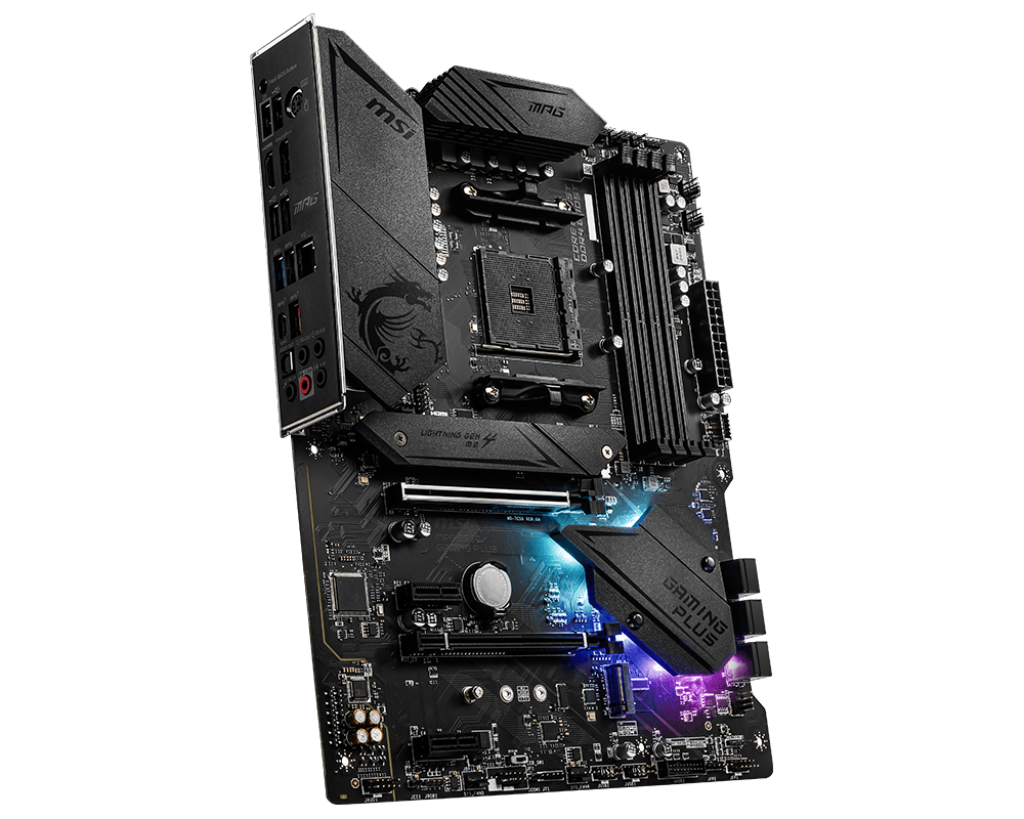

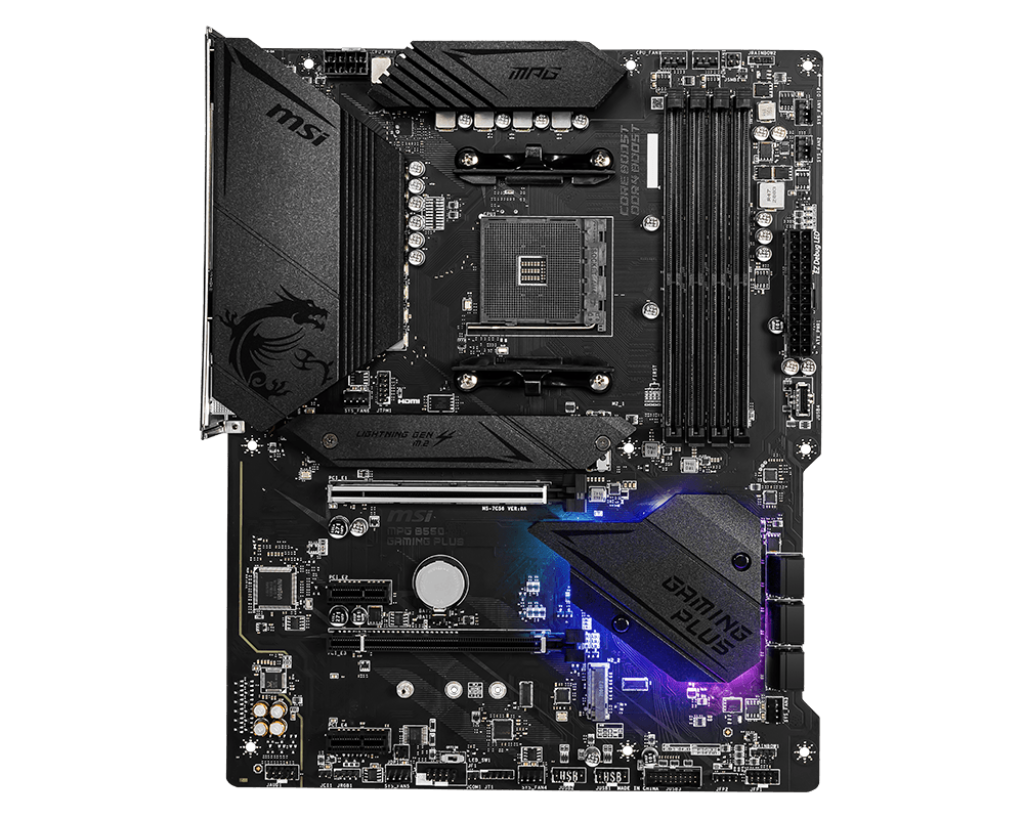

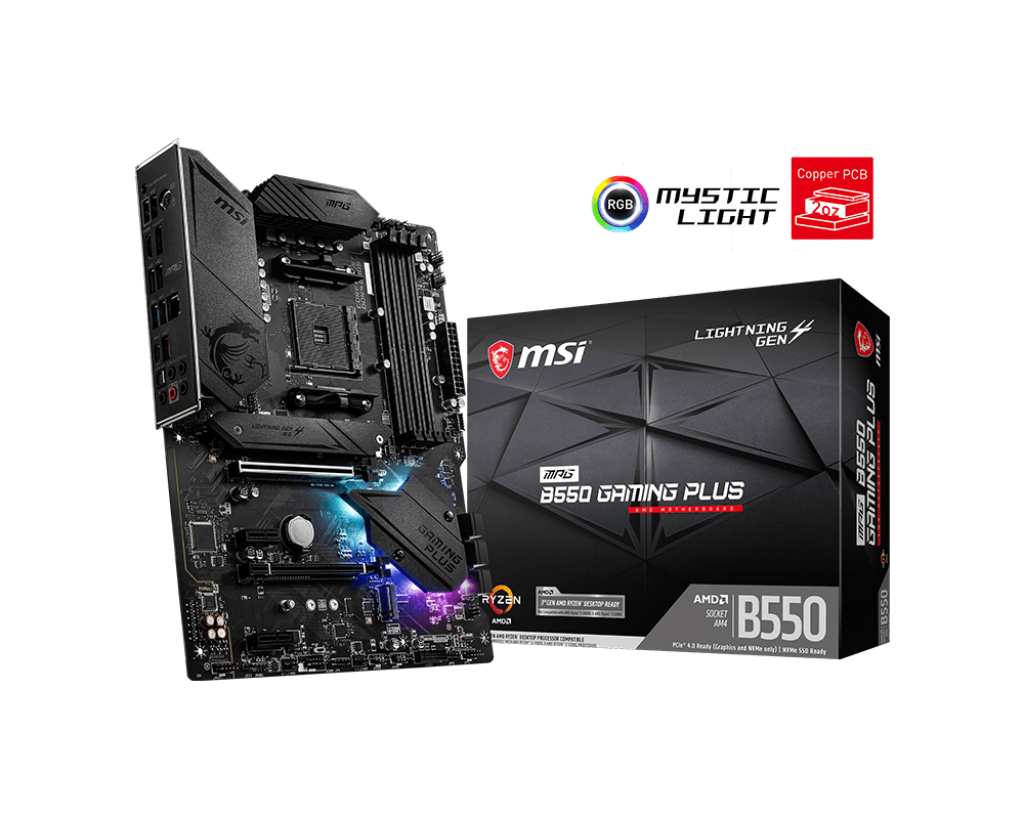

MSI MPG B550 GAMING PLUS AMD AM4 MOTHERBOARD

Platform: AMD; Socket: AM4; Chipset: B550.

Supported CPUs: Ryzen 3000, Ryzen 4000G, and Ryzen 5000 series.

Memory: DDR4, dual‑channel, up to 128 GB, speeds up to 4400 MT/s; supports non‑ECC UDIMM, ECC UDIMM (non‑ECC mode), and un‑buffered modules.

Graphics ports: 1 × HDMI, 1 × DisplayPort.

Platform	AMD
Socket	AM4
CPU Type	Ryzen 5000,Ryzen 4000G,Ryzen 3000
Chipset	B550
Memory Speed	up to 4400+
Max Memory Support	128 GB
Supported Memory Type	DDR4
Channel Supported	Dual Channel
Memory Feature	Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Graphics Port	1x HDMI,1x DisplayPort
Expansion Slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots

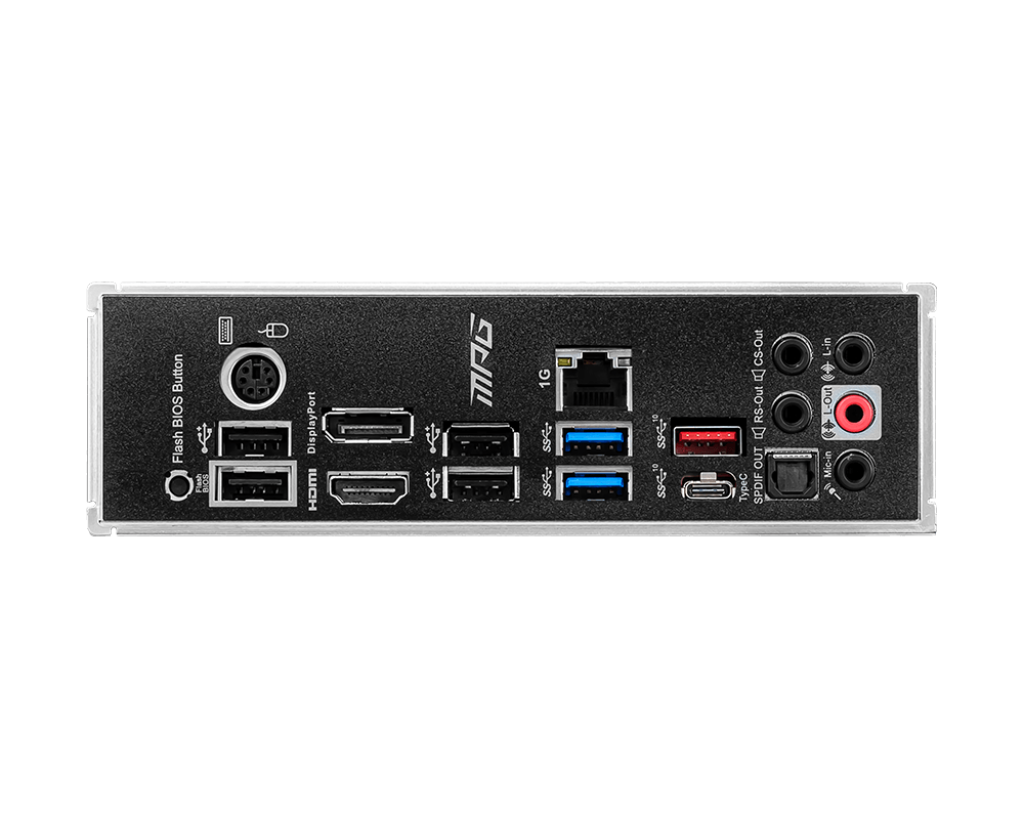

Back Panel I/O Ports	PS/2 Combo Port DisplayPort LAN Port USB 3.2 Gen 2 10Gbps (Type-A) HD Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Optical S/PDIF OUT
Internal I/O Connector	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper
Form Factor	ATX
Warranty	3 Years

CPU Support: AMD AM4 socket for Ryzen 5000, Ryzen 4000G, and Ryzen 3000 series processors
Chipset & PCIe: B550 chipset with 1x PCIe 4.0/3.0 x16 slot (PCI_E1) for next‑gen graphics cards
Memory: DDR4, up to 4400+ MHz, max 128 GB (dual‑channel)
Storage: 2x M.2 slots (M‑Key) plus 6x SATA 6Gb/s connectors
USB & Rear I/O: USB 3.2 Gen 2 Type‑C (10 Gbps), USB 3.2 Gen 2 Type‑A (10 Gbps), USB 3.2 Gen 1 Type‑A (5 Gbps), USB 2.0, HDMI, DisplayPort, LAN, PS/2 combo, audio jacks, Optical S/PDIF OUT, Flash BIOS button
Cooling & Fan Headers: 1x CPU fan, 1x water‑pump fan, 6x system fan connectors plus RGB/RAINBOW LED headers
Warranty & Form Factor: ATX layout, 3‑year manufacturer warranty

SKU: 1082941 Category: Motherboard

Platform	AMD
Socket	AM4
CPU Type	Ryzen 5000,Ryzen 4000G,Ryzen 3000
Chipset	B550
Memory Speed	up to 4400+
Max Memory Support	128 GB
Supported Memory Type	DDR4
Channel Supported	Dual Channel
Memory Feature	Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Graphics Port	1x HDMI,1x DisplayPort
Expansion Slots	1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slots
Back Panel I/O Ports	PS/2 Combo Port DisplayPort LAN Port USB 3.2 Gen 2 10Gbps (Type-A) HD Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Optical S/PDIF OUT
Internal I/O Connector	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper
Form Factor	ATX
Warranty	3 Years
