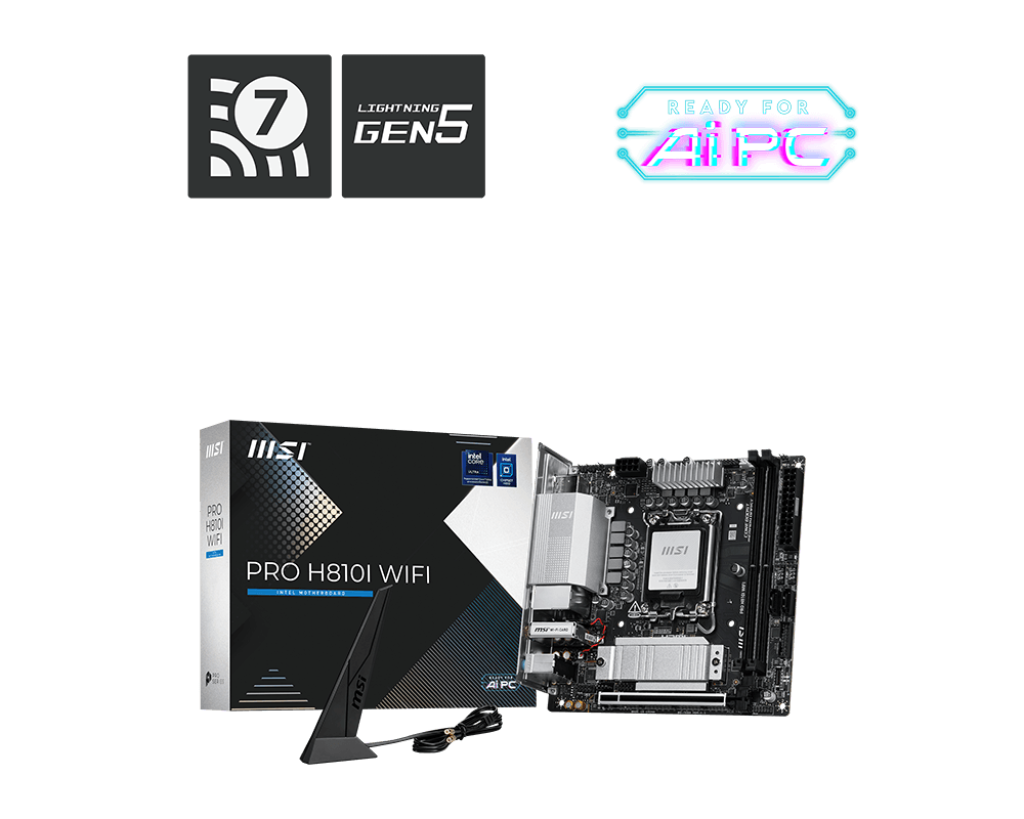

MSI PRO H810I WIFI Motherboards

Chipset: Intel H810; supports Intel Core Ultra processors (LGA 1851) and Intel I226 2.5 Gbps LAN.

Memory: 2 × DDR5 UDIMM, up to 128 GB, 4800‑6400 MT/s (JEDEC), XMP 3.0, dual‑channel, non‑ECC.

Expansion & Storage: 1 × PCIe 5.0 x16 slot, 1 × M.2 (PCIe 4.0 x4, 2280), 2 × SATA 6 Gb/s.

Connectivity: HDMI 2.1, DisplayPort 1.4, Realtek ALC897 7.1‑channel audio, USB: 2 × 2.0 rear, 4 × 2.0 front, 2 × 5 Gbps Type‑A rear, 2 × 5 Gbps Type‑A front, 1 × 10 Gbps Type‑C front, 1 × 20 Gbps Type‑C rear; internal I/O includes ATX and CPU power connectors, fan headers, TPM 2.0, RGB.

Specifications

Chipset	INTEL H810
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel ® POR Speed and JEDEC Speed Supports Intel ® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Audio	Realtek ® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 (Qty) M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G (Qty) *Please refer to the manual for M.2 SSD heatsink restrictions.
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN	Intel ® I226 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth ® 5.4*, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Memory Detection LED
BACK PANEL PORTS	DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI TM USB 20Gbps Type-C USB 2.0
OPERATING SYSTEM	Support for Windows ® 11 64-bit

Key Features

Intel H810 chipset supporting Intel® Core™ Ultra processors (LGA 1851) for high‑performance computing.
DDR5 memory support: 2 × UDIMM slots, up to 128 GB, with speeds up to 6400 MT/s (JEDEC) and XMP 3.0 overclocking.
PCIe 5.0 x16 slot for next‑generation graphics cards, delivering up to 32 GT/s bandwidth.
Storage flexibility: 1 × M.2 slot (PCIe 4.0 x4, 2280) and 2 × SATA 6 Gb/s ports for fast SSD/HDD options.
Comprehensive connectivity: USB 20 Gbps Type‑C (rear), USB 10 Gbps Type‑C (front), multiple USB 5 Gbps Type‑A and USB 2.0 ports.
Intel I226 2.5 Gbps LAN paired with built‑in Wi‑Fi 7 (up to 2.9 Gbps) and Bluetooth 5.4 for ultra‑fast wired and wireless networking.
Integrated graphics outputs: HDMI 2.1 and DisplayPort 1.4, both supporting 4K 60 Hz when used with CPUs that have integrated graphics.

SKU: MSI-H810I Category: Motherboard
