Specifications

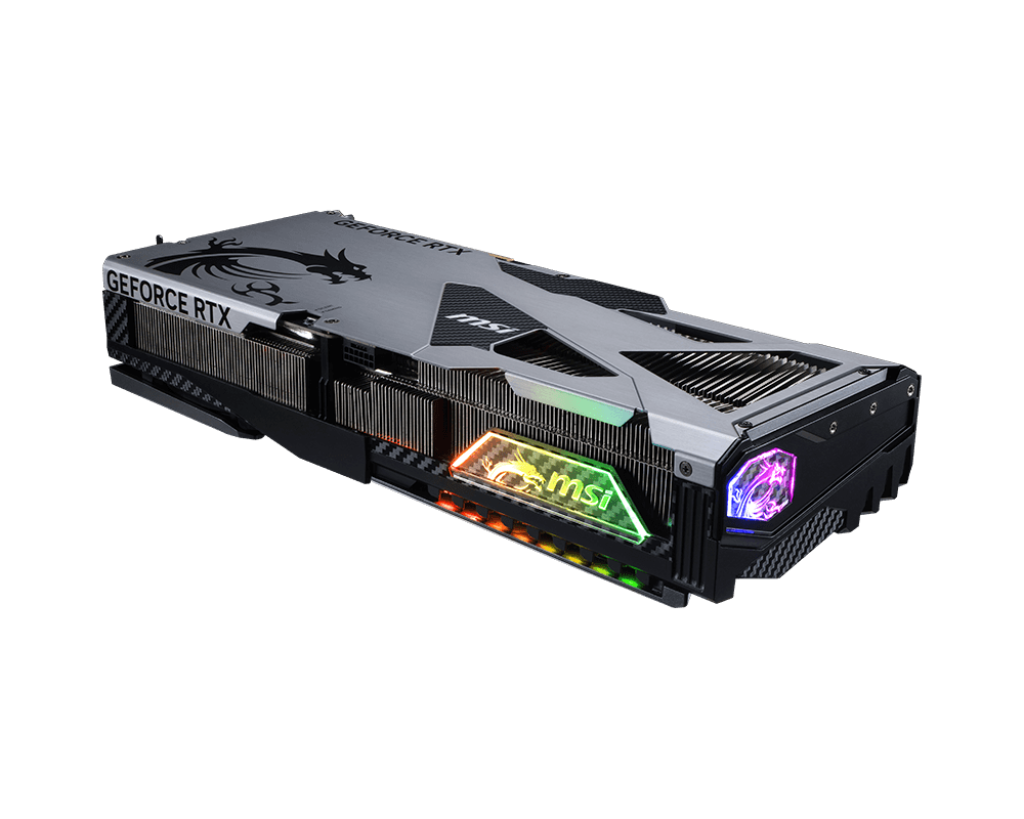

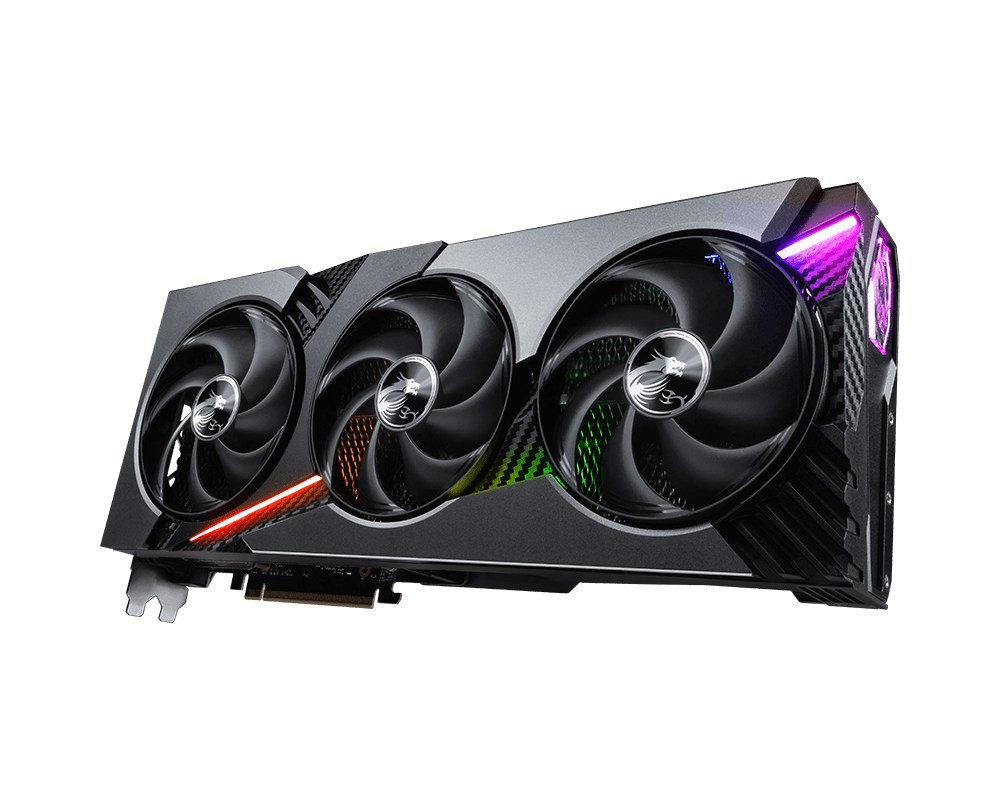

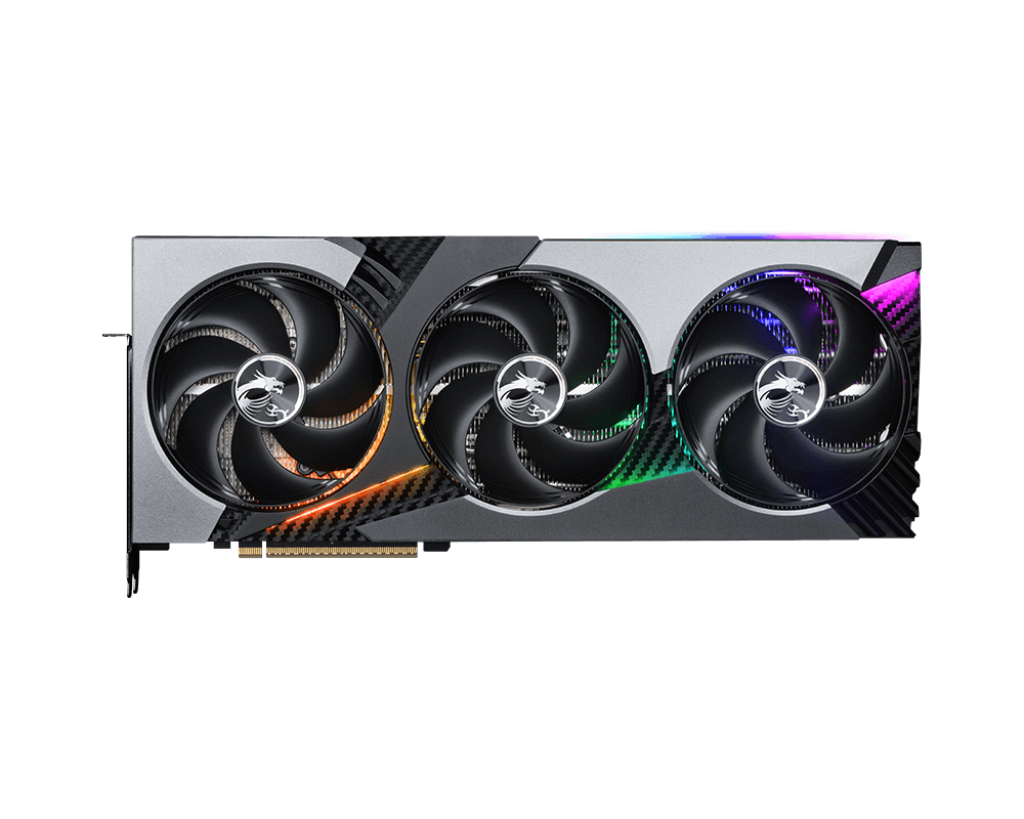

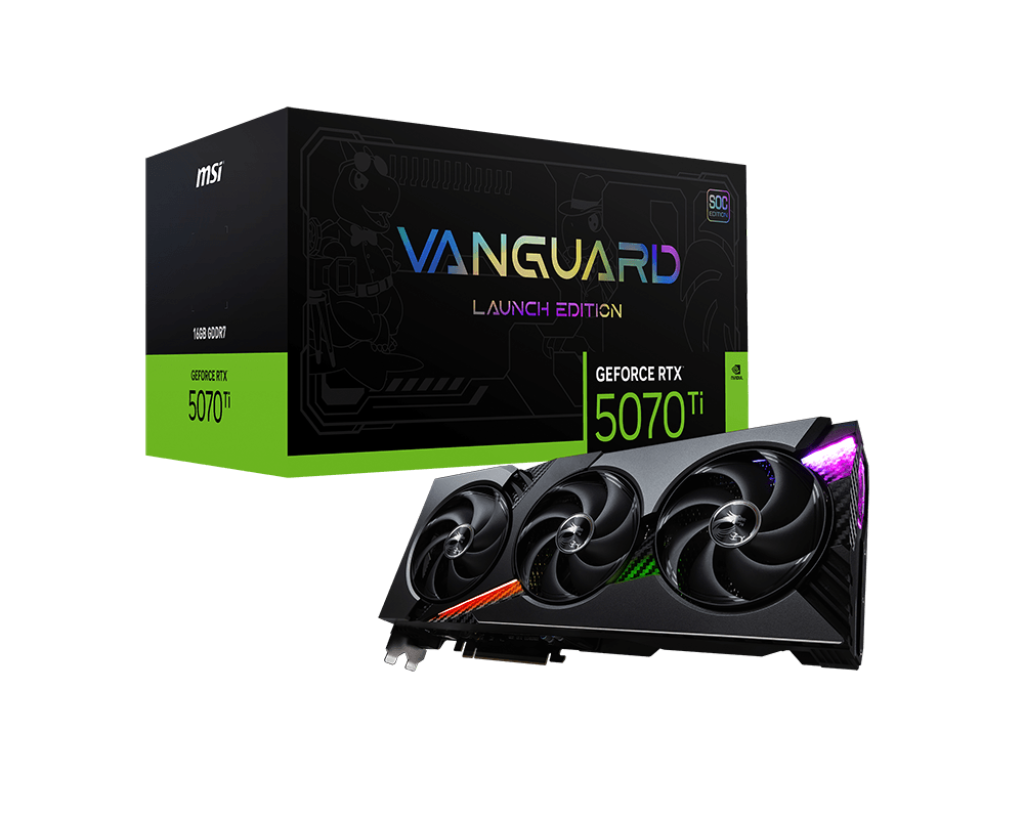

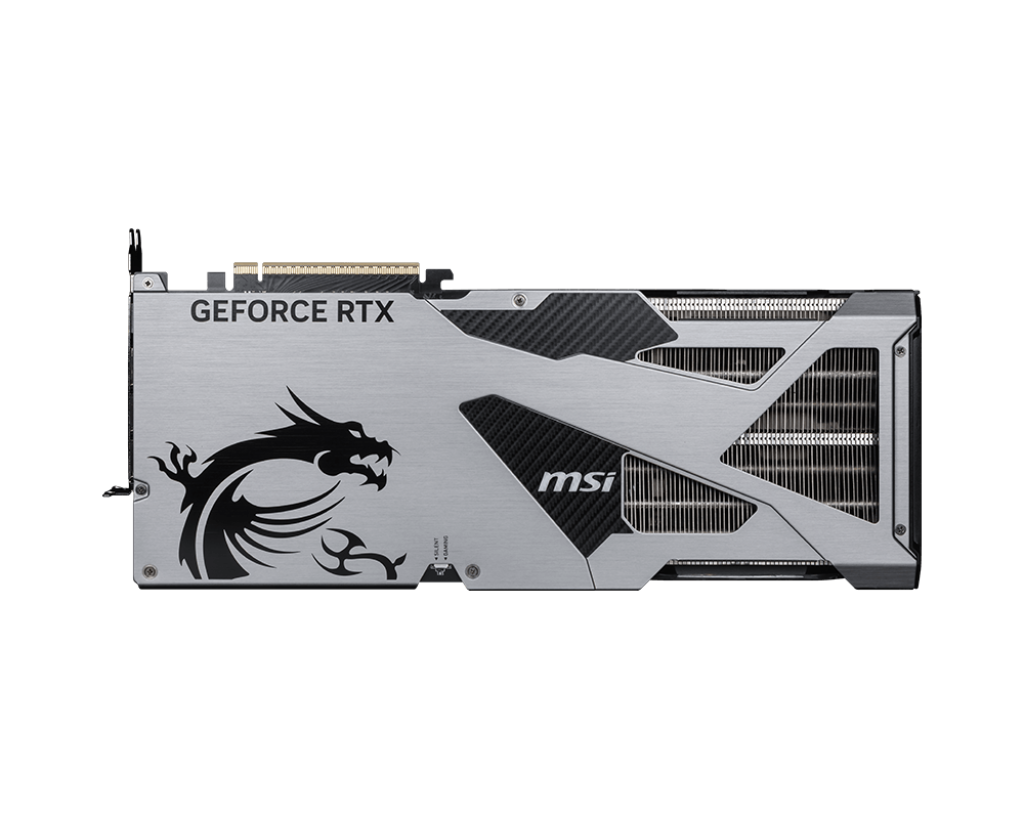

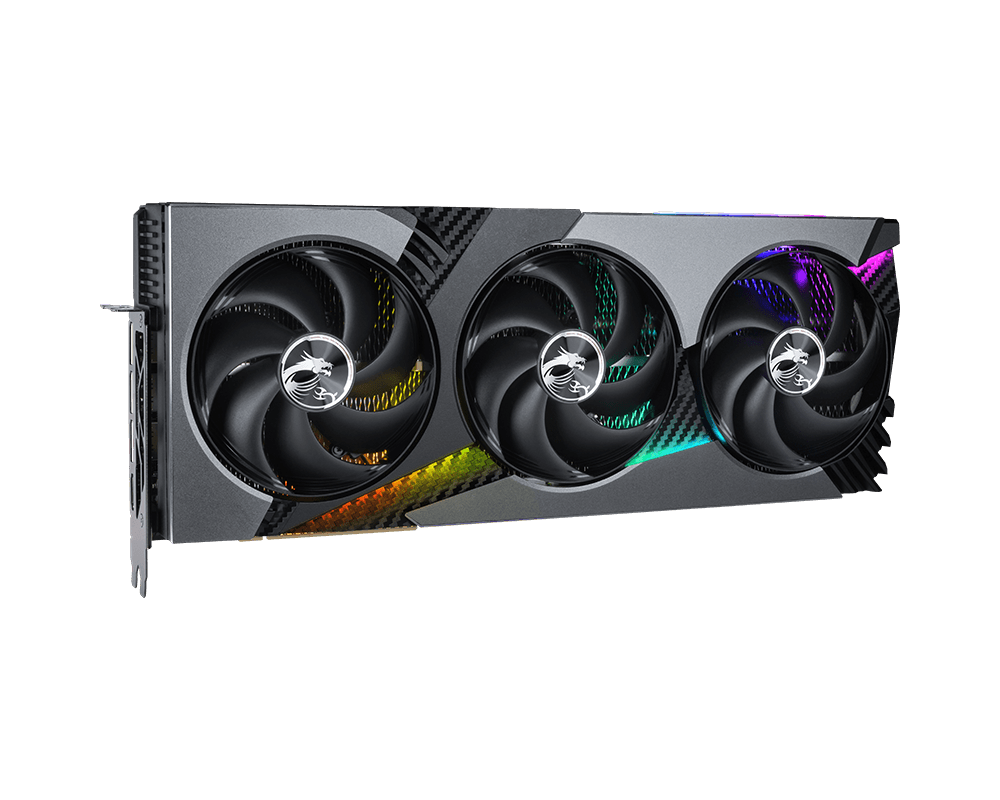

| Marketing Name | GeForce RTX™ 5070 Ti 16G VANGUARD SOC LAUNCH EDITION |
| Model Name | G507T-16VGSL |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5070 Ti |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2602 MHz (MSI Center) |
| Boost Clock | 2588 MHz (GAMING & SILENT Mode) |
| CUDA® Cores | 8960 Units |
| Memory Speed | 28 Gbps |
| Memory Size | 16GB GDDR7 |
| Memory Bus | 256-bit |

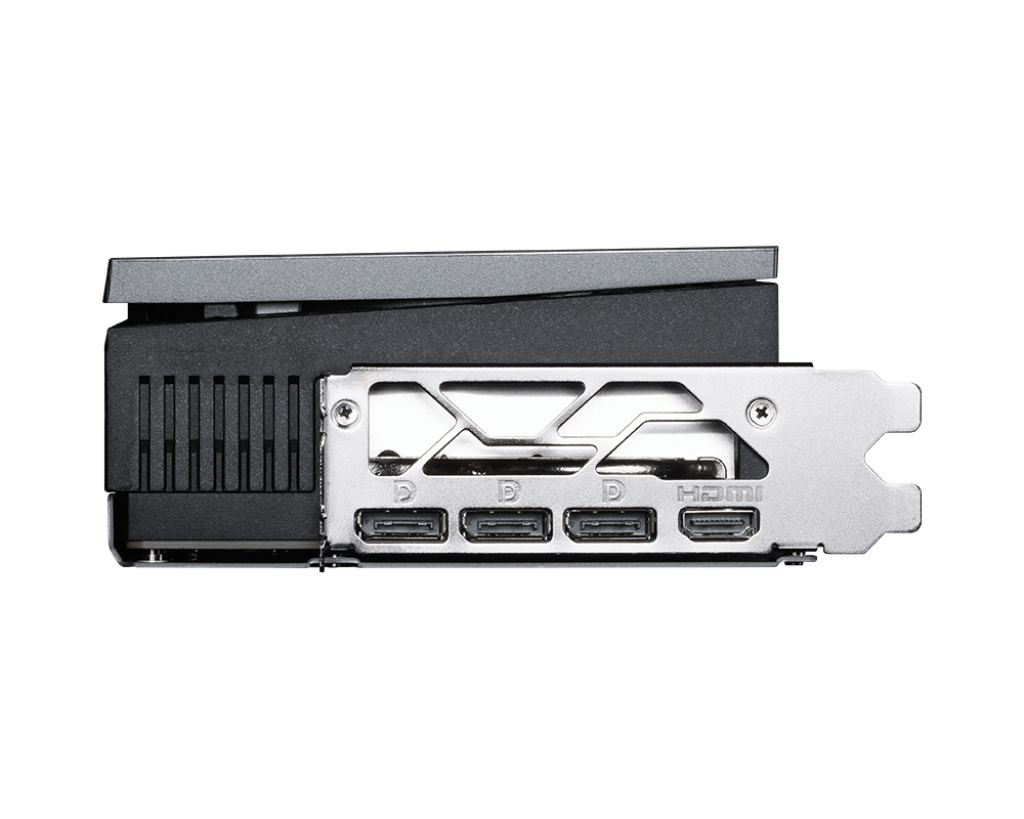

| Output Ports | 3x DisplayPort 2.1b, 1x HDMI™ 2.1b |
| HDCP Support | Yes |
| Power Consumption | 300W |

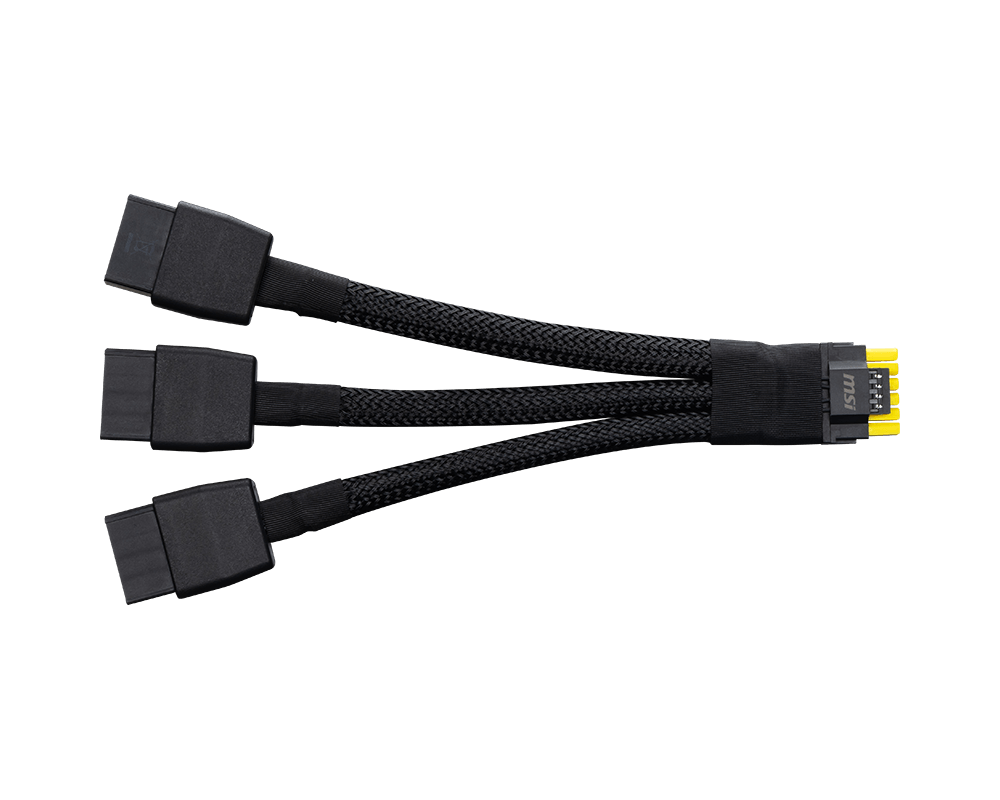

| Power Connectors | 16-pin x 1 |
| Recommended PSU | 750W |
| Card Dimensions (mm) | 357 x 151 x 66 mm |
| Weight (Card / Package) | 1945 g / 3991 g |
| DirectX Version | 12 Ultimate |
| OpenGL Version | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Max Resolution | 7680 x 4320 |
Key Features
- 8960 CUDA cores for high-performance ray tracing and AI workloads.
- 2602 MHz core clock (Extreme Performance mode) with 2588 MHz boost in Gaming/Silent mode.
- 16GB GDDR7 memory running at 28 Gbps on a 256‑bit bus.
- PCI Express Gen5 interface for maximum bandwidth and future‑proof connectivity.
- 3× DisplayPort 2.1b and 1× HDMI 2.1b ports support up to 7680×4320 resolution.
- G‑SYNC technology ensures smooth, tear‑free gaming.
- 300W power draw with a single 16‑pin PCIe power connector; 750W PSU recommended.
- DirectX 12 Ultimate and OpenGL 4.6 support for the latest APIs.
