Specifications
| Marketing Name | GeForce RTX™ 5080 16G INSPIRE 3X OC |
| Model Name | G5080-16I3C |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2655 MHz (MSI Center) |
| Boost Clock | 2640 MHz |
| CUDA® Cores | 10752 Units |
| Memory Speed | 30 Gbps |
| Memory Size | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Output Ports | 3x DisplayPort 2.1b, 1x HDMI™ 2.1b |
| HDCP Support | Yes |
| Power Consumption | 360W |
| Power Connectors | 16-pin x 1 |
| Recommended PSU | 850W |
| Card Dimensions (mm) | 288 x 112 x 50 mm |
| Weight (Card / Package) | 950 g / 1437 g |
| DirectX Version | 12 Ultimate |
| OpenGL Version | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Max Resolution | 7680 x 4320 |
Key Features
- NVIDIA GeForce RTX 5080 GPU with 10,752 CUDA cores for extreme performance.
- Boost Clock up to 2,640 MHz (2655 MHz in MSI Center) for high frame rates.
- 16 GB GDDR7 memory on a 256‑bit bus with 30 Gbps speed for ultra‑fast data throughput.
- PCI Express Gen 5 interface delivering maximum bandwidth and future‑proof connectivity.
- Display Outputs: 3× DisplayPort 2.1b and 1× HDMI 2.1b, supporting up to 4 displays and 8K resolution (7680 × 4320).
- Power Requirements: 360 W draw, single 16‑pin connector, recommended 850 W PSU for stable operation.

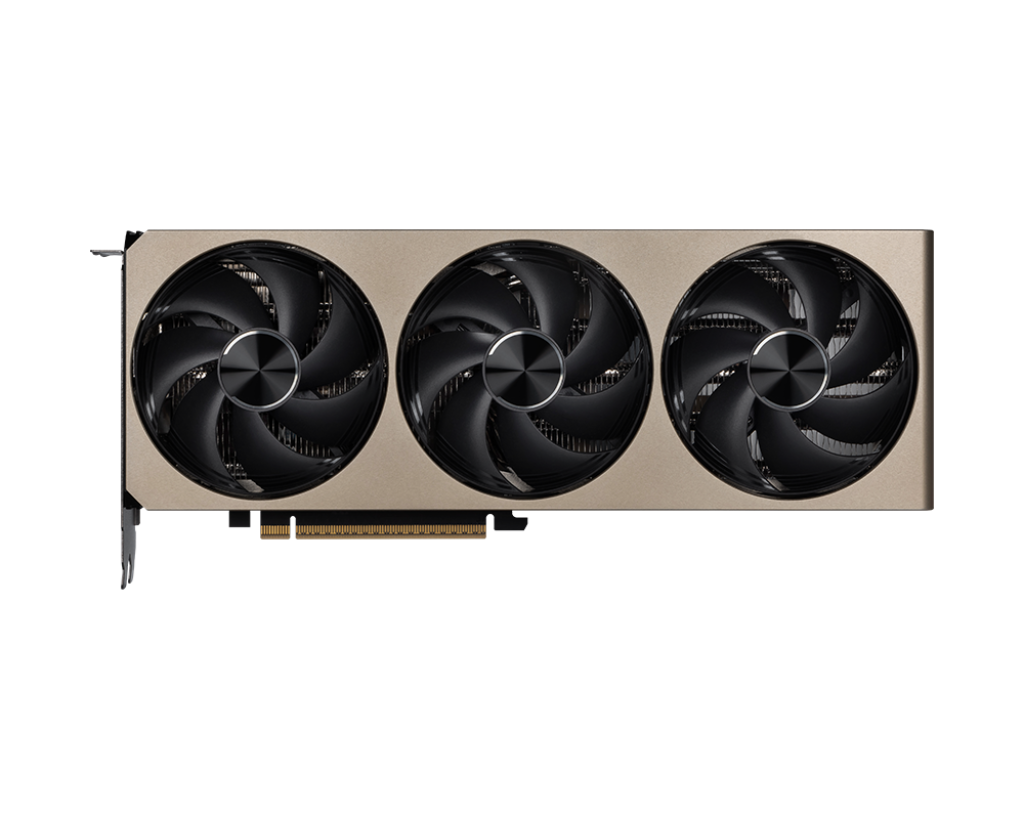

- Compact Triple‑Fan Design measuring 288 mm × 112 mm × 50 mm, weighing 950 g, with efficient cooling.
