Specifications
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Chipset | Z790 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel XMP3.0 OC Supports non-ECC, un-buffered memory |
| Graphics Port | 1x HDMI,1x DisplayPort |
| Expansion Slots | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Wireless Networking | Intel Wi-Fi 6E,Bluetooth 5.3 |

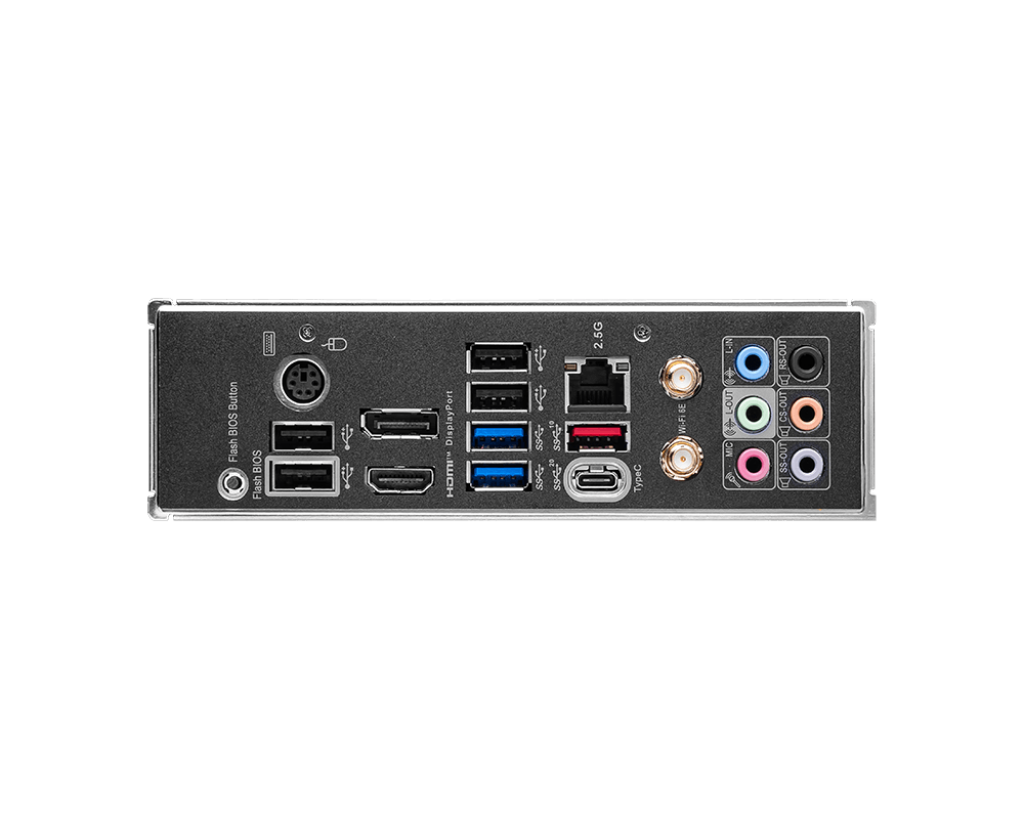

| Back Panel I/O Ports | Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Port Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 HDMI 2.1 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A |
| Internal I/O Connector | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
Key Features
- CPU Support: Intel 12th, 13th, 14th Gen, Pentium Gold & Celeron processors (LGA1700)
- Memory: DDR5, up to 7200+ MT/s, max 256 GB dual‑channel with XMP 3.0
- PCIe Expansion: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4, 1× PCIe 3.0 x16, 2× PCIe 3.0 x1 slots (chipset)
- Wireless: Intel Wi‑Fi 6E and Bluetooth 5.3
- I/O Ports: HDMI 2.1, DisplayPort, 2.5 G LAN, USB 3.2 Gen 2×2 Type‑C (20 Gbps), USB 3.2 Gen 2 Type‑A (10 Gbps), multiple USB 3.2 Gen 1 and USB 2.0 ports
- Cooling & BIOS: CPU fan, pump fan, 6 system fan headers, Flash BIOS button
- Warranty & Form Factor: 3‑year warranty, ATX
