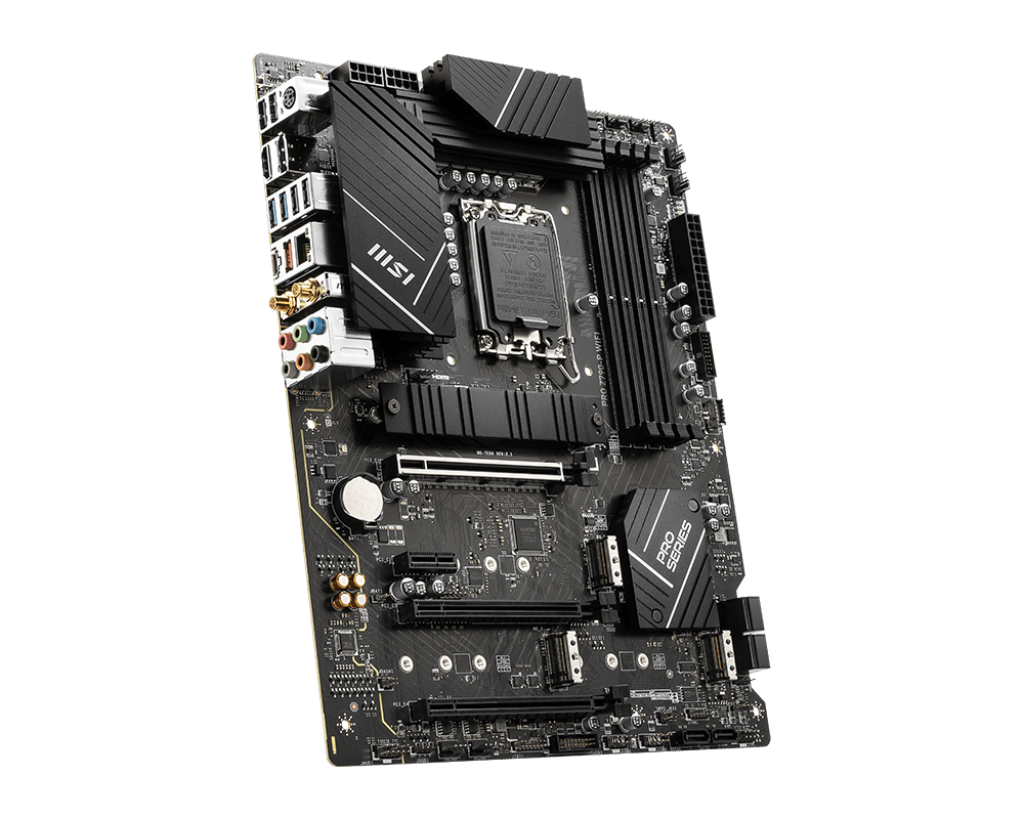

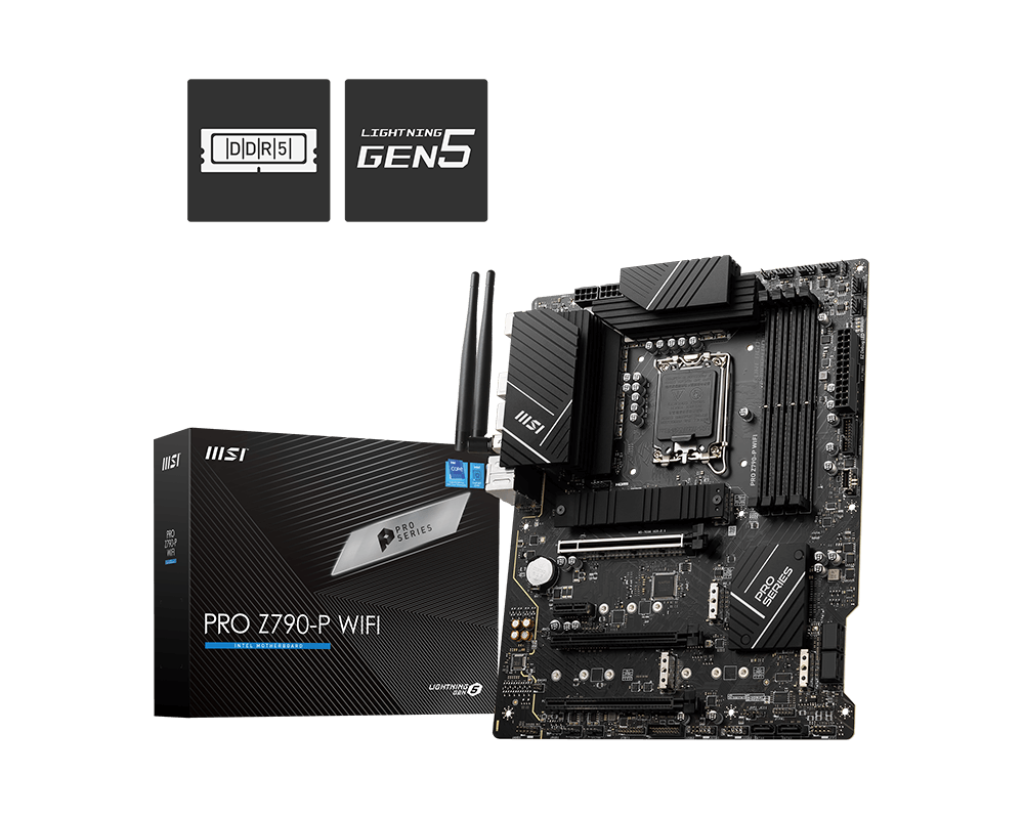

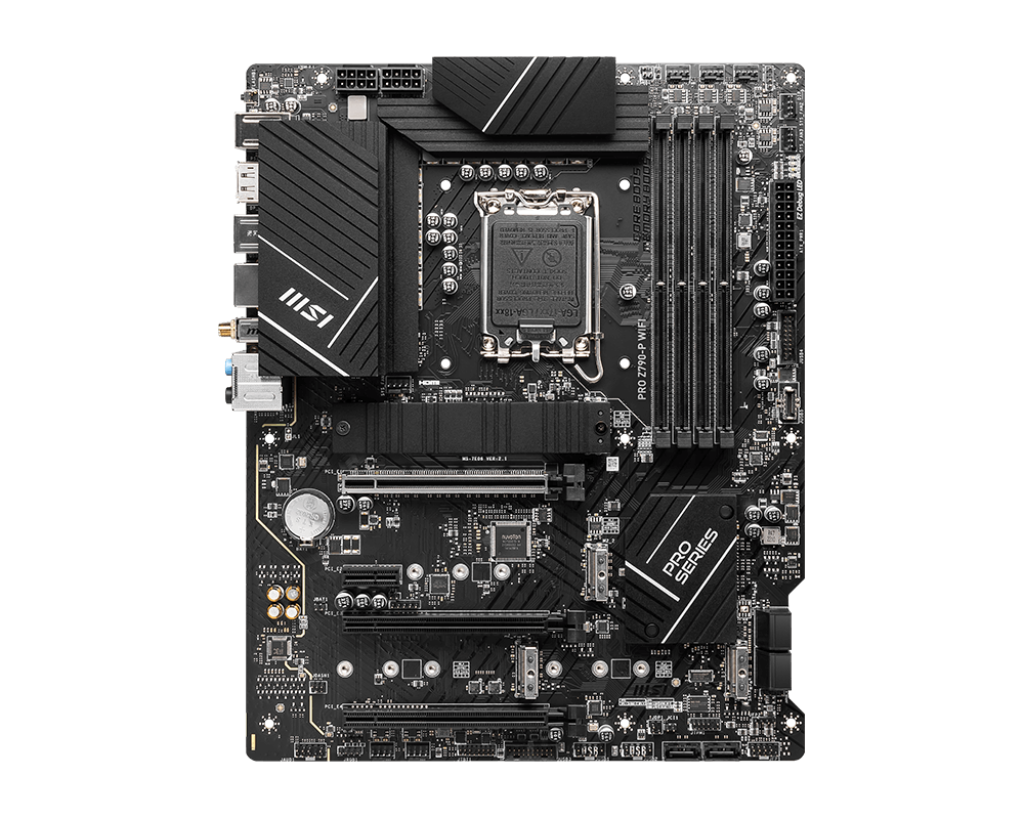

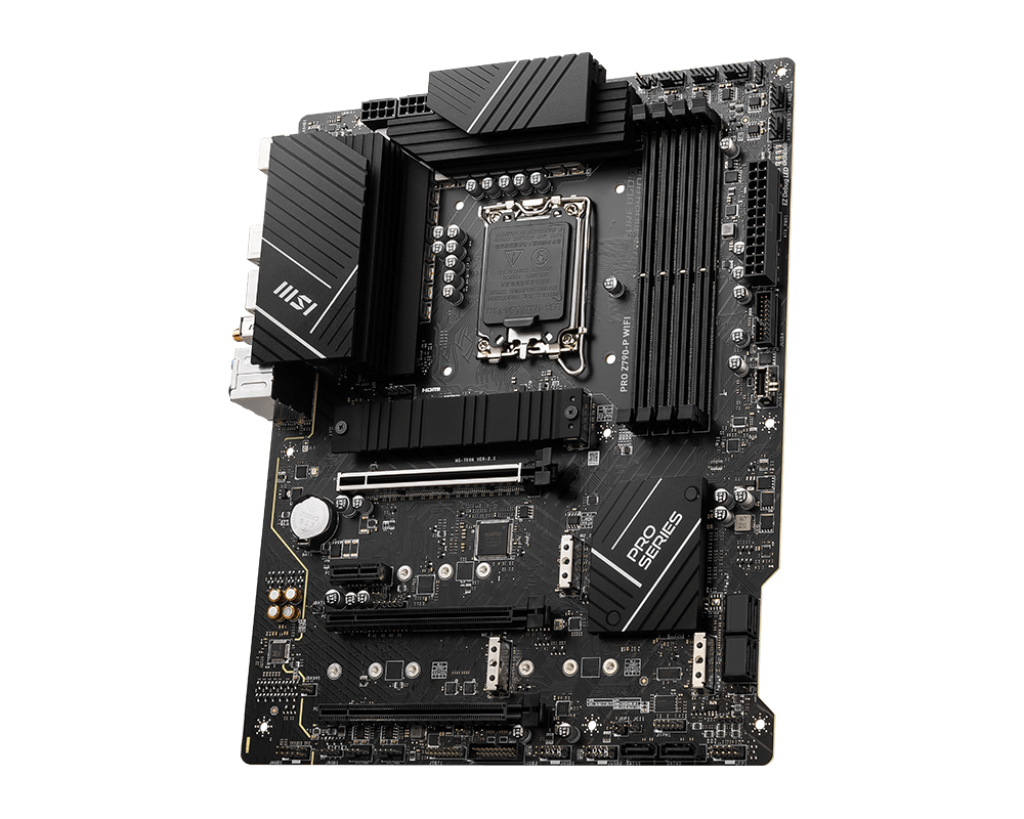

MSI Z790-P PRO WIFI DDR5 INTEL LGA1700 MOTHERBOARD

Platform: Intel LGA1700 (12th‑14th Gen, Pentium Gold, Celeron) on a Z790 chipset.

Memory: DDR5 up to 7000 MT/s, 128 GB dual‑channel, supports Intel XMP 3.0, non‑ECC, unbuffered.

Graphics ports: 1 HDMI and 1 DisplayPort.

Platform	INTEL
Socket	LGA1700
CPU Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	Z790
Memory Speed	up to 7000+
Max Memory Support	128 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP 3.0 OC Supports non-ECC, un-buffered memory
Graphics Port	1x HDMI, 1x DisplayPort
Expansion Slots	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Wireless Networking	Wi-Fi 6E,Bluetooth 5.3

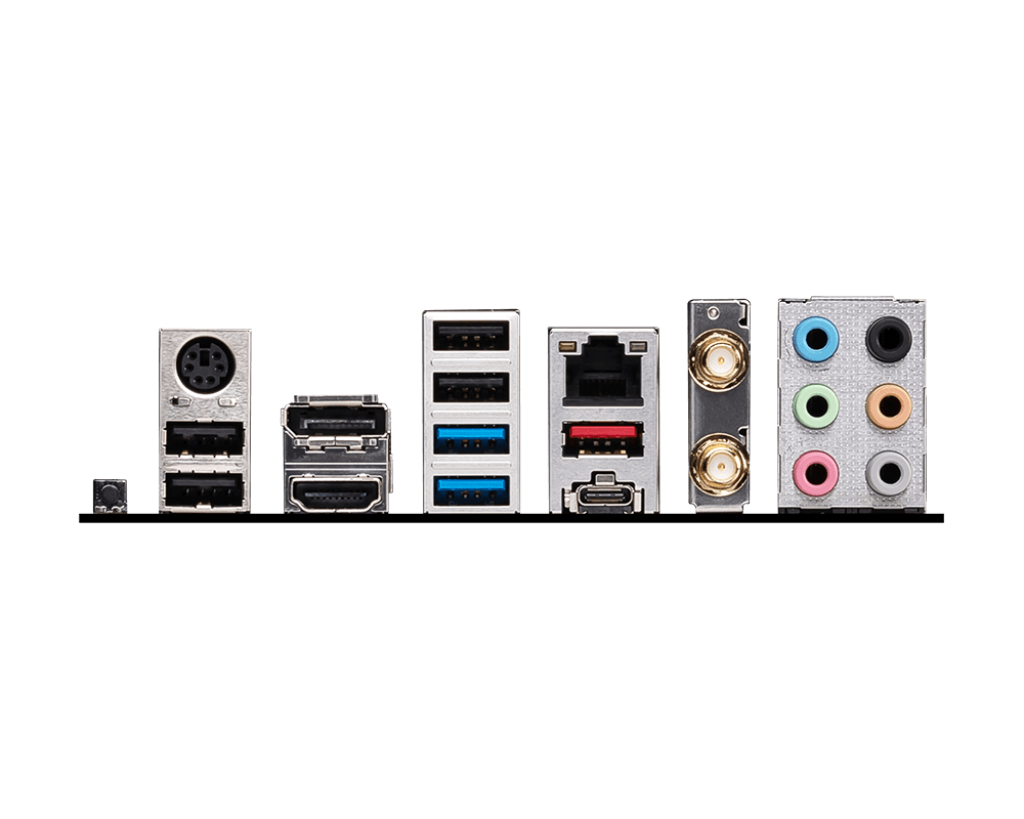

Back Panel I/O Ports	Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A)
Internal I/O Connector	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Form Factor	ATX
Warranty	3 Years

Supports 14th, 13th, 12th Gen Intel Core, Pentium Gold & Celeron processors (LGA1700 socket)
DDR5 memory with dual-channel support, up to 128GB at speeds 7000+ MHz
Intel Z790 chipset for high-performance overclocking
Wi-Fi 6E & Bluetooth 5.3 for fast wireless connectivity
Multiple PCIe slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1
Rear I/O includes HDMI, DisplayPort, USB 3.2 Gen 2×2 (20Gbps Type-C), 2.5G LAN, and audio
ATX form factor with extensive internal connectors for cooling, RGB, and storage
3-year warranty

SKU: 1083174 Category: Motherboard

Platform	INTEL
Socket	LGA1700
CPU Type	14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors
Chipset	Z790
Memory Speed	up to 7000+
Max Memory Support	128 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Supports Intel XMP 3.0 OC Supports non-ECC, un-buffered memory
Graphics Port	1x HDMI, 1x DisplayPort
Expansion Slots	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Wireless Networking	Wi-Fi 6E,Bluetooth 5.3
Back Panel I/O Ports	Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A)
Internal I/O Connector	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Form Factor	ATX
Warranty	3 Years
