Specifications
| Capacity | 1TB |
| Interface M.2 2280 | PCIe Gen3 8 Gb/s, up to 4 Lanes |
| NAND Type | TLC |
| Sequential Read (MB/s) up to (Queues=32, Threads=1) | 3,500 |
| Sequential Write (MB/s) up to (Queues=32, Threads=1) | 3,000 |
| Random Read 4KB IOPS up to (Queues=32, Threads=16) | 460K |
| Random Write 4KB IOPS up to (Queues=32, Threads=16) | 450K |
| Endurance (TBW) | 600 |
| Average Active Power | 90mW |
| Low Power (PS3) | 30mW |
| Sleep (PS4) (low power) | 5mW |
| Maximum Operating Power | 4.5W |
| Model Number | WDS100T3B0C |
| MTTF (hours) | 1.5M |
| Form Factor | M.2 2280 |
| Product Dimensions | 8 x 2.21 x 0.24 cm |
| Weight | 6.35 g |
| Operating Temperatures | 32∞F to 158∞F (0∞C to 70∞C) |
| Non-operating Temperatures | -40∞F to 185∞F (-40∞C to 85∞C) |
| Operating Vibration | 5.0 gRMS, 10ñ2000 Hz, 3 axes |
| Non-Operating Vibration | 4.9 gRMS, 7ñ800 Hz, 3 axes |
| Shock | 1,500 G @ 0.5 msec half sine |
| Certifications | BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, |
| Warranty | 5 Years |
Key Features
- 1TB Capacity: Provides generous storage space for your operating system, applications, and large files.
- Ultra-Fast Speeds: Delivers sequential read speeds up to 3,500 MB/s and sequential write speeds up to 3,000 MB/s for rapid system boot and application loading.
- High Random Performance: Offers up to 460K random read IOPS and 450K random write IOPS for smooth multitasking.

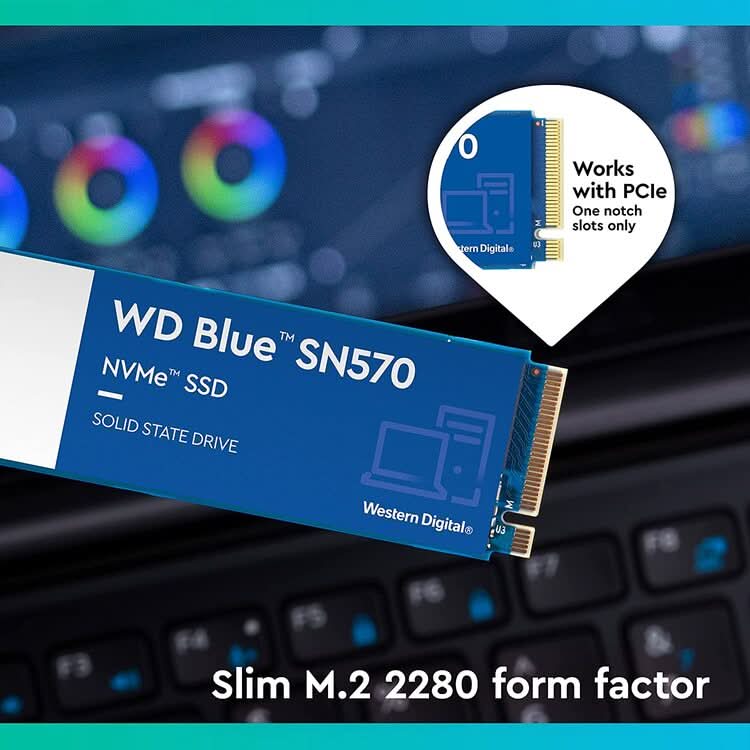

- M.2 2280 Form Factor: Uses the compact M.2 2280 form factor with PCIe Gen3 interface (up to 4 lanes) for easy integration into modern systems.
- Robust Endurance: Rated for 600 TBW (Terabytes Written) with TLC NAND technology, ensuring long-term durability.
- Power Efficiency: Consumes only 90mW average active power, dropping to 30mW in low power state (PS3) and 5mW in sleep mode (PS4).
- 5-Year Warranty: Backed by a 5 Years limited warranty for reliable long-term performance and support.
