Specifications
| GPU | NVIDIA GeForce RTX 5080 GPU |
| CUDA Cores | 10,752 |
| Video Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |
| Engine Clock | 2617 MHz |
| Memory Clock | 30 Gbps |
| Interface | PCI Express 5.0 x16 |

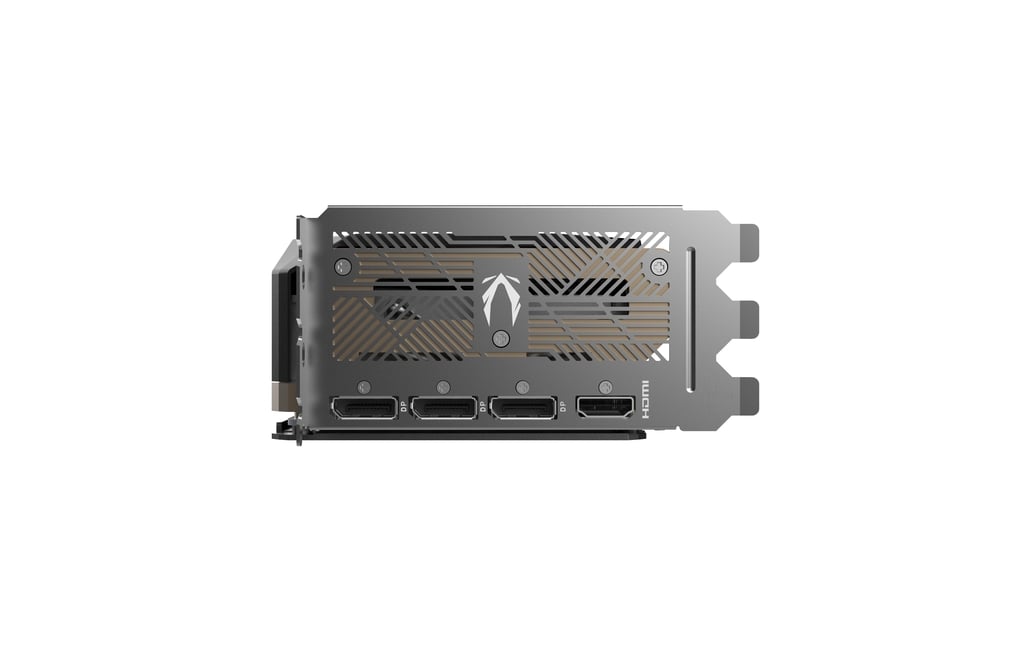

| Display Outputs | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz / 8K 165Hz w/ DSC) 1 x HDMI® 2.1b (4K 120Hz HDR / 8K 60Hz HDR / VRR) |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display (4 displays) |
| Recommended Power Supply | 850W |
| Power Consumption | 360W (High power draw — check PSU manual) |
| Power Input | 1 x 12V-2×6 (16-pin) |
| DirectX | Microsoft DirectX® 12 Ultimate |
| OpenGL | 4.6 |
| Cooling Solution | IceStorm 3.0 |
| Slot Size | 2.5 |
| SLI Support | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 or later) |
| Card Dimensions | 303.5mm x 115.8mm x 55.7mm (11.9″ x 4.6″ x 2.2″) |
| Accessories Included | User Manual /3 x 8-pin-to-16-pin Cable / GPU Support Stand |
| Warranty | 3 years + Additional 2 years after Registration |
Key Features
- GPU: NVIDIA GeForce RTX 5080 with 10,752 CUDA cores
- Memory: 16GB GDDR7 VRAM, 256‑bit bus, 30 Gbps memory clock
- Clock Speeds: Engine boost up to 2617 MHz
- Interface & Power: PCI Express 5.0 x16, 360W TDP, requires 850W PSU, 1×12V‑2×6 (16‑pin) power connector
- Display Outputs: 3× DisplayPort 2.1b (UHBR20) + 1× HDMI 2.1b – supports up to 4K 480Hz / 8K 165Hz (DSC) and 4K 120Hz HDR
- Cooling: IceStorm 3.0 dual‑fan solution, 2.5‑slot design
- Warranty & Extras: 3‑year limited warranty + 2 years after registration; includes user manual, three 8‑pin‑to‑16‑pin adapters, GPU support stand
