Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
| CUDA Cores | 4608 |
| Video Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Engine Clock | 2572 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |

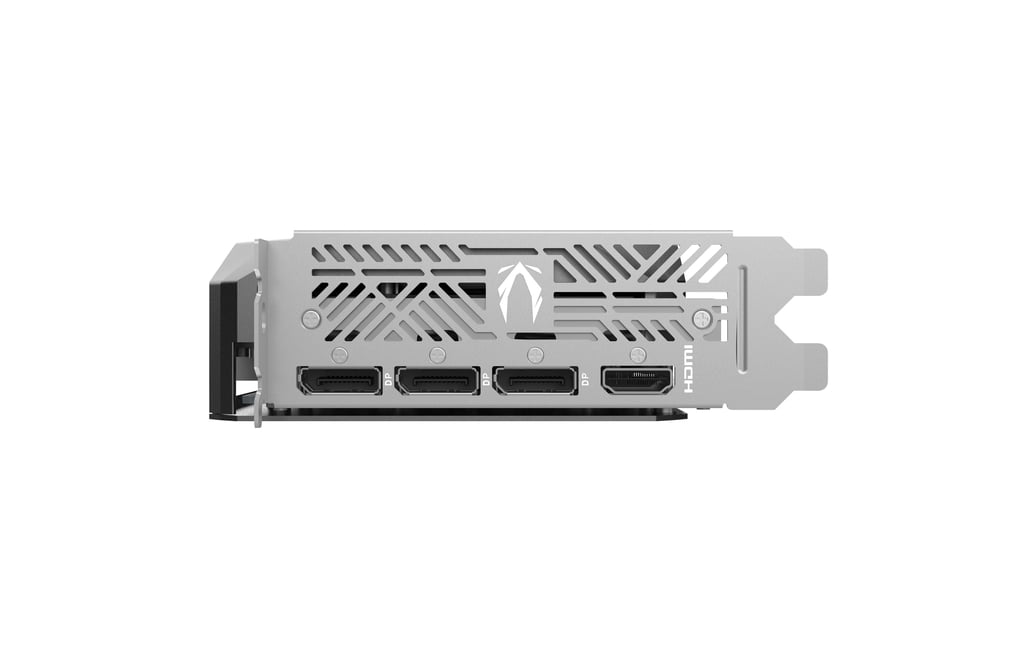

| Display Outputs | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC)1 x HDMI® Connector (supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as per HDMI 2.1b) |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 600W |
| Power Consumption | 180W |
| Power Input | 1 x 8-pin power input |
| DirectX | Microsoft DirectX® 12 Ultimate |
| OpenGL | 4.6 |
| Cooling | IceStorm 2.0 |
| Slot Size | 2 |
| SLI | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Card Dimensions | 220.5mm x 120.25mm x 41.6mm(8.7″ x 4.7″ x 1.6″) |
| Accessories | User Manual |
Key Features
- NVIDIA GeForce RTX 5060 Ti GPU
- 4608 CUDA Cores
- 16GB GDDR7 Video Memory
- 128-bit Memory Bus
- Engine Clock up to 2572 MHz
- PCI Express 5.0 x8 Interface
- Triple DisplayPort 2.1b + HDMI 2.1b (supports up to 4K 480Hz or 8K with DSC)
- IceStorm 2.0 Cooling Solution
