Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
| CUDA Cores | 4608 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Engine Clock | 2632 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |
| Display Outputs | 3 × DisplayPort 2.1b (UHBR20)1 × HDMI® (2.1b) |
| DisplayPort Capabilities | Up to 4K 480Hz or 8K 165Hz (with DSC) |
| HDMI Capabilities | 4K 120Hz HDR, 8K 60Hz HDR, VRR |
| HDCP Support | 2.3 |
| Multi Display Capability | Quad Display |
| Recommended Power Supply | 600W |
| Power Consumption | 180W |
| Power Input | 1 × 8-pin connector |
| DirectX Support | Microsoft DirectX® 12 Ultimate |
| OpenGL Support | 4.6 |
| Cooling | IceStorm 2.0 |
| Slot Size | 2-slot |
| SLI Support | No |
| Supported OS | Windows 11 / Windows 10 64-bit (v1809 or later) |
| Card Dimensions | 220.5 × 120.25 × 41.6 mm (8.7″ × 4.7″ × 1.6″) |
| Accessories | User Manual |
Key Features
- RTX 5060 Ti GPU with 4608 CUDA cores
Provides robust ray‑tracing and AI performance for demanding games.
- 8 GB GDDR7 memory at 28 Gbps
High‑speed 128‑bit memory bus ensures ample bandwidth for smooth gameplay at high resolutions.
- Boost engine clock of 2632 MHz
Delivers fast processing speeds for responsive performance.
- PCI Express 5.0 x8 interface
Future‑proof connectivity with double the bandwidth of PCIe 4.0.

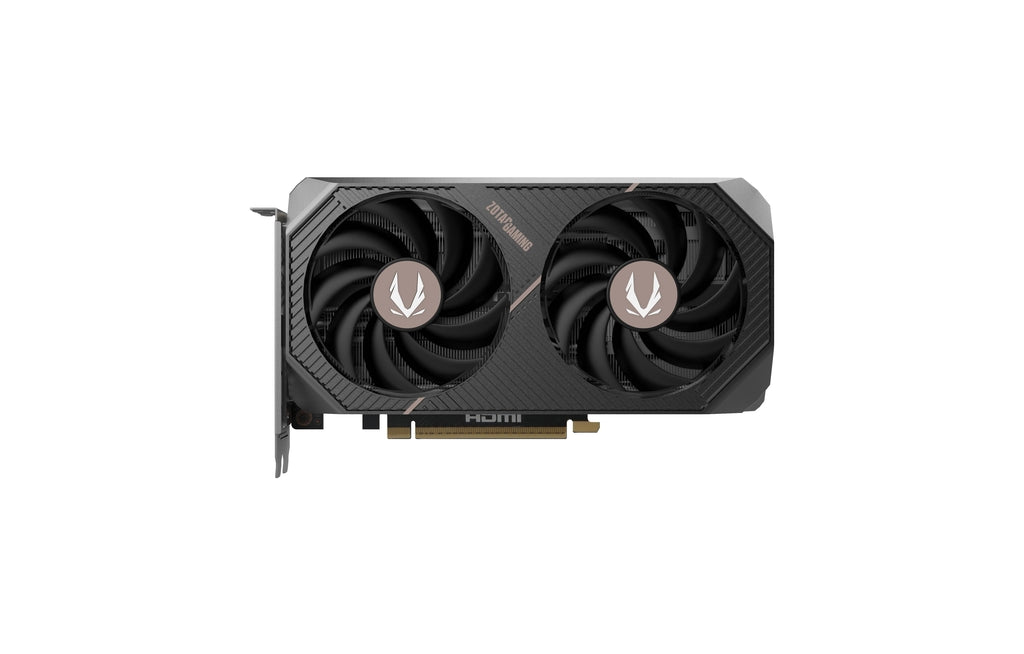

- IceStorm 2.0 dual‑fan cooling solution
Efficient thermal management keeps temperatures low under load.

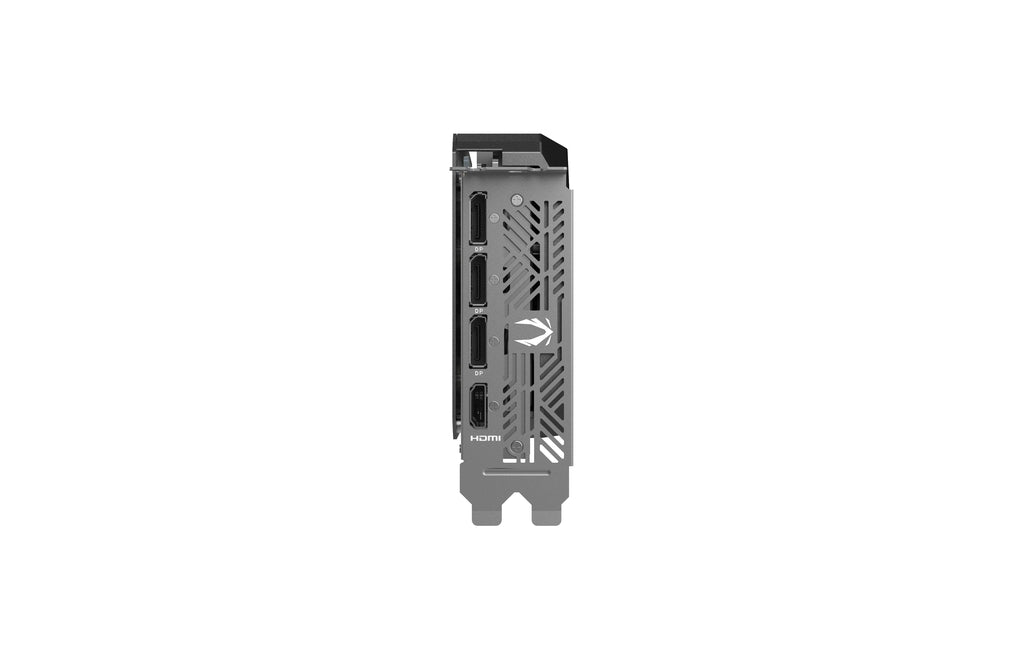

- Comprehensive display outputs
3×DisplayPort 2.1b and 1×HDMI 2.1b support up to 8K 165 Hz (DP) or 8K 60 Hz HDR (HDMI) and quad‑display configurations.
- Low power consumption
180 W draw with a single 8‑pin connector; recommended 600 W power supply.
