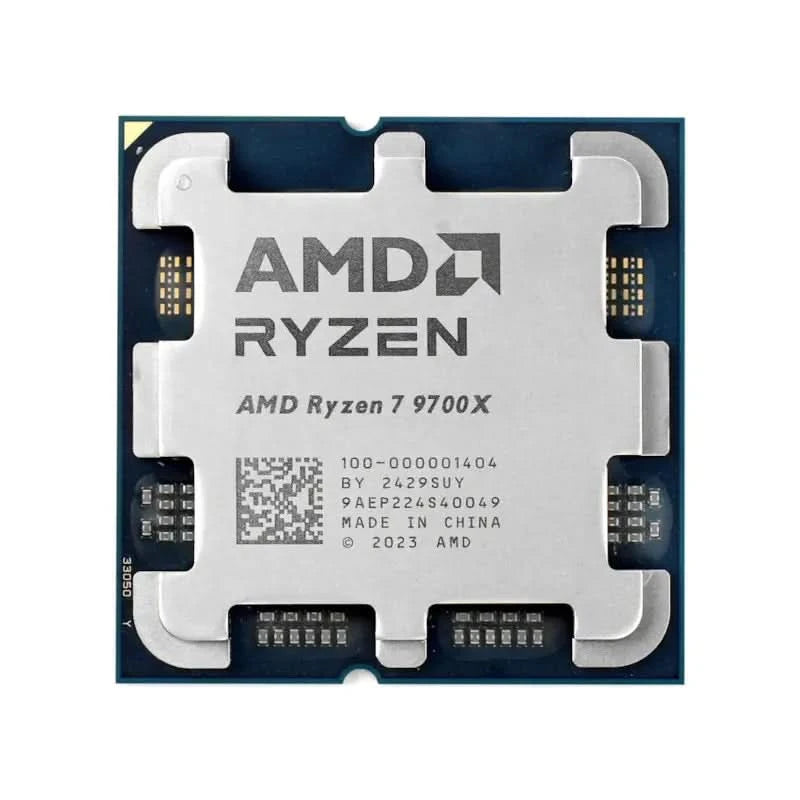

AMD Ryzen 7 9700X OEM Pack Processor with Radeon Graphics 8 Cores, 16 Threads


AMD Ryzen 7 9700X OEM processor features 8 cores and 16 threads with a base clock of 3.8 GHz and a max boost clock up to 5.5 GHz.

It includes 640 KB L1, 8 MB L2, 32 MB L3 cache, a default TDP of 65 W, uses the AM5 socket, and supports DDR5 memory up to 256 GB across two channels.

Integrated AMD Radeon™ Graphics provides 2 cores at 2.2 GHz, PCIe 5.0 connectivity, and the chip is backed by a 3‑year warranty.

Specifications

General Specifications Name: AMD Ryzen 7 9700X Family: Ryzen Series: Ryzen 9000 Series Form Factor: Desktops Market Segment: Enthusiast Desktop Regional Availability: Global Former Codename: Granite Ridge AM5 Architecture: Zen 5 # of CPU Cores: 8 Multithreading (SMT): Yes # of Threads: 16 Max. Boost Clock : Up to 5.5 GHz Base Clock : 3.8 GHz L1 Cache: 640 KB L2 Cache: 8 MB L3 Cache: 32 MB Default TDP: 65W Processor Technology for CPU Cores: TSMC 4nm FinFET Processor Technology for I/O Die: TSMC 6nm FinFET Package Die Count: 2 Unlocked for Overclocking : Yes AMD EXPO Memory Overclocking Technology: Yes Precision Boost Overdrive: Yes Curve Optimizer Voltage Offsets: Yes AMD Ryzen Master Support: Yes CPU Socket: AM5 Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology: Precision Boost 2 Instruction Set: x86-64 Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB): Not Included Recommended Cooler: Premium air cooler recommended for optimal performance Max. Operating Temperature (Tjmax): 95°C *OS Support: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity Native USB 3.2 Gen 2 (10Gbps) Ports: 4 Native USB 2.0 (480Mbps) Ports: 1 PCI Express® Version: PCIe® 5.0 Native PCIe® Lanes (Total/Usable): 28 , 24 Additional Usable PCIe Lanes from Motherboard X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 NVMe Support: Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type: DDR5 Memory Channels: 2 Max. Memory: 256 GB System Memory Subtype: UDIMM Max Memory Speed 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support: Yes (Requires mobo support)
Graphics Capabilities Graphics Model: AMD Radeon™ Graphics Graphics Core Count: 2 Graphics Frequency: 2200 MHz USB Type-C® DisplayPort™ Alternate Mode: Yes
Key Features AMD EXPO Technology AMD Ryzen Technologies
Warranty 3 Years
Note* Price, features and specifications are subject to change without notice.

Key Features

  • 8 Cores, 16 Threads: Up to 5.5 GHz Max Boost Clock on Zen 5 Architecture
  • High-Speed Memory: Supports DDR5 up to 256 GB with AMD EXPO Technology
  • PCIe 5.0 Support: 24 Usable PCIe Lanes for high-speed peripherals
  • Integrated Graphics: AMD Radeon Graphics with 2 Cores and 2200 MHz Frequency
  • Warranty: 3-Year Limited Warranty
  • Package: OEM Pack (Cooler Not Included)
SKU: 1090625 Category:
General Specifications Name: AMD Ryzen 7 9700X Family: Ryzen Series: Ryzen 9000 Series Form Factor: Desktops Market Segment: Enthusiast Desktop Regional Availability: Global Former Codename: Granite Ridge AM5 Architecture: Zen 5 # of CPU Cores: 8 Multithreading (SMT): Yes # of Threads: 16 Max. Boost Clock : Up to 5.5 GHz Base Clock : 3.8 GHz L1 Cache: 640 KB L2 Cache: 8 MB L3 Cache: 32 MB Default TDP: 65W Processor Technology for CPU Cores: TSMC 4nm FinFET Processor Technology for I/O Die: TSMC 6nm FinFET Package Die Count: 2 Unlocked for Overclocking : Yes AMD EXPO Memory Overclocking Technology: Yes Precision Boost Overdrive: Yes Curve Optimizer Voltage Offsets: Yes AMD Ryzen Master Support: Yes CPU Socket: AM5 Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology: Precision Boost 2 Instruction Set: x86-64 Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB): Not Included Recommended Cooler: Premium air cooler recommended for optimal performance Max. Operating Temperature (Tjmax): 95°C *OS Support: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity Native USB 3.2 Gen 2 (10Gbps) Ports: 4 Native USB 2.0 (480Mbps) Ports: 1 PCI Express® Version: PCIe® 5.0 Native PCIe® Lanes (Total/Usable): 28 , 24 Additional Usable PCIe Lanes from Motherboard X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 NVMe Support: Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type: DDR5 Memory Channels: 2 Max. Memory: 256 GB System Memory Subtype: UDIMM Max Memory Speed 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support: Yes (Requires mobo support)
Graphics Capabilities Graphics Model: AMD Radeon™ Graphics Graphics Core Count: 2 Graphics Frequency: 2200 MHz USB Type-C® DisplayPort™ Alternate Mode: Yes
Key Features AMD EXPO Technology AMD Ryzen Technologies
Warranty 3 Years
Note* Price, features and specifications are subject to change without notice.
