| Name |

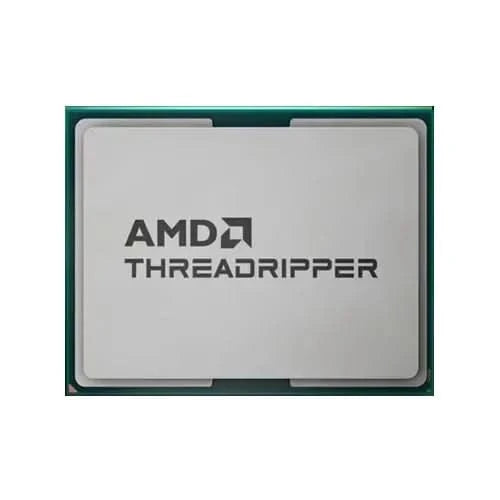

AMD Ryzen™ Threadripper™ 9960X |
| Family |
Ryzen Threadripper |
| Series |
Ryzen Threadripper 9000 Series |
| Form Factor |
Desktops |
| Market Segment |
Enthusiast Desktop |
| AMD PRO Technologies |
No |
| Regional Availability |
Global |
| Former Codename |
Shimada Peak |
| Processor Architecture |
Zen 5 |
| # of CPU Cores |
24 |
| Multithreading (SMT) |
Yes |
| # of Threads |
48 |
| Max. Boost Clock |
Up to 5.4 GHz |
| Base Clock |
4.2 GHz |
| L1 Cache |
1920 KB |
| L2 Cache |
24 MB |
| L3 Cache |
128 MB |
| Default TDP |
350W |
| Processor Technology for CPU Cores |
TSMC 4nm FinFET |
| Processor Technology for I/O Die |
TSMC 6nm FinFET |
| Package Die Count |
5 |
| Unlocked for Overclocking |
Yes |
| AMD EXPO™ Memory Overclocking Technology |
Yes |
| Precision Boost Overdrive |
Yes |
| Curve Optimizer Voltage Offsets |
Yes |
| CPU Socket |
sTR5 |
| Supporting Chipsets |
TRX50 |
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set |
x86-64 |
| Supported Extensions |
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) |
Not Included |
| Max. Operating Temperature (Tjmax) |
95°C |
| *OS Support |
Windows 11 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 10 – 64-Bit Edition |
| Native USB 3.2 Gen 2 (10Gbps) |
4 |
| Native SATA Ports |
2 |
| PCI Express® Version |
PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) |
92, 88 |
| NVMe Support |
Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Type |
DDR5 |
| Memory Channels |
4 |
| System Memory Subtype |
RDIMM |
| System Memory Specification |
Up to 6400 MT/s |
| ECC Support |
Yes (Default Enabled) |
| Graphics Model |
Discrete Graphics Card Required |
| DASH Support |
Yes |
| AMD Memory Guard |
Yes |
| AMD Secure Processor Support |
Yes |
| Windows Secure Boot Support |
Yes |
| UEFI Secure Boot Support |
Yes |
| Windows Device Guard Support |
Yes |
| Guest Mode Execution (GMET) Trap Support |
Yes |
| Virtualization-Based Security (VBS) Support |
Yes |
| Windows Secured-Core PC Support |
Yes |
| Firmware TPM |
Yes |
| AMD-V (SVM) Support |
Yes |
| AMD-V Nested Paging (RVI) Support |
Yes |
| AMD AVIC (Interrupt Virtualization) Support |
Yes |
| AMD-Vi (I/O MMU Virtualization) Support |
Yes |
| Second Level Address Translation (SLAT) Supported |
Yes |
| Advanced Encryption Standard New Instructions (AES-NI) |
Yes |
| AMD Enhanced Virus Protection (NX bit) |
Yes |
| FIPS Certification |
In Review |
| Supported Technologies |
AMD EXPO™ Technology , AMD Ryzen™ Technologies |
| Warranty |
3 Years |
| Note** |
**Prices, Specifications & Features are subject to change without notice |
