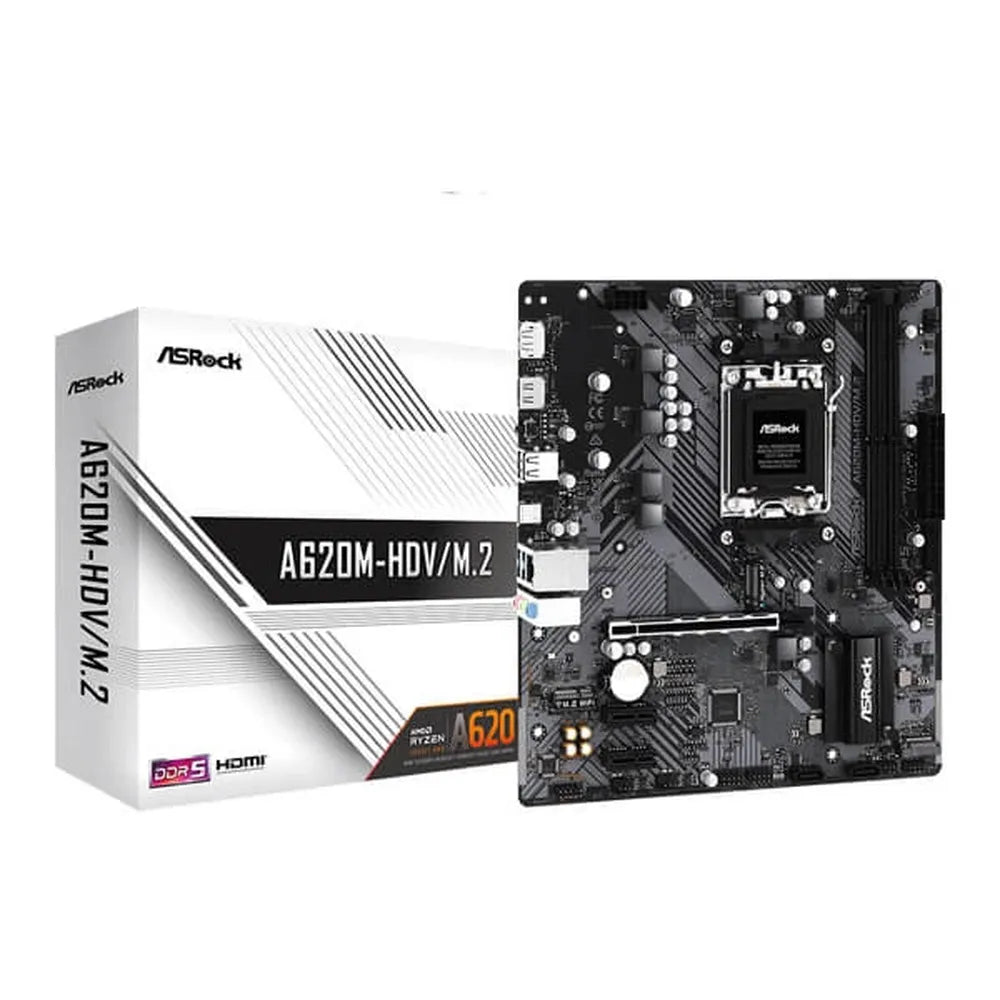

ASROCK A620M-HDV/M.2 DDR5 MOTHERBOARD
ASROCK A620M-HDV/M.2 DDR5 MOTHERBOARD - Image 2

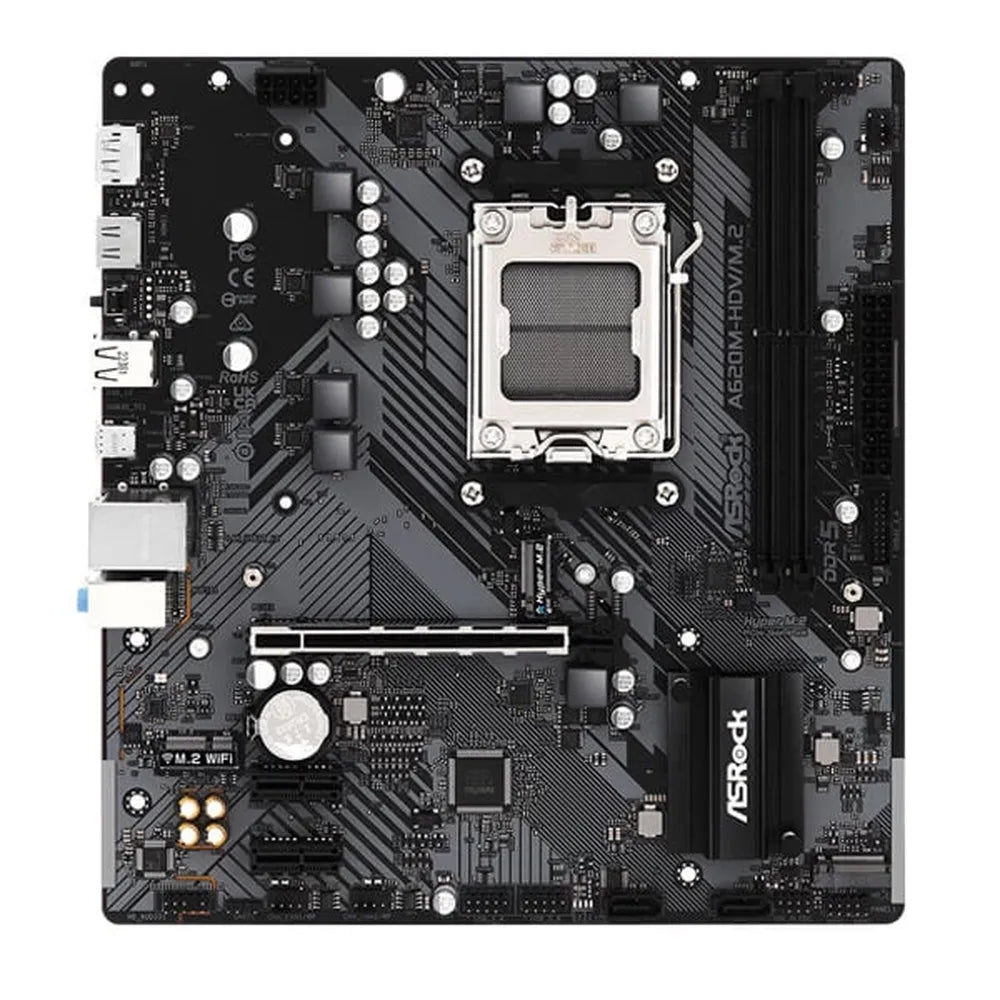

ASROCK A620M-HDV/M.2 DDR5 MOTHERBOARD - Image 3

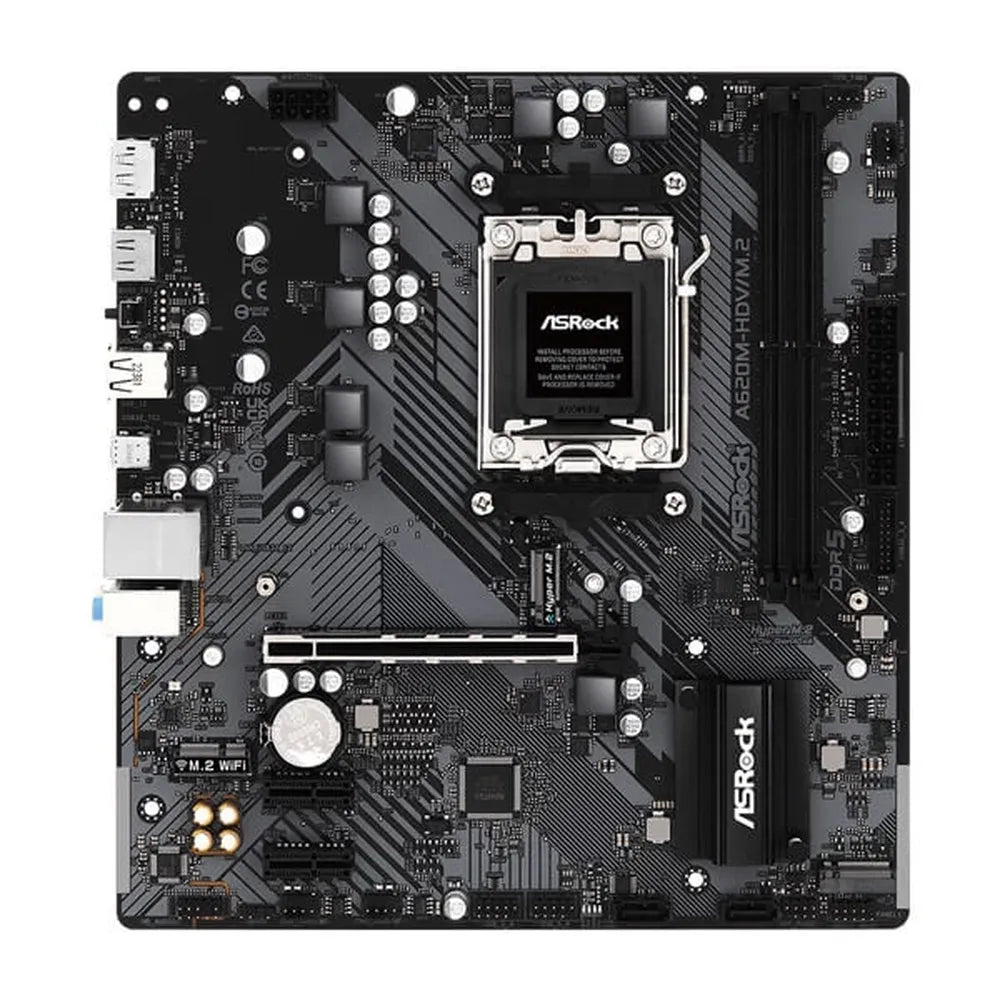

ASROCK A620M-HDV/M.2 DDR5 MOTHERBOARD - Image 4

ASROCK A620M-HDV/M.2 DDR5 MOTHERBOARD

Compare

CPU: Supports AMD Socket AM5 Ryzen 7000, 8000, and 9000 series processors (refer to ASRock CPU support list). Chipset: AMD A620.

Memory: Dual‑channel DDR5, 2 × DIMM slots, up to 128 GB, 6400+ MHz (OC) with XMP/EXPO support. BIOS: 256 MB AMI UEFI.

Graphics: Integrated AMD RDNA graphics (varies by CPU) with 1 × HDMI 2.1 (4K 120 Hz) and 1 × DisplayPort 1.4 (4K 120 Hz). Audio: 7.1‑channel HD audio via Realtek ALC897 codec.

LAN: Realtek RTL8111H Gigabit Ethernet. Expansion: 1 × PCIe 4.0 ×16 slot, 2 × PCIe 3.0 ×1 slots, M.2 slots: one PCIe 4.0 ×4 (Key M, 2280), one PCIe 3.0 ×2/SATA (Key M, 2260/2280), one Key E (2230) for Wi‑Fi/BT, and 2 × SATA III connectors.

Specifications

Unique Feature Superb Productivity: Dual Channel DDR5 Rock-Solid Durability: 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer EZ Troubleshooter: ASRock Post Status Checker
CPU Supports AMD Socket AM5 Ryzen„ 9000, 8000, and 7000 Series Processors* *Refer to CPU Support List on ASRock’s website for more information.
Chipset AMD A620
Memory Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) Max capacity: 128GB Supports XMP and EXPO memory modules
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Integrated AMD RDNA„ graphics (varies by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, max resolution: 4K 120Hz 1 x DisplayPort 1.4, max resolution: 4K 120Hz
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
LAN Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H)
Slots CPU: 1 x PCIe 4.0 x16 Slot (supports x16 mode) Chipset: 2 x PCIe 3.0 x1 Slots, 1 x M.2 Socket (Key E, supports type 2230 WiFi/BT PCIe module)
Storage CPU: 1 x Hyper M.2 Socket (Key M, type 2280 PCIe Gen4x4 mode) Chipset: 1 x M.2 Socket (Key M, type 2260/2280 SATA3 & PCIe Gen3x2 modes), 2 x SATA3 6.0 Gb/s Connectors
RAID Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, 1, and 10 for M.2 NVMe storage devices
USB 1 x USB 3.2 Gen1 Type-C (Rear) 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)
Connector 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin) 3 x Chassis/Water Pump Fan Connectors (4-pin, Smart Fan Speed Control) 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector

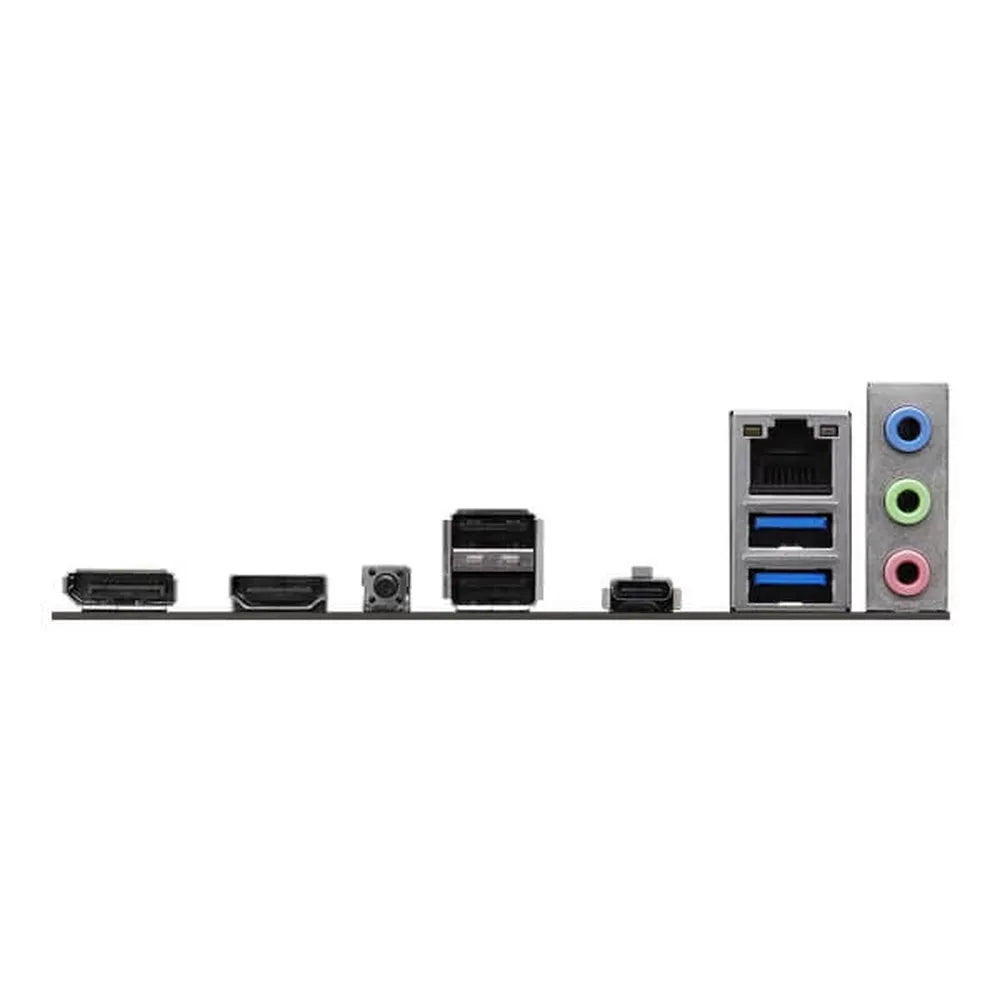

Rear Panel I/O 2 x Antenna Mounting Points 1 x HDMI Port, 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button HD Audio Jacks (Line in, Front Speaker, Microphone)
Software and UEFI ASRock Motherboard Utility (A-Tuning), ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash
Accessories 1 x User Manual, 1 x I/O Shield 2 x SATA Data Cables, 3 x Screws for M.2 Sockets
Form Factor Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm, 2oz Copper PCB
OS Microsoft Windows 10 64-bit / 11 64-bit
Certifications FCC, CE, ErP/EuP ready (ErP/EuP power supply required)

Key Features

  • CPU Compatibility: Supports AMD Socket AM5 Ryzen 7000, 8000 and 9000 series processors.
  • Memory Support: Dual‑Channel DDR5 up to 128 GB (2 × DIMM), speeds up to 6400+ MHz (OC) with XMP and EXPO profiles.
  • PCIe Expansion: AMD A620 chipset with 1 × PCIe 4.0 x16 slot (x16 mode) and 2 × PCIe 3.0 x1 slots.
  • High‑Speed Storage: 1 × PCIe 4.0 x4 M.2 slot, 1 × PCIe 3.0 x2 M.2 slot, plus 2 × SATA3 6 Gb/s connectors; RAID 0/1 (SATA) and RAID 0/1/10 (NVMe) support.
  • Connectivity: HDMI 2.1 and DisplayPort 1.4 (4K 120 Hz), 1 × USB 3.2 Gen1 Type‑C rear, 4 × USB 3.2 Gen1 Type‑A, 6 × USB 2.0, and Gigabit LAN (Realtek RTL8111H).
  • Power Delivery & Durability: 4+1+1 power phase design with 50 A Dr.MOS for VCore, 2 oz copper PCB.
  • Cooling & Fan Control: 3 × 4‑pin chassis/water‑pump fan connectors with Smart Fan Speed Control.
  • Convenient Utilities: BIOS Flashback button, ASRock Auto Driver Installer, and EZ troubleshooting tools.
SKU: 1088663 Category:
Unique Feature Superb Productivity: Dual Channel DDR5 Rock-Solid Durability: 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer EZ Troubleshooter: ASRock Post Status Checker
CPU Supports AMD Socket AM5 Ryzen„ 9000, 8000, and 7000 Series Processors* *Refer to CPU Support List on ASRock’s website for more information.
Chipset AMD A620
Memory Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) Max capacity: 128GB Supports XMP and EXPO memory modules
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Integrated AMD RDNA„ graphics (varies by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, max resolution: 4K 120Hz 1 x DisplayPort 1.4, max resolution: 4K 120Hz
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
LAN Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H)
Slots CPU: 1 x PCIe 4.0 x16 Slot (supports x16 mode) Chipset: 2 x PCIe 3.0 x1 Slots, 1 x M.2 Socket (Key E, supports type 2230 WiFi/BT PCIe module)
Storage CPU: 1 x Hyper M.2 Socket (Key M, type 2280 PCIe Gen4x4 mode) Chipset: 1 x M.2 Socket (Key M, type 2260/2280 SATA3 & PCIe Gen3x2 modes), 2 x SATA3 6.0 Gb/s Connectors
RAID Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, 1, and 10 for M.2 NVMe storage devices
USB 1 x USB 3.2 Gen1 Type-C (Rear) 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front)
Connector 1 x Power LED and Speaker Header 1 x CPU Fan Connector (4-pin) 3 x Chassis/Water Pump Fan Connectors (4-pin, Smart Fan Speed Control) 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector
Rear Panel I/O 2 x Antenna Mounting Points 1 x HDMI Port, 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button HD Audio Jacks (Line in, Front Speaker, Microphone)
Software and UEFI ASRock Motherboard Utility (A-Tuning), ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash
Accessories 1 x User Manual, 1 x I/O Shield 2 x SATA Data Cables, 3 x Screws for M.2 Sockets
Form Factor Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm, 2oz Copper PCB
OS Microsoft Windows 10 64-bit / 11 64-bit
Certifications FCC, CE, ErP/EuP ready (ErP/EuP power supply required)
